The Pinecone

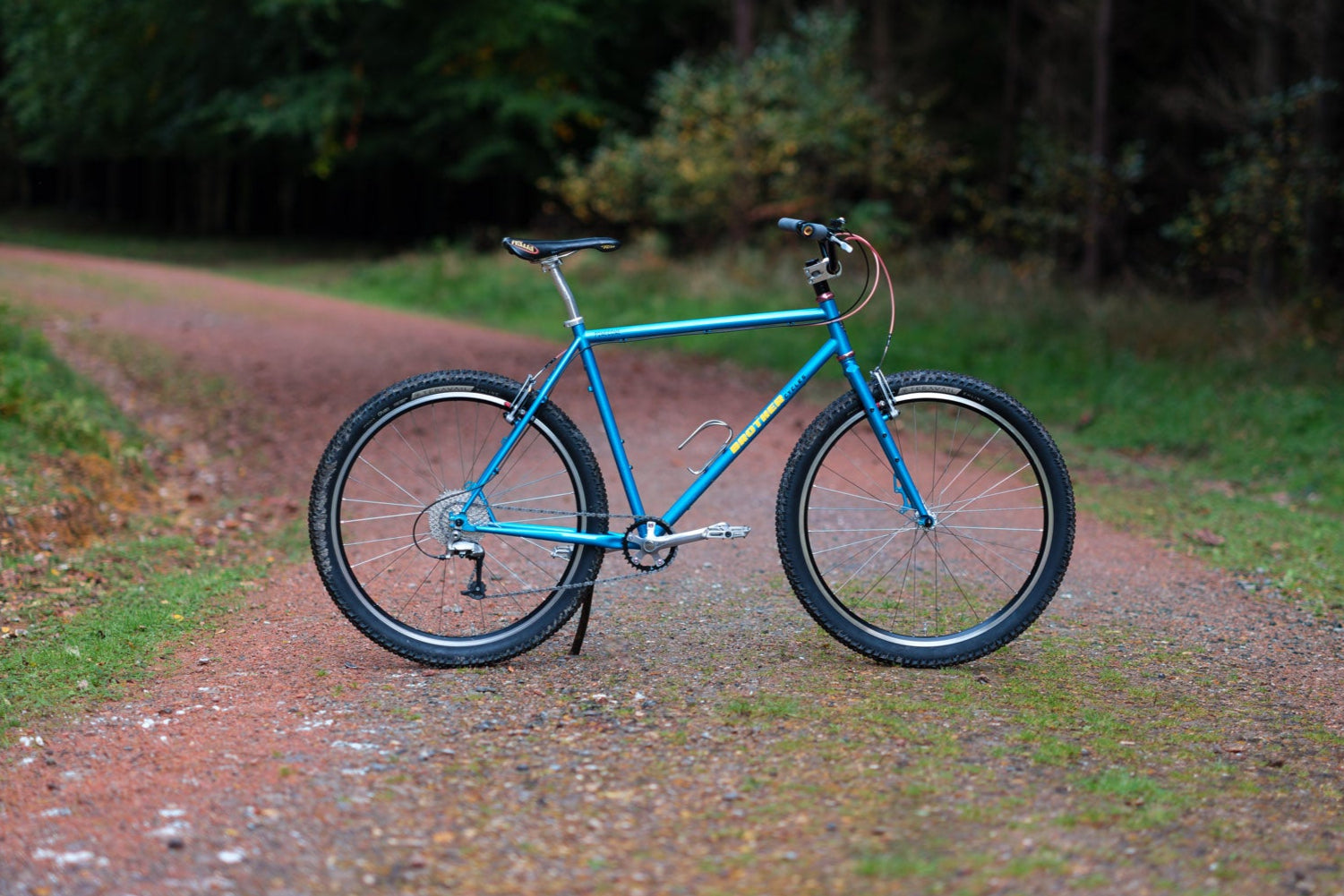

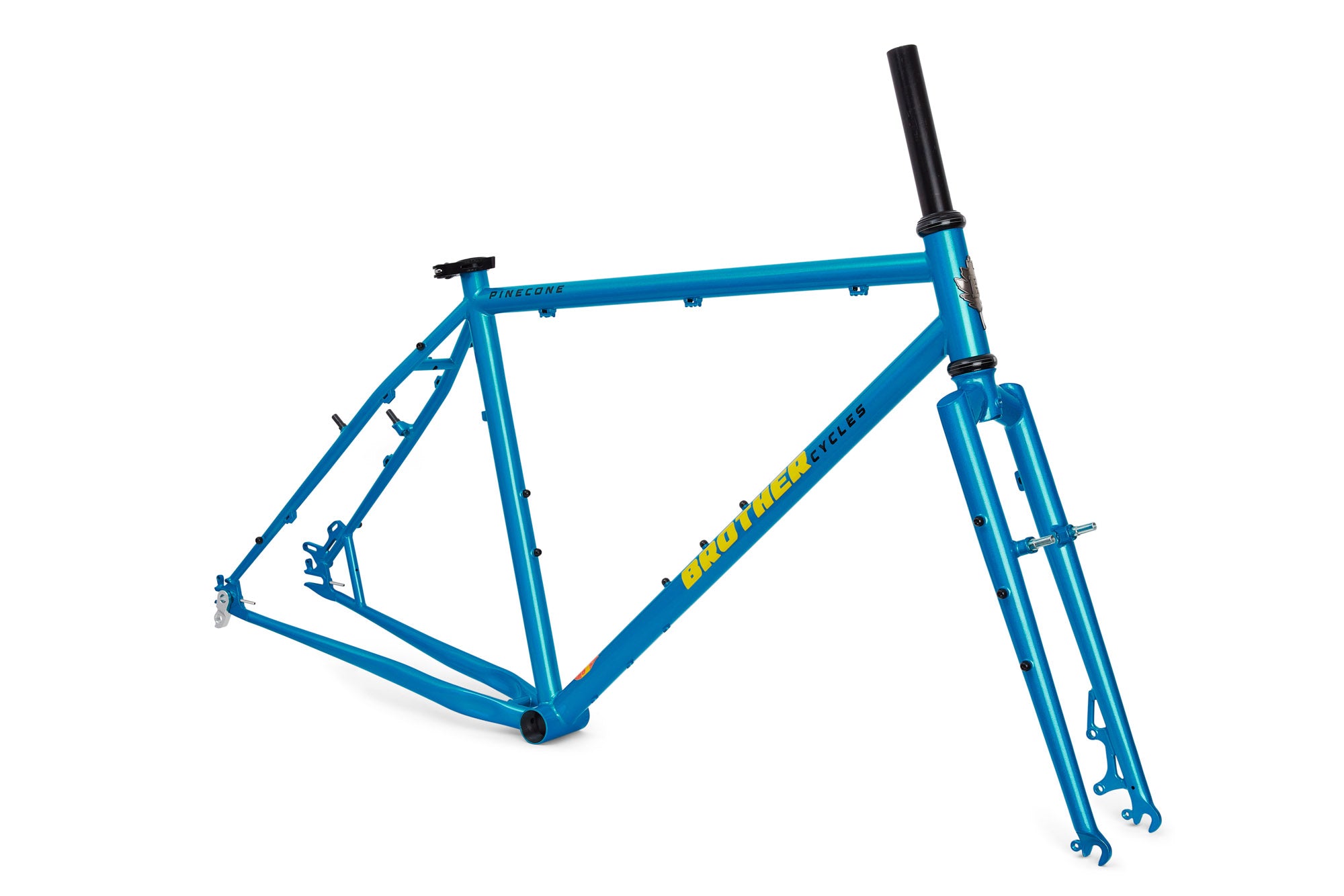

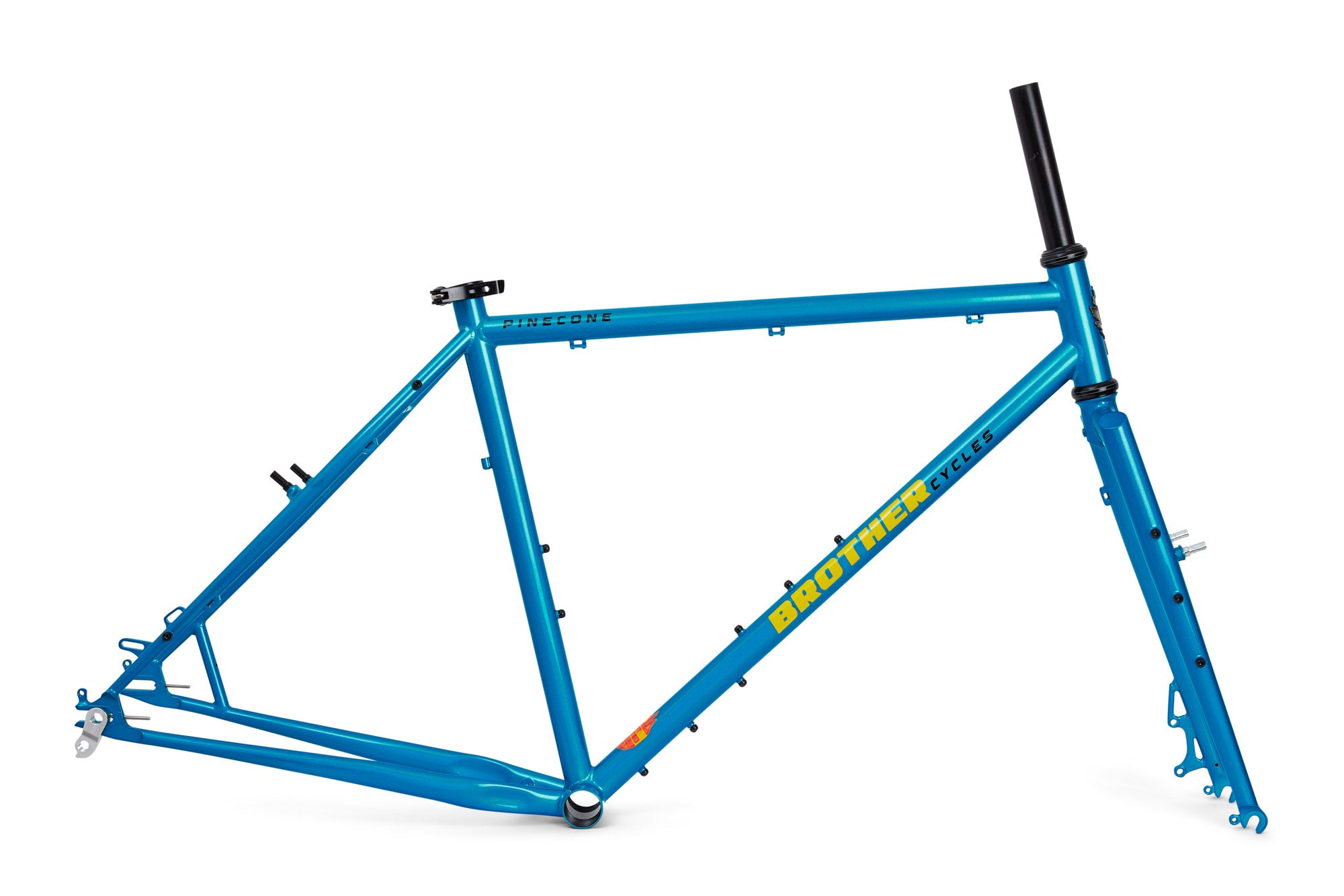

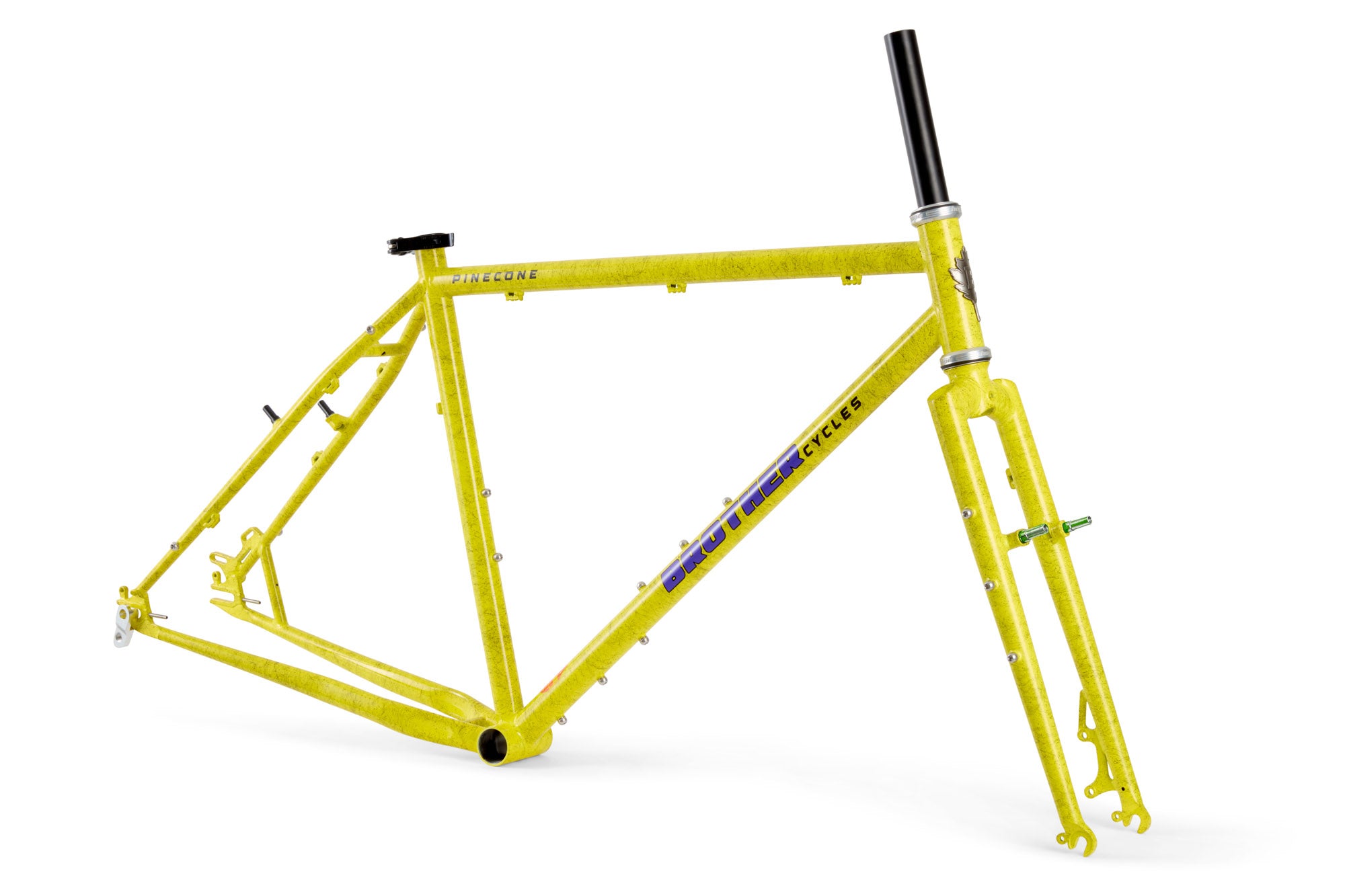

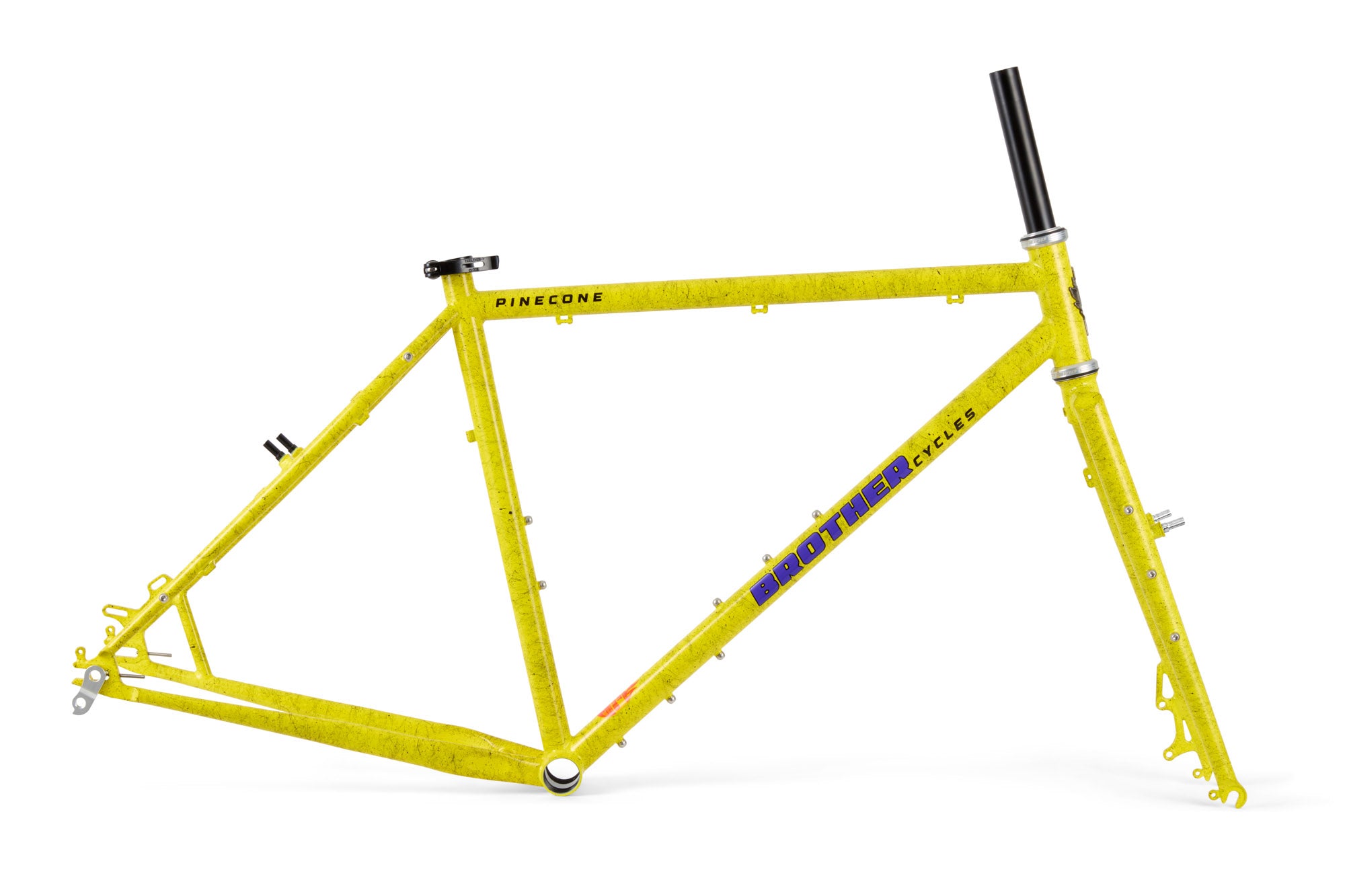

The Pinecone is the brand-new, all-steel, all-terrain bike from Brother Cycles. Drawing inspiration from the retro mountain bikes of the ’80s and ’90s, and blending them with modern features, it’s the ultimate do-it-all machine.
Sure, it makes a killer pub bike – but trust it on longer adventures and you’ll find a capable, all-terrain ride that’ll keep you smiling all day long.
Geometry & Ride Feel
-

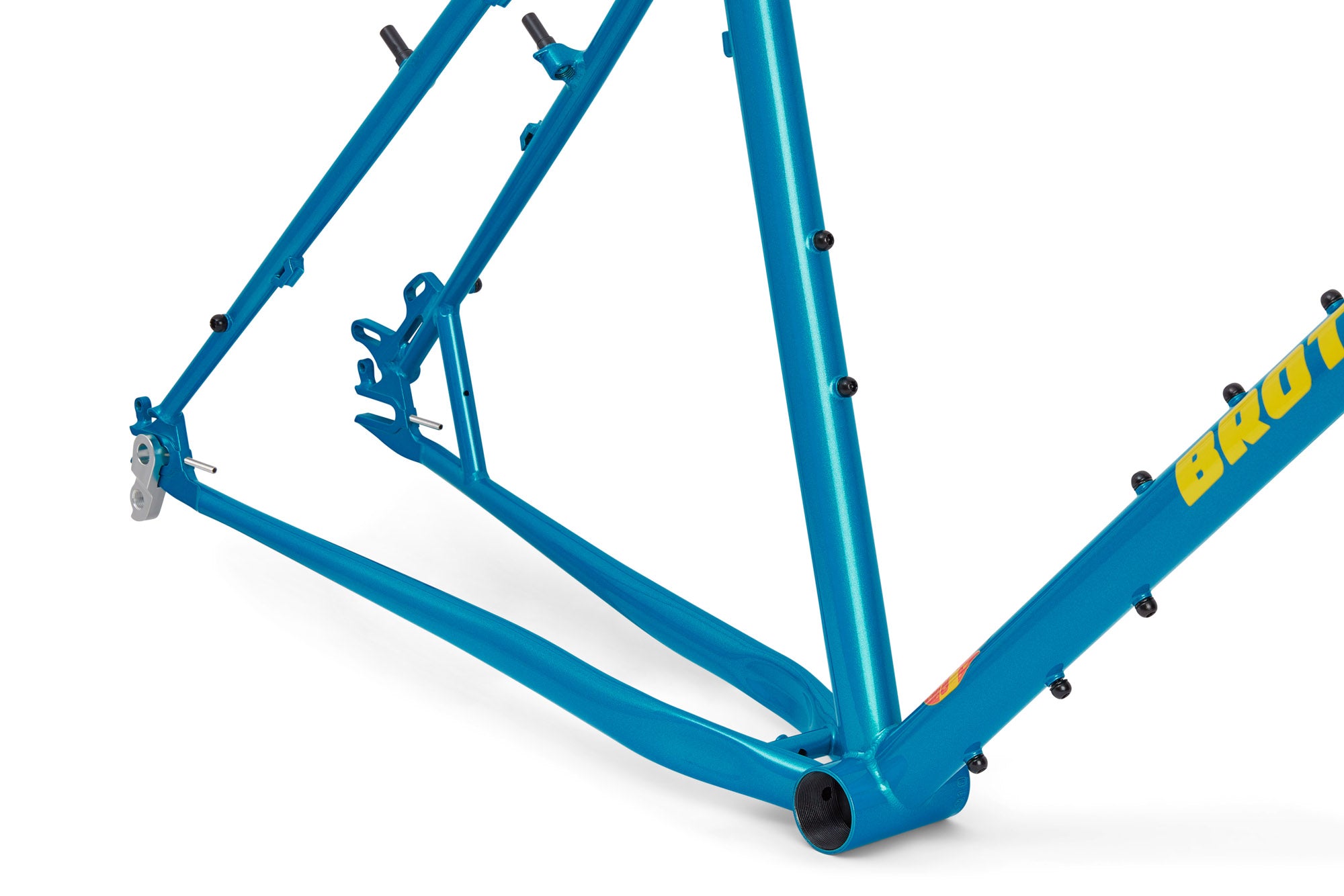

Chainstays: 440mm – short and nimble for trail fun, yet stable for longer rides
-
Head angle: 70° – slack enough for varied terrain, steady enough for distance
-

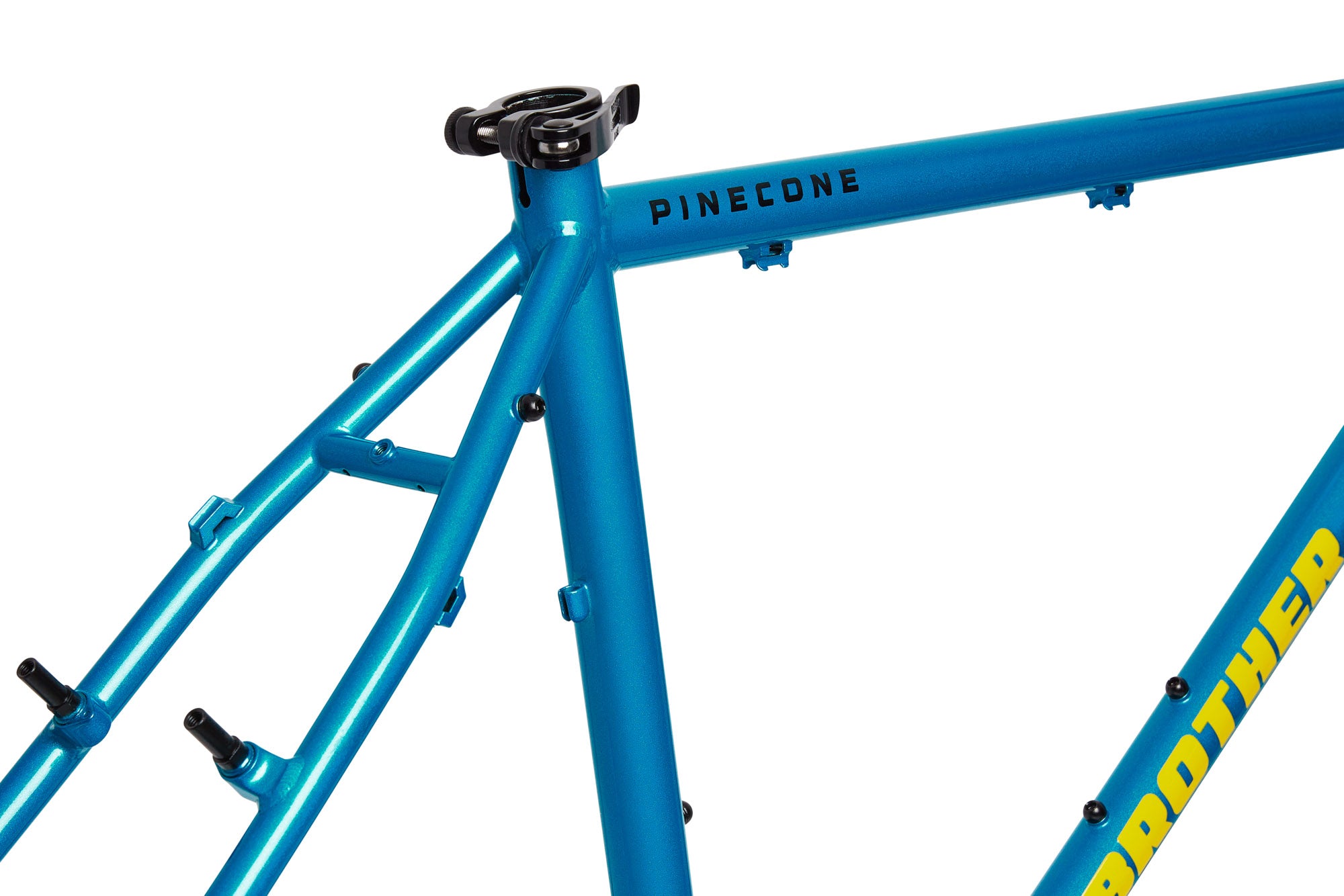

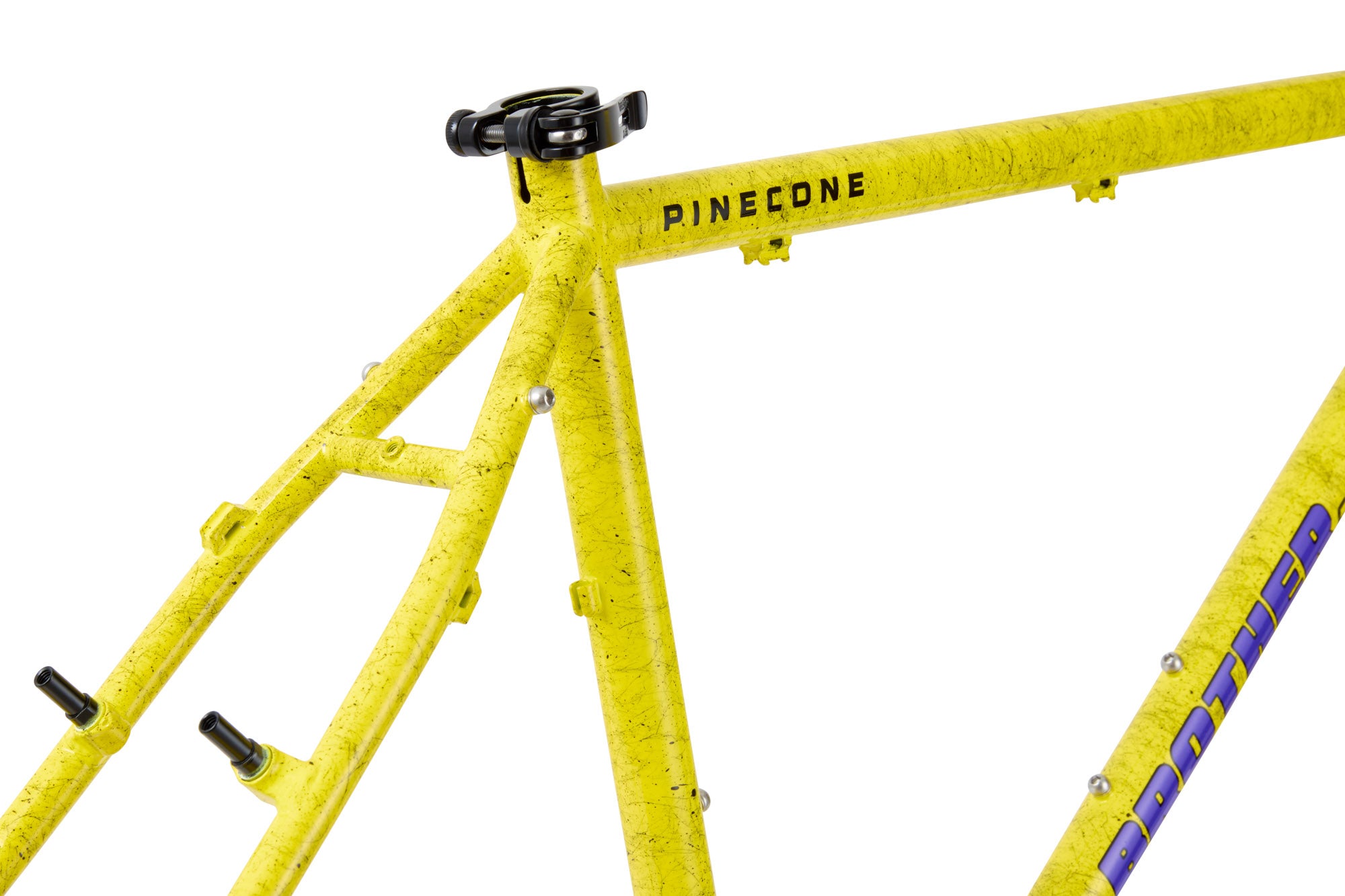

Tubing: skinny, heat-treated chromo steel – “Extra Tough,” with the right flex for a forgiving feel on rough ground
Retro Vibes, Modern Versatility
-

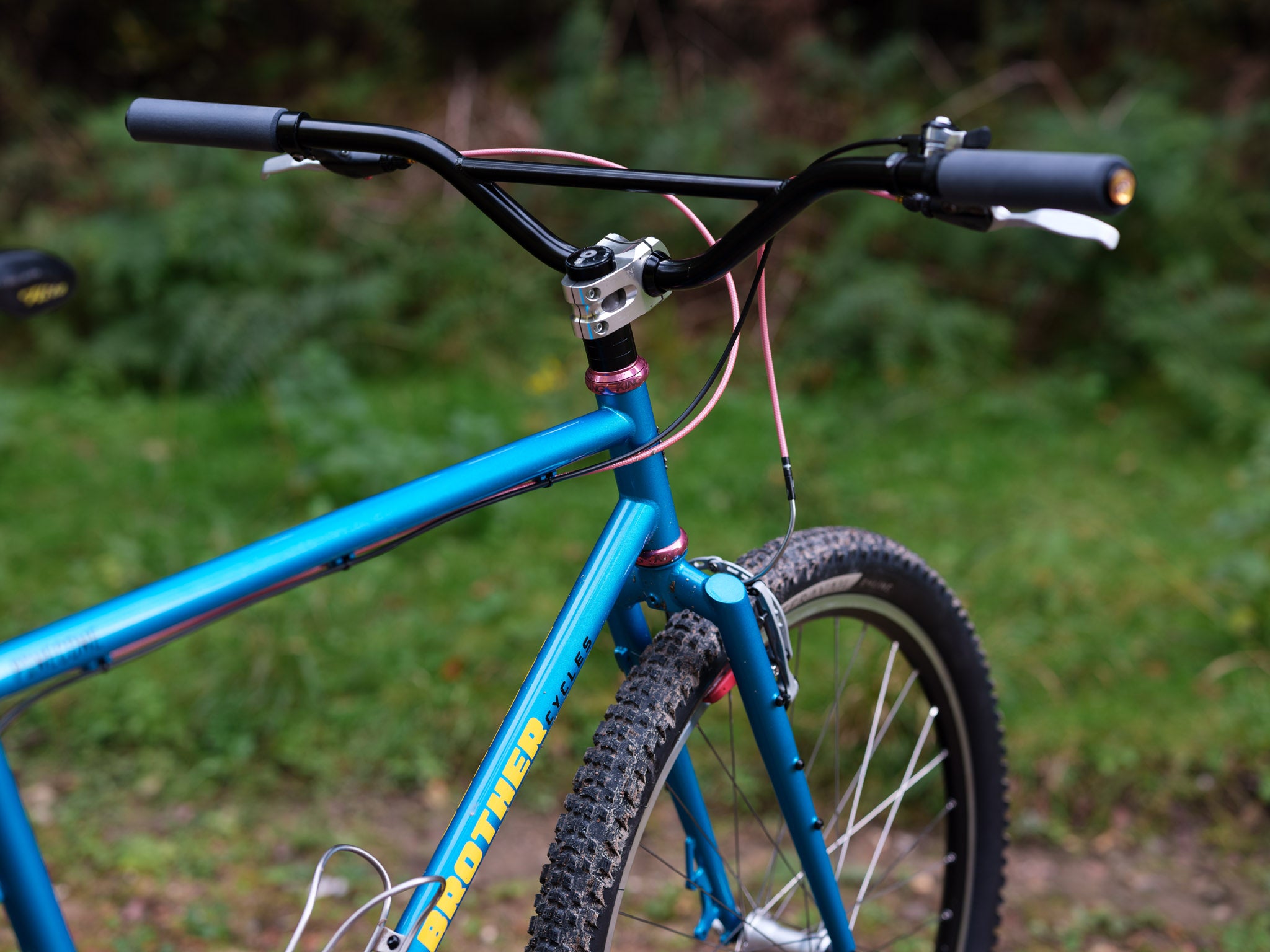

Quick release dropouts, 1 1/8” headtube, and relatively level top tube for classic MTB character
-
Designed for 650b wheels with clearance up to 2.6" tyres (depending on brake setup)
-

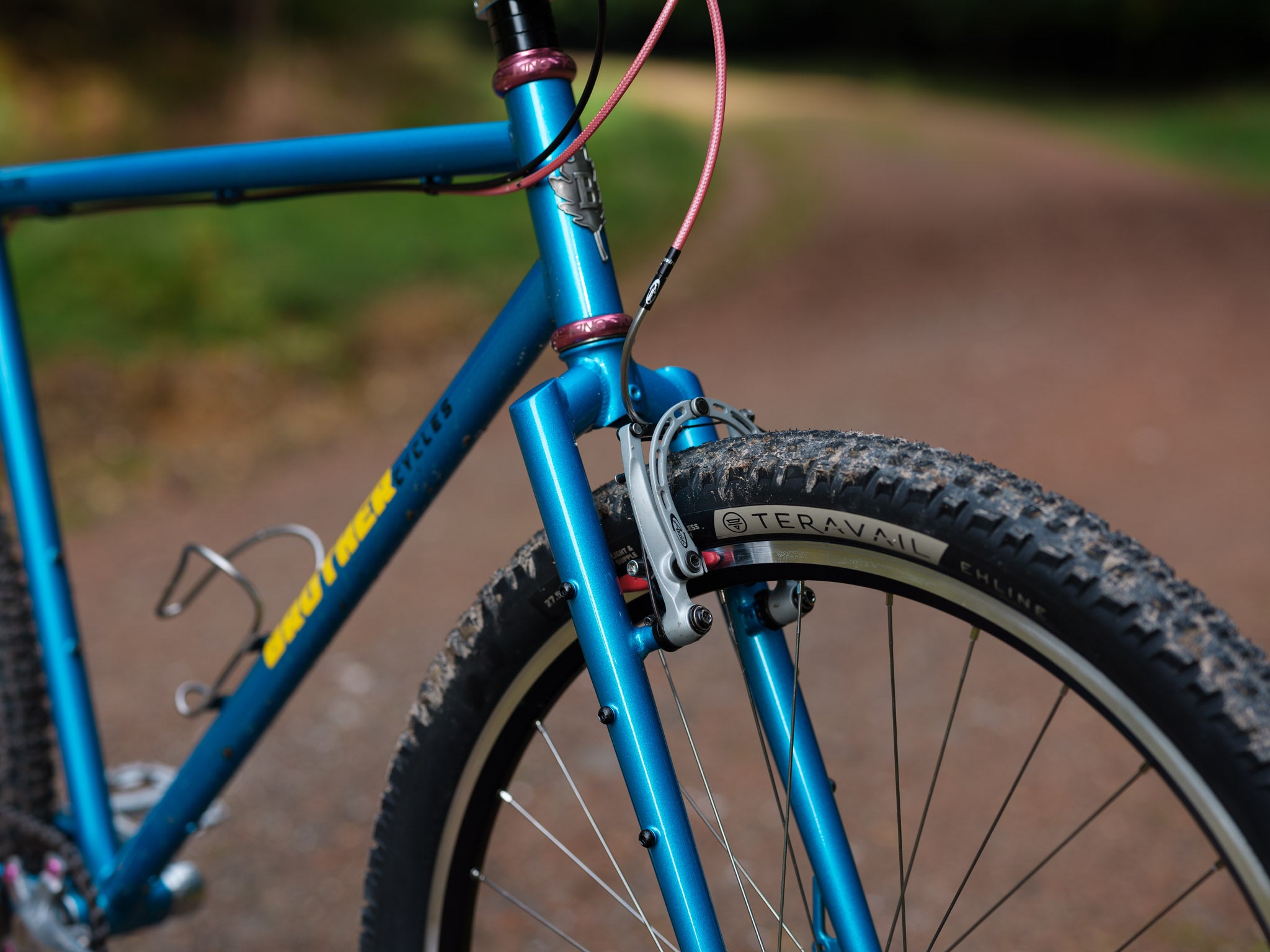

Rim + Disc brake mounts – run v-brakes if you love them, or discs for strength and reliability
-
Compatible with multiple wheel sizes – 650b, 700c, even 26"
Details & Features
-

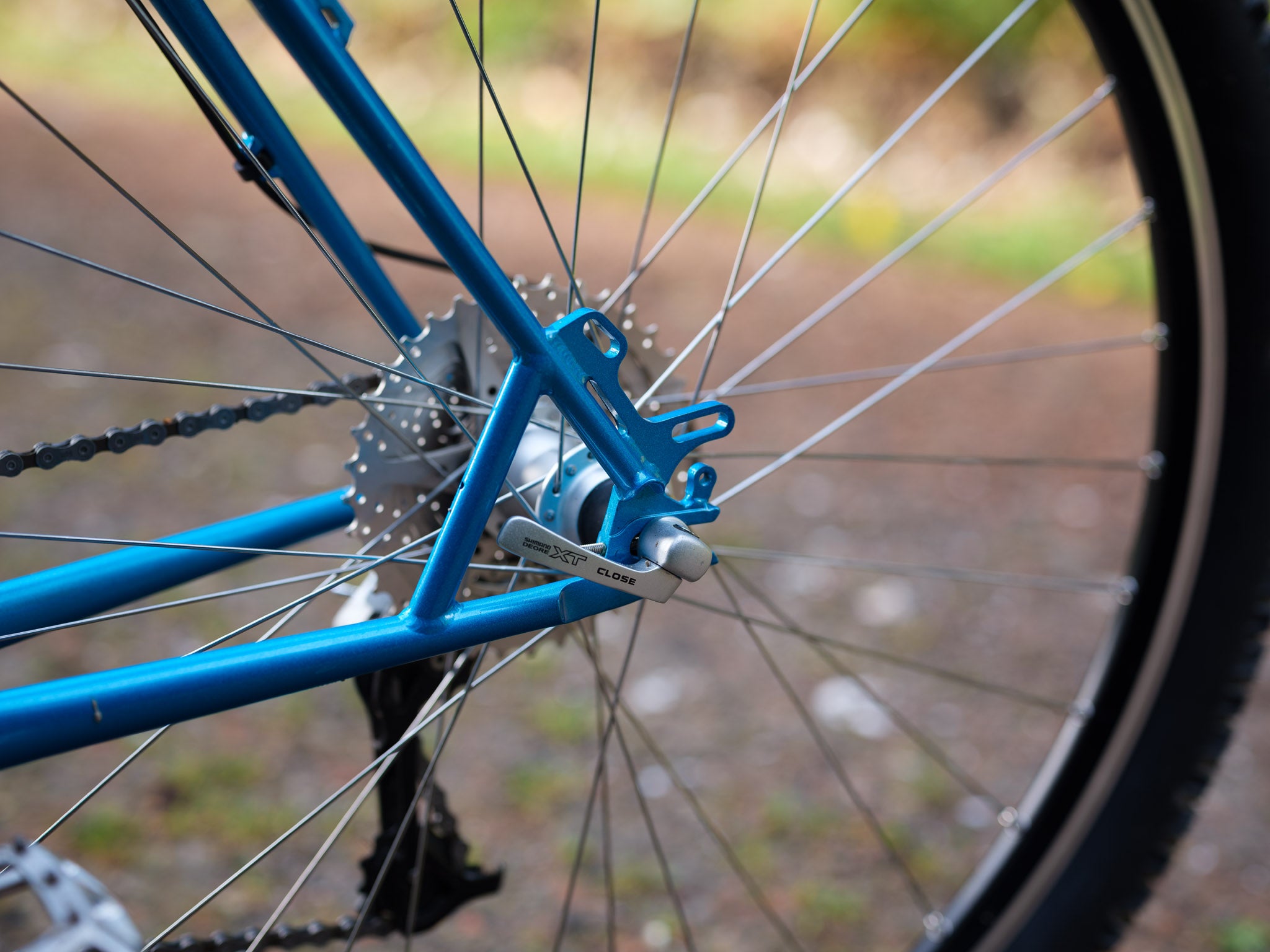

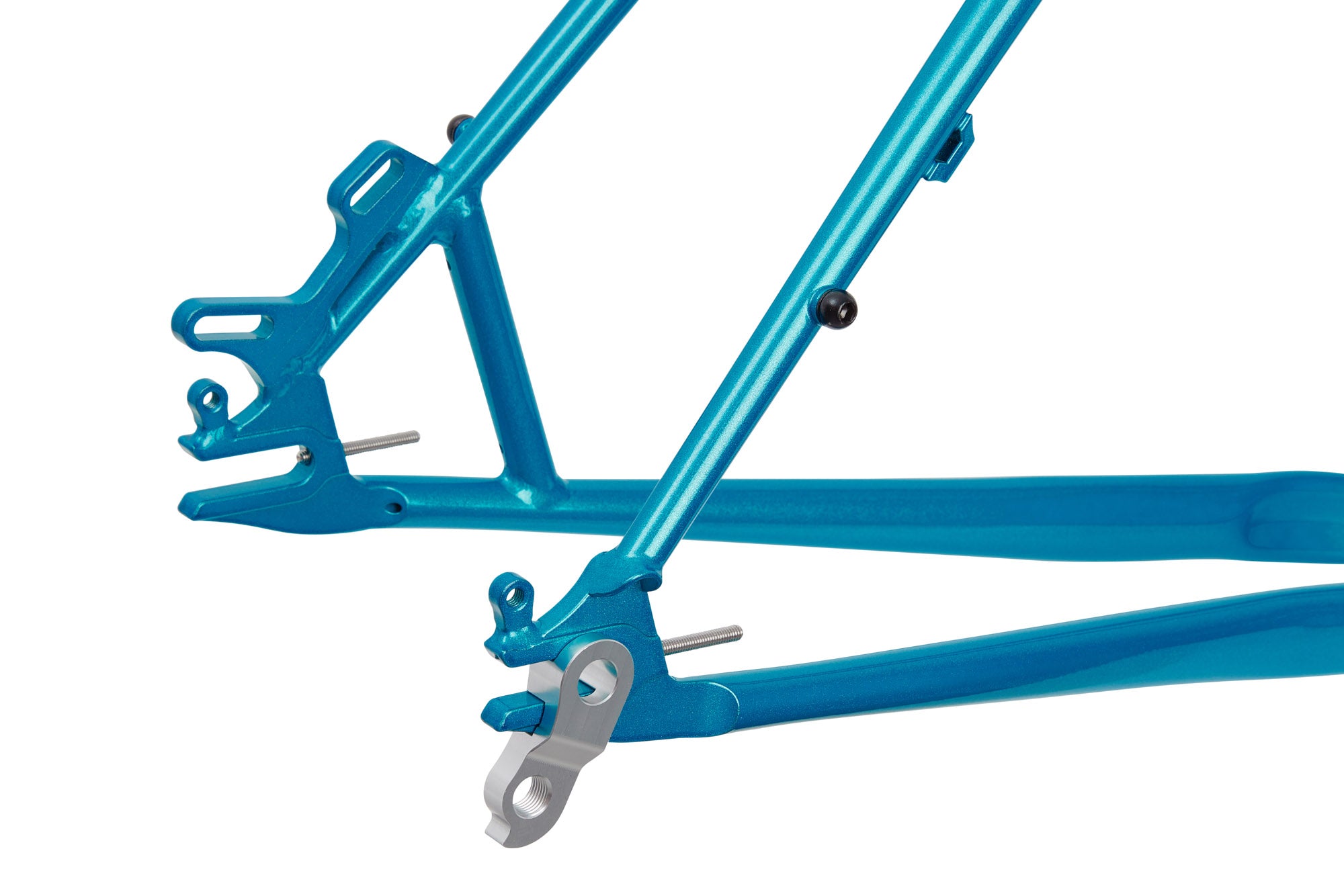

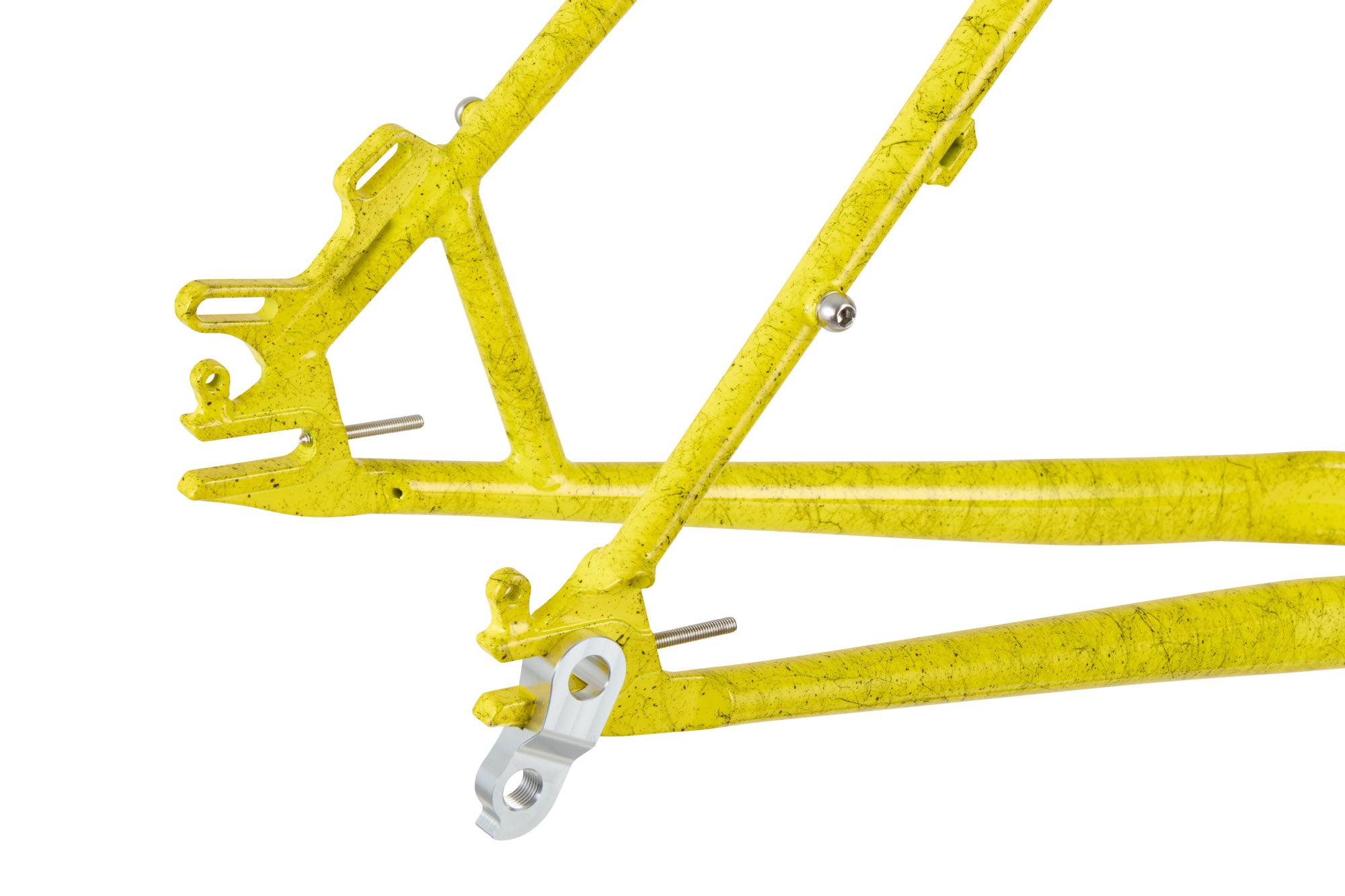

Horizontal rear dropouts allow for easy single-speed setup
-
Supplied with derailleur hanger insert if you’d rather run gears
-
Segmented steel fork with triple mounts on each blade for bottles, cargo, or Anything Cages
-
Built to accept both new and second-hand components – dust off that old XT groupset or retro v-brakes and mix them with modern kit
Inspiration
We designed the Pinecone to be versatile, practical, and fun.
| Size | Small | Medium | Large | XLarge |
|---|---|---|---|---|
| Seat Tube (C-T) | 450mm | 500mm | 550mm | 600mm |
| Top Tube (C-C) | 539mm | 563mm | 584mm | 606mm |
| Top Tube (Effective) | 564mm | 584mm | 599mm | 614mm |
| Head Tube | 100mm | 115mm | 130mm | 155mm |
| Head Angle | 70° | 70° | 70° | 70° |
| Seat Angle | 72° | 72° | 72° | 72° |
| BB Drop | 55mm | 55mm | 55mm | 55mm |
| Chainstay (minimum) | 440mm | 440mm | 440mm | 440mm |
| Fork Length (A-C) | 420mm | 420mm | 420mm | 420mm |
| Fork Rake | 45mm | 45mm | 45mm | 45mm |
| Stack | 538mm | 553mm | 567mm | 590mm |
| Reach | 389mm | 405mm | 415mm | 422mm |
| Wheelbase (minimum) | 1049mm | 1070mm | 1086mm | 1102mm |
