Brother Cycles The Allday Frameset

Finance options available with:

Availability & Ordering
We list all framesets currently available from Brother Cycles as “in stock.” While we have a few on hand, most orders will be fulfilled via special order with approximately 14-day delivery.

To confirm ETA or any other questions, get in touch:
shop@bicyclejunction.co.nz | 04 385 2362

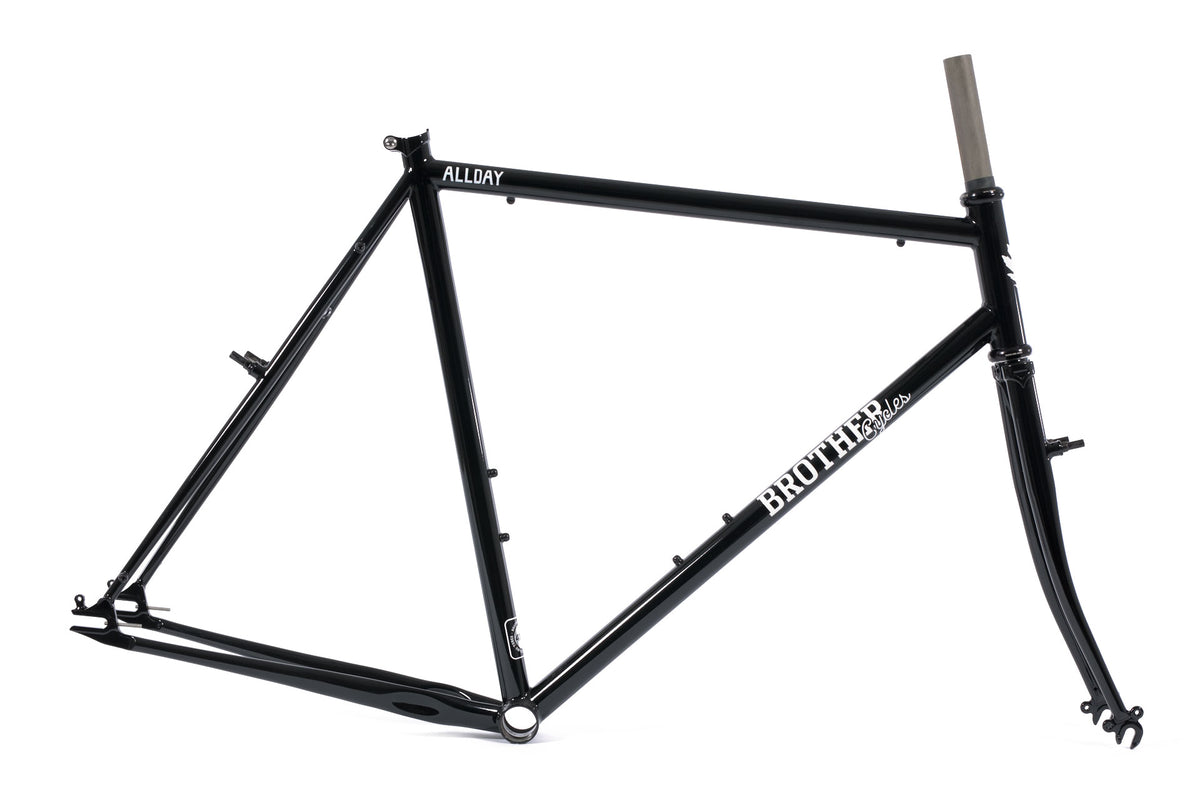

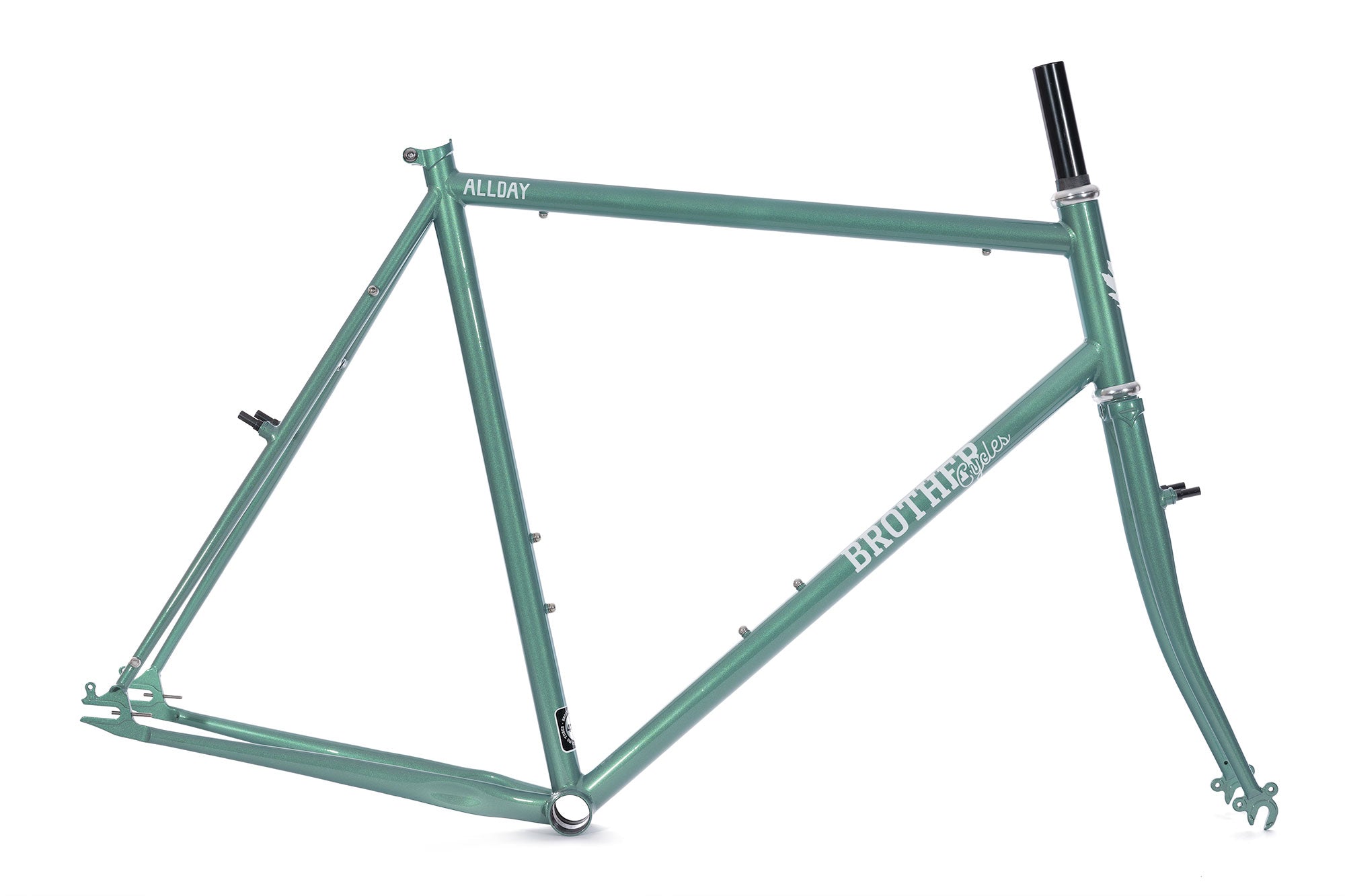

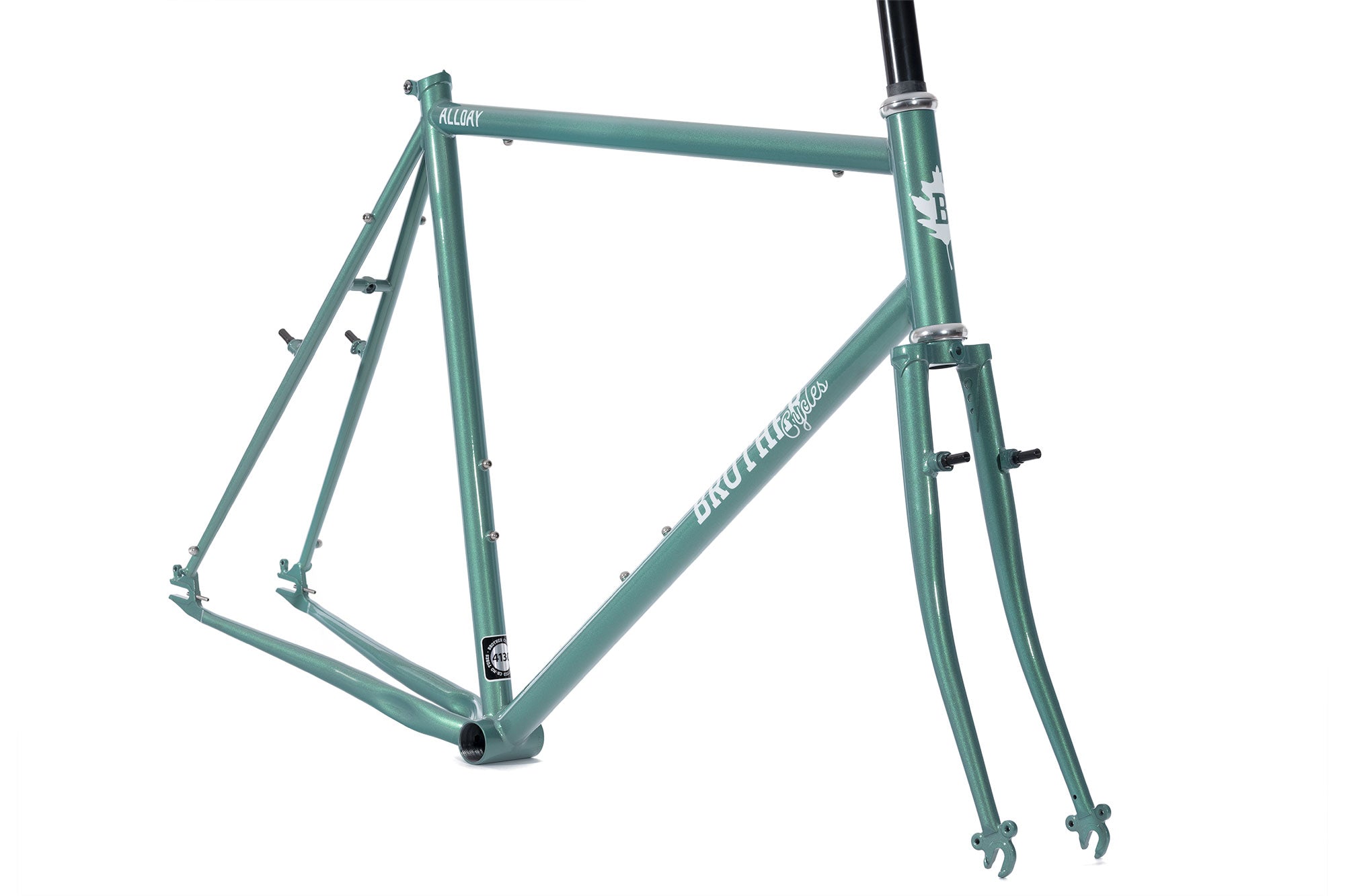

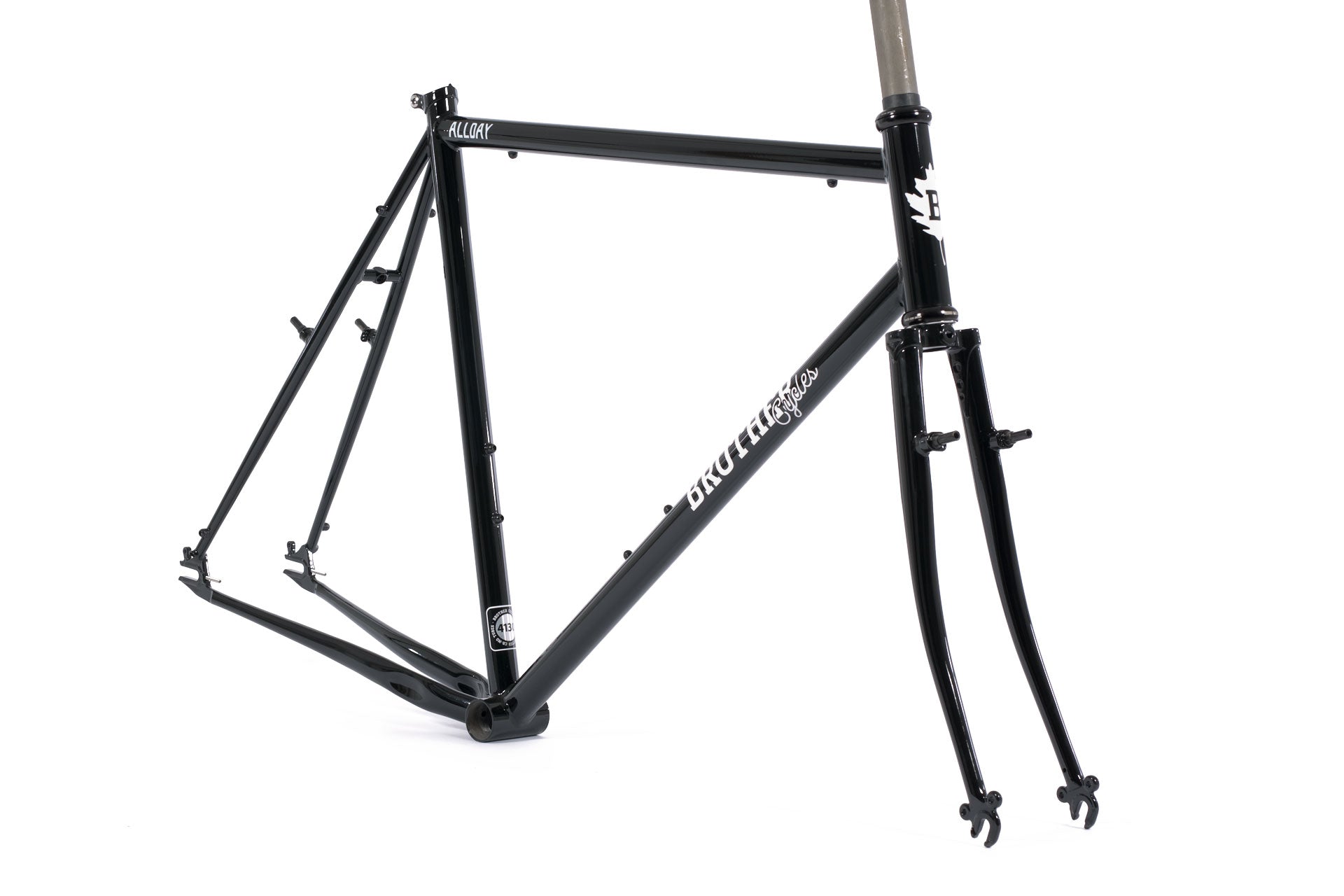

Brother Cycles Allday Frameset – One Speed, All Roads

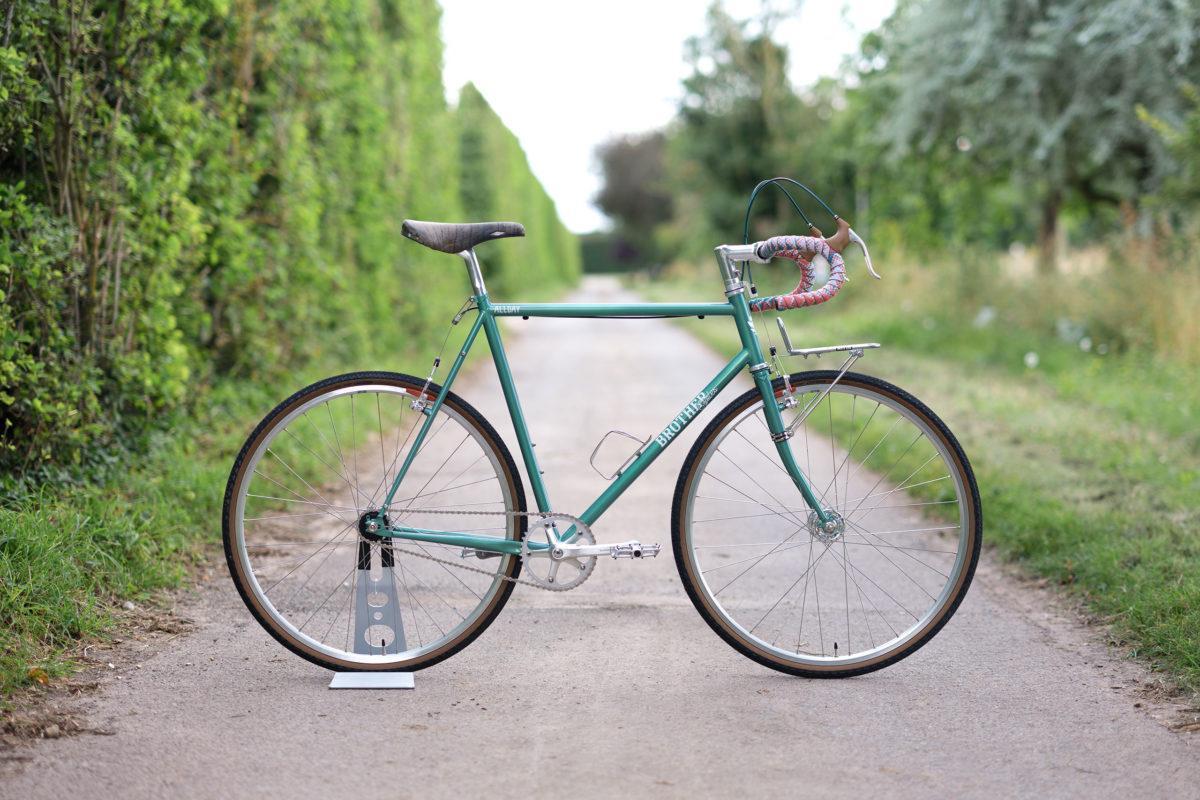

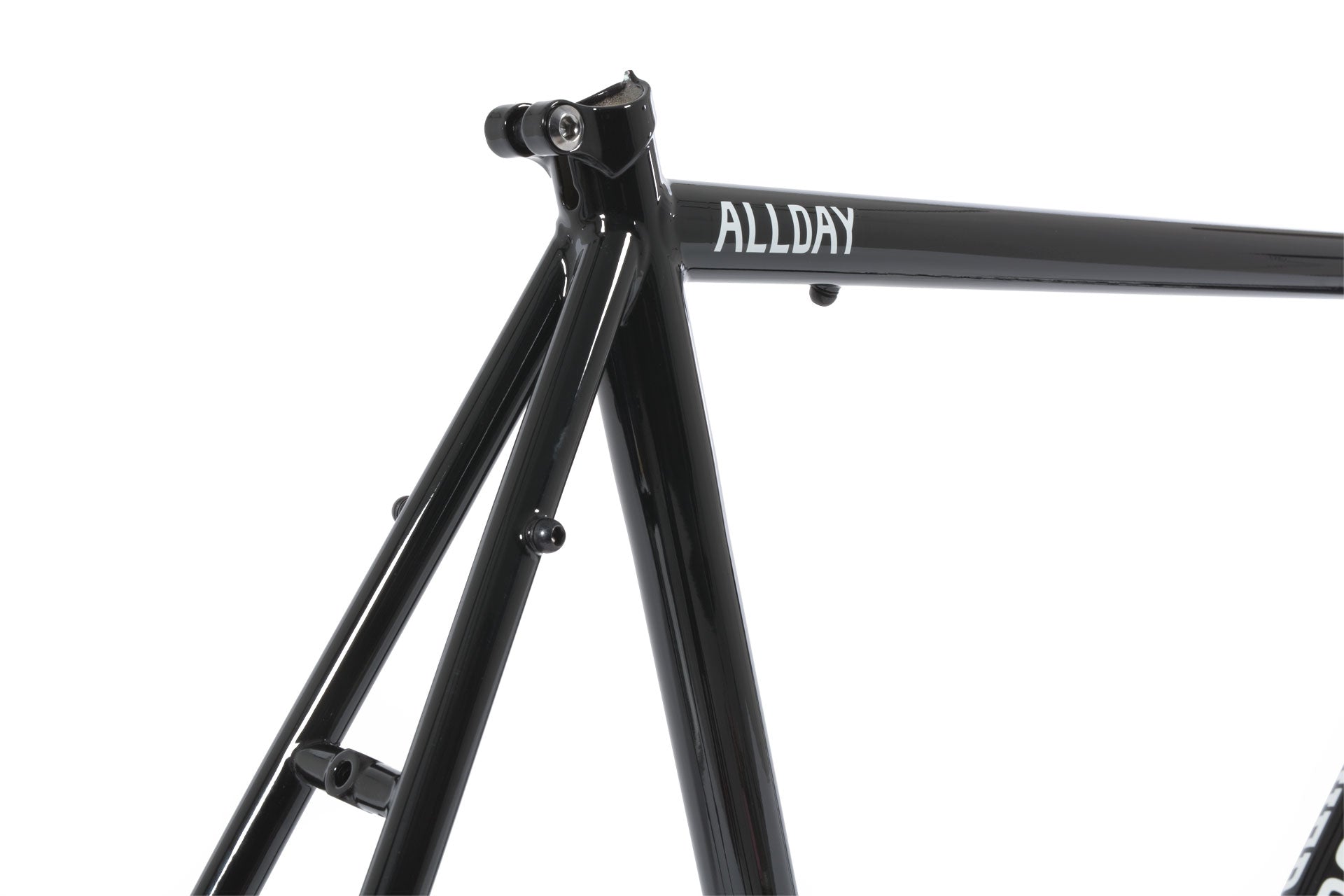

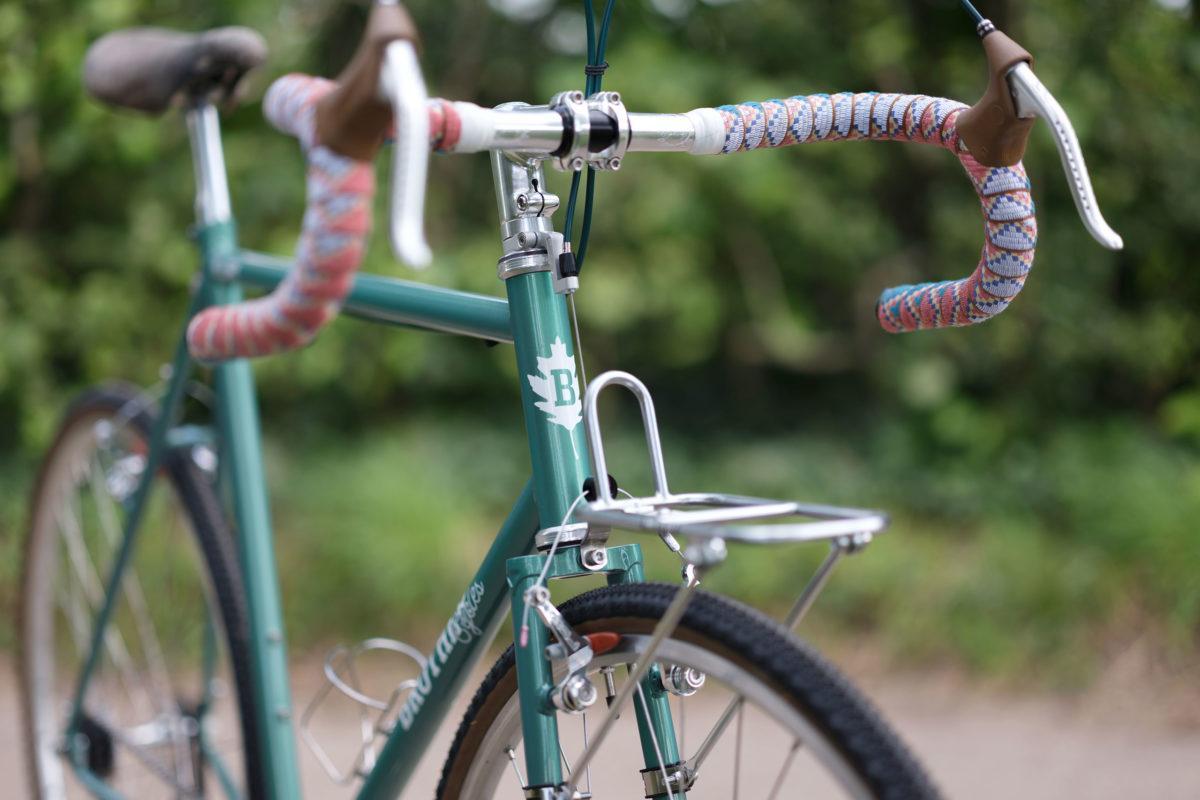

The Allday is a go-anywhere, do-anything single-speed or fixed gear frameset—perfect for commuting, winter training, or even a bit of gravel. Built from double-butted 4130 chromoly steel with a smooth TIG-welded main triangle and a lugged flat crown fork, it offers classic style and modern function.

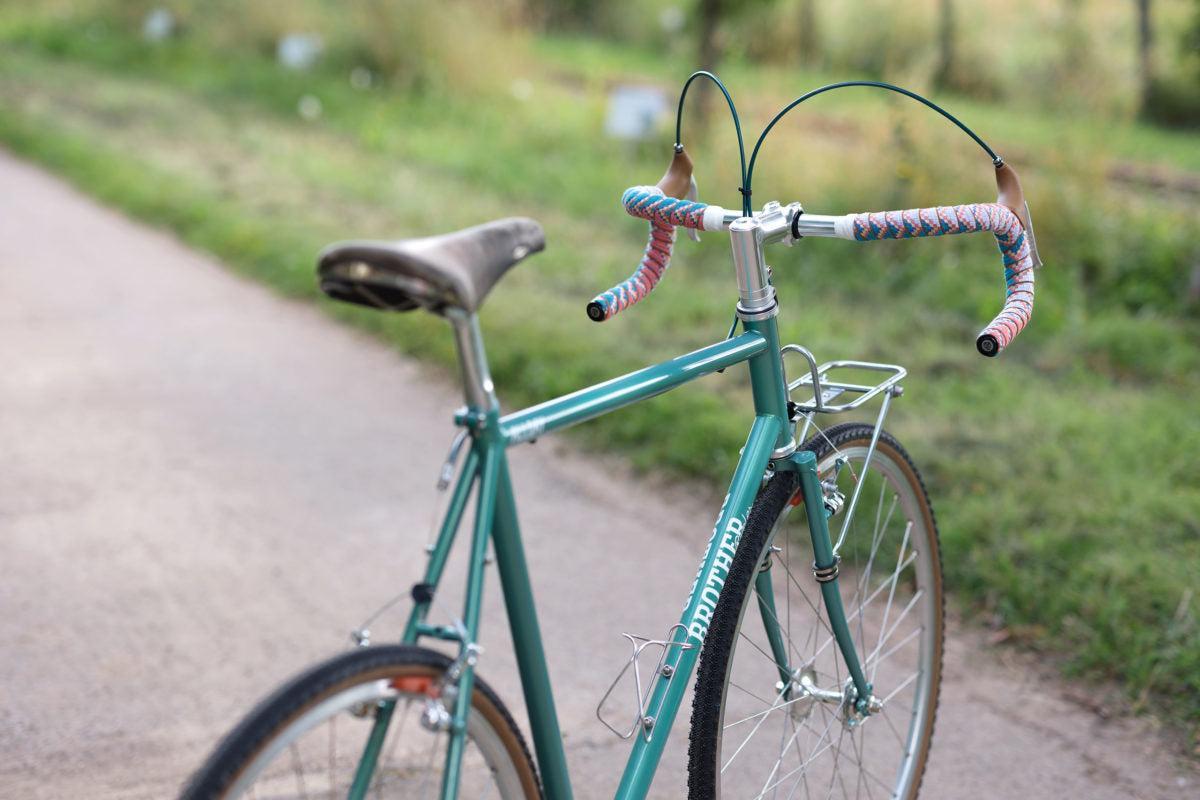

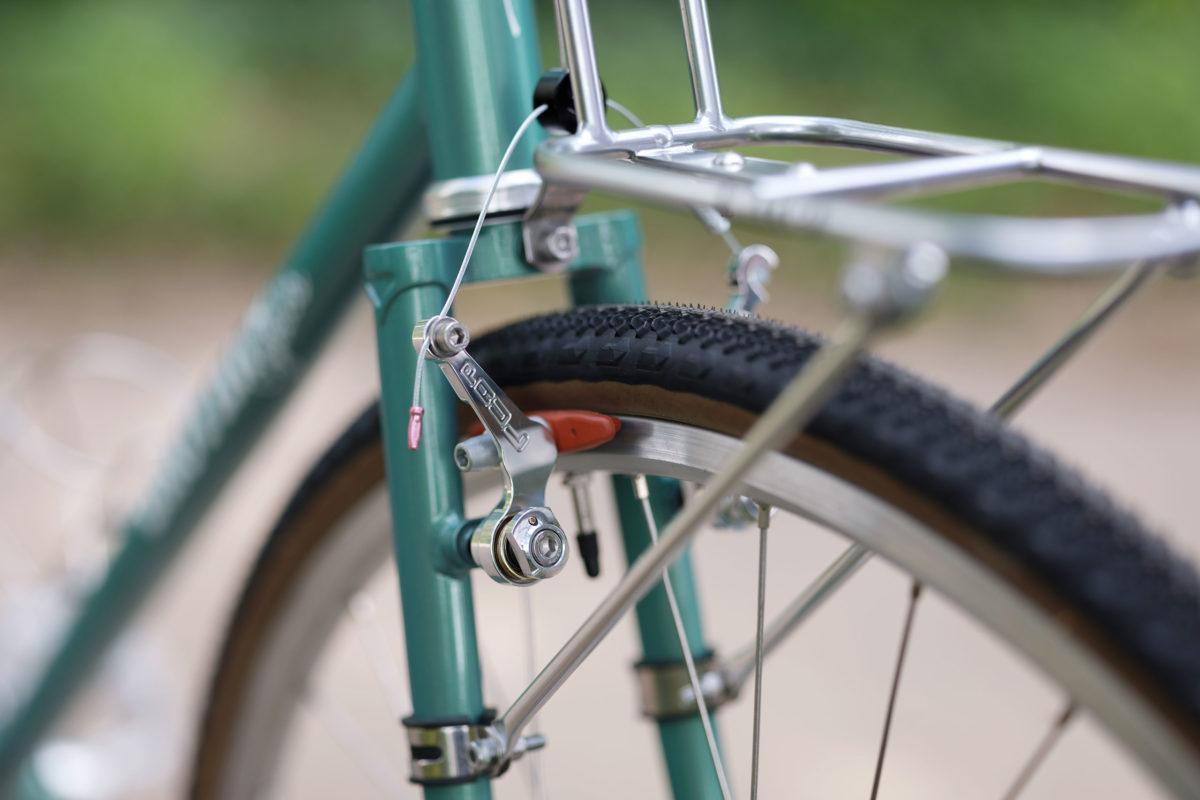

Need versatility? The Allday clears up to 700x38c tyres and offers removable canti bosses, so you can run cantilever, V-brake, or caliper brakes. It’s also rack and fender ready, with removable cable guides, making it ideal for setups from stripped-back to fully loaded.

Want gears? You can add an optional gear hanger that slots into the drive-side dropout and is held in place by the wheel axle—perfect for when you need a few extra gears to get up the hills.

Key Features

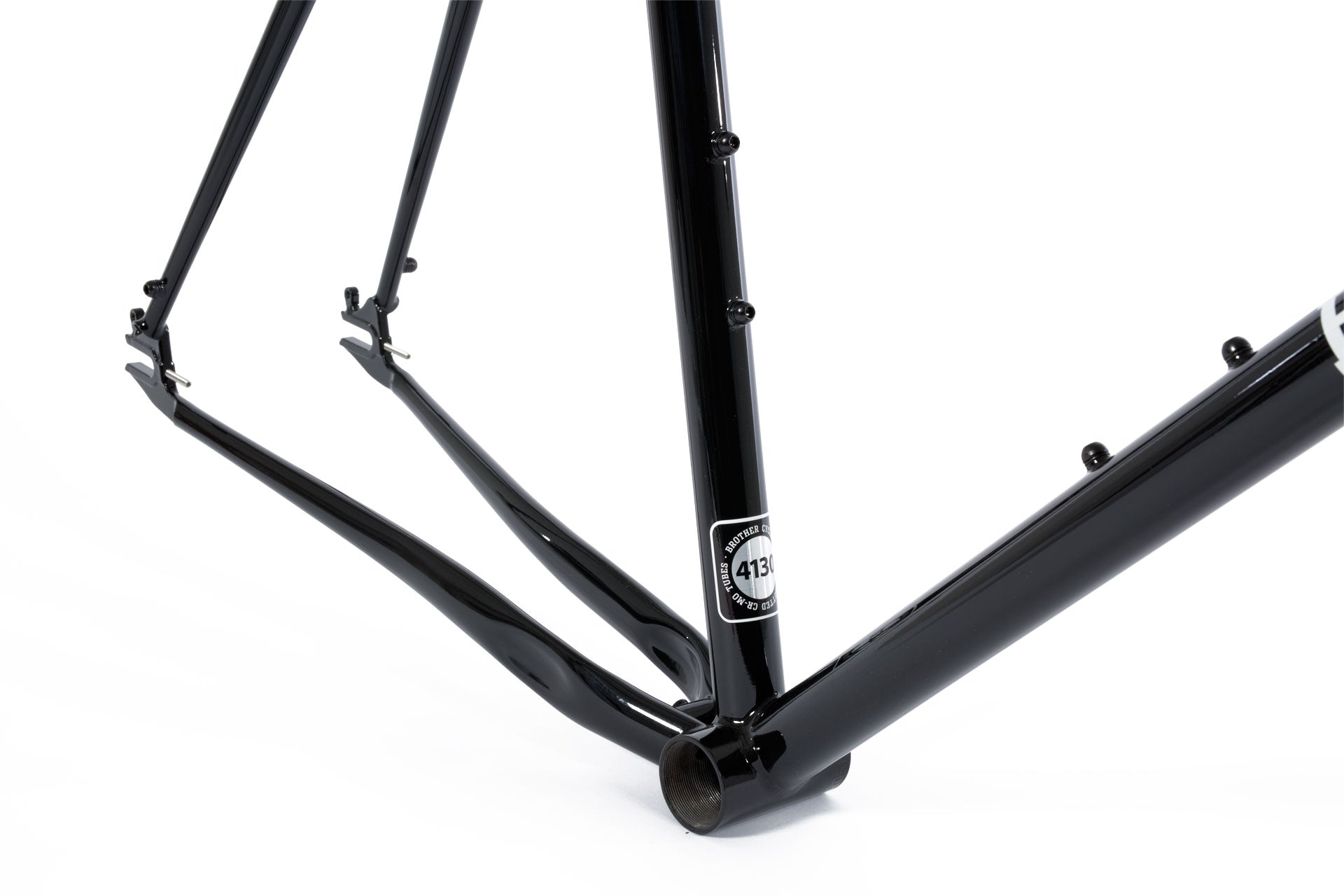

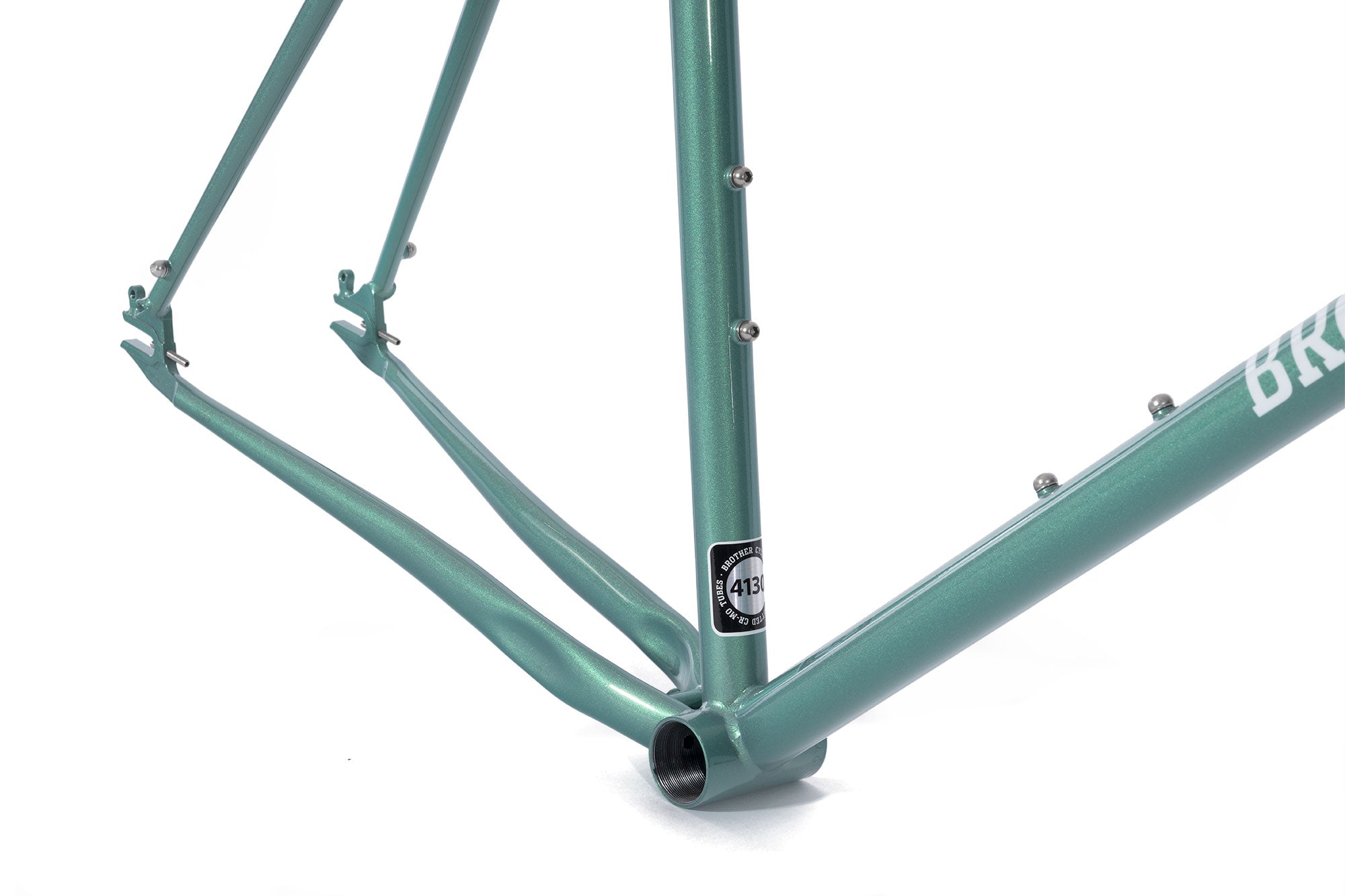

• 4130 chromoly steel frame – double-butted main triangle, ED coated
• Lugged flat crown steel fork – ED coated with removable canti bosses
• Clearance for 700x38c tyres
• Brake compatibility: cantilever, V-brake, or medium drop caliper

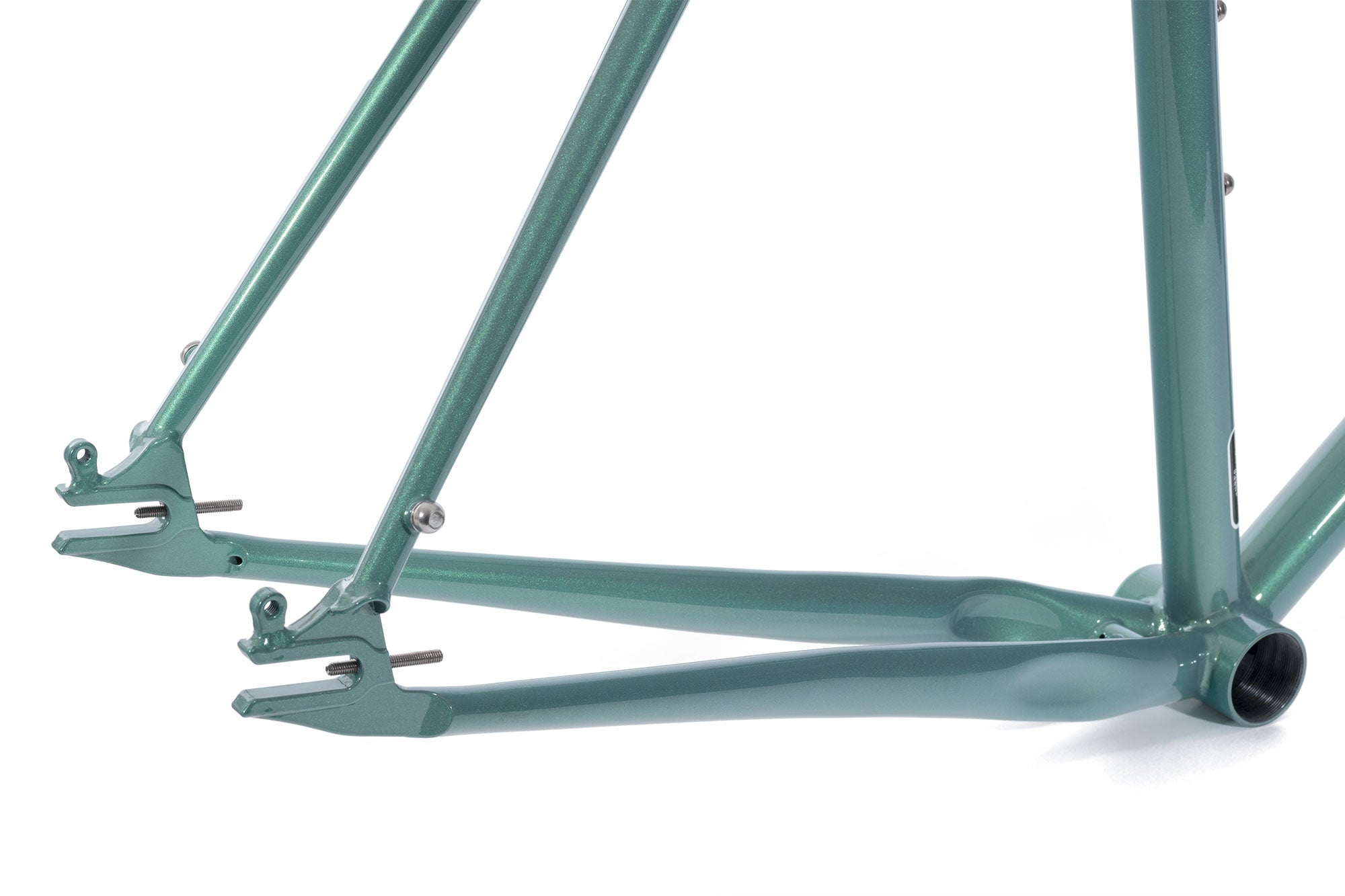

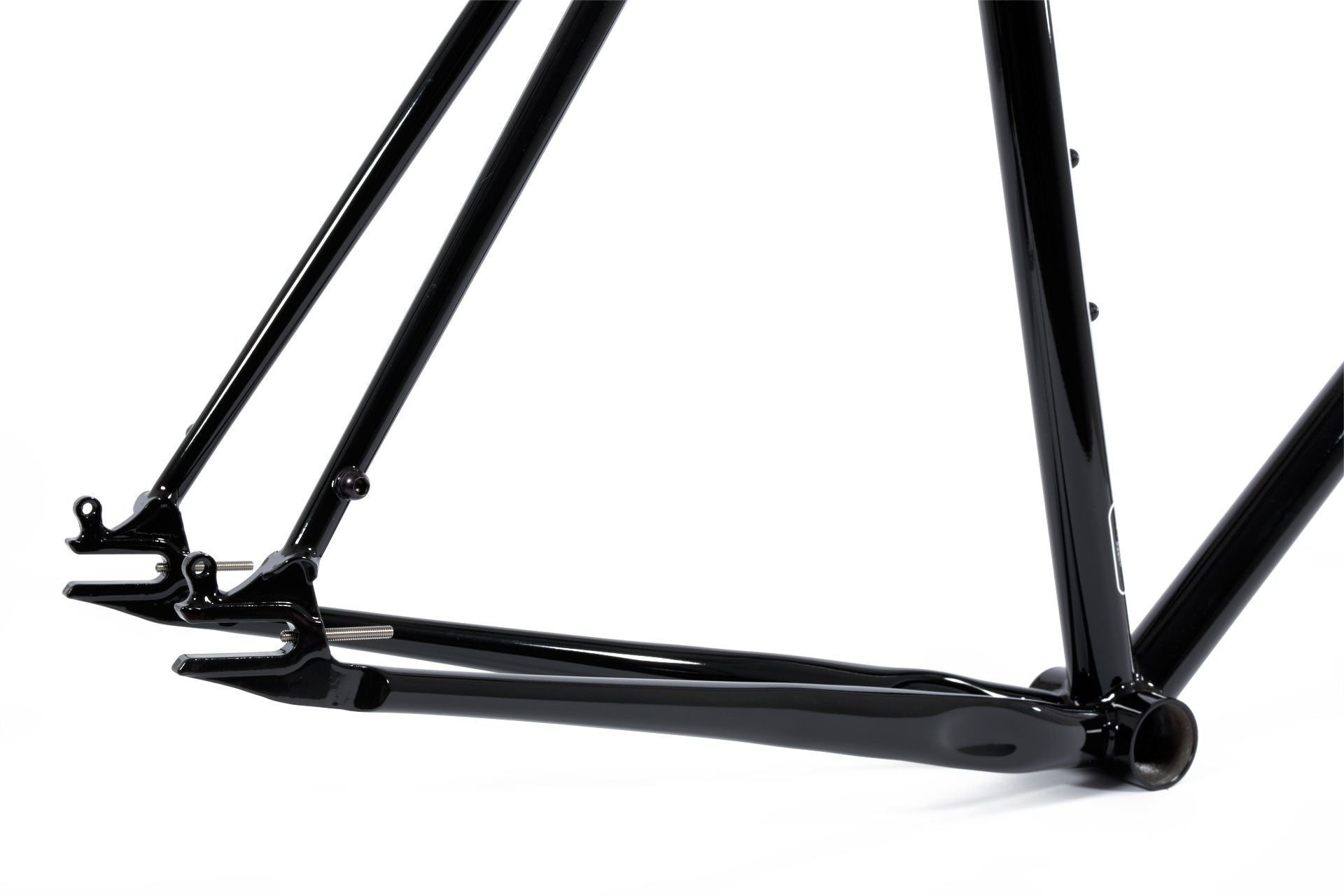

• Investment cast 120mm dropouts with threaded adjusters
• Rack and mudguard mounts front and rear
• Two bottle cage mounts
• Removable brake cable guides

Tech Specs
• Seatpost diameter: 27.2mm
• Headset: 1 1/8" threadless (not included)
• Bottom bracket: 68mm ISO threaded
• Frame weight (54cm): 2.0kg
• Fork weight (uncut): 1.0kg
• Tested to ISO 4210 standard

Key Features
• 4130 chromoly steel frame – double-butted main triangle, ED coated
• Lugged flat crown steel fork – ED coated with removable canti bosses
• Clearance for 700x38c tyres
• Brake compatibility: cantilever, V-brake, or medium drop caliper
• Investment cast 120mm dropouts with threaded adjusters
• Rack and mudguard mounts front and rear
• Two bottle cage mounts
• Removable brake cable guides

Tech Specs
• Seatpost diameter: 27.2mm
• Headset: 1 1/8" threadless (not included)
• Bottom bracket: 68mm ISO threaded
• Frame weight (54cm): 2.0kg
• Fork weight (uncut): 1.0kg
• Tested to ISO 4210 standard

Are Brother Cycles frames guaranteed?

The frames are fully guaranteed against manufacturing and materials faults or defects for a period of three years from date of purchase. This guarantee does not cover items which are damaged through accident, misuse, wear and tear, neglect or those which have been repaired or altered by any other firm. Paintwork is not covered by this warranty, nor is any damage that happens to you or your other components as a result of any failure of one of our products.

This guarantee is only valid to the original customer and is non-transferable. Brother Cycles reserve the right to an independent opinion on whether the goods qualify for a refund. A dated proof of purchase must be provided before a warranty claim will be considered.

Frame Size (C-TT) 52cm 54cm 56cm 58cm 60cm
Seat Tube (C-C)505mm525mm545mm565mm585mm
Top Tube530mm545mm560mm570mm585mm
Head Tube111mm128mm145mm165mm185mm
Head Angle72°72.5°73°73°73°
Seat Angle74.5°74°73.5°73.5°73.5°
BB Drop60mm60mm60mm60mm60mm
Chainstay400mm400mm400mm400mm400mm
Fork Length (A-C)373mm373mm373mm373mm373mm
Fork Rake40mm40mm40mm40mm40mm
Stack518mm536mm554mm573mm592mm
Reach385mm390mm396mm400mm409mm
Wheelbase976mm983mm989mm999mm1014mm

Geometry chart
