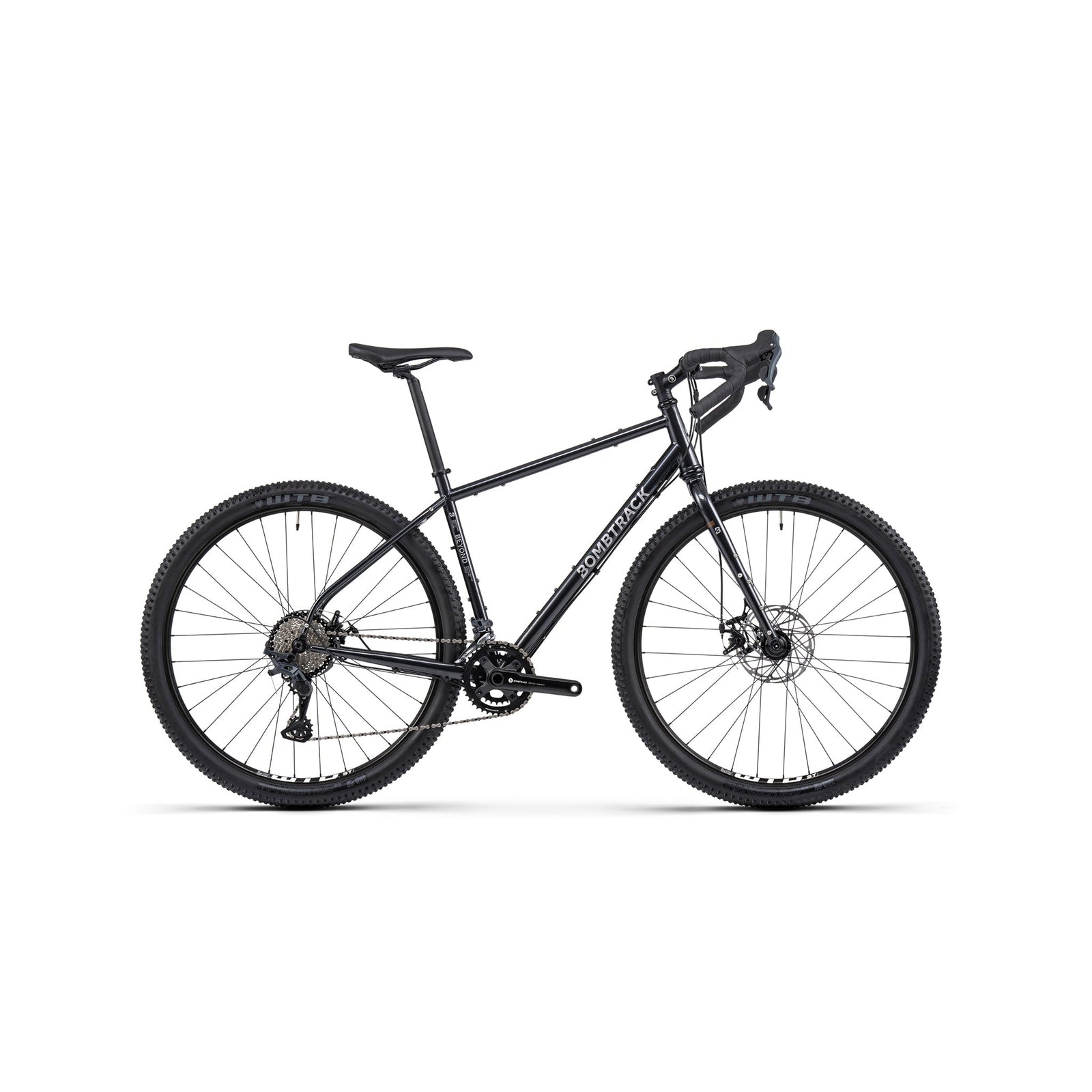

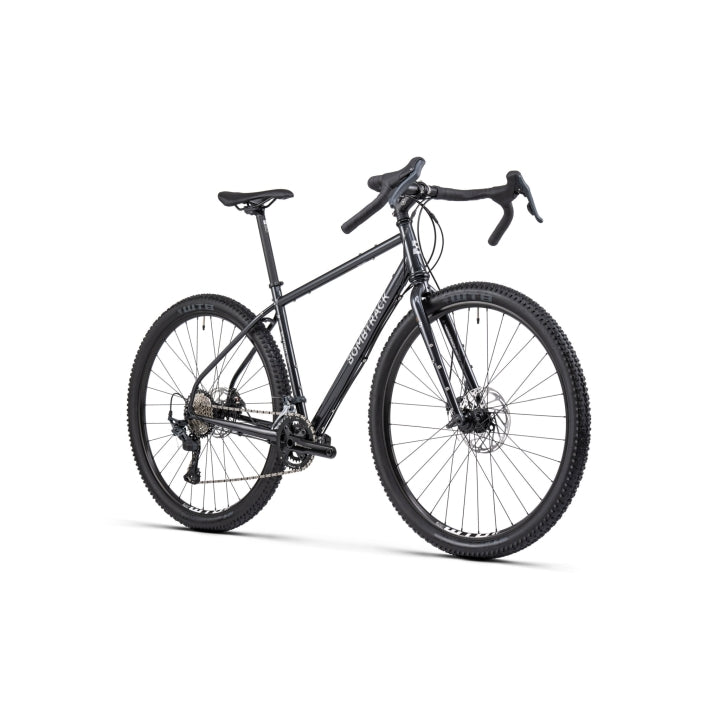

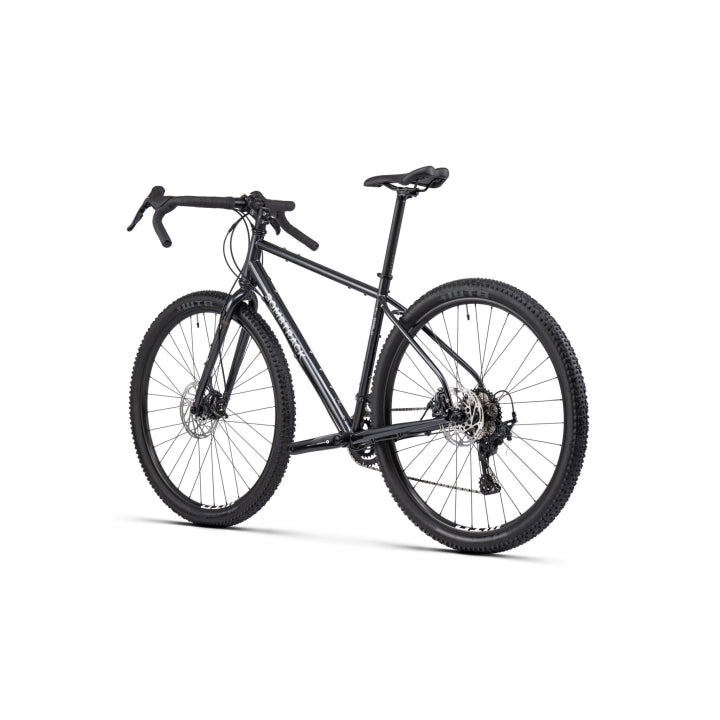

A steel drop-bar adventure bike for touring, bikepacking and exploring beyond sealed roads. The Beyond 1 frame and fork provide rack, mudguard and bottle-mounting options, with internal routing for dynamo-light cables.
Microshift Sword 2 × 10 shifting, a 40/28T chainset and an 11–38T cassette offer a versatile gear range. TRP Spyre C mechanical disc brakes are straightforward to maintain, and tubeless-ready WTB Ranger tyres suit mixed terrain. Wheel size is matched to frame size: 27.5 inches on smaller frames and 29 inches from medium upwards.
Specifications
| Frame | 4130 double butted chromoly, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell |
|---|---|
| Fork | 4130 chromoly, double butted blades, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing |

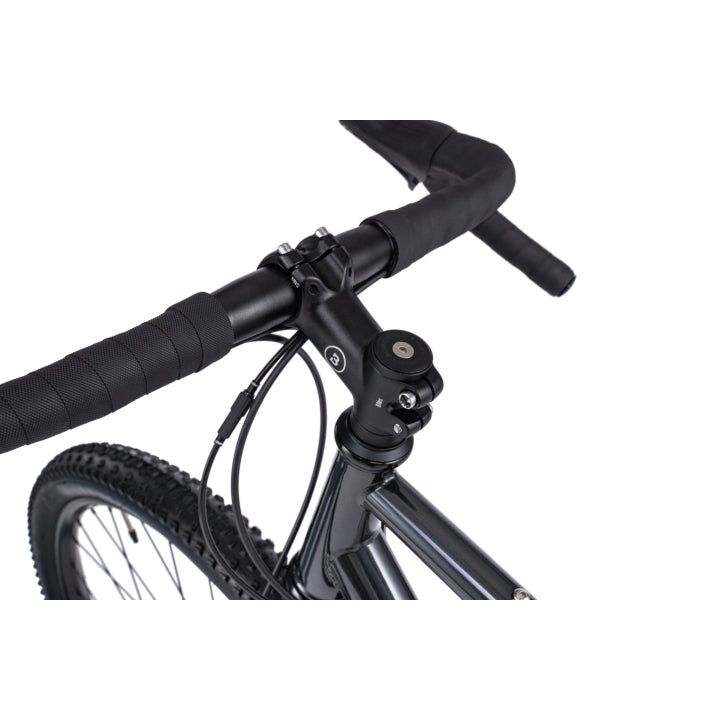

| Handlebar | Bombtrack Beyond travel bar, 31.8 mm, 30° flare |
| Grips | Bombtrack Command bar tape |
| Stem | Bombtrack Wander forged aluminium stem, +17° |
| Headset | Sealed external aheadset, 1.1/2'' - 1.1/8'' |

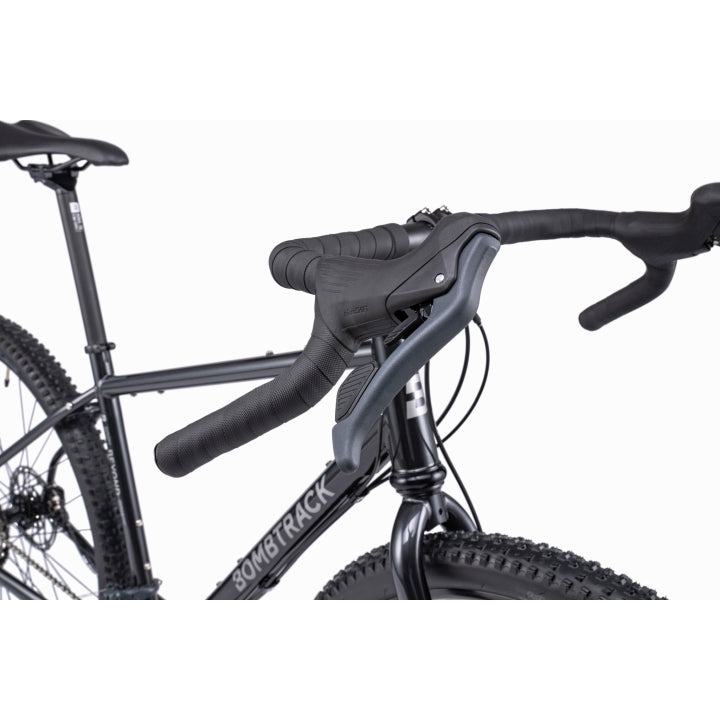

| Brake levers | Microshift SB-G7020 Dual Control Lever mechanical |
| Shifter | Microshift SB-G7020 Dual Control Lever 2 x 10 |

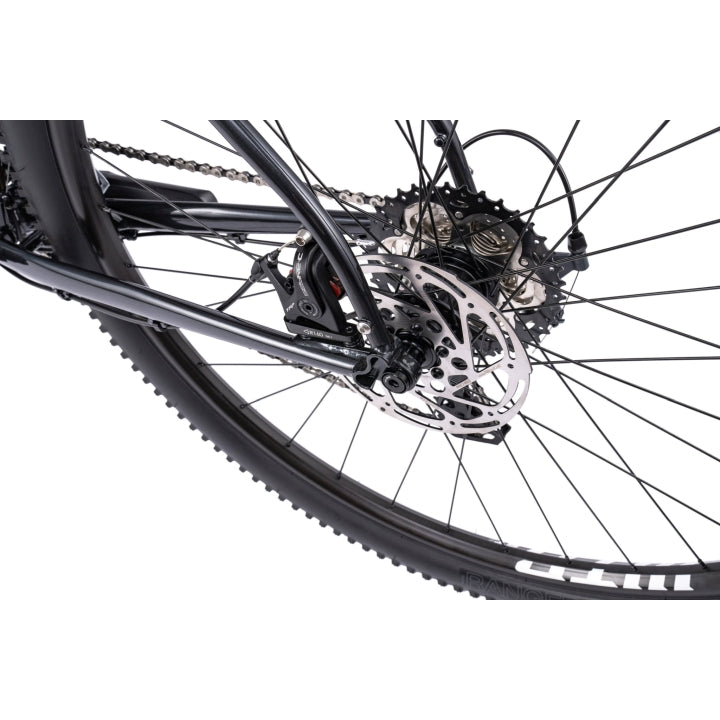

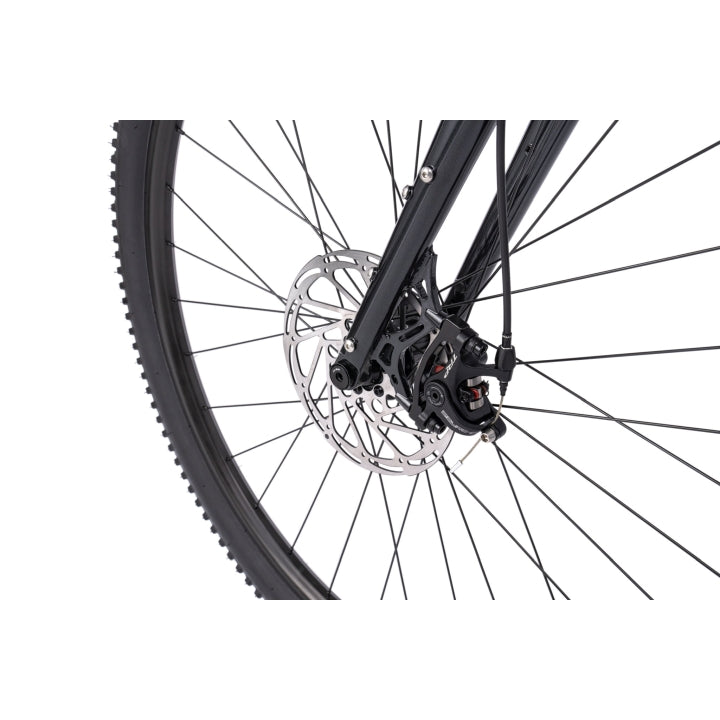

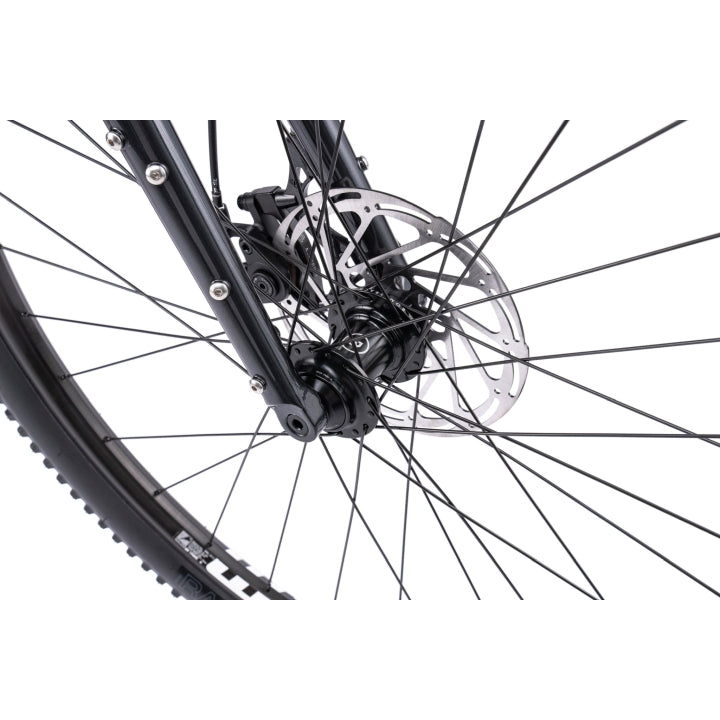

| Brakes | TRP Spyre C mechanical disc brakes |
| Rotors | TRP 180 mm front and 160 mm rear rotor |

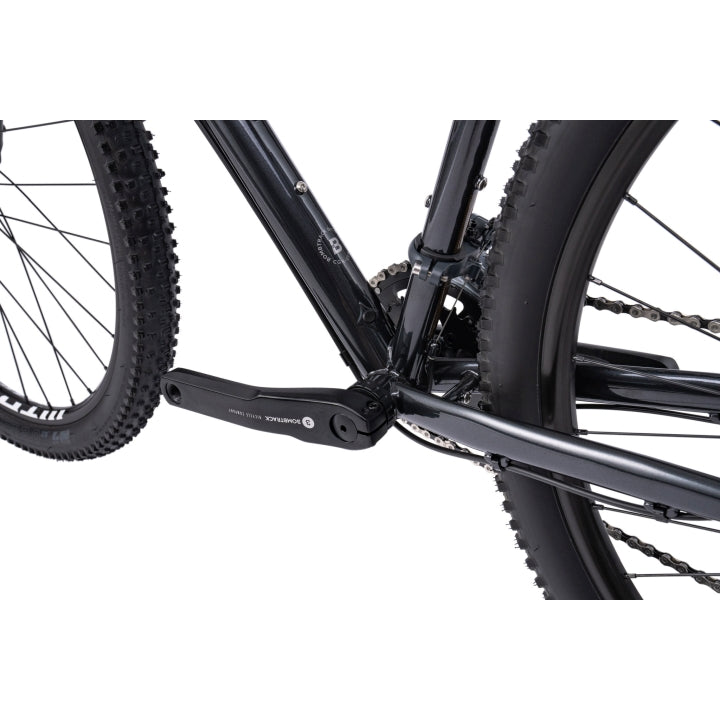

| Crankset | Bombtrack Ames forged aluminium crank, 24 mm spindle |
| Bottom bracket | BSA sealed BB, external cups |
| Pedals | Not included |
| Chain | KMC X10 chain, 1/2'' x 11/128'', 114L |
| Chainring | Aluminium / Steel, 40 / 28 T |
| Cassette | Microshift 10-speed, 11 - 38 T |
| Front derailleur | Microshift Sword FD-G7020-F |

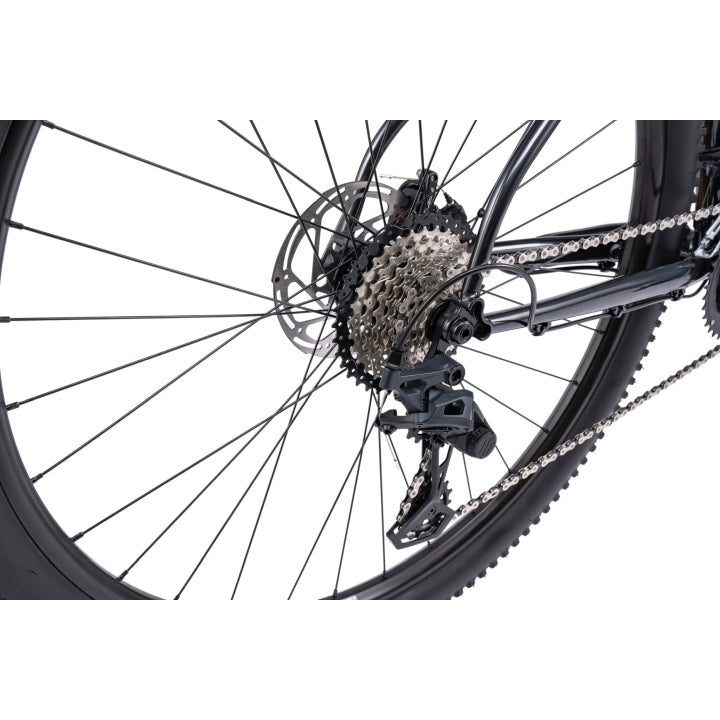

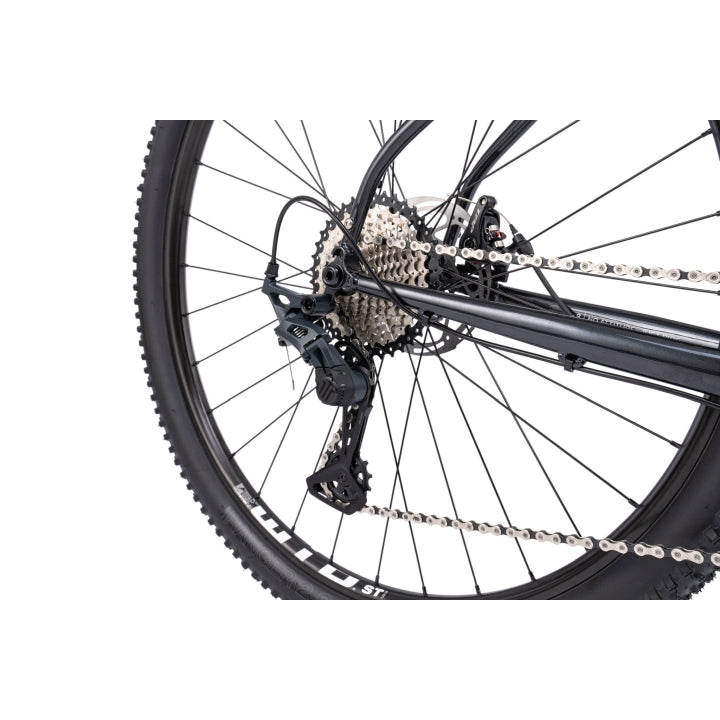

| Rear derailleur | Microshift Sword RD-G7025L, clutch, long cage |
| Front hub | Bombtrack Arc sealed hub, 6-bolt disc |

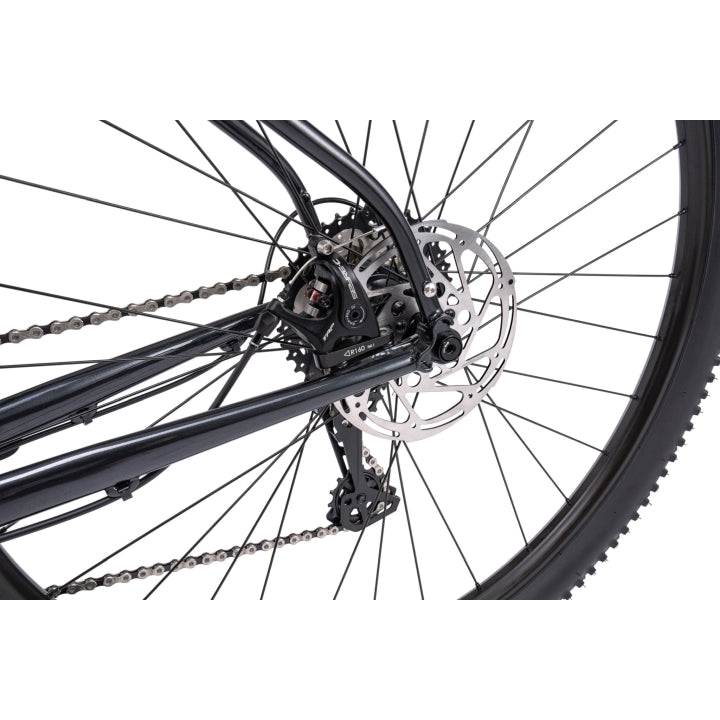

| Rear hub | Bombtrack Arc sealed hub, 11-speed, 6-bolt disc |
| Through-axles | 15 x 100 mm / 12 x 142 mm |
| Front rim | WTB ST i23 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i23 double wall, TCS 2.0, 32h |

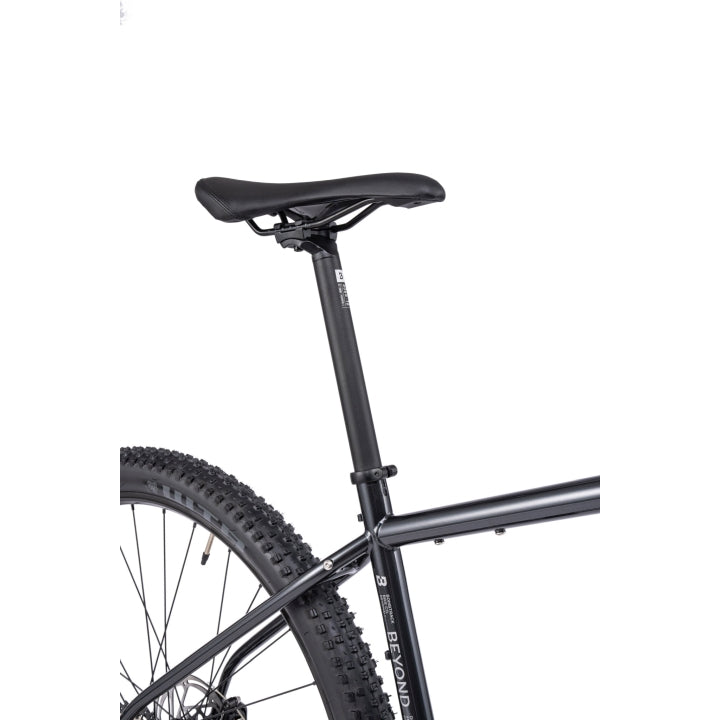

| Saddle | Bombtrack Fuzz saddle |
| Seat post | Seido Beech 27.2 mm x 400 mm |
| Seat clamp | Bombtrack Origin 29.8 mm |
| Front tyre | WTB Ranger TCS Light / Fast Rolling XS - S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', tubeless ready |
| Rear tyre | WTB Ranger TCS Light / Fast Rolling XS - S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', tubeless ready |
| Complete weight | 12.9 kg (size M) |
| Frameset weight | 2540 g frame (size M, incl. TA, bolts, seatclamp, hanger) / 1500 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 140 kg incl. luggage |
| ASTM riding condition | 2 |
Specifications describe the listed build. Appearance, finish and minor component details may vary.
