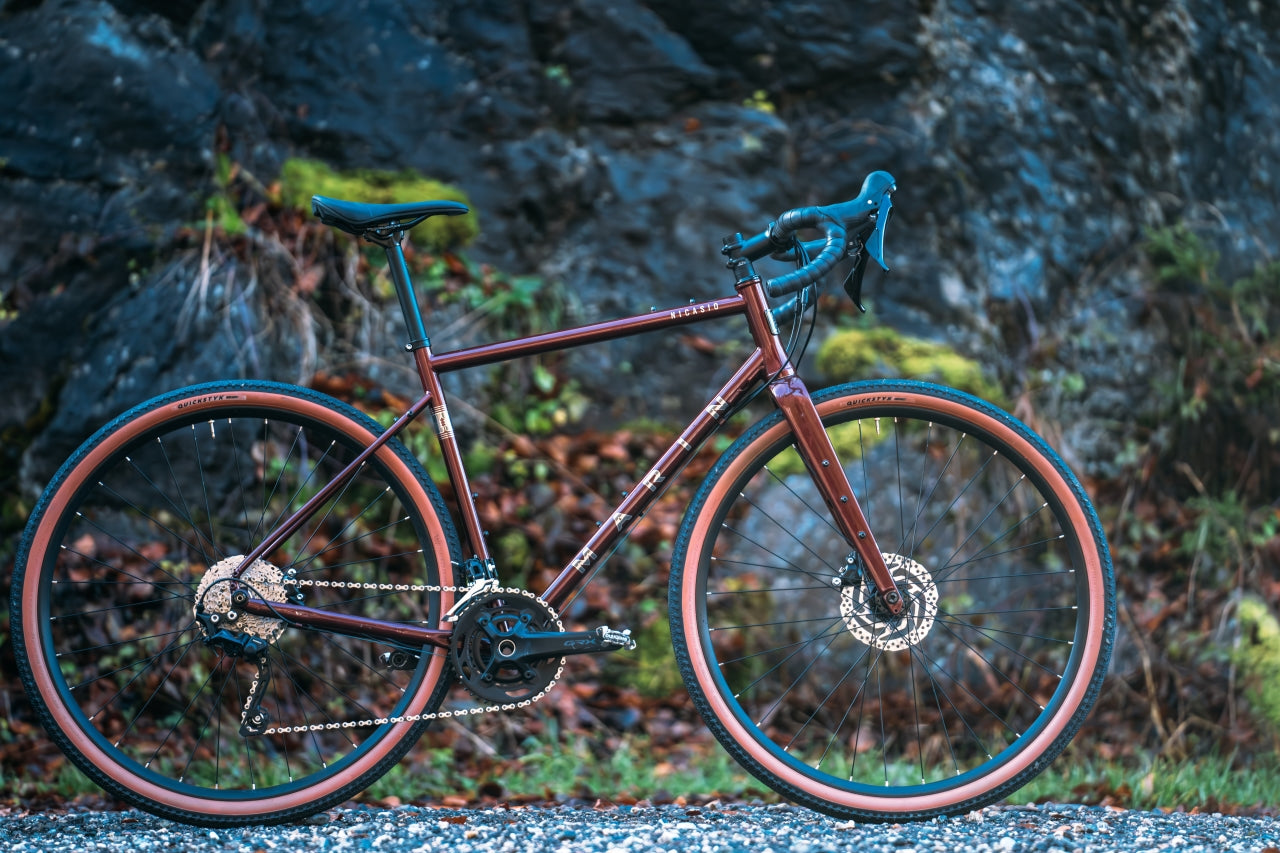

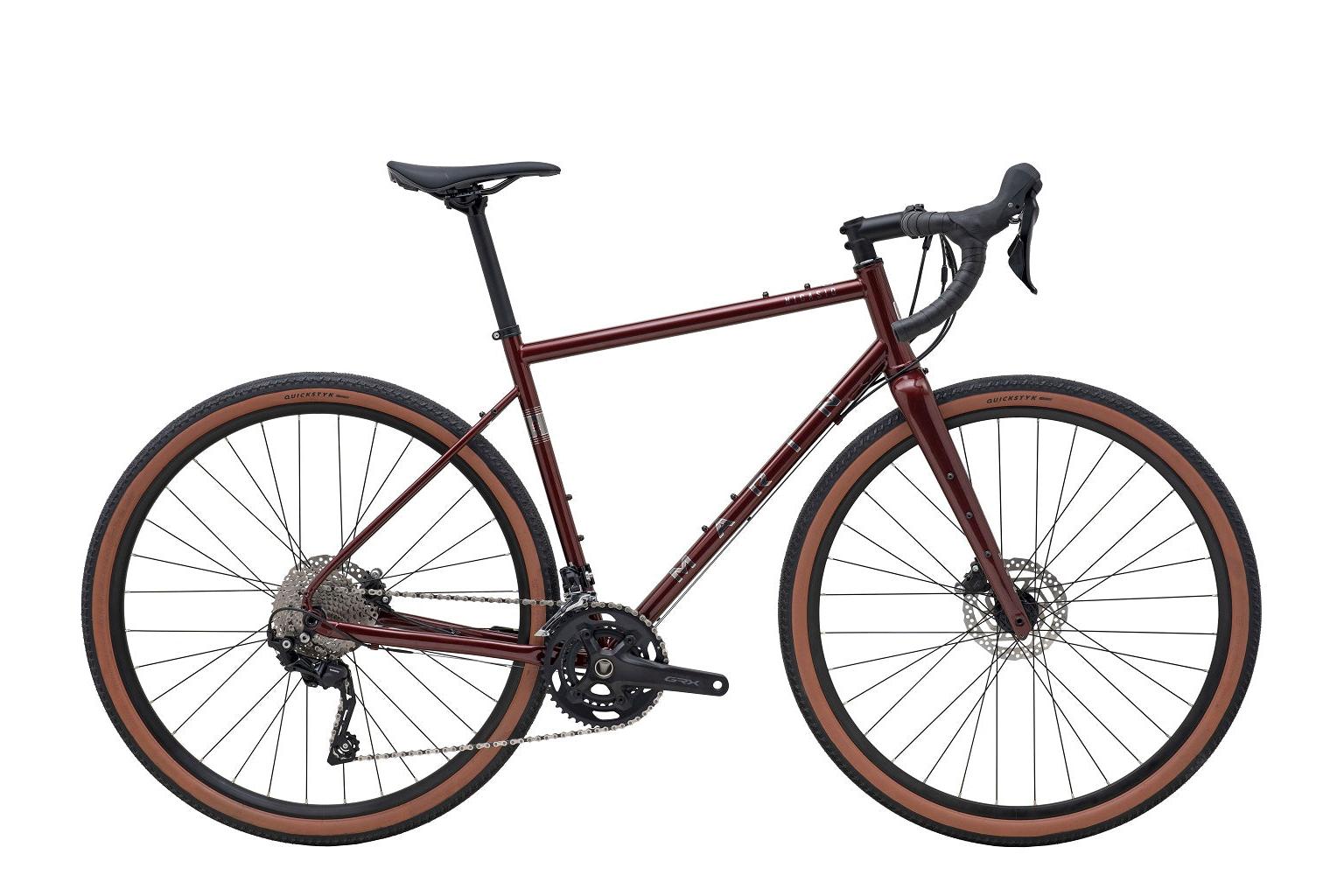

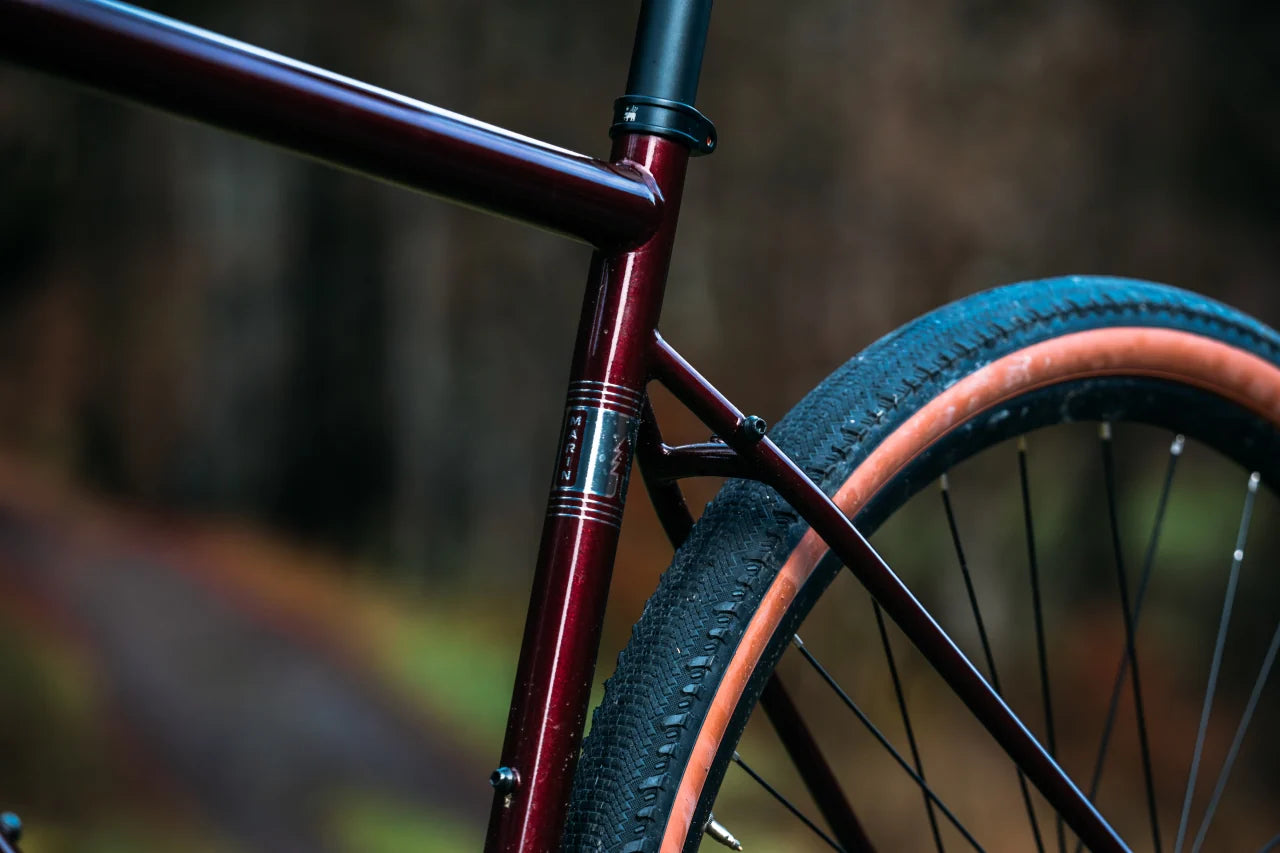

The Marin Nicasio 2 is your all-road companion, blending the timeless ride feel of steel with modern gravel-focused geometry and components. Whether you’re commuting, hitting the weekend gravel, or loading it up for a light tour, this bike is built to roll beyond the pavement with confidence and comfort.
Why You’ll Love It
-
Classic steel frame with modern features like thru-axles and disc brakes
-
Wide 700x45 tubeless-compatible tires for control and comfort on rougher surfaces
-
Low gearing and hydraulic disc brakes ideal for mixed terrain and urban missions
-

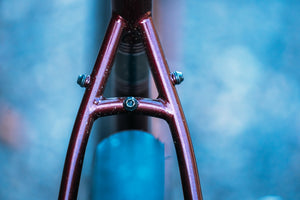

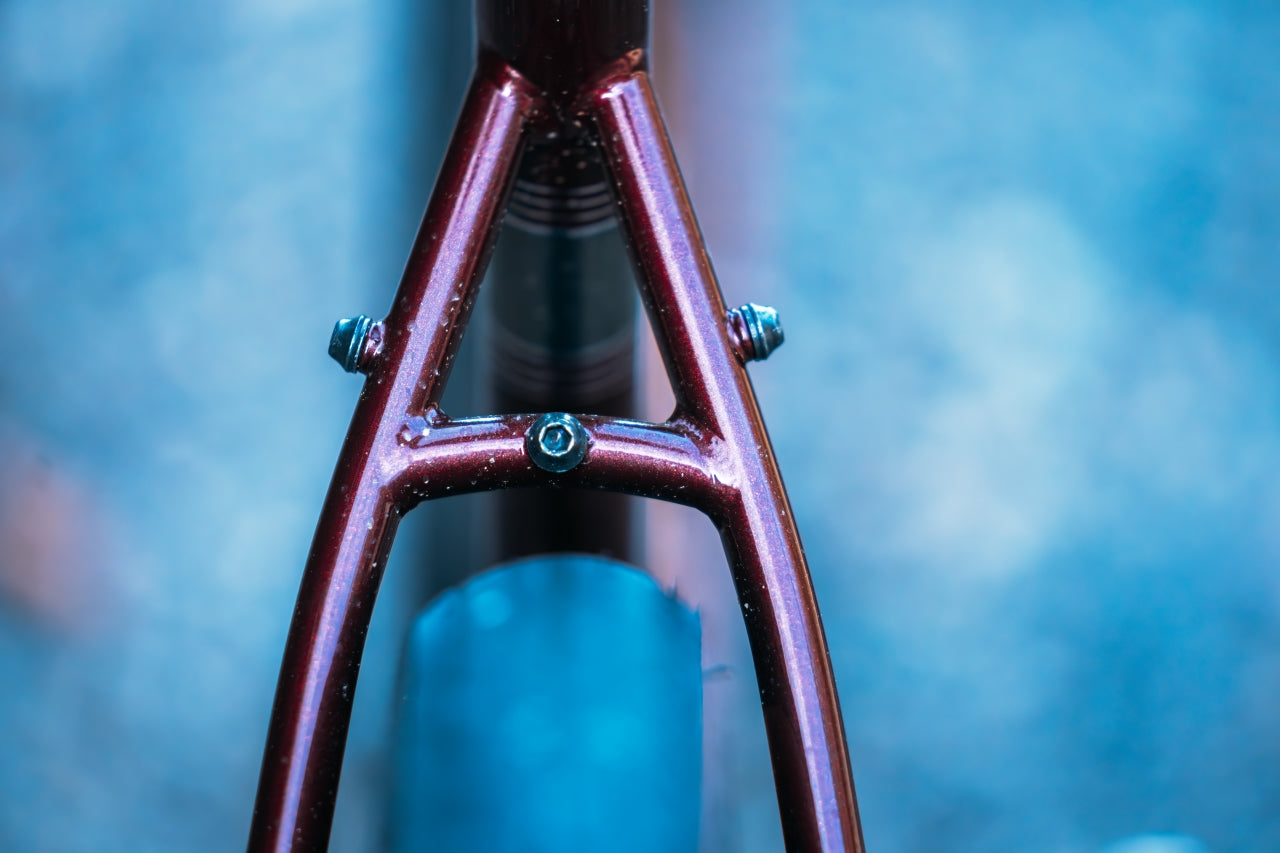

Fender and rack mounts for year-round utility and versatility
Specifications
FRAME

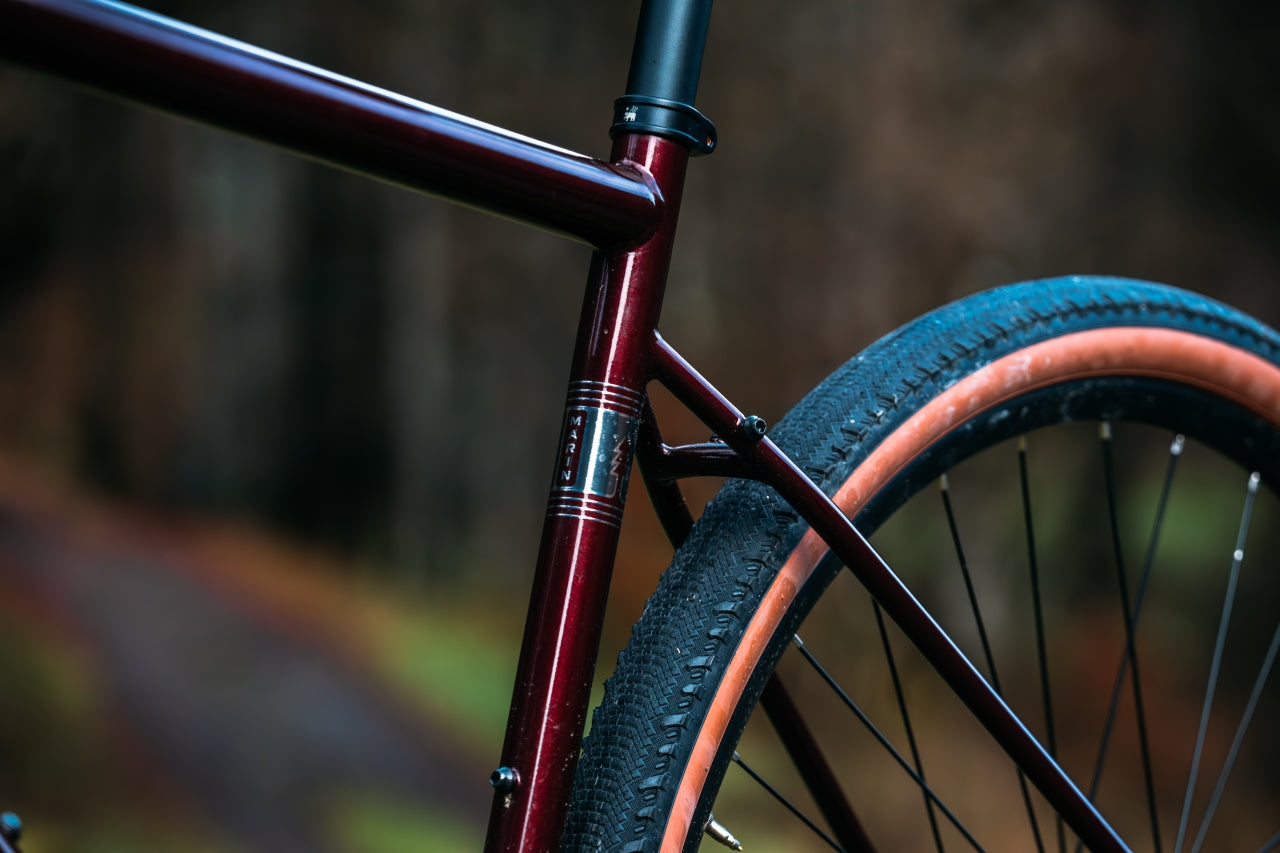

New Series 2 CrMo, Beyond Road Geometry, Thru-Axle, Disc Brake, Integrated Headset, Fender and Rack Mounts
FORK

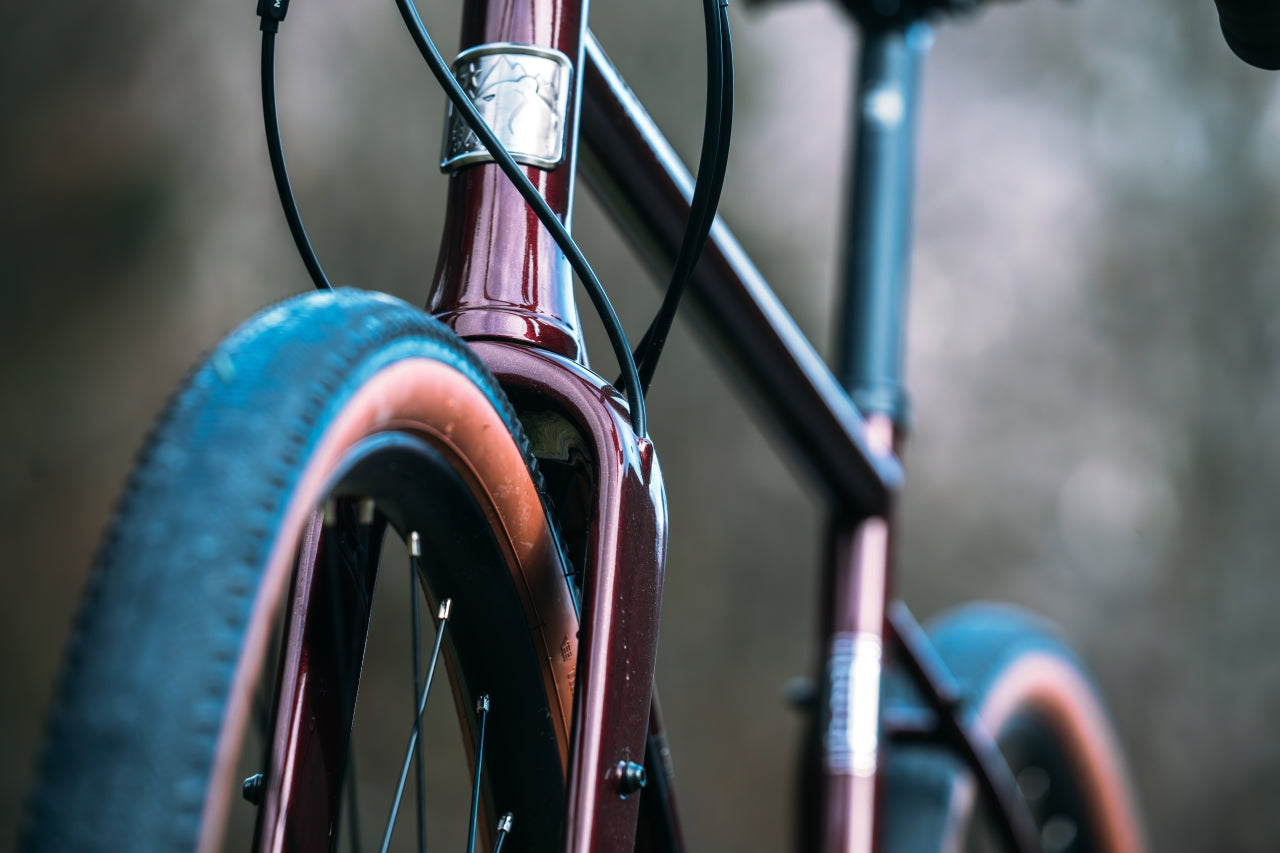

Disc, Fender Eyelets
RIMS
Marin Aluminum Double Wall, 19mm Inner, Disc Specific
HUBS
Forged Aluminum Alloy, Disc, 32H (Front & Rear)
SPOKES/NIPPLES
14g Black Stainless Steel
TIRES
Vee Tire Co. Veebiki 700x45, Folding Bead, Tubeless Compatible
REAR DERAILLEUR
Shimano GRX RX400, 10-Speed
FRONT DERAILLEUR
Shimano GRX RX400
SHIFT LEVERS
Shimano GRX RX400, 2x10-Speed
CRANKSET
Shimano GRX FC-RX600, 46/30T
BOTTOM BRACKET
Shimano
CASSETTE
Shimano HG-5010, 11-36T
CHAIN
KMC X10
BRAKES
Shimano BR-RX400 Hydraulic Disc, 160mm Rotors (Front & Rear)
BRAKE LEVERS
Shimano Hydraulic w/ Integrated Shifters
HANDLEBAR

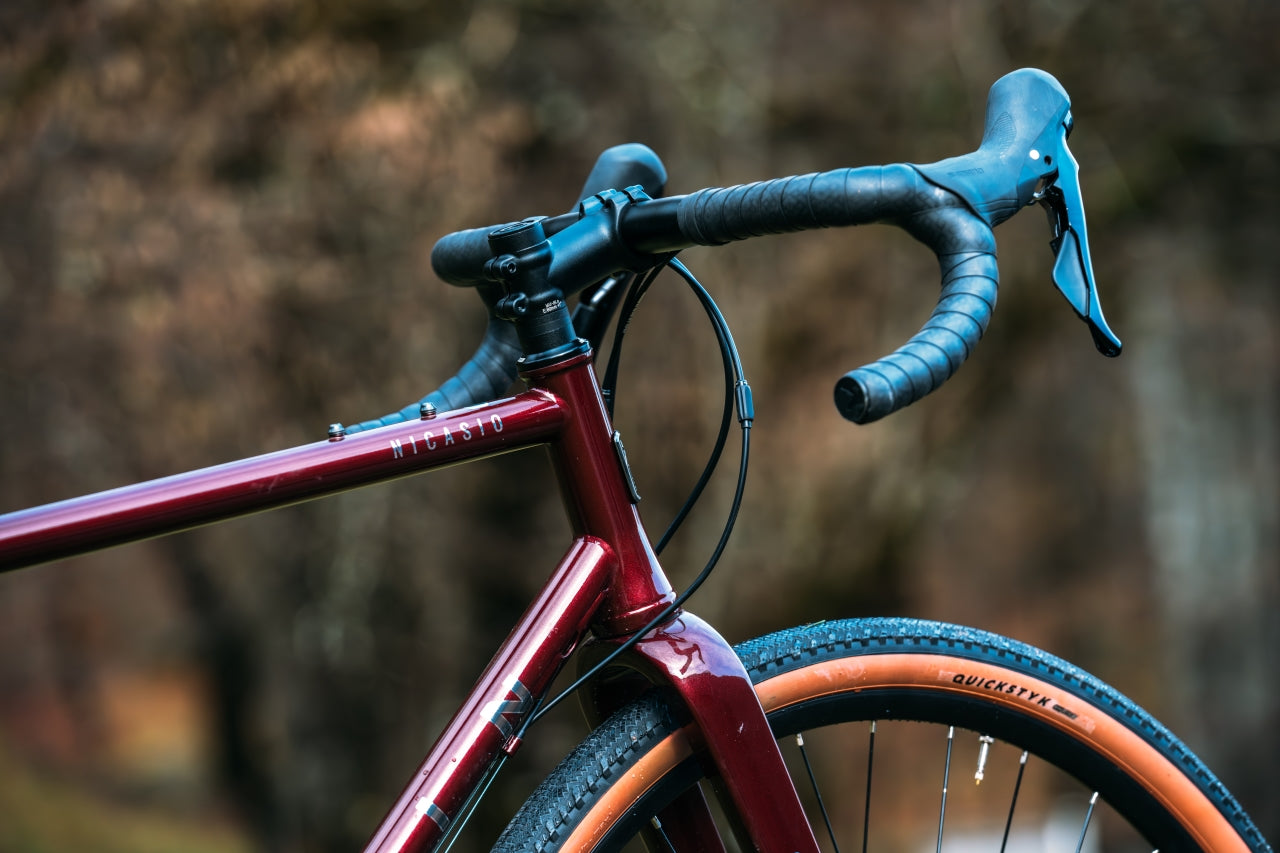

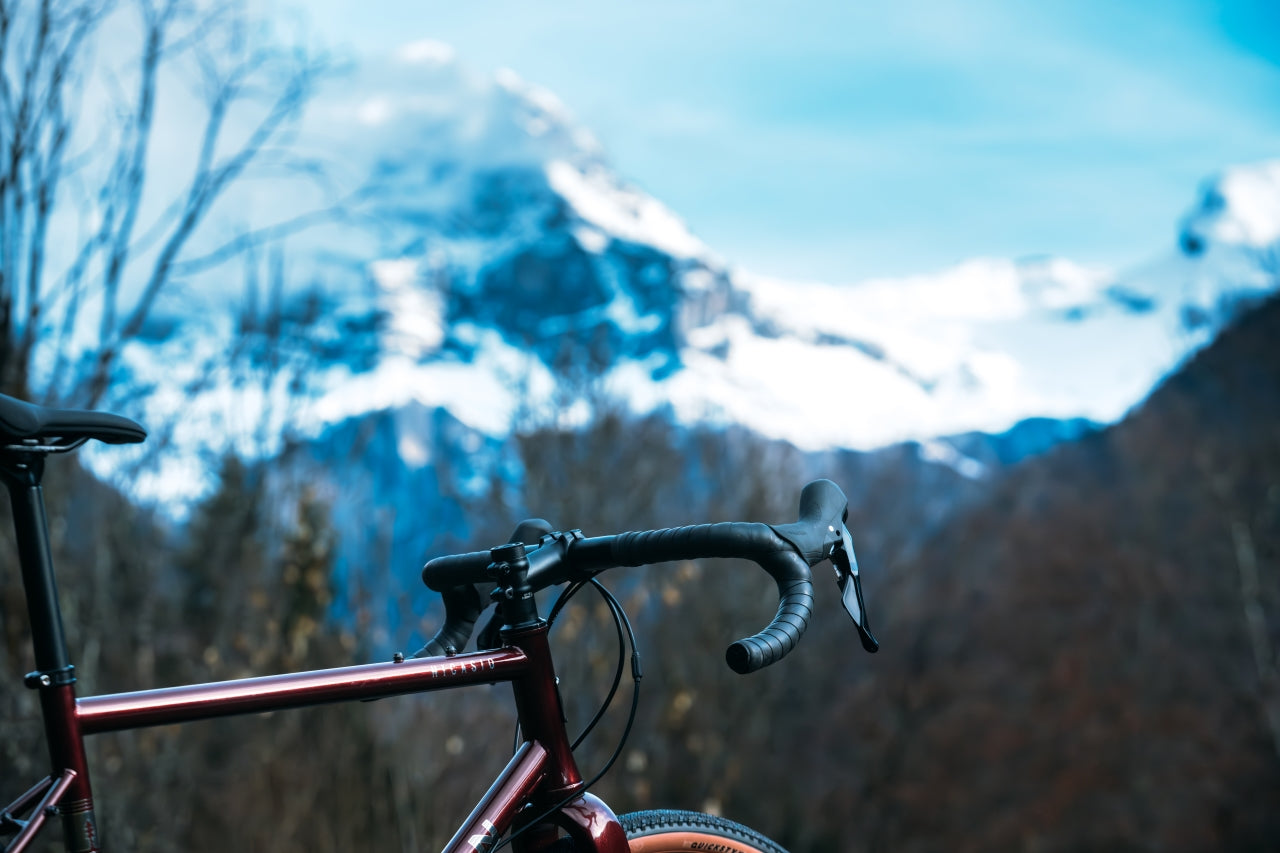

Marin Butted Alloy, Compact 16° Flared Drop
STEM
Marin 3D Forged Alloy
GRIPS
Marin Comfort Tape
HEADSET
FSA No.42/ACB
SEATPOST
Marin Alloy, 27.2mm
SADDLE
Marin Beyond Road Concept
PEDALS
Commute Platform
EXTRAS
Bolt-On Thru-Axles Front and Rear
Want something lighter, faster, or more upright? Swing by for a test ride or a yarn with the team.
| Size | 50 | 52 | 54 | 56 | 58 | 60 |
|---|---|---|---|---|---|---|
| A Stack | 550mm | 564mm | 575mm | 591.5mm | 610.4mm | 620mm |
| B Reach | 375mm | 375mm | 380mm | 390mm | 402mm | 415mm |
| C Headtube Angle | 70.5° | 71.5° | 71° | 71.5° | 71.5° | 71.5° |
| D Headtube Length | 120mm | 135mm | 150mm | 165mm | 180mm | 195mm |
| E Seattube Angle | 74.5° | 74° | 74° | 74° | 74° | 73.5° |
| F Seattube Length | 460mm | 480mm | 500mm | 520mm | 540mm | 560mm |
| G Toptube Effective | 524mm | 538mm | 547mm | 561mm | 577mm | 600mm |
| H BB Height | 274mm | 274mm | 274mm | 274mm | 274mm | 274mm |
| I BB Drop | 76mm | 76mm | 76mm | 76mm | 76mm | 76mm |
| J Chainstay | 430mm | 430mm | 430mm | 430mm | 430mm | 430mm |
| K Wheelbase | 1016mm | 1016mm | 1024mm | 1040mm | 1056mm | 1075mm |
| L Standover Height | 720mm | 740mm | 758mm | 777mm | 795mm | 812mm |
| M Fork Offset | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
| Seatpost Diameter | 27.2mm | 27.2mm | 27.2mm | 27.2mm | 27.2mm | 27.2mm |
| Handlebar Width | 400mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Stem Length | 75mm | 75mm | 90mm | 90mm | 90mm | 90mm |
| Crank Length | 170mm | 170mm | 175mm | 175mm | 175mm | 175mm |
All lengths in millimeters.
