Marin Pine Mountain 2 │Bikepacking
$3,799.00
Collections: Gravel & Adventure Bikes
TRAIL RIDING
ALL-DAY EPICS
ADVENTURE
BIKEPACKING

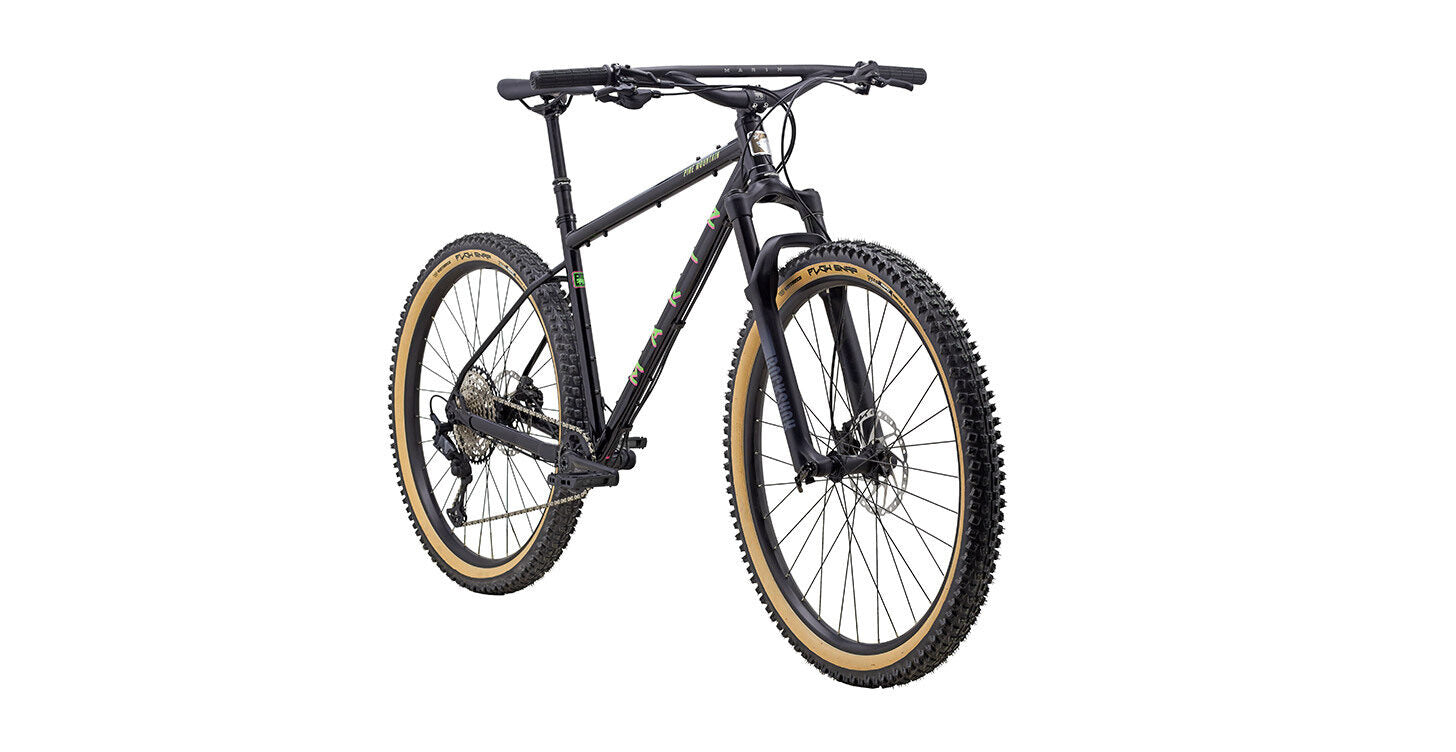

The Marin Pine Mountain 2 2023 is our high-end, high-performance steel bikepacking mountain bike hardtail. Our Series 3 CrMo version of the frame upgrades to higher-grade CrMo for a lively, zippier ride and has a bolt-through rear axle for a little added stiffness where it matters. It’s built up with a RockShox FS 35 fork, Shimano SLX 12-speed drivetrain, Vee Tire Flow Snap 2.6” tires, powerful Shimano brakes and a super-useful dropper post for added comfort and speed. Last but not least, you’ve got our much-loved Marin Bedroll handlebar.
Key upgrades over the Pine Mountain 1:
- Series 3 CrMo frame w/12x148mm custom cast thru-axle dropouts
- RockShox FS 35 fork
- Shimano SLX 12-speed drivetrain & FSA Grid crankset
- TRP Slate Evo 4-piston brakes
| 01. FRAME | Series 3 Double Butted and Heat Treated CrMo, 29" Wheels, Custom Cast Boost 148x12mm Dropouts, 148x12mm Thru-Axle, 73mm Threaded BB, Plentiful Gear Mounts |
| 02. FORK | RockShox FS 35, 120mm Travel, DebonAir, Alloy Tapered Steerer, 110x15mm Boost Spacing, Maxle Lite, 44mm Offset |
| 03. RIMS | Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible |
| 04. HUB REAR | Shimano, Microspline 148x12mm, Disc, 32H |
| 05. HUB FRONT | Forged Alloy, 110x15mm, Sealed Cartridge Bearings, Disc, 32H |
| 06. SPOKES | 14g Black Stainless Steel |
| 07. TIRES | Vee Tire Flow Snap, 29x2.6", Folding Bead, Tubeless Ready |
| 08. DERAILLEUR REAR | Shimano SLX 12-Speed |
| 09. SHIFT LEVER | Shimano SLX 12-Speed |
| 10. CRANKSET | FSA Grid, Modular 1x, 32T Direct Mount MegaTooth Chainring |
| 11. BOTTOM BRACKET | FSA Outboard Cartridge Bearings |
| 12. CHAIN | KMC X12 |
| 13. CASSETTE | Shimano SLX M7100 Cassette, 12-Speed, 10-51T |
| 14. BRAKES FRONT | Shimano MT520, 4-Piston, Hydraulic Disc, 180mm Rotor |
| 15. BRAKES REAR | Shimano MT500, 2-Piston, Hydraulic Disc, 180mm Rotor |
| 16. BRAKE LEVERS | Shimano MT500 Hydraulic |

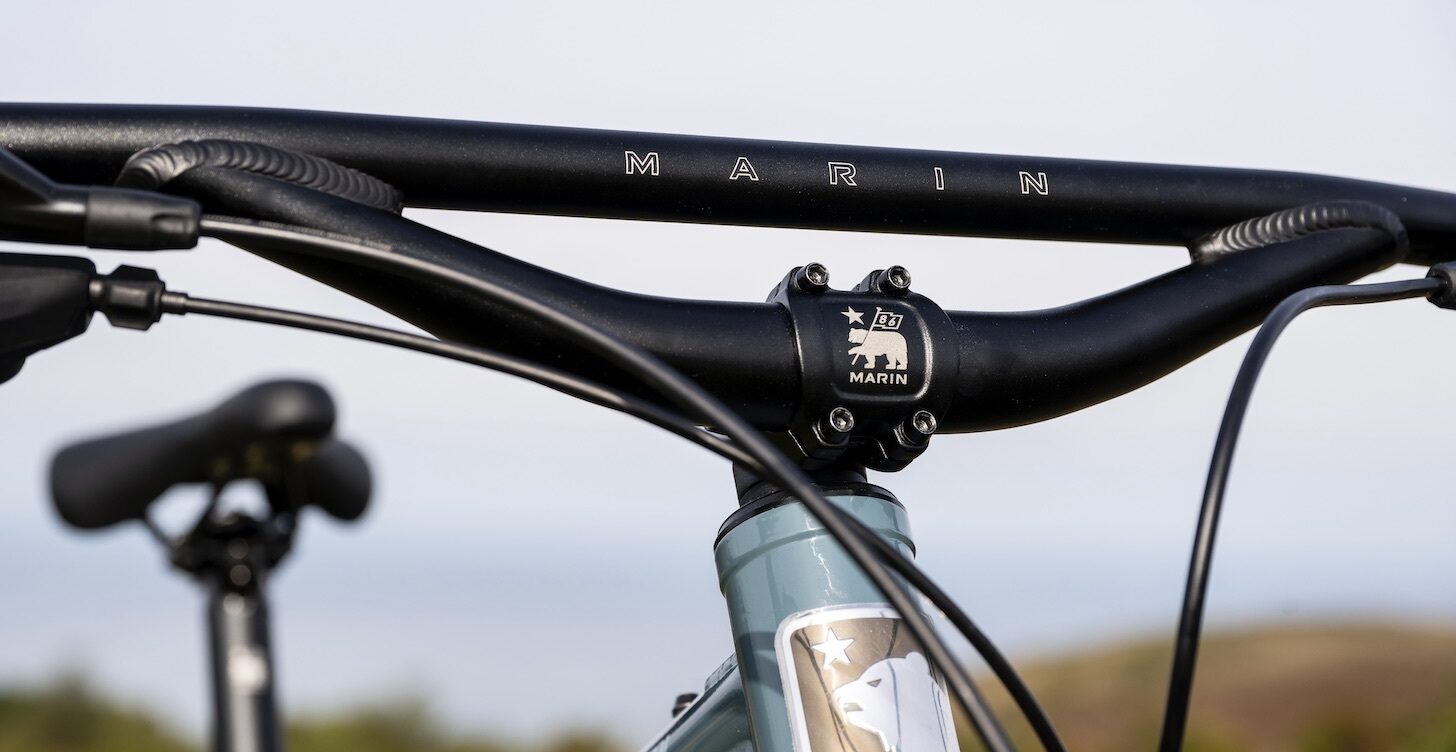

| 17. HANDLEBAR | Marin Bedroll Bar, 50mm Rise, 780 Width, 10? Backsweep, 6? Upsweep |
| 18. STEM | Marin 3D Forged Alloy, 35mm |
| 19. GRIPS | Marin Bear Paw Locking |
| 20. HEADSET | FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| 21. SEATPOST | TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, All Other Sizes 150mm Travel, 30.9mm |
| 22. SADDLE | Marin Pine Mountain Trail |
| 23. PEDALS | Nylon Platform |
| 24. EXTRAS | Bolt-On Thru-Axle |
| 25. PEDALS | Marin MTB Plastic |
