Surly

Surly Bridge Club

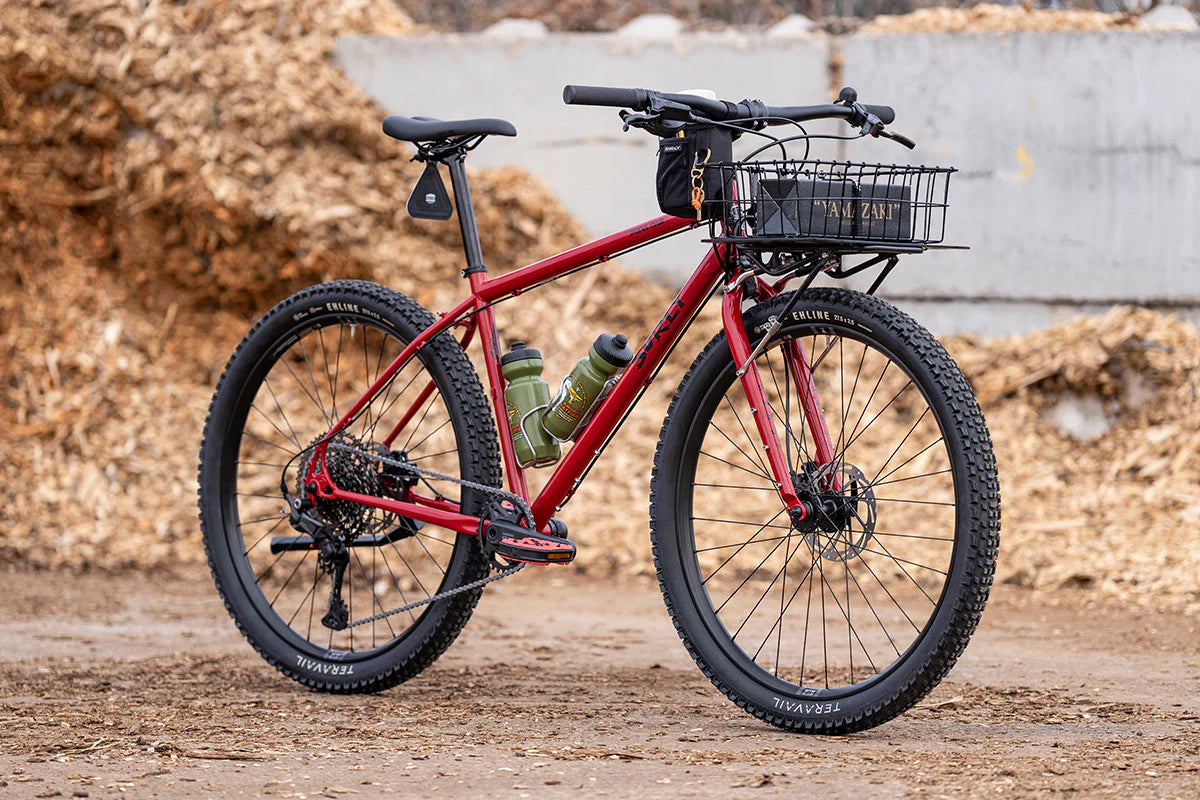

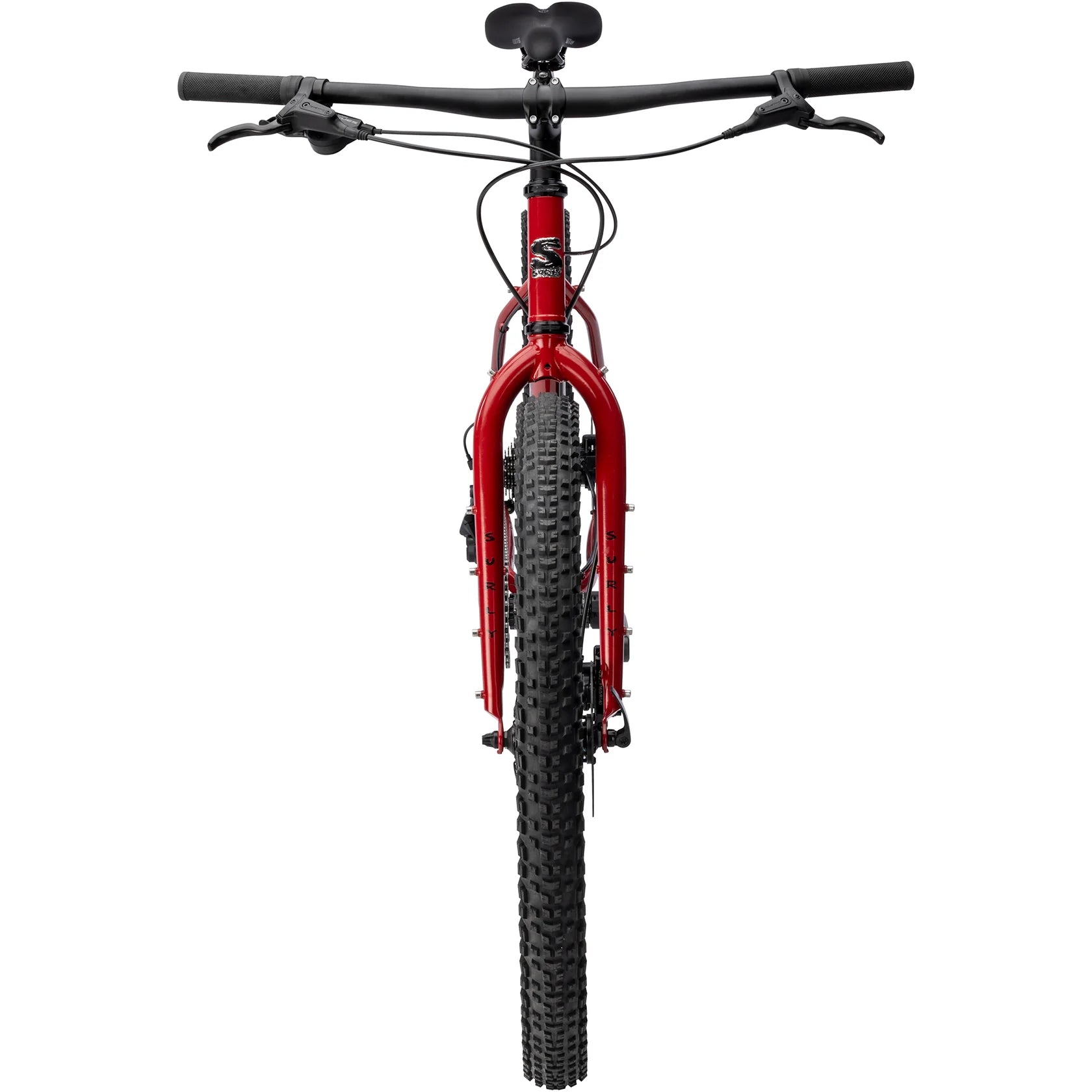

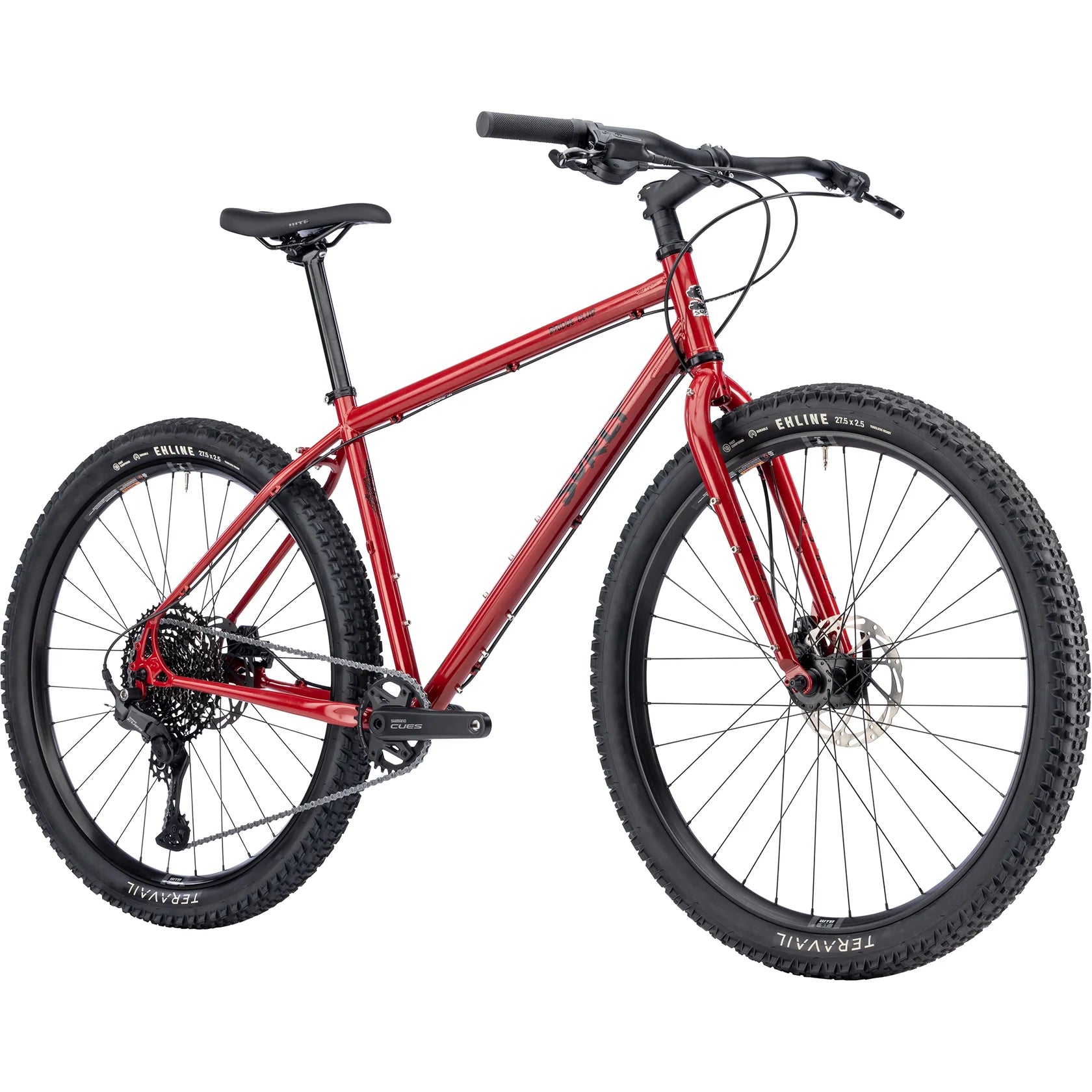

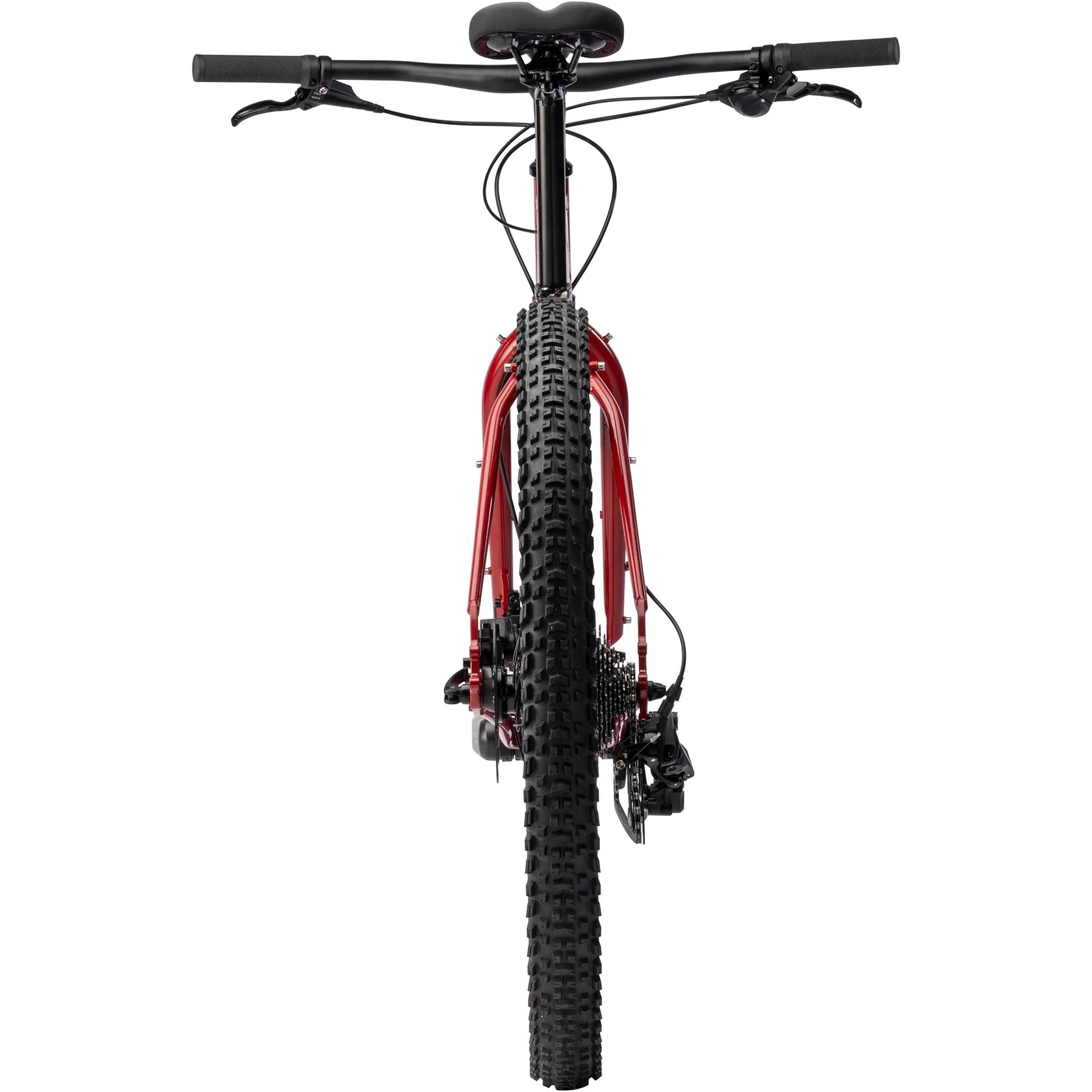

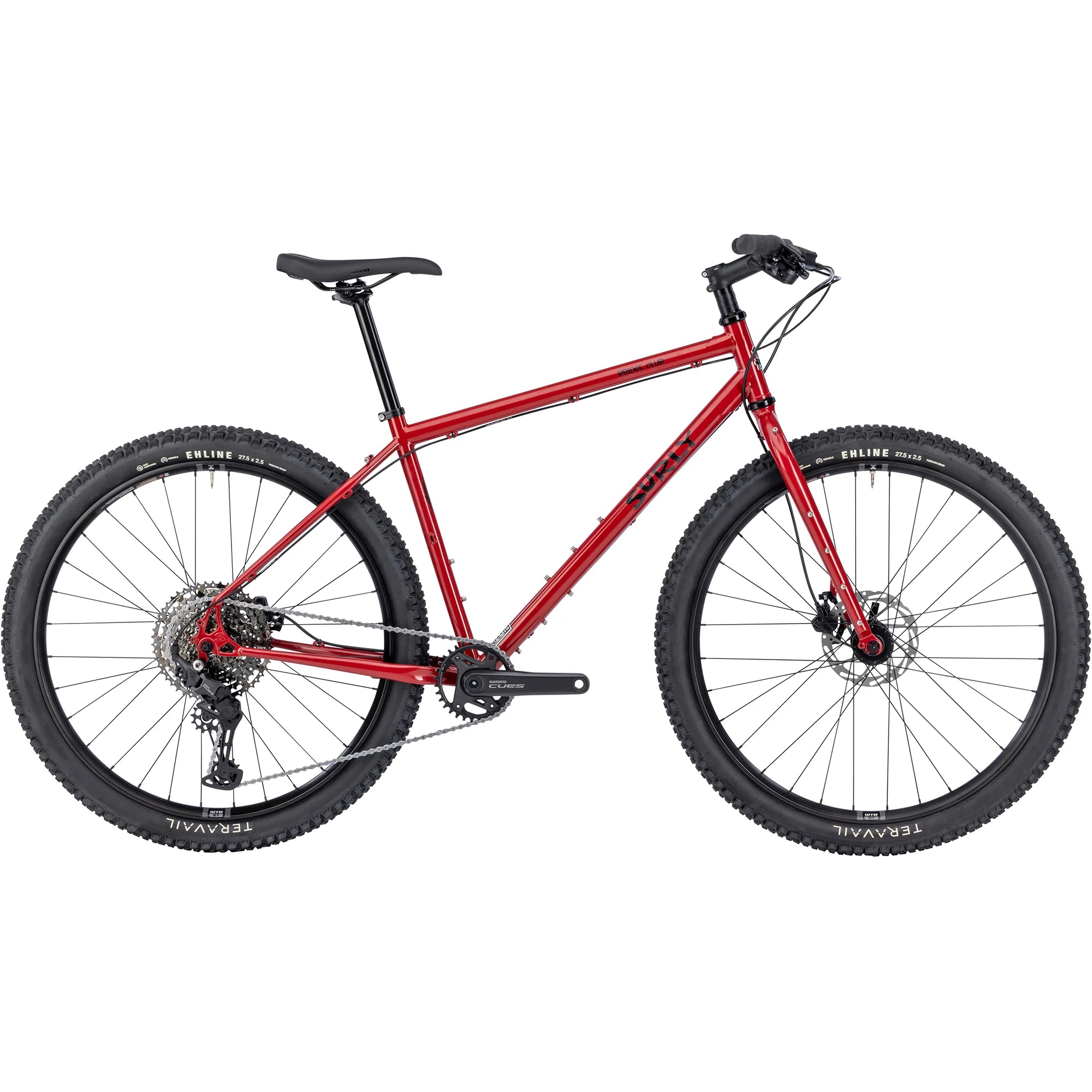

Name: Surly Bridge Club
Brand: Surly
SKU: BKATBC01506
Price: 2899.0 NZD
Availability: InStock

.price-ui--loading { display: block !important; opacity: 1 !important; }

$2,899.00$0.00

Finance options available with:

Description

All Road Touring Bike for Any Destination

Bridge Club is for those multi-surface outings — planned or unplanned. We've all run out the clock on a dirt tour and had to add in some paved shortcuts. Conversely, when you’re feeling a little zesty on your next road tour, Bridge Club is ready for reroutes through the woods.

Some people hear "bike touring" and immediately think of long-forgotten stretches of highway, small-town oddities, and roadside attractions. Others picture remote gravel, forest trails, and the kind of roads that don’t show up on Google Maps. With Bridge Club, you get both.

The 2026 build leans even harder into what makes this bike so good. Shimano CUES with a wide-range 11–50t cassette keeps things simple and durable while giving you the gearing to climb loaded. Teravail tyres add comfort and grip straight out of the box, ready for gravel, dirt, or whatever route you end up on.

It’s a proper do-it-all platform. Commuter during the week, loaded tourer on the weekend. The kind of bike that makes something like Tour Aotearoa feel realistic, not ridiculous.

Features & Highlights

Shimano CUES drivetrain with wide-range 11–50t cassette for loaded climbing
Teravail tyres for grip, comfort, and true off-road capability
Built for commuting, touring, and bikepacking in one platform
Tour Aotearoa-proven style of setup — simple, durable, and field-serviceable
Ultra-focused on simplicity with only what matters for real-world riding
Run racks and panniers, framebags, or all of the above
Disc brake-specific, single position vertical rear dropout for ease of setup
Massive tyre clearance: 700 x 47mm, 27.5 x 2.8", or 26 x 3"

Specifications

Frame Surly Bridge Club, 100% Surly Chromoly steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Colour Lingering Cranberry

Fork Surly Cocktail Fork, 100% Surly Chromoly steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Headset FSA Orbit MX

Seatpost Clamp Surly Stainless, 30.0mm

Seatpost Promax SP-2016, 27.2 x 350mm, 12mm offset

Stem Promax DA-296, 31.8mm

Grips / Bar Tape Velo Black

Saddle WTB Volt Medium

Handlebar Salsa Bend

Front Derailleur N/A

Rear Derailleur Shimano CUES U6000 GS

Cassette Shimano CUES LG400, 11-50t, 11-speed

Chain KMC eGlide EPT

Crankset Shimano CUES U6000, 32t

Shifter Shimano CUES U6000

Brake Levers Tektro HD-M275/276

Brake Calipers Tektro HD-M275/276, 2-piston

Bottom Bracket Shimano BB-MT501

Rotors Tektro, 160/160mm, 6-bolt

Front Tyre Teravail Ehline 27.5 x 2.5", Durable casing, 60tpi, tubeless ready, WTB TCS sealant included

Rear Tyre Teravail Ehline 27.5 x 2.5", Durable casing, 60tpi, tubeless ready, WTB TCS sealant included

Front Hub Novatec, QR x 100mm, 6-bolt, 32h

Rear Hub Novatec, QR x 141mm, 6-bolt, 32h

Spokes 14g black

Rims WTB ST i30 27.5", TCS 2.0, 32h

Weight 29 lb 5 oz (Medium)

Designed Wheel / Tyre Size 27.5 x 2.4"

Alternate Wheel / Tyre Sizes Frame clearance: 26 x 3.0" (26 x 2.8" with fenders), 27.5 x 2.8" (27.5 x 2.6" with fenders), 700c x 47 with or without fenders. Fork clearance: 26 x 3.0" (26 x 2.8" with fenders), 27.5 x 2.8" (27.5 x 2.6" with fenders), 700c x 47 with or without fenders

Frame Construction 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Fork Construction 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Suspension Fork Length (Travel) N/A

Rigid Fork Length 420mm

Fork Offset 43mm

Axle to Crown 420mm

Rear Spacing Gnot-Boost 138mm

Rear Axle Size 10 x 135mm or 10 x 141mm

Rear Brake Mount Disc, 51mm I.S., 180mm max rotor

Front Brake Mount Disc, 51mm I.S., 203mm max rotor

Headset Upper EC34/28.6

Headset Lower EC34/30

Front Spacing 10 x 100mm

Steerer Tube Ø28.6mm (1-1/8")

Crown Race Ø30mm (1-1/8")

Stem Clamp Ø28.6mm (1-1/8")

Seatpost Diameter Ø27.2mm

Dropper Post Compatible No

Seatpost Clamp Diameter Ø30mm

Front Derailleur Clamp Ø28.6mm

Front Derailleur Type High direct mount top-pull (Ø28.6mm), 26mm offset adapter (not included) for 135mm rear hub spacing, 29mm offset adapter (not included) for 141mm rear hub spacing

Bottom Bracket Shell 73mm threaded (1.37" x 24TPI)

Max Chainring Compatibility 1x (MTN): 34t, 2x (MTN): 26/40t, 3x (MTN): 22/36/44t, 1x (Boost): 40t, 2x (Boost): 32/42t

Bottle Mounts 2 Three-Pack (XS), or 1 standard + 2 Three-Pack (S-XL)

Fork Mounts 2 Three-Pack, plus upper, lower, and mid-blade threaded rack mounts

Front Fender Mounts Yes

Rear Fender Mounts Yes

Note Specifications are subject to change without notice.

Geometry

Size	X-Small	Small	Medium	Large	X-Large
A. Effective Top Tube	545.0	570.0	595.0	615.0	630.0
B. Stand Over	709.0	750.5	780.0	812.0	845.5
C. Reach	376.0	397.0	419.0	434.5	444.0
D. Stack	553.0	567.0	576.0	590.0	609.0
E. Total Seat Tube Length	335.6	406.4	457.2	508.0	558.8
F. Headtube Length	110.0	120.0	130.0	145.0	165.0
G. Headtube Angle	70.0°	71.0°	71.0°	71.0°	71.0°
H. Seat Tube Angle	73.0°	73.0°	73.0°	73.0°	73.0°
I. BB Drop	60.0	60.0	60.0	60.0	60.0
K. Chainstay Length	435.0	435.0	435.0	435.0	435.0
L. Fork Length Axle to Crown	420.0	420.0	420.0	420.0	420.0
M. Fork Offset	45.0	45.0	45.0	45.0	45.0
N. Wheelbase	1032.0	1047.5	1073.0	1093.0	1109.0
Crank Arm Length	170.0	170.0	170.0	170.0	170.0
Handlebar Width	700.0	700.0	740.0	740.0	740.0
Recommended Rider Height	145.0 - 160.0	155.0 - 170.0	165.0 - 180.0	175.0 - 191.0	185.0 - 201.0
Stem Length	80.0	80.0	90.0	90.0	100.0
