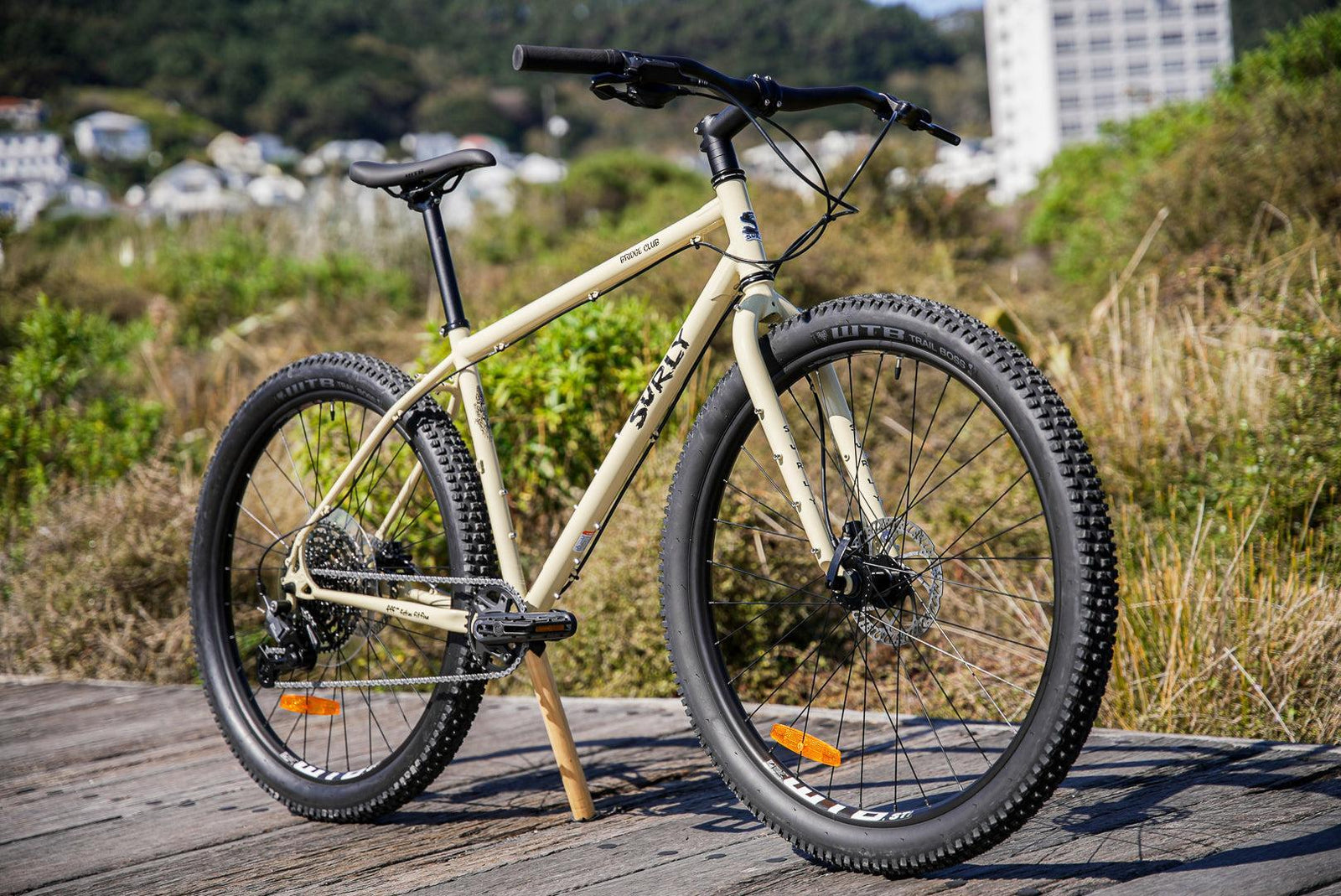

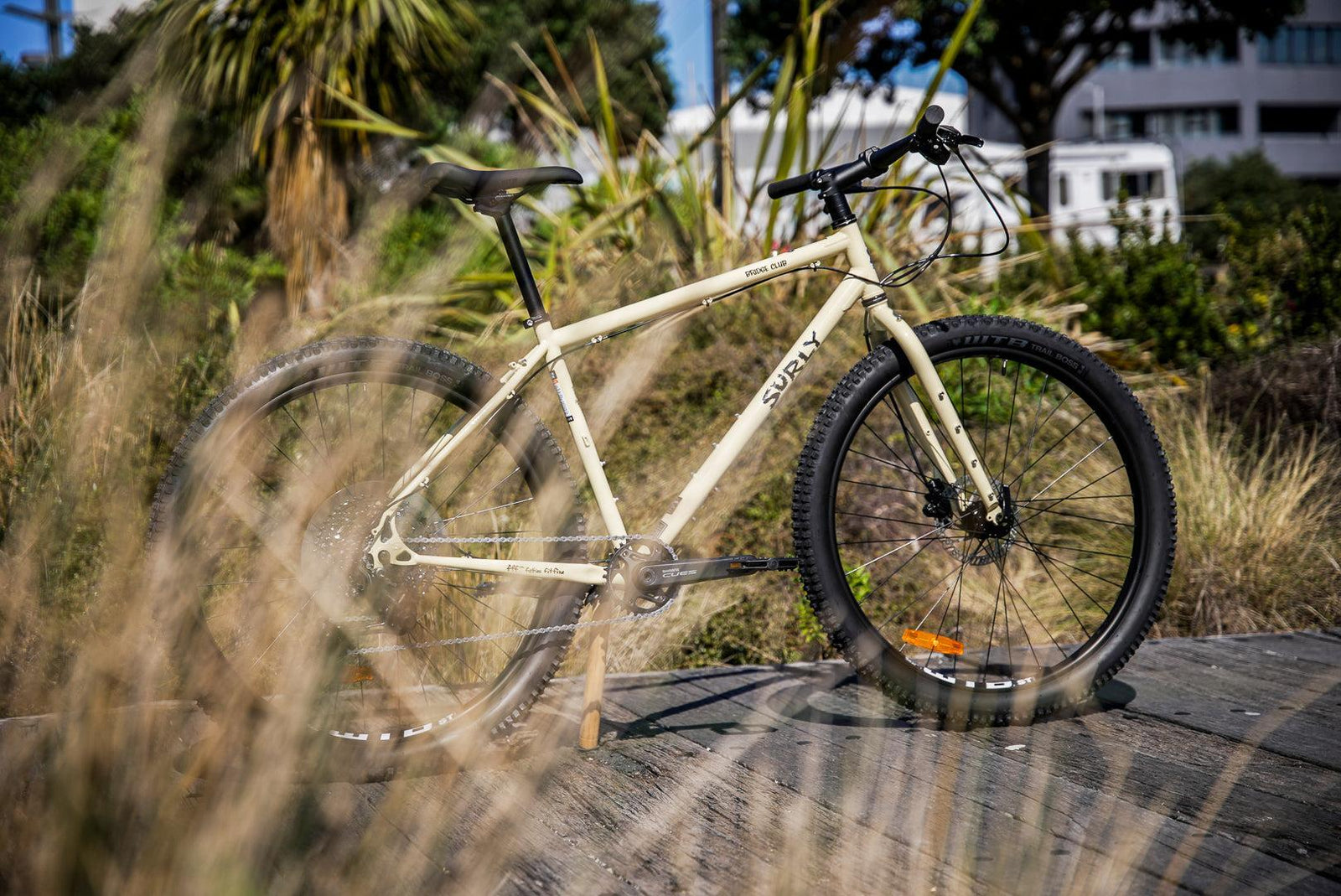

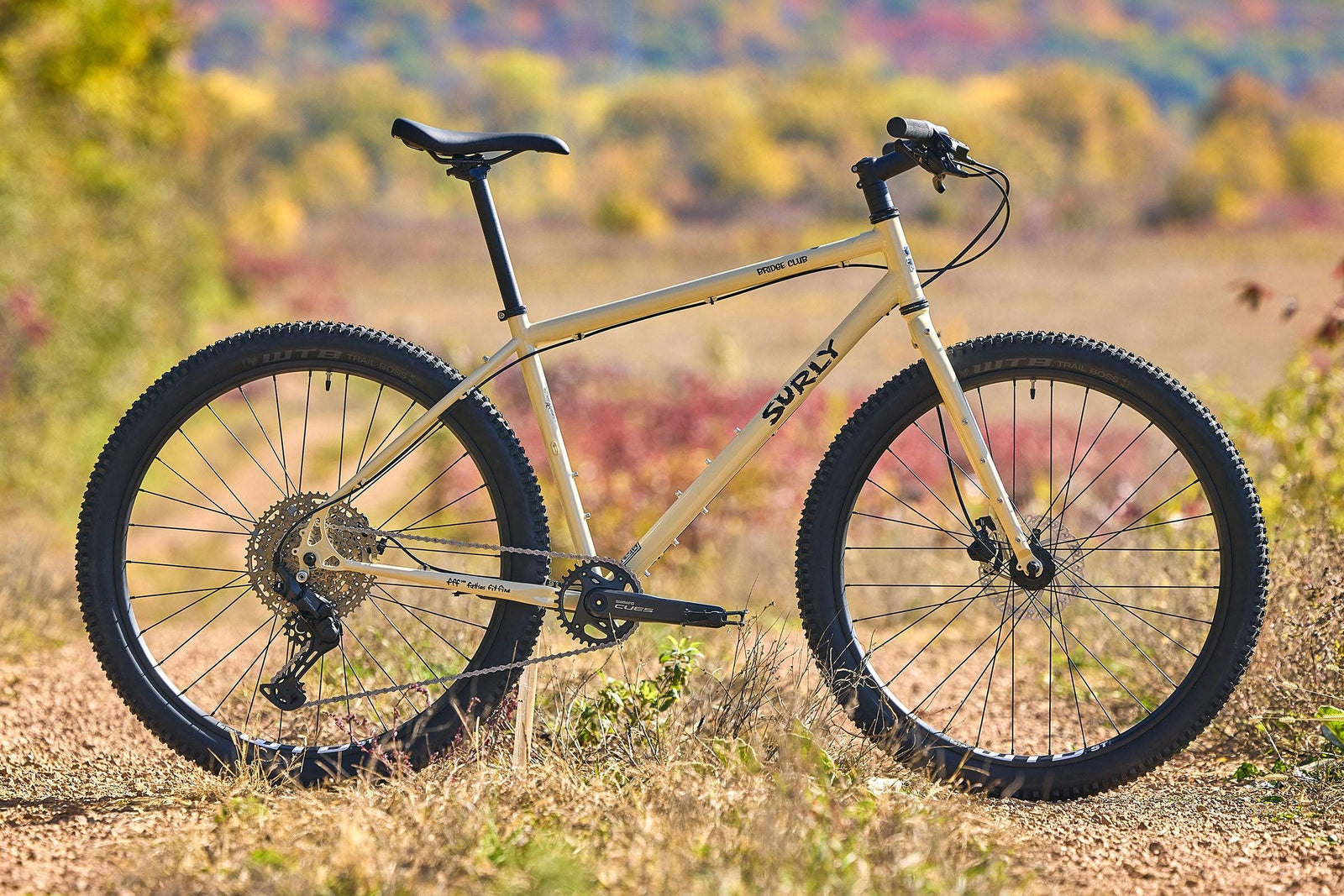

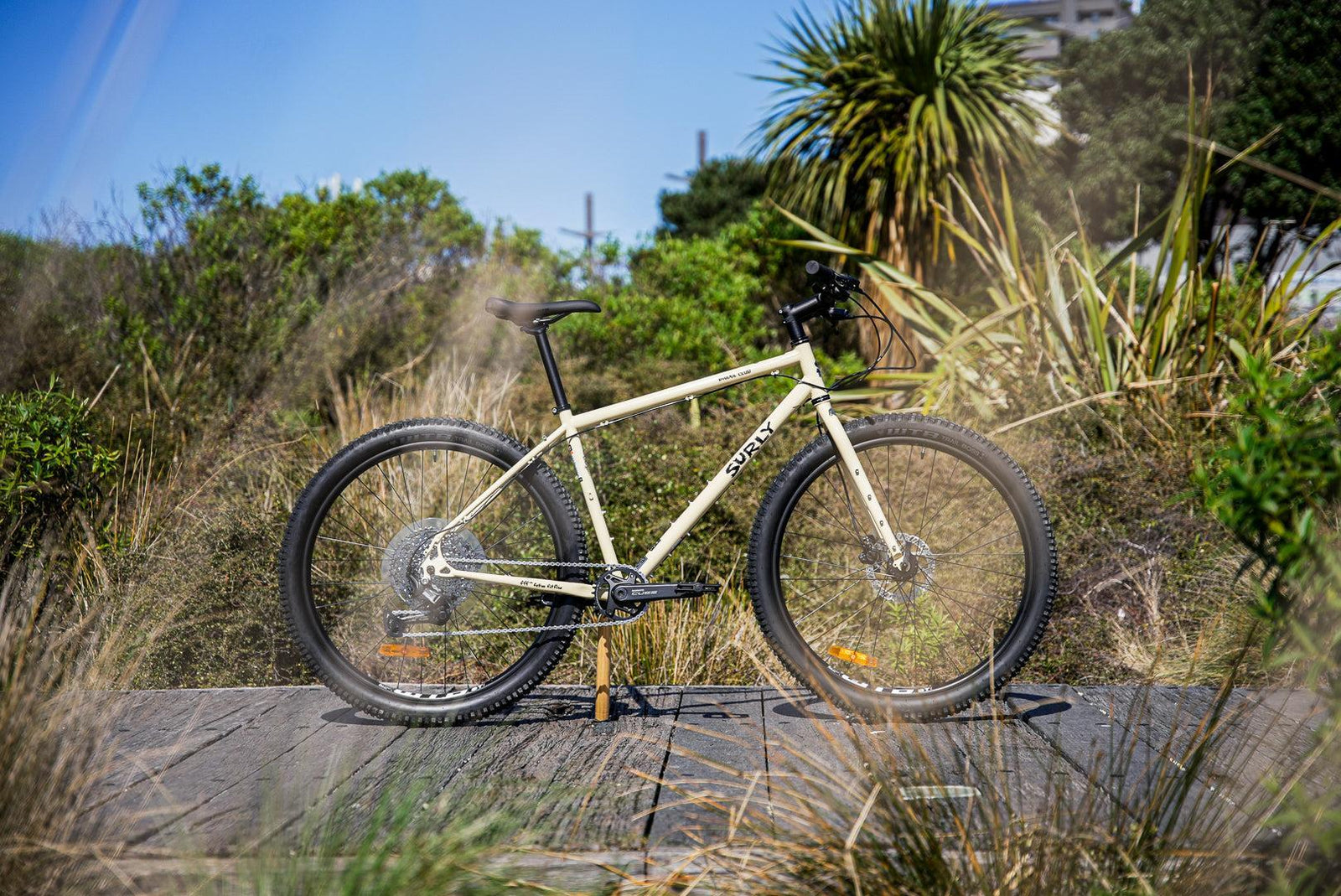

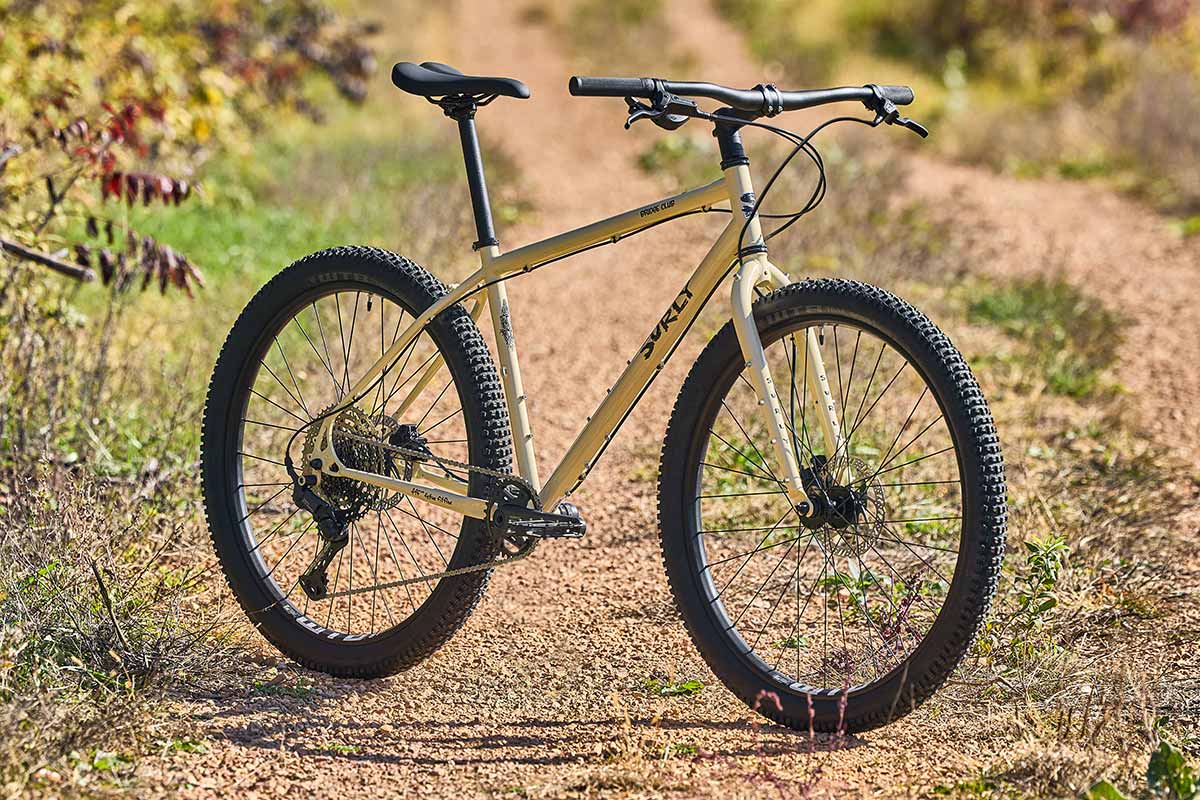

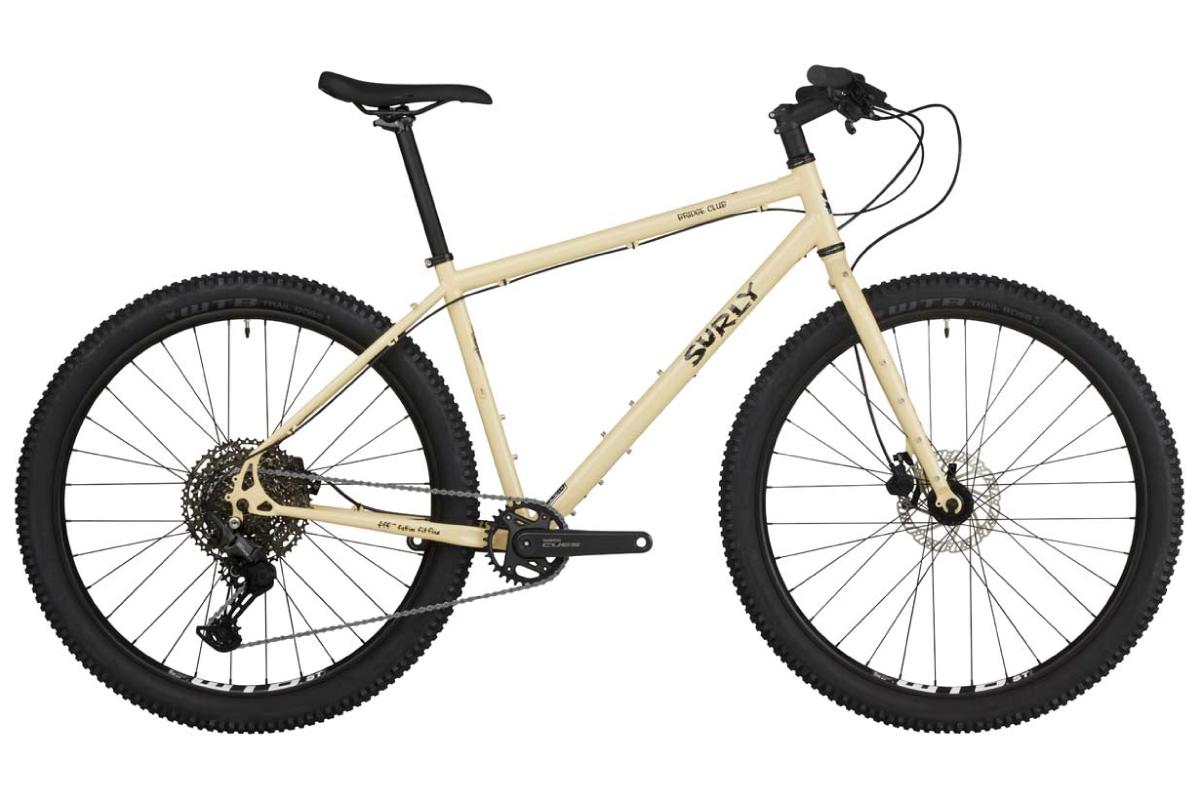

Surly Bridge Club │Whipped Butter

Frameset

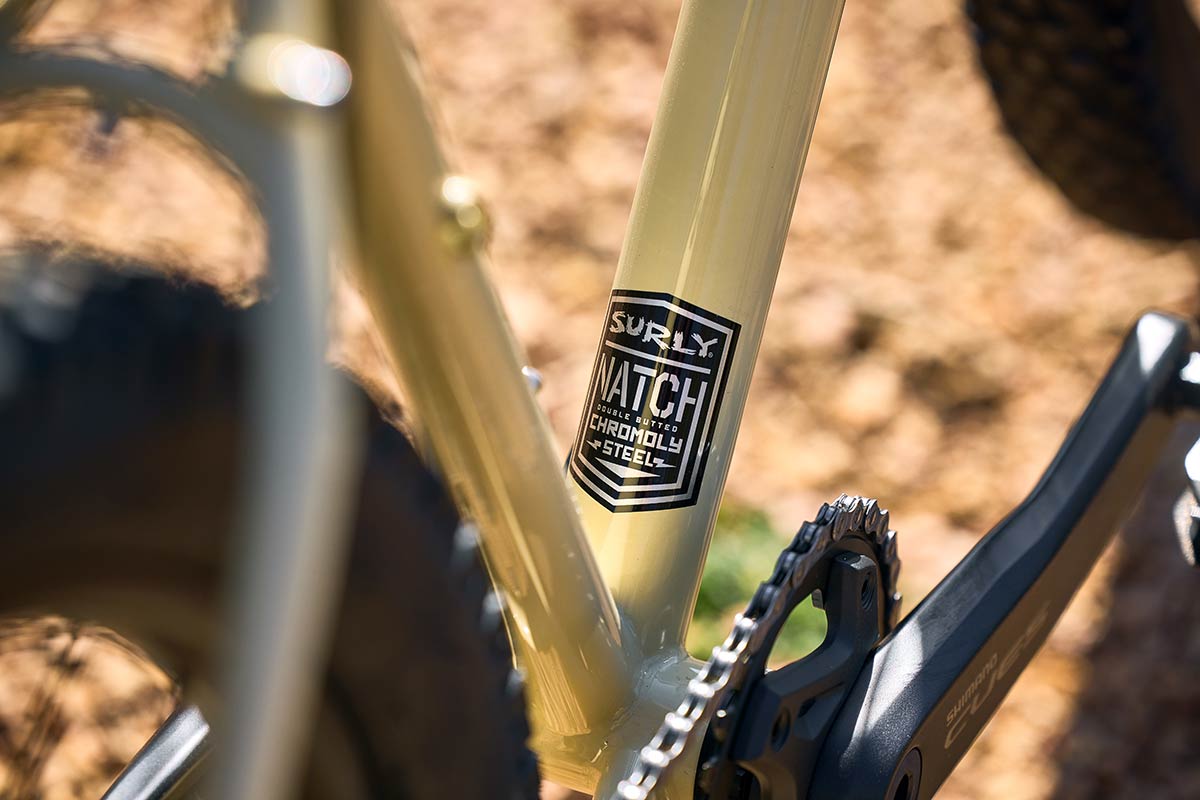

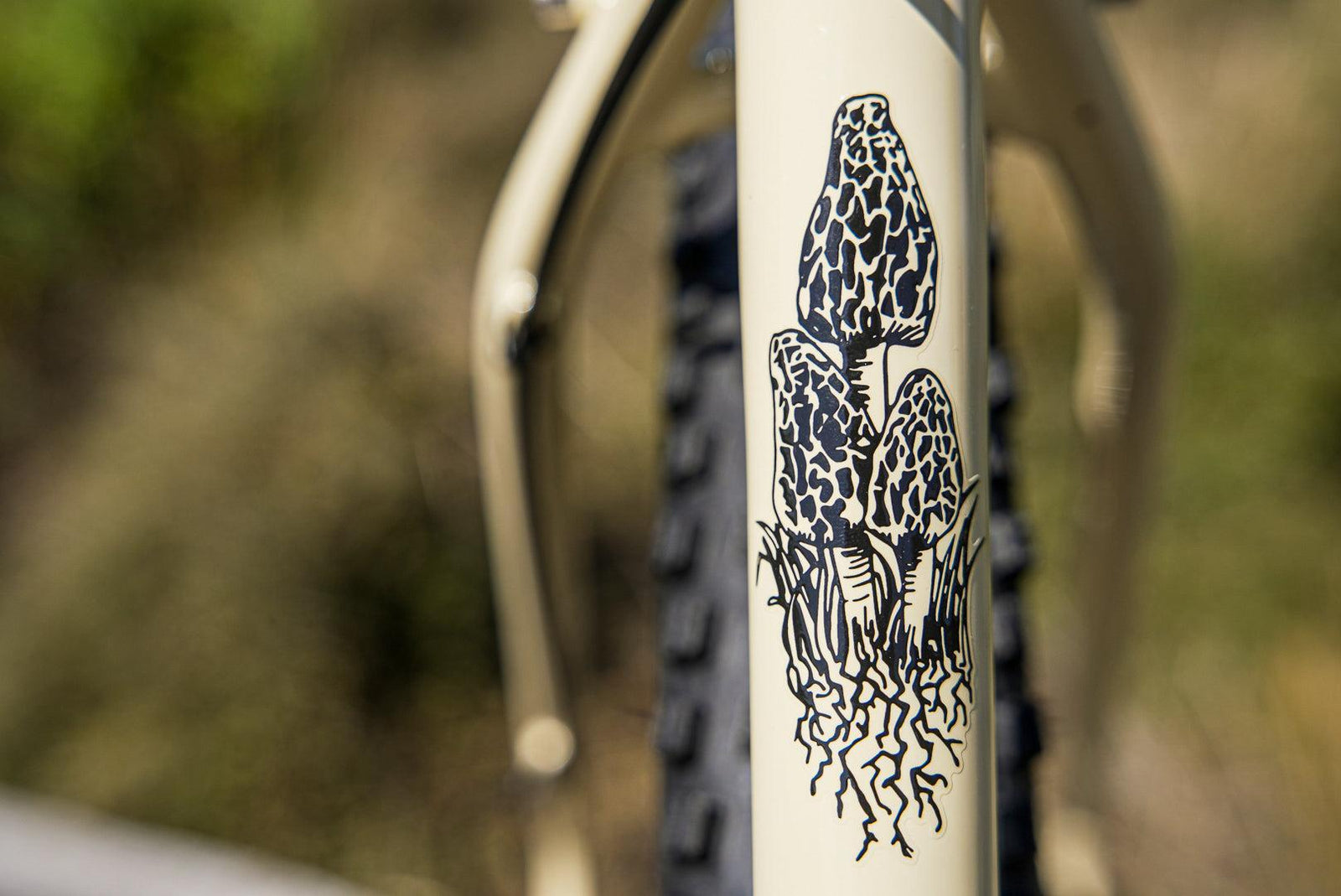

Frame: Surly Bridge Club — 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Color: Whipped Butter

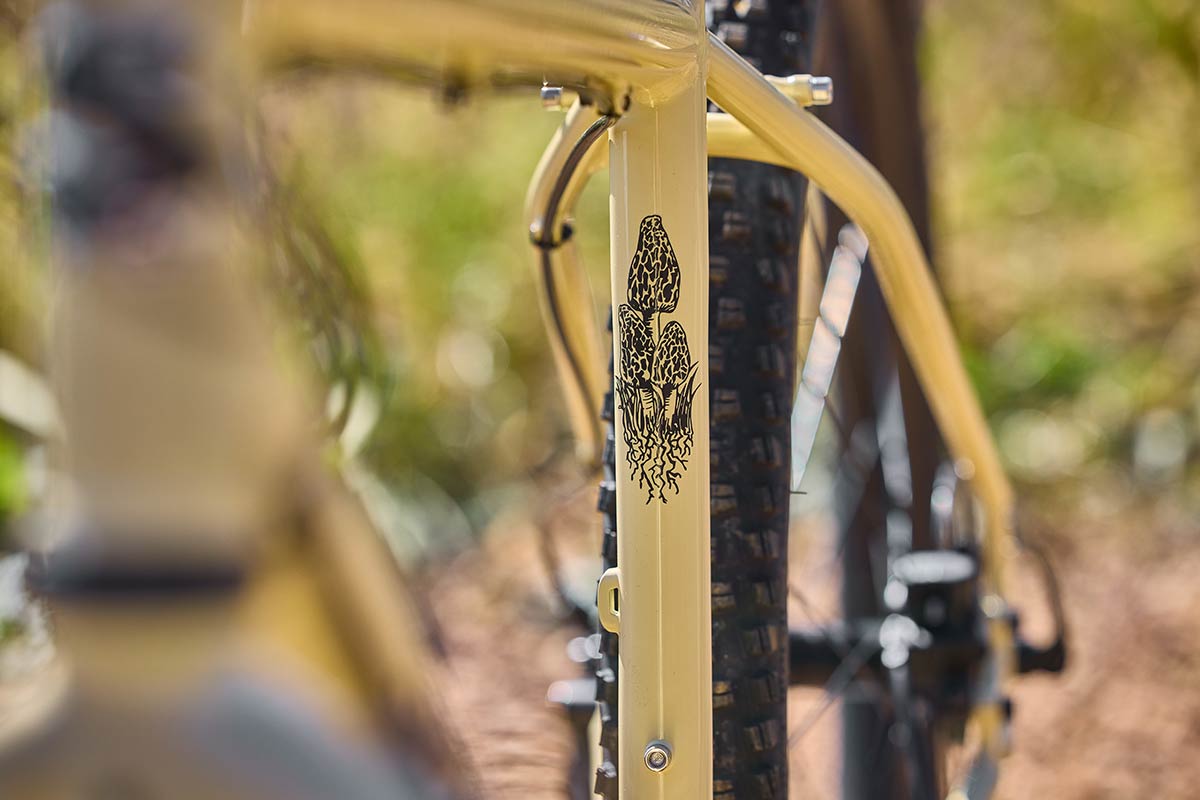

Fork: Surly Cocktail Fork — 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

Components

Headset: Cane Creek 40

Seatpost Clamp: Surly Stainless, 30.0 mm

Seatpost: Promax 27.2 mm × 350 mm, 12 mm offset

Stem: Promax, 31.8 mm

Grips: Velo Black

Saddle: WTB Volt

Handlebar: Salsa Bend

Drivetrain

Front Derailleur: N/A

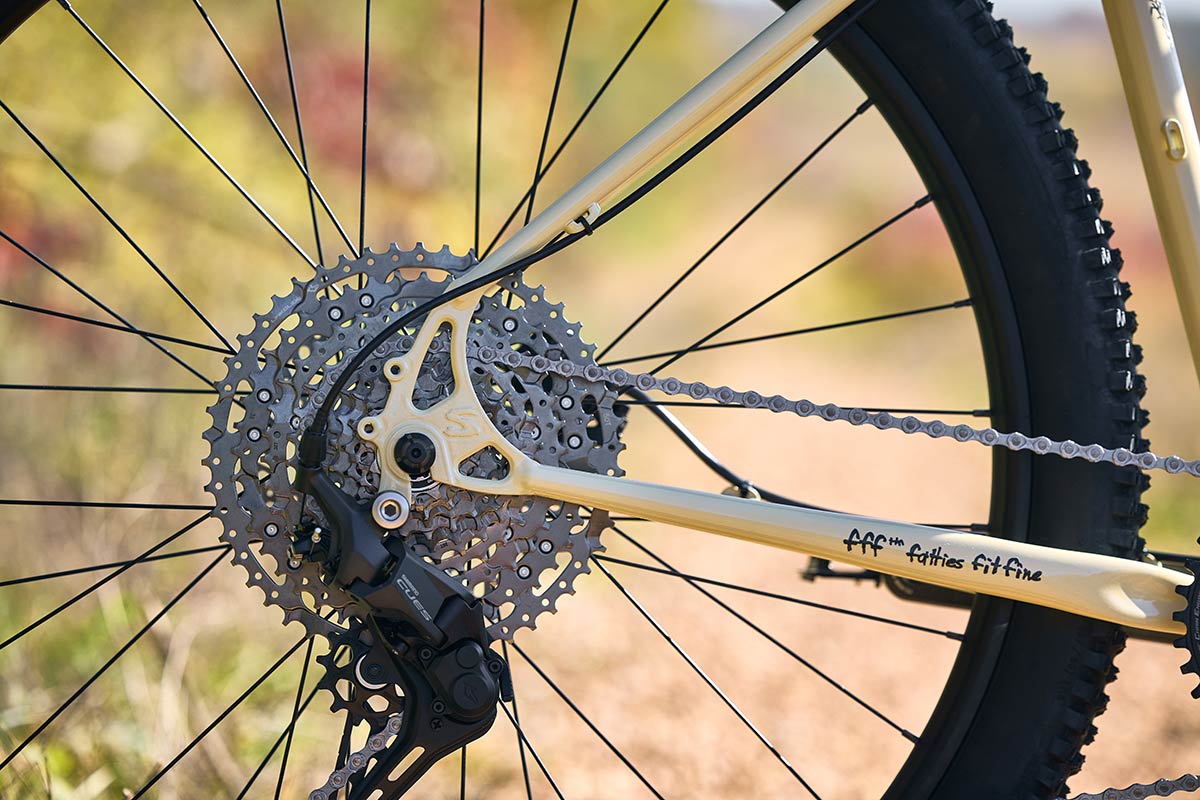

Rear Derailleur: Shimano CUES

Cassette: Shimano CUES, 11–50T, 11-speed

Chain: KMC

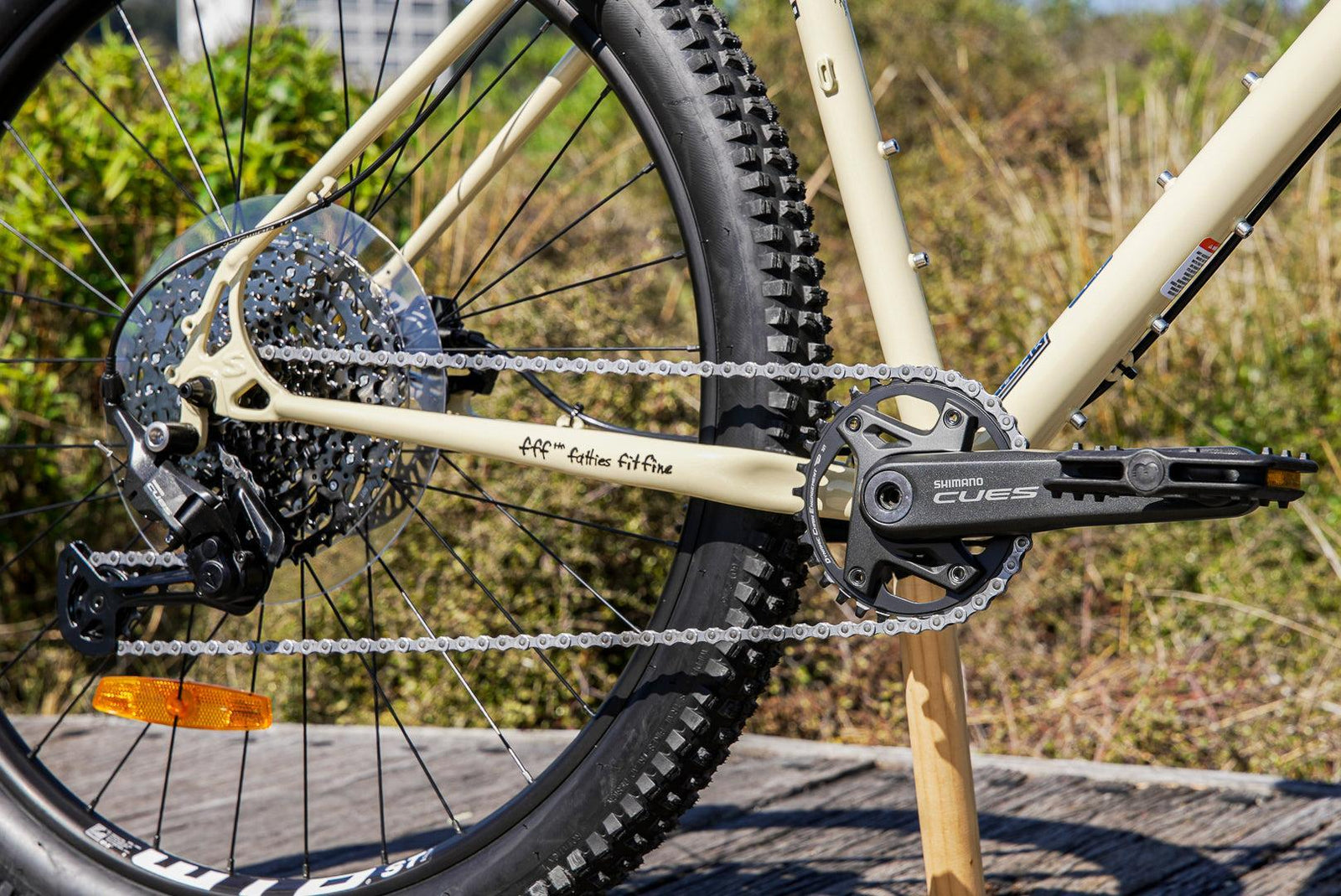

Crankset: Shimano CUES

Shifter: Shimano CUES U6000

Brake Levers: Tektro Hydraulic

Bottom Bracket: Shimano BB-MT501

Rotors: Tektro 160/160 mm, 6-bolt

Wheels

Front Tire: WTB Trail Boss 27.5 × 2.4", 27 tpi, wire bead

Rear Tire: WTB Trail Boss 27.5 × 2.4", 27 tpi, wire bead

Front Hub: Novatec QR × 100 mm, 6-bolt, 32h

Rear Hub: Novatec QR × 141 mm, 6-bolt, 32h

Spokes: 14G Black

Rims: WTB ST i29 or i30 TCS, 32h

Specifications are subject to change without notice.

Frame Warranty

LIMITED WARRANTY

This Surly product is warranted against defects in materials and
workmanship for three years from the date of retail purchase of the
product, subject to the limitations detailed below. Save your dated
receipt for proof of purchase.

This warranty does NOT cover the following:

Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler

Products that have been modified, neglected, used in competition or
for commercial purposes, misused or abused, involved in accidents or
anything other than normal use

Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold

Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product

Normal wear and tear

Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or
replacement of a defective product, at the option of Surly, and is the
sole remedy of the warranty. This limited warranty applies only to the
original purchaser of the Surly product and is not transferrable. This
warranty applies only to products purchased through an authorized dealer
or distributor. In no event shall Surly be liable for any loss,
inconvenience or damage, whether direct, incidental, consequential, or
otherwise resulting from breach of any express or implied warranty or
condition, of merchantability, fitness for a particular purpose, or
otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and
those rights and other rights may vary from place to place. This limited
warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE
AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS
INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
