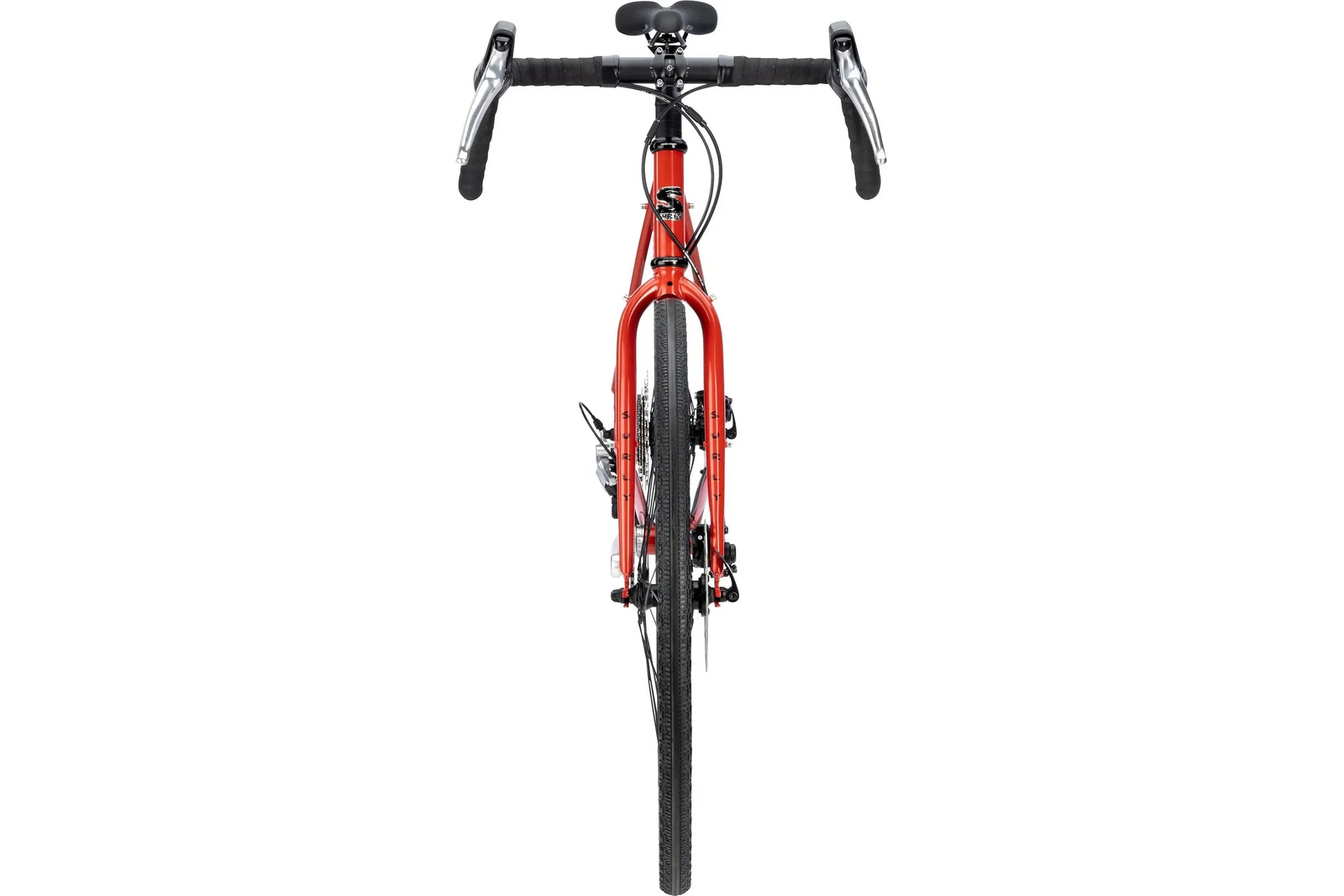

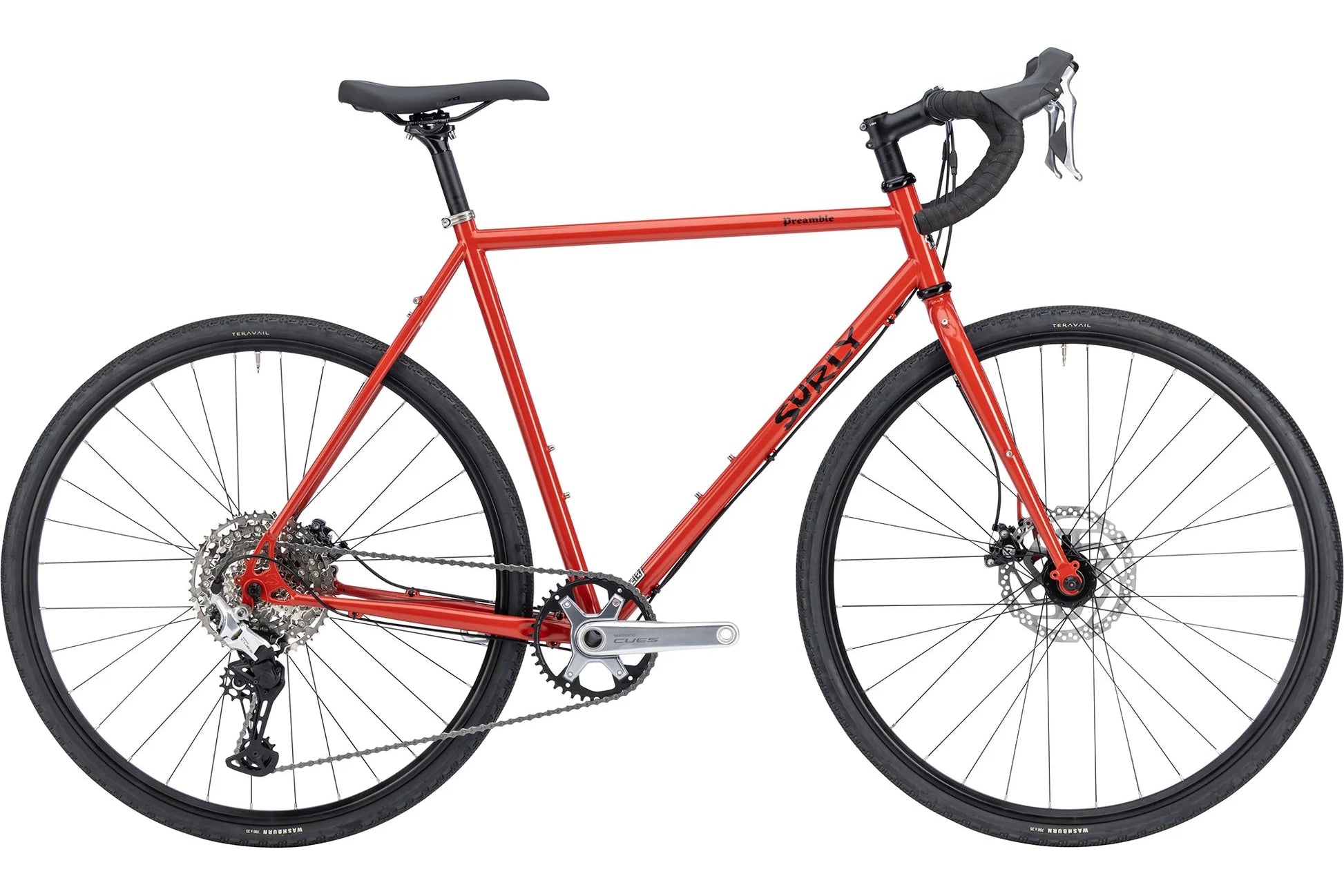

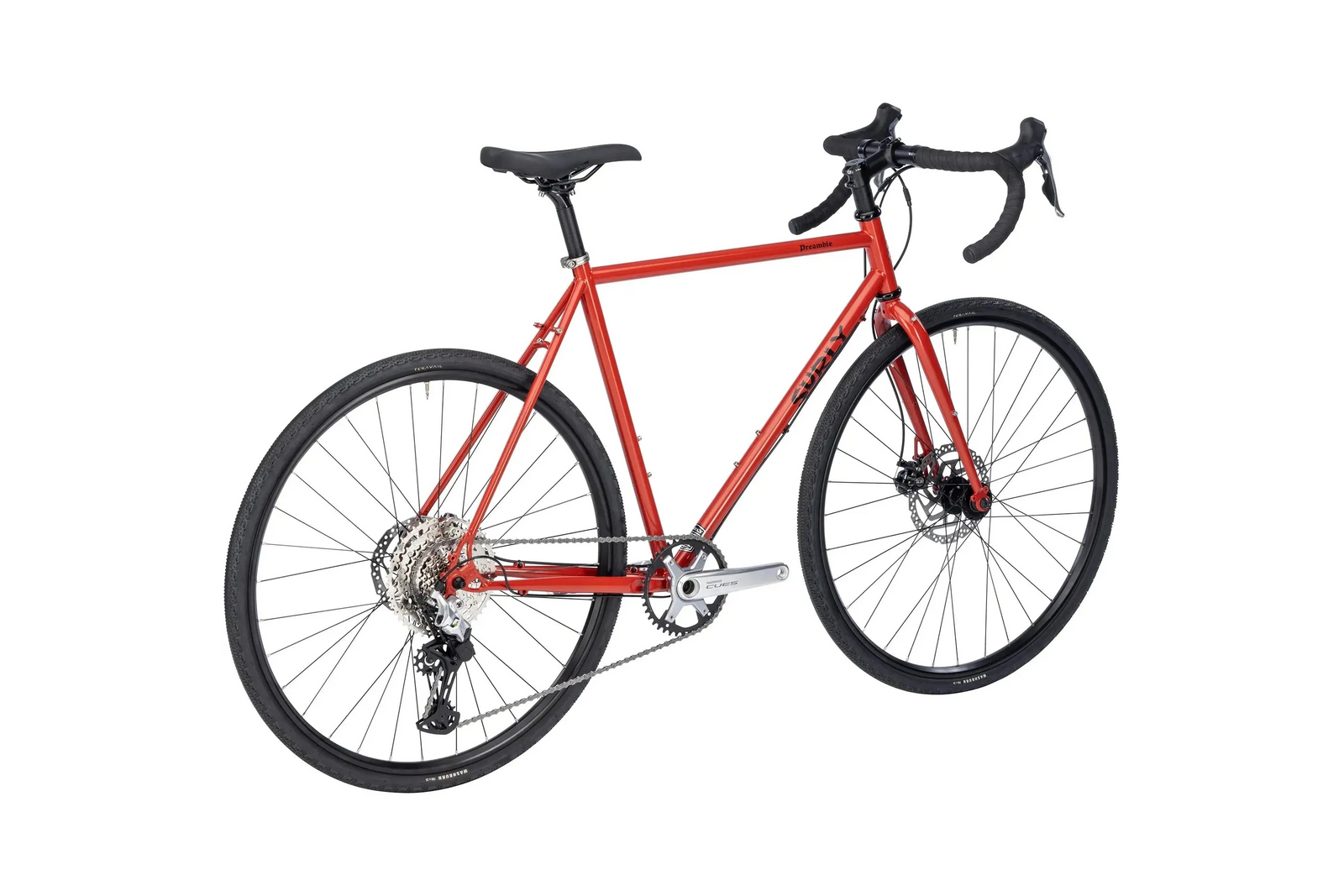

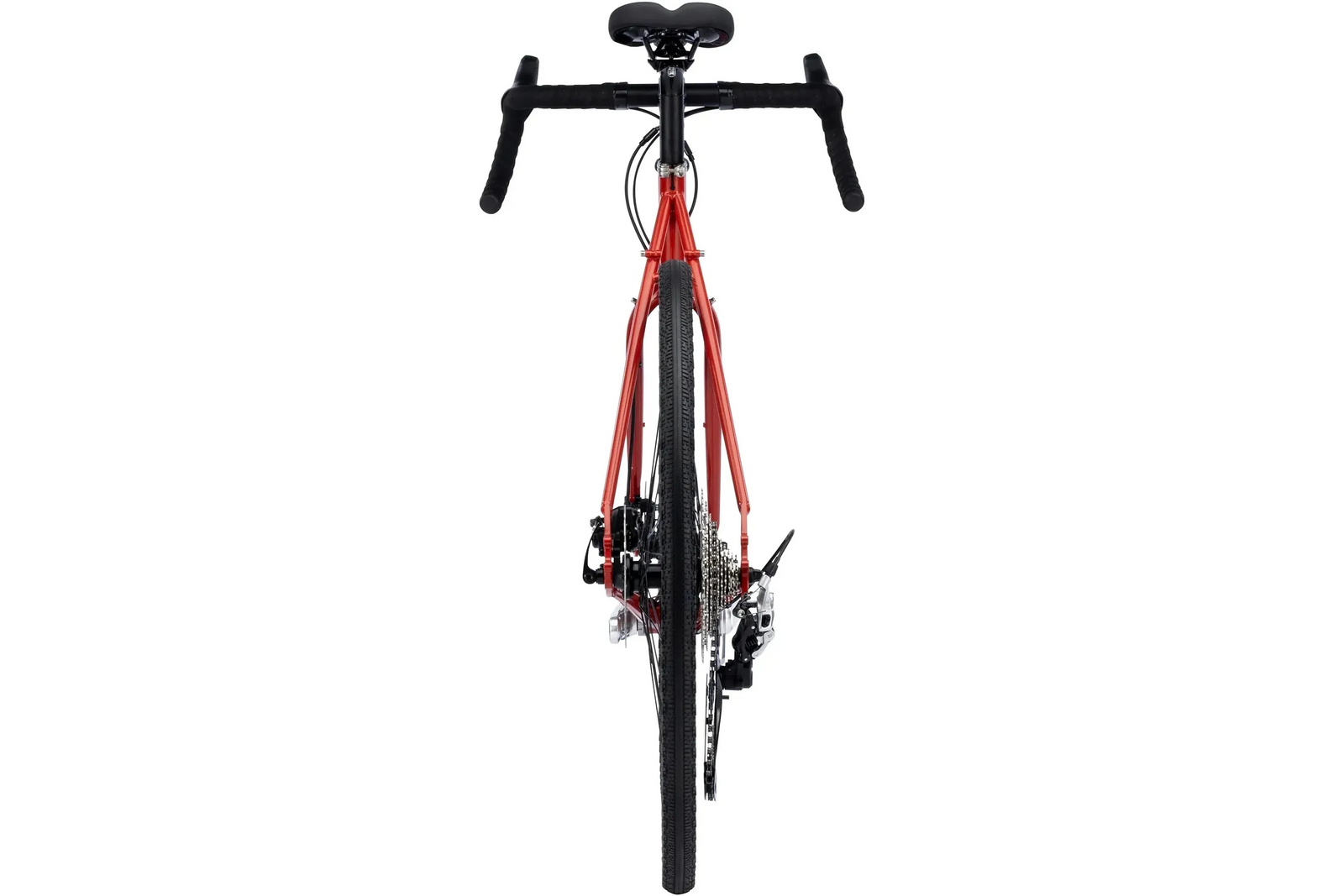

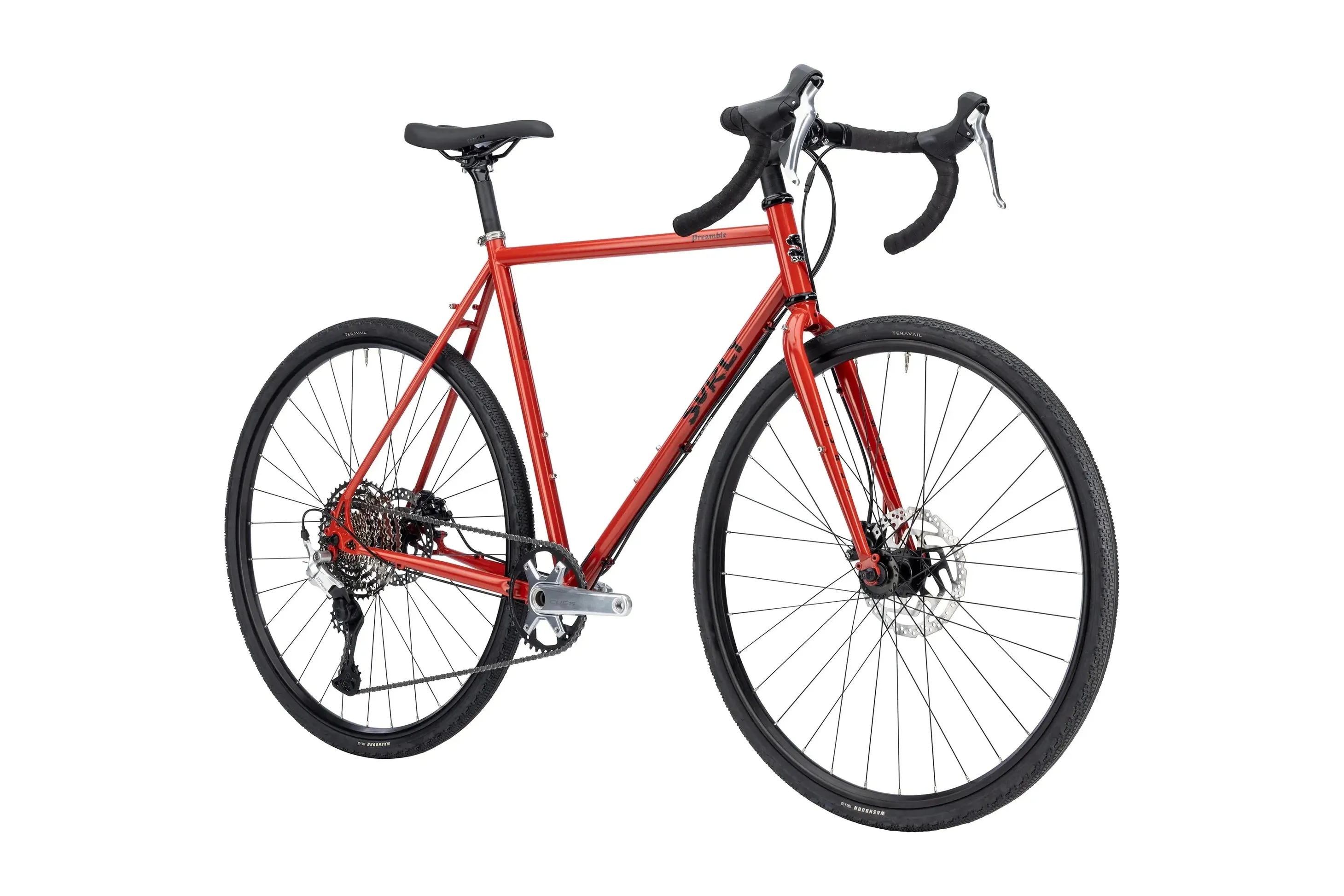

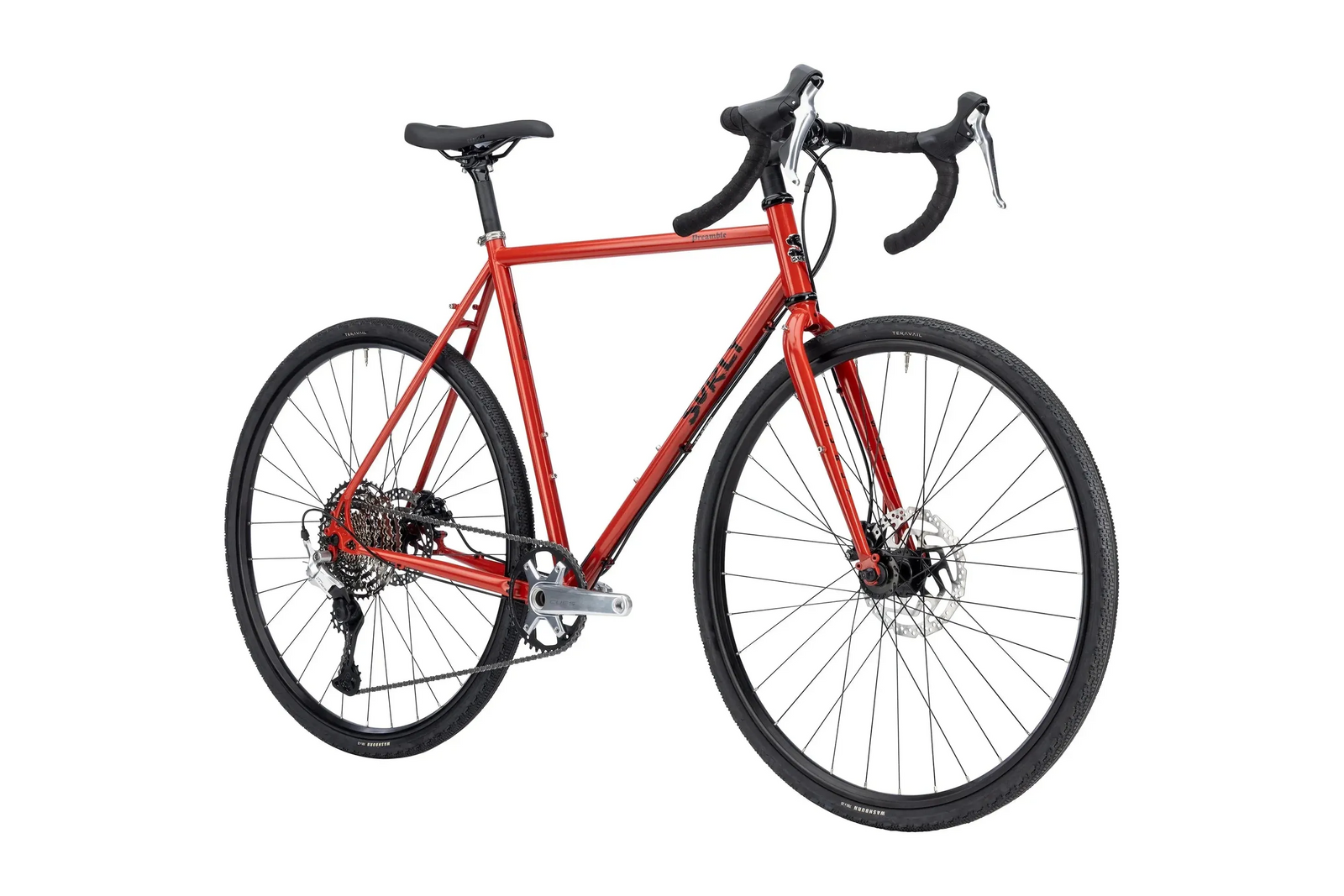

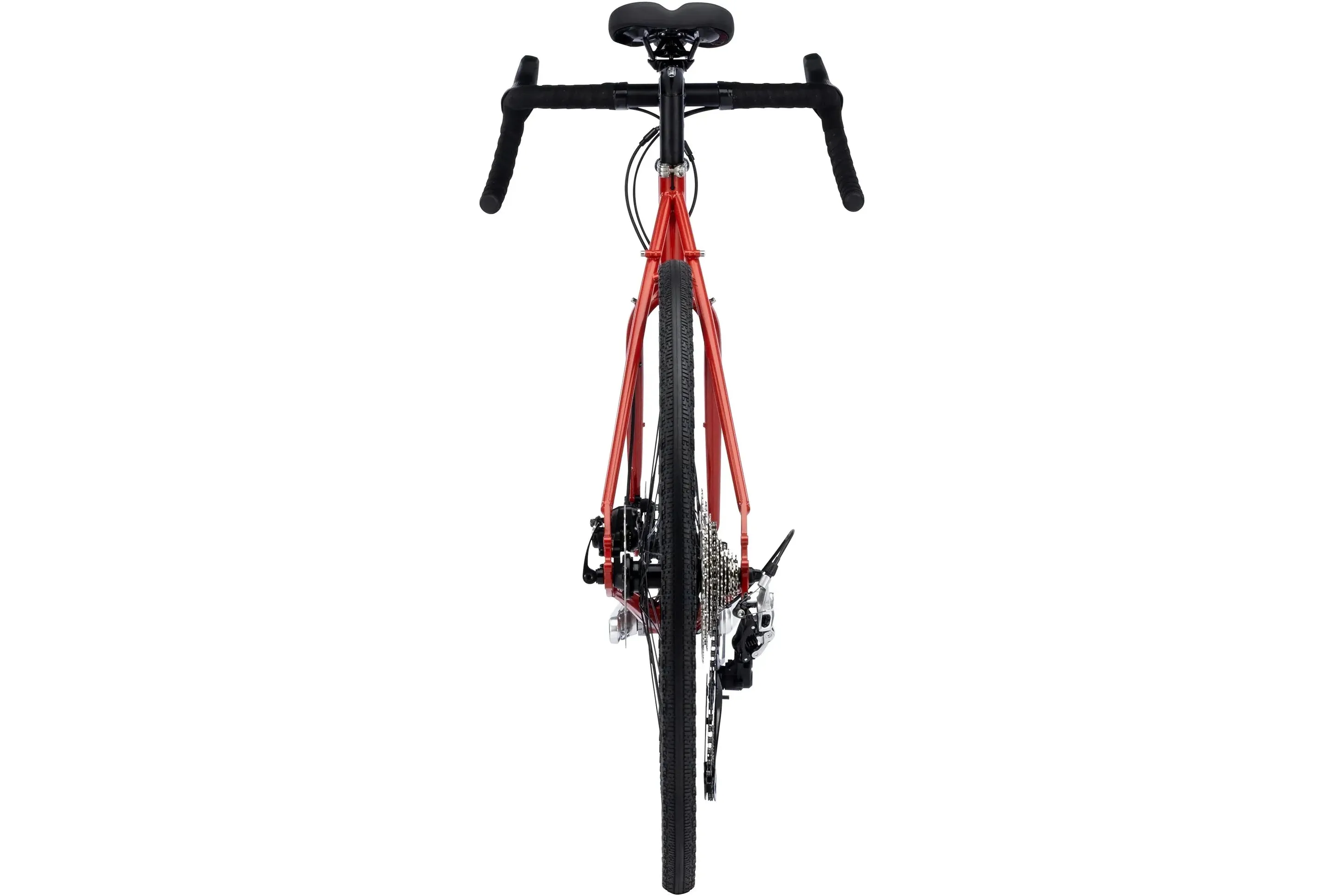

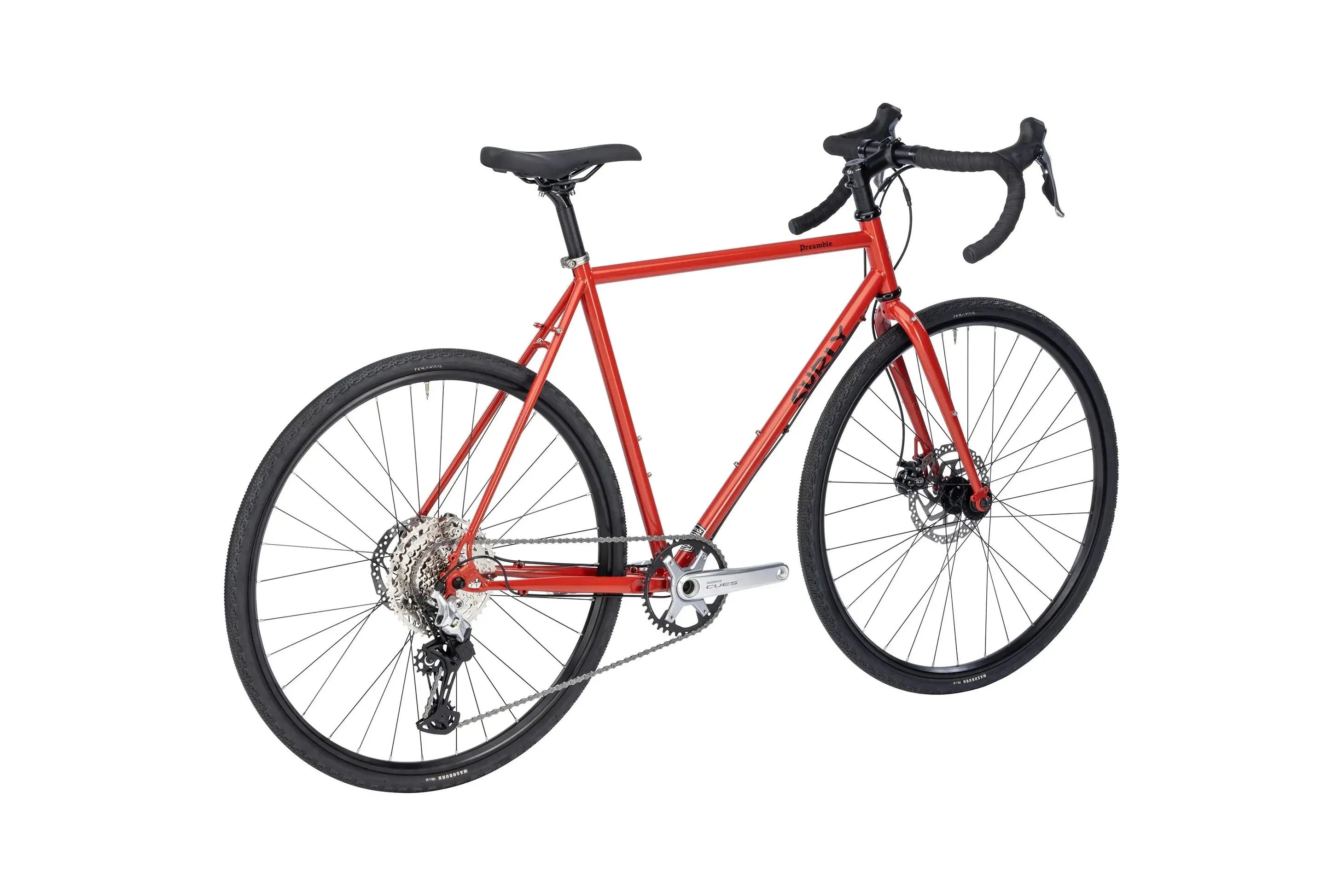

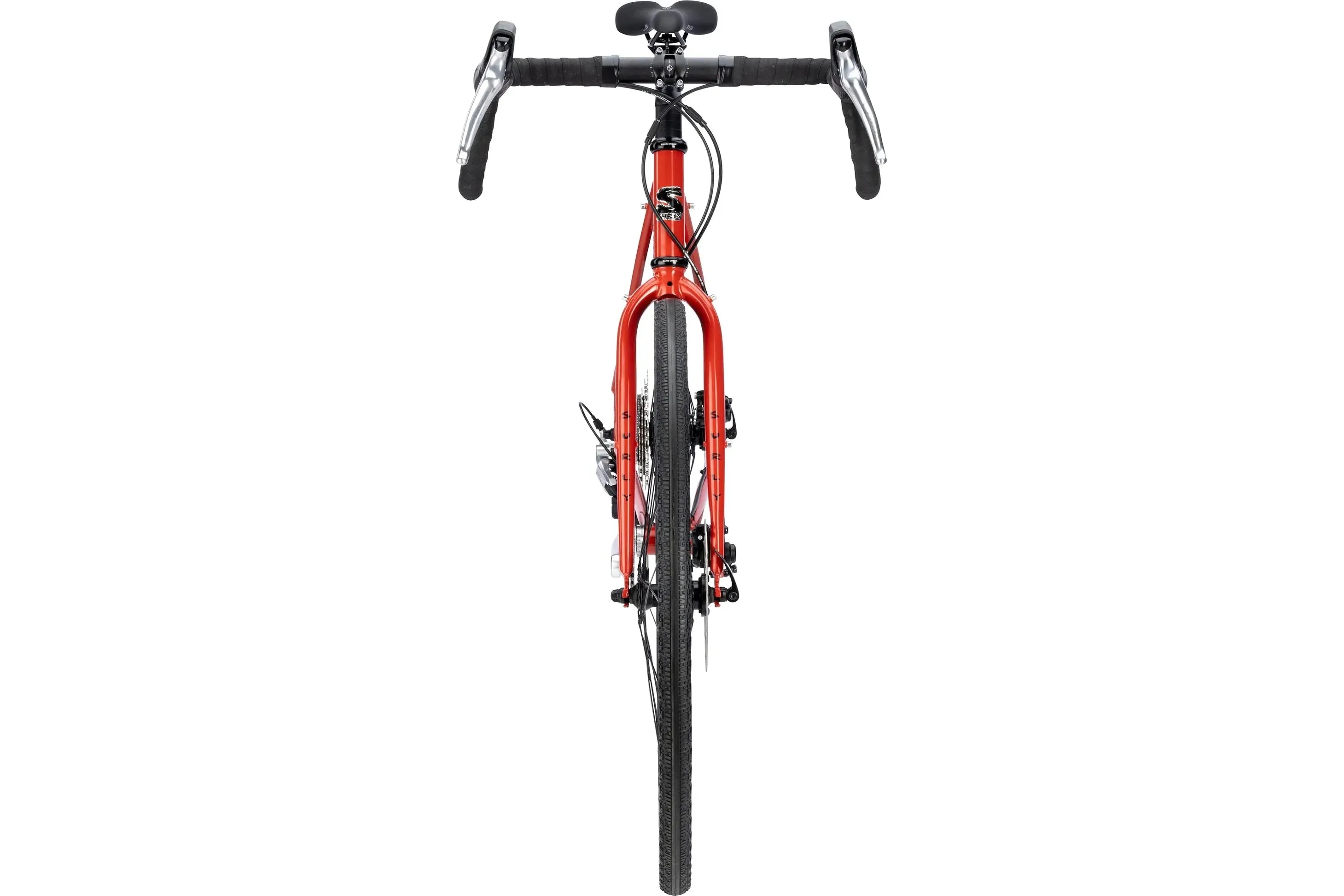

Surly Preamble

Finance options available with:

Ask A Question x

New for 2026. Nothing More is Needed. Nothing Less Will Do.

The challenge was thus: Build a serious steel bike and give it only the attributes that matter most. Make it quick and comfortable on pavement, as well as confident and compliant on degraded surfaces. What the Enginerds put forth is Preamble, a pavement and gravel utility worker that proves you don’t need to cut corners or clip coupons to make a more affordable steel bike. You just need to keep shit simple.

Preamble can run racks and fenders and carry a couple water bottles. Surly was raised on stealing basic cable, after all. Smooth and efficient on asphalt, Preamble’s double-butted main triangle provides a resplendent ride feel and withstands abuse from life’s inevitable potholes. Make it your own with flat bars, drop bars, a basket, or bags. On the road to steel euphoria, Preamble is the gateway drug.

  • Easy T-Shirt sizing to fit nearly every rider (XS,S,M,L,XL)
  • Sloping top tubes on XS and Small frames for improved standover and comfort
  • To offer the best rider experience for every frame size, XS and S frames get 650b wheelsets while M–XL get 700c
  • Custom-cast single-position vertical dropout

Frame & Fork

Frame Construction
100% Surly Chromoly steel using Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Fork Construction
100% Surly Chromoly steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Rear Dropouts
Vertical

Rear Hub Spacing
“Gnot-Boost” 138 mm; compatible with 10 × 135 mm or 10 × 141 mm

Front Hub Spacing
10 × 100 mm

Brakes
Front disc – 51 mm I.S. (203 mm max rotor)
Rear disc – 51 mm I.S. (180 mm max rotor)

Headset Standard (S.H.I.S.)
EC34/30

Seatpost Diameter
27.2 mm

Bottom Bracket
68 mm BSA, threaded

Maximum Chainring Size
1x: 42T max
2x: 46/36T max

Wheels & Tyres

Wheel Size (Complete Bike)
XS–SM: 650b × 35
MD–XL: 700c × 35

Frame Tyre Clearance
XS–SM: 650b × 41 (with or without fenders)
MD–XL: 700c × 41 (with or without fenders)

Fork Tyre Clearance
XS–SM: 650b × 42 (with or without fenders)
MD–XL: 700c × 42 (with or without fenders)

Rigid Fork Axle-to-Crown
XS–SM: 380 × 47 mm
MD–XL: 400 × 44 mm

Components

Headset
Cane Creek 40 or FSA Orbit MX

Seatpost
Kalloy 27.2 × 300 mm, zero offset

Stem
TranzX JD-ST123A

Handlebar
TranzX JD-RA48A

Grips / Bar Tape
Velo Black Cork

Saddle
WTB Volt Medium

Drivetrain & Braking

Rear Derailleur
Shimano CUES U6000 GS, Silver

Shifter
Shimano CUES U3030, Silver

Cassette
Shimano CUES LG400, 11–48T, 10-speed, Silver

Chain
Shimano LG500

Crankset
Shimano CUES U6030, 40T, Silver

Bottom Bracket
Shimano RS501 BSA

Brake Levers
Shimano CUES U3030, Silver

Brake Calipers
Shimano RS305, mechanical disc

Rotors
Shimano RT26, 160 mm front / 160 mm rear, 6-bolt

Wheels

Tyres
Teravail Washburn 650b × 35, 30 TPI, wire bead (XS–SM)
Teravail Washburn 700c × 35, 30 TPI, wire bead (MD–XL)

Front Hub
Novatec QR × 100 mm, 32H, 6-bolt

Rear Hub
Novatec QR × 141 mm, 32H, 6-bolt

Rims
Shining DB-21, 32H

Spokes
14G black

Weight

Complete Bike
12.3 kg (Medium)

Specifications subject to change without notice.
