Description

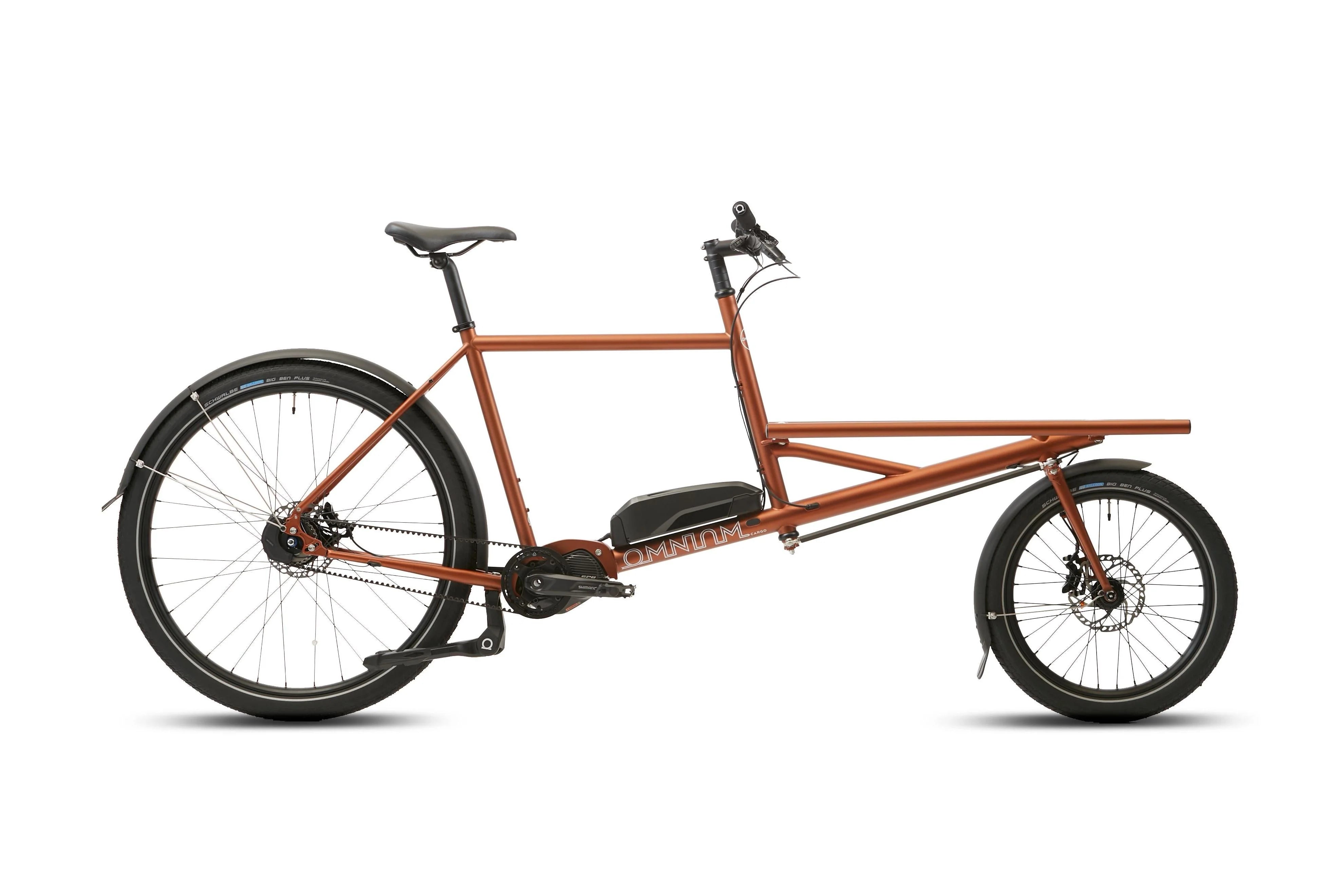

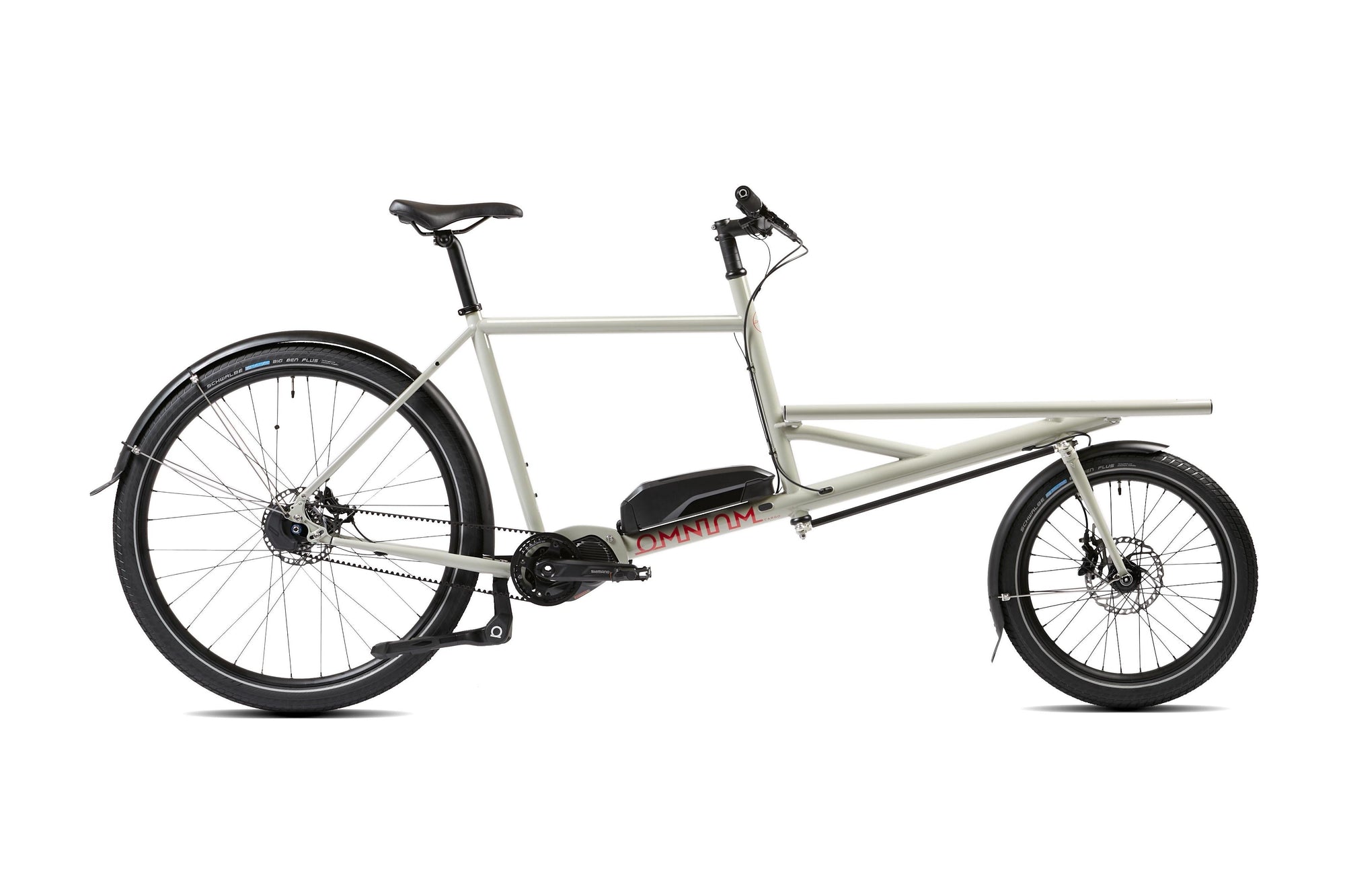

The Cargo is an incredibly versatile, lightweight and fast cargo bike that can handle heavy loads and big objects with ease.
The best part is, it rides like a normal bike when unloaded, due to it‘s clever construction and familiar geometry.
The Cargo is also the model with the long-est wheelbase, which calls for very stable handling. The wheelbase also allows for great stability when loading the rack on your own, as the weight is positioned in the middle of the front wheel and the kickstand.
Need to pick up your new dream sofa? Easy. Bringing your kid to the daycare before work? No problem! Bring a computer for work or a change of clothes for the gym in a waterproof duffle and you‘re good to go, rain or shine, all year long.
DESIGN
Omnium E-Cargo with integrated Shimano EP801 Cargo drive unit. The powerful Shimano EP801-CRG motor is strong enough to handle the steepest of hills with a load, yet intuitive enough to give you just the right amount of support every pedal stroke along the way. Designed specifically to give you that natural feel of riding a normal bike. The system weighs only 2.8kg, one of the lightest motors on the market. Stable, smooth intuitive power for improved bike handling over every part of your day. Solidly supports speeds up to 45 km/h.
Battery
Ultra-durable, replaceable, powerful battery specially designed for the rigors of cargo biking. Low profile design for improved impact and vibration resistance. High-capacity long-lasting Li-Ion battery of 504Wh to cover more territory. Supported travel up to 100 km on one charge. 1,000 charge cycles with no significant power loss.
Electronic Shifting
With the e-bike specific Nexus inter-5e hub we introduce electronic shifting on all e-bikes. This makes for easy and maintenance free gear shifting. The hub offers a 263% gear range with optional automatic shifting.
Gates Beltdrive
Extremely durable and maintenance free Gates Beltdrive drivetrain will make sure you won’t drop or break the chain due to the high torque of the drive unit. It will run smooth for thousands of km without having to grease it. Moreover, you won’t have oil on your drivetrain to smush your trousers or your hands when changing an inner tube or adjusting the rear wheel.
Specifications
| Frame material | Double-Butted Chromoly Steel Frame |
| 5 Sizes | XS, S, M, L, XL |
| Seat post diameter | 31.6 mm |
| Seat post clamp size | 34.0 mm |
| Rear wheel | 622, 12 x 142mm spacing, disc only |
| Front wheel | 406, 15 x 100 mm spacing, disc only |
| Tyre clearance, front | 55mm with mudguards |
| Tyre clearance, rear | 55mm with mudguards |
| Thru Axle Front | 15×100, 125mm long, 17mm thread length, 1.5mm pitch |
| Fork headset | 1 1/8″ Threaded Integrated with locking cap |
| Steerer headset | 1 1/8″ Ahead |
| Rack dimensions | 83cm x 50cm, made of Aluminum |
| Standard rack weight | 1320g +/- |
| Rack bolt size | M8 x 15mm |
| Recommended maximum loading weight including rider | 175 kg |
| Complete Bike Weight (including Webbing) | 28kg +/- |
Components
| Brakes | SRAM Guide RE 4 piston IS 160mm front and rear |
| Gears | Shimano Nexus 5 internal gear hub (Silver), Gates 125T CDX carbon drive belt, Gates 28T rear sprocket. |
| Stem | 3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black |
| Handlebar | 6061 aluminium, 700mm wide, 15mm rise, oversize, matte black |
| Seatpost | 31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black |
| Grips | Omnium lock-on, black, foam |
| Crankset | Shimano Steps FC-EM600 165mm crank arm with Gates 39T 104bcd chainring |
| Headset/s | VP Components, sealed bearings |
| Saddle | Omnium Standard Saddle |
| Tyres | Schwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″) |
| Wheels | Nexus inter-5e (Silver) 135 x 10mm QR 622 (700c) rear wheel & 15 x 100mm thru axle 406 (20″) front, 38mm wide rims |
| Kickstand | Omnium, cast aluminium twin-leg |
| Pedals | Cast metal platform, black |
| Mudguards | WiFi 60mm wide matte black |
| Motor | Shimano Steps EP801-CRG |
Geometry
| Cargo V3 | XS (49.5) | S (52) | M (54.5)) | L (57) | XL (60) |
| STL – seat tube length (c-t) | 495 | 520 | 545 | 570 | 600 |
| TTL – top tube length (c-c / actual) | 505 | 520 | 545 | 570 | 600 |
| Stack | 533 | 557 | 581 | 605.5 | 634 |
| Reach | 349 | 357 | 375 | 394 | 415 |
| SO – standover height | 745 | 769.5 | 793.5 | 818 | 846 |
| BBH – bottom bracket height | 288 | 288 | 288 | 288 | 288 |
| BBD – bottom bracket drop | 81 | 81 | 81 | 81 | 81 |
| STA – seat tube angle | 74° | 74° | 74° | 74° | 74 |
| HTA1 – head tube angle rear | 74.5° | 74.7° | 75° | 75.4° | 75.5° |
| HTA2 – head tube angle front | 74.5° | 74.6° | 74.9° | 75.4° | 75.5° |
| WB – wheelbase | 1578 | 1590 | 1612 | 1632 | 1657 |
| A-C – axle to crown | 298.5 | 298.5 | 298.5 | 298.5 | 298.5 |
| R – rake | 45 | 45 | 45 | 45 | 45 |
| T – trail | 25.5 | 25 | 23.5 | 24 | 21 |
| CSL – chainstay length | 462 | 462 | 462 | 462 | 462 |
| FL – full bike length | 2208 | 2220 | 2241 | 2262 | 2286 |
Sizing
Height: 165 – 175cm — we recommend — size Small
Height: 175 – 185cm — we recommend — size Medium
Height: 185 – 195cm — we recommend — size Large
Sizing Guide
| Rider Height | Recommended Size |
|---|---|
| 165 – 175cm | Small |
| 175 – 185cm | Medium |
| 185 – 195cm | Large |
Geometry (Cargo V3)
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Seat Tube Length (c-t) | 495mm | 520mm | 545mm | 570mm | 600mm |
| Top Tube Length (c-c actual) | 505mm | 520mm | 545mm | 570mm | 600mm |
| Stack | 533mm | 557mm | 581mm | 605.5mm | 634mm |
| Reach | 349mm | 357mm | 375mm | 394mm | 415mm |
| Standover Height | 745mm | 769.5mm | 793.5mm | 818mm | 846mm |
| Wheelbase | 1578mm | 1590mm | 1612mm | 1632mm | 1657mm |
| Full Bike Length | 2208mm | 2220mm | 2241mm | 2262mm | 2286mm |
Warranty Information
Frame & Fork 5-year limited warranty (original owner, within recommended load limits)
Components Standard manufacturer warranty applies
Shimano EP801 Motor & Battery 2-year warranty (or up to 500 cycles)
How to Choose the Right Cargo Bike
-
When you chat with us - whether in the shop or online - we’ll
usually start by asking two simple questions:Where do you ride? Do you tackle a big hill, cruise a long flat commute, or a bit of both?
What do you carry? Is it cargo, kids, or a mix of everything?
Big hills usually mean more power and stronger brakes. Long commutes might call for a high-speed option with a larger battery. Carrying kids or heavier gear means looking at stability and the right accessories.
It can feel overwhelming with so many models out there, but that also means there’s a perfect match for your lifestyle. We’ll help you find it - and you can take an extended test ride to make sure it really fits into your day-to-day.
If you want to explore yourself on our website, go to our cargo bike page and use the filters to narrow down your options based on how you answered the questions above.
-
Most longtail cargo bikes are set up to carry two kids on the back, like the Tern GSD or Specialized Porto. The popular Yuba Spicy Curry can carry three!
Front-loading cargo bikes can fit two or three passengers up front. Each bike can be customised with heaps of accessories -seats, footrests, baskets, rain covers - so we’ll help match the setup to your crew.
-
Non-electric cargo bikes are fine for flat, short trips with lighter loads. But if you’ve got hills, longer distances, or wriggly kids on board, an e-cargo bike will change your life. The motor takes the sting out of climbs, makes heavy loads manageable, and opens up bigger commutes without breaking a sweat.
-
Most e-cargo bikes will happily take you 40–80 km on a single charge. Your range depends on the terrain, assist level, and how much you’re carrying. Some models run dual batteries, which basically doubles your distance - handy for all-day missions.
-
Absolutely.
Cargo bikes are designed with families in mind. Add the right accessories - child seats, harnesses, rain covers - and they’re one of the safest, comfiest ways to get kids around town.
And the best part? Kids love the ride.
-
For a lot of families, yes.
Cargo bikes take care of school runs, shopping, work commutes, even weekend adventures. Many of our customers have sold their second cars and never looked back - some have even sold both! You can haul kids, groceries, pets, or gear without the fuel bills or parking headaches. Some households even call the cargo bike their “first car,” keeping the actual car for long trips and holidays.
