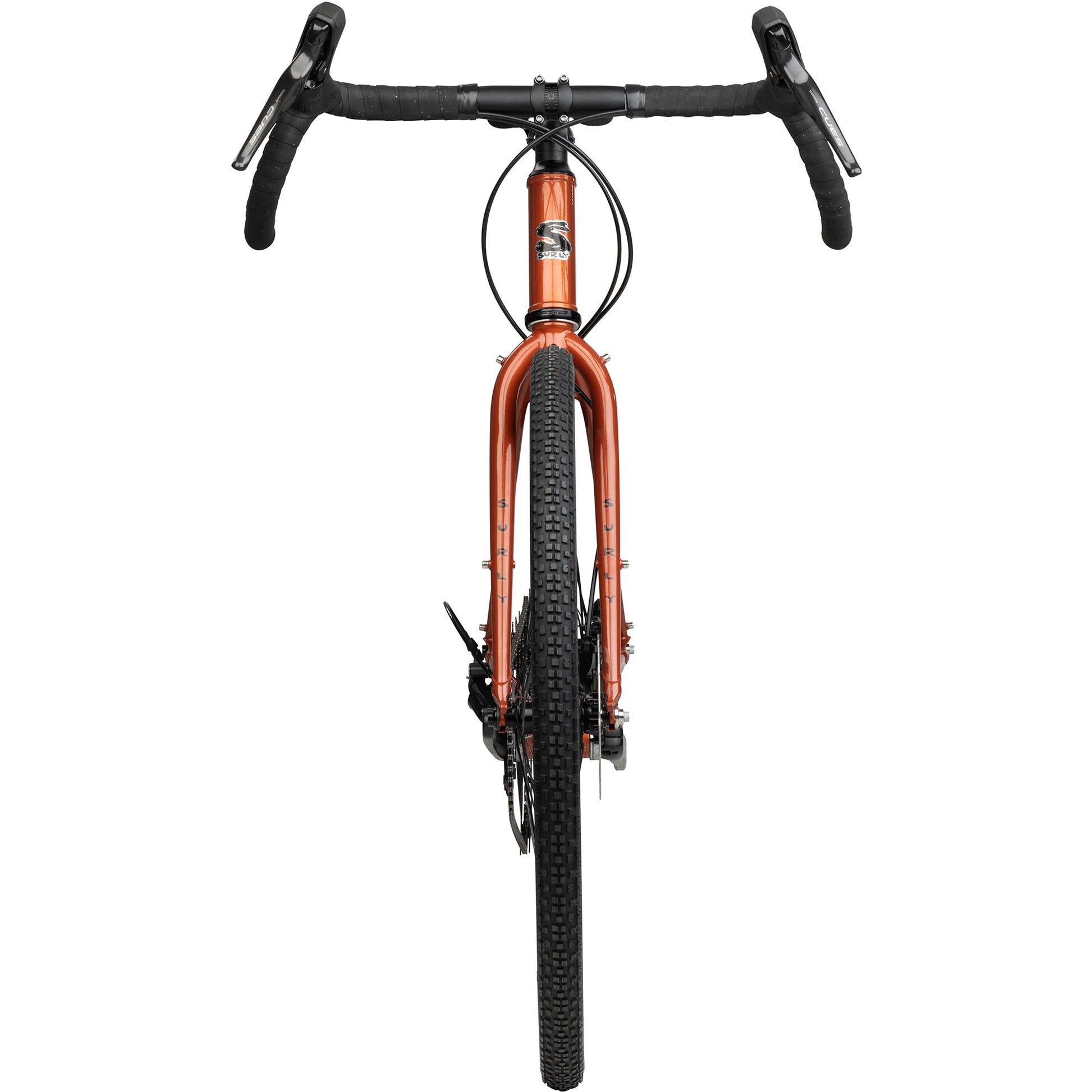

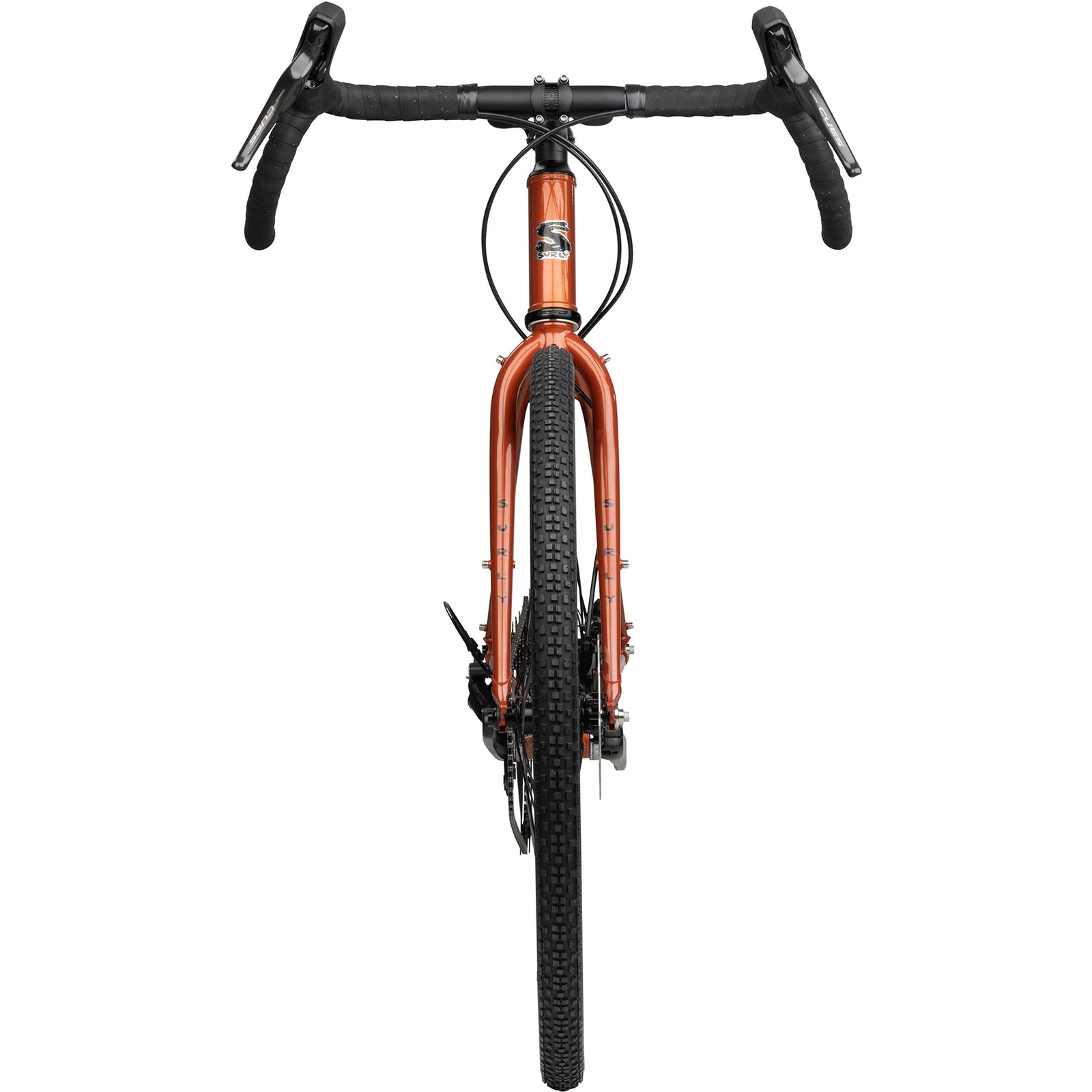

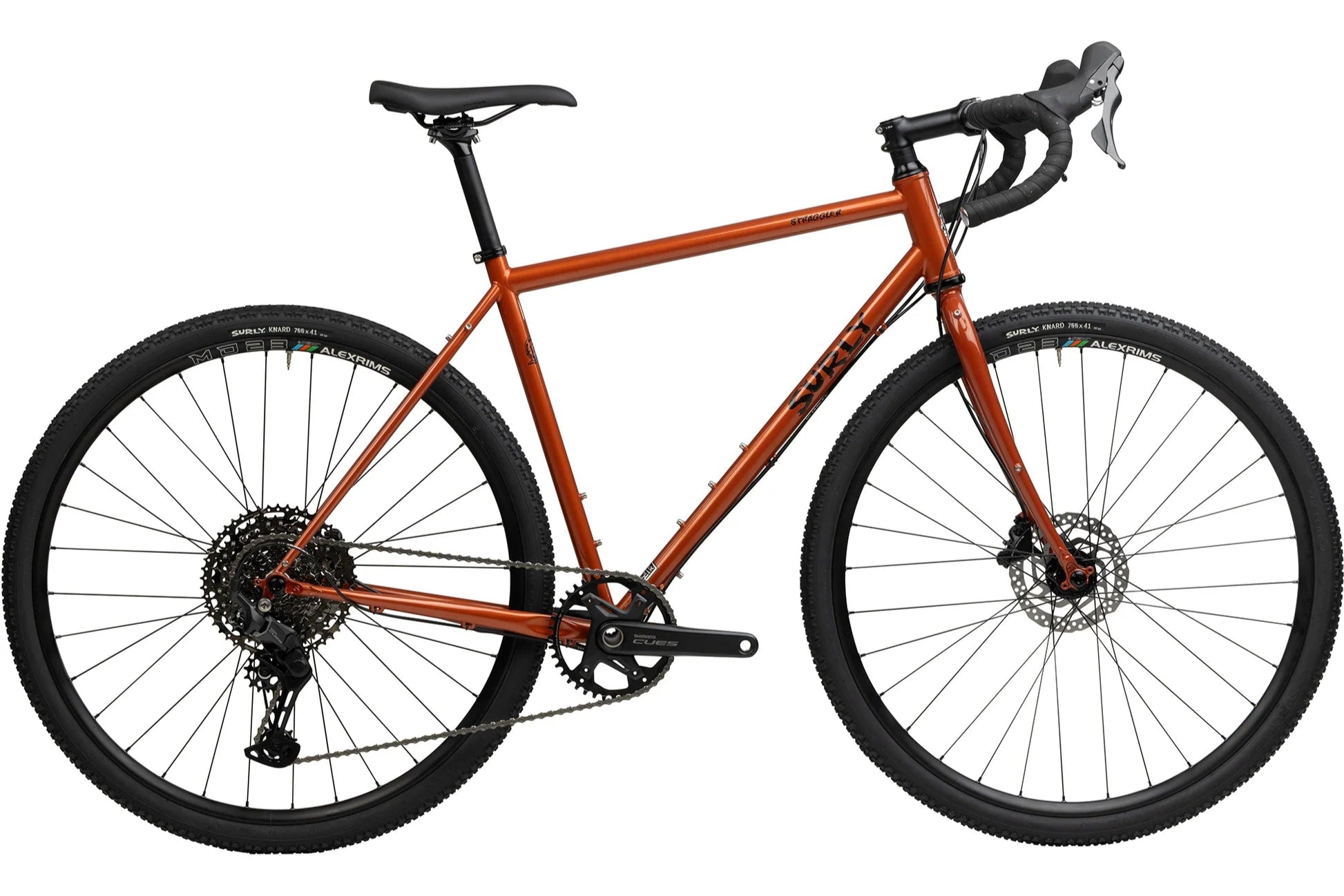

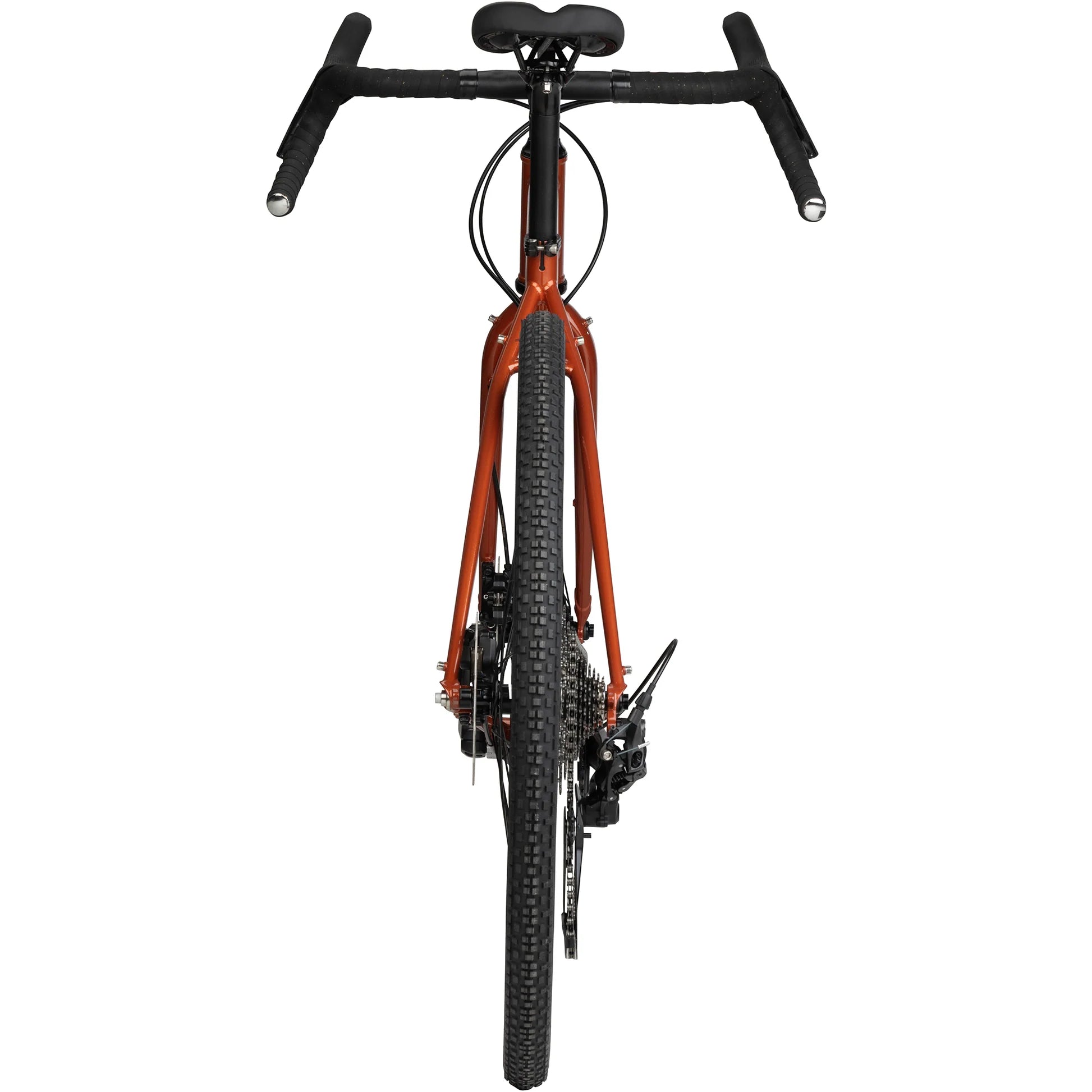

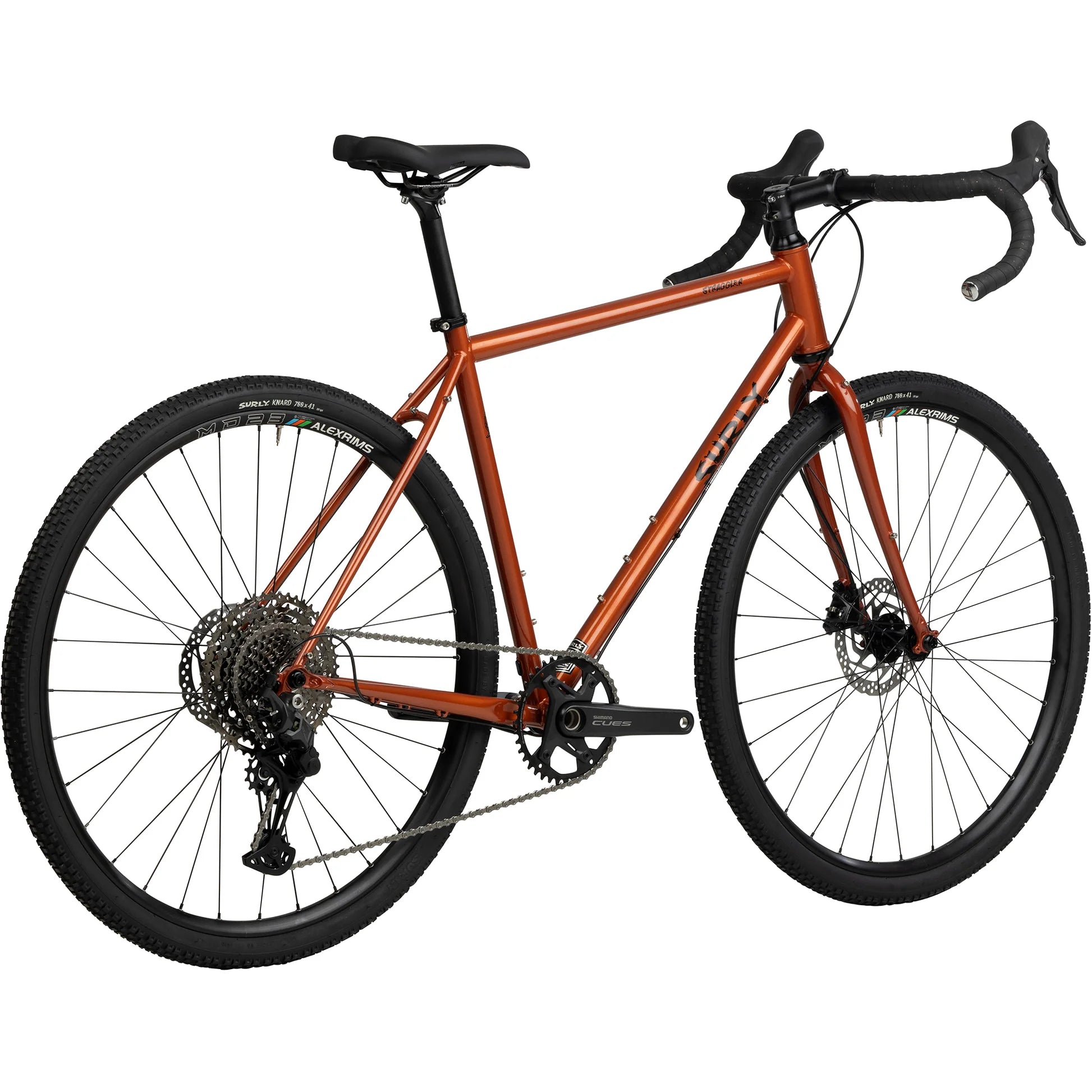

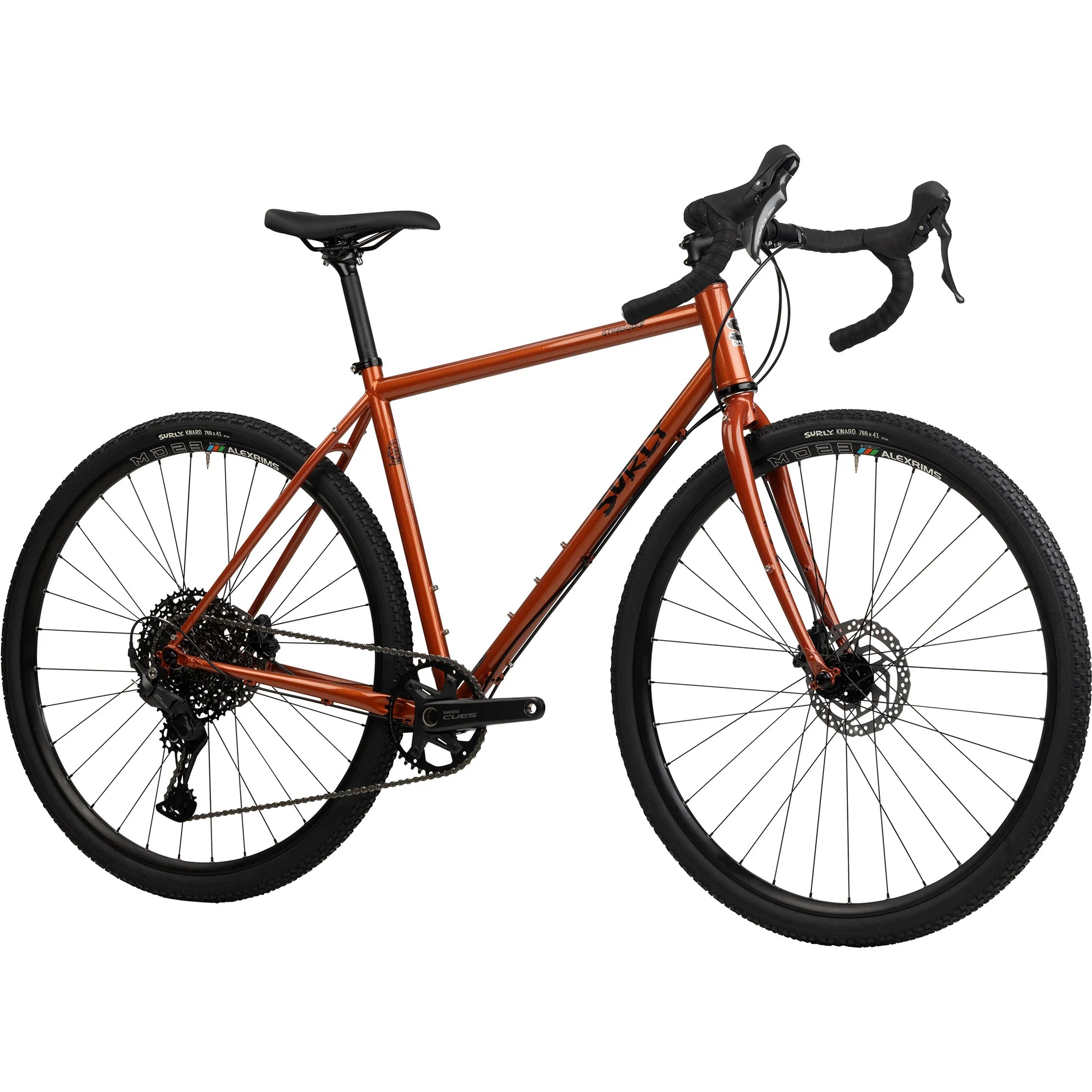

Surly Straggler 1x11

Finance options available with:

Utilitarian with off-road tendencies, the Straggler is Surly’s modern-day gravel machine built to span busted pavement and beyond.

This CUES 1×11 build is the tough, no-fuss version of the Straggler — durable enough for daily commutes, spirited enough for gravel adventures, and simple enough to keep rolling without drama. It pairs an 11–50 cassette with a 40T ring for wide-range gearing, hydraulic brakes for confident stopping, and all the steel comfort Surly is famous for.

The updated Straggler delivers a decade’s worth of thoughtful upgrades: geometry and tubing tuned for that unmistakable Surly steel ride, thru-axles front and rear for precision handling, internal dropper routing and a sloping top tube for improved standover, 50 mm tyre clearance, and a 44 mm head tube with flat-mount brakes for easy customization.

Performance here isn’t about numbers – it’s about a bike that performs with you, no matter how rough things get.


Key Features

  • Shimano CUES 1×11 drivetrain with LinkGlide durability

  • 11–50 cassette + 40T chainring for a versatile gear range

  • Shimano hydraulic brakes with 160 mm rotors

  • Thru-axle wheels for improved stiffness and handling

  • 50 mm tyre clearance (700c without fenders) for chunky gravel confidence

  • Internal dropper post routing + improved standover for extra capability

  • Rack, fender, and multiple bottle mounts for light cargo and commuting

  • Available in 650b (46–52 cm) and 700c (54–64 cm) for optimum rider fit

  • Colours: Shaggy Carpet


The Straggler 1×11 is the bike that turns a quick loop into an accidental all-day adventure. Equally at home on busted pavement, gravel detours, or a light-duty tour, it’s Surly steel dialed for the modern rider.

Specifications

Fork: Straggler Chromoly Steel

Front Derailleur: N/A

Rear Derailleur: Shimano 11-speed

Cassette: Shimano 11-speed

Chain: Shimano Linkglide

Crankset: Shimano 11-speed, 40T

Shifter: Shimano 11-speed

Brakes & Rotors: Shimano, RT26 160/160, 6-Bolt

Headset: FSA Orbit ITA

Stem: Kalloy AS-007N

Handlebar: Salsa Cowchipper

Grips/Tape: Black Cork

Seatpost: Kalloy SP-DC2, 27.2 mm, 0 offset

Saddle: WTB Volt Medium

Front Wheel: Novatec 12×100 mm thru-axle, Alex Adventurer 2 Rims, 32h, tubeless ready

Rear Wheel: Novatec 12×142 mm thru-axle, Alex Adventurer 2 Rims, 32h, tubeless ready

Tires: Surly Knard 650b × 41 (sizes 46–52 cm) / Surly Knard 700c × 41 (sizes 54 cm and up)

Frame Warranty

LIMITED WARRANTY

This Surly product is warranted against defects in materials and
workmanship for three years from the date of retail purchase of the
product, subject to the limitations detailed below. Save your dated
receipt for proof of purchase.

This warranty does NOT cover the following:

Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler

Products that have been modified, neglected, used in competition or
for commercial purposes, misused or abused, involved in accidents or
anything other than normal use

Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold

Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product

Normal wear and tear

Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or
replacement of a defective product, at the option of Surly, and is the
sole remedy of the warranty. This limited warranty applies only to the
original purchaser of the Surly product and is not transferrable. This
warranty applies only to products purchased through an authorized dealer
or distributor. In no event shall Surly be liable for any loss,
inconvenience or damage, whether direct, incidental, consequential, or
otherwise resulting from breach of any express or implied warranty or
condition, of merchantability, fitness for a particular purpose, or
otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and
those rights and other rights may vary from place to place. This limited
warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE
AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS
INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Geometry & Sizing

Size 46 (650b) 49 (650b) 52 (650b) 54 (700c) 56 (700c) 58 (700c) 61 (700c) 64 (700c)
A. Effective Top Tube500mm520mm540mm555mm570mm585mm605mm630mm
B. Stand Over682mm716mm746mm779mm807mm830mm857mm895mm
C. Reach363.9mm362.9mm365.3mm391.4mm389.1mm392.5mm403.5mm419.5mm
D. Stack507.9mm530.4mm554mm570.7mm591.6mm610.6mm639.1mm667.7mm
E. Total Seat Tube Length390mm430mm460mm490mm520mm545mm570mm620mm
F. Headtube Length90mm110mm135mm120mm140mm160mm190mm220mm
G. Headtube Angle70°71°71°71.5°72°72°72°72°
H. Seat Tube Angle75°73.5°72.5°74°73°72.5°72.5°72.5°
I. BB Drop62mm62mm62mm72mm72mm72mm72mm72mm
J. BB Height277mm277mm277mm285.5mm285.5mm285.5mm285.5mm285.5mm
K. Chainstay Length416mm416mm416mm435mm435mm435mm435mm435mm
L. Fork Length (Axle to Crown)387.5mm387.5mm387.5mm407.6mm407.6mm407.6mm407.6mm407.6mm
M. Fork Offset44mm44mm44mm44mm44mm44mm44mm44mm
N. Wheelbase984.4mm982.1mm992.6mm1033.6mm1033.2mm1042.7mm1063mm1088.3mm
Crank Arm Length165mm165mm165mm170mm170mm170mm170mm170mm
Handlebar Width400mm420mm440mm460mm460mm480mm500mm520mm
Stem Length70mm80mm90mm90mm100mm100mm100mm110mm
Recommended Rider Height147–157cm155–165cm160–170cm166–177cm173–183cm179–189cm184–194cm193–203cm
