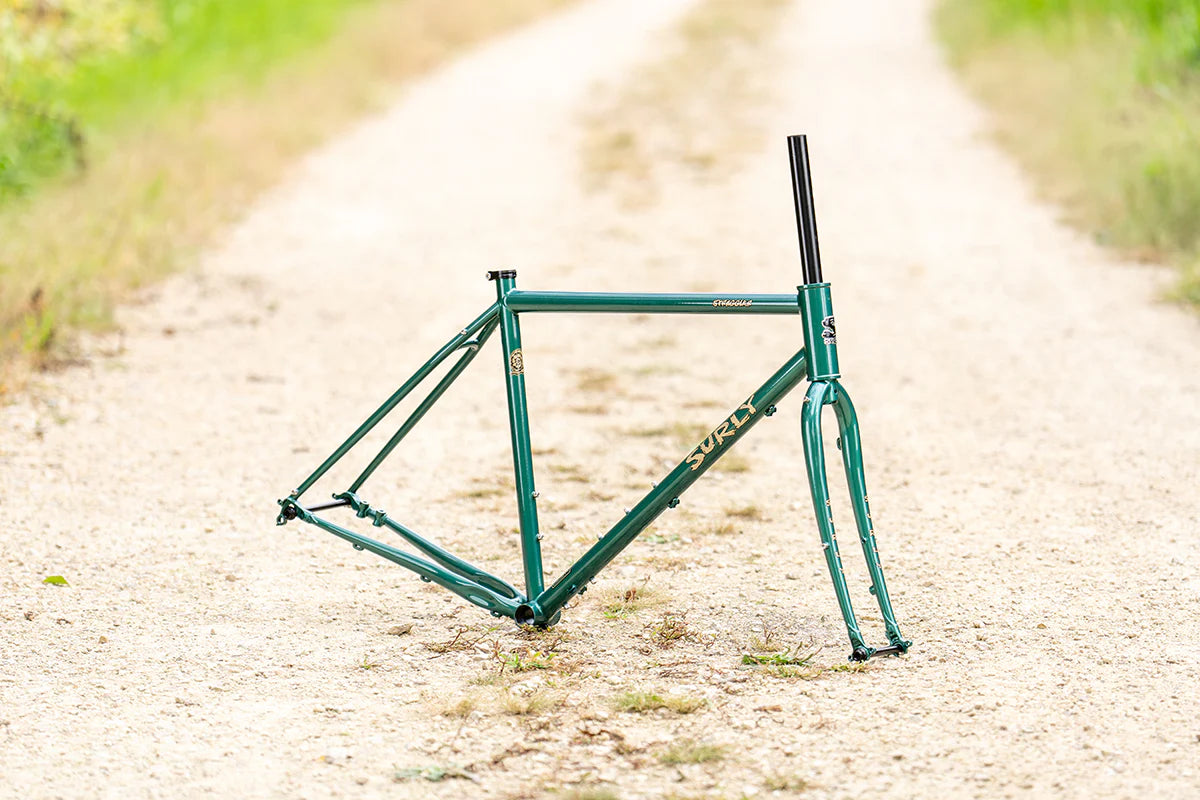

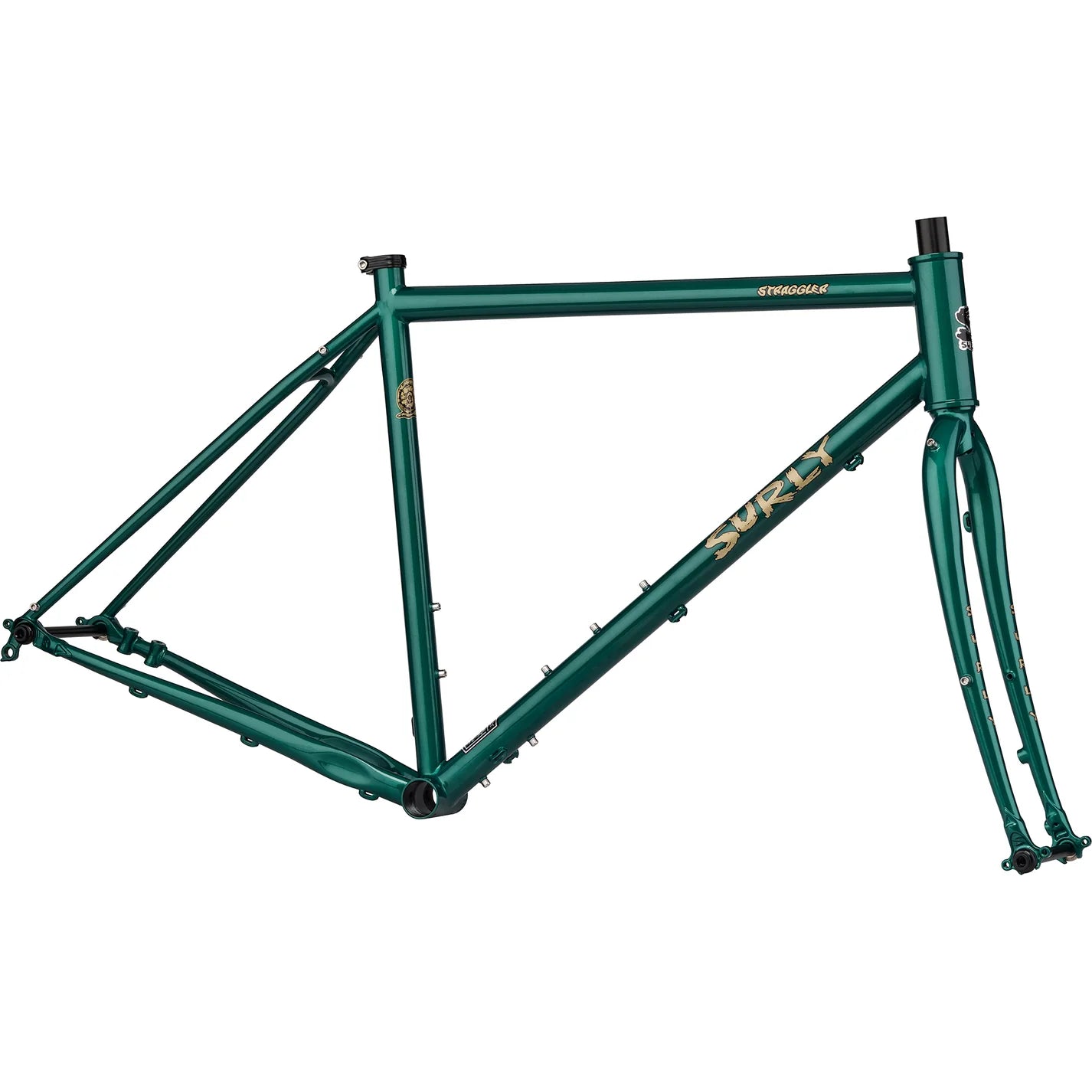

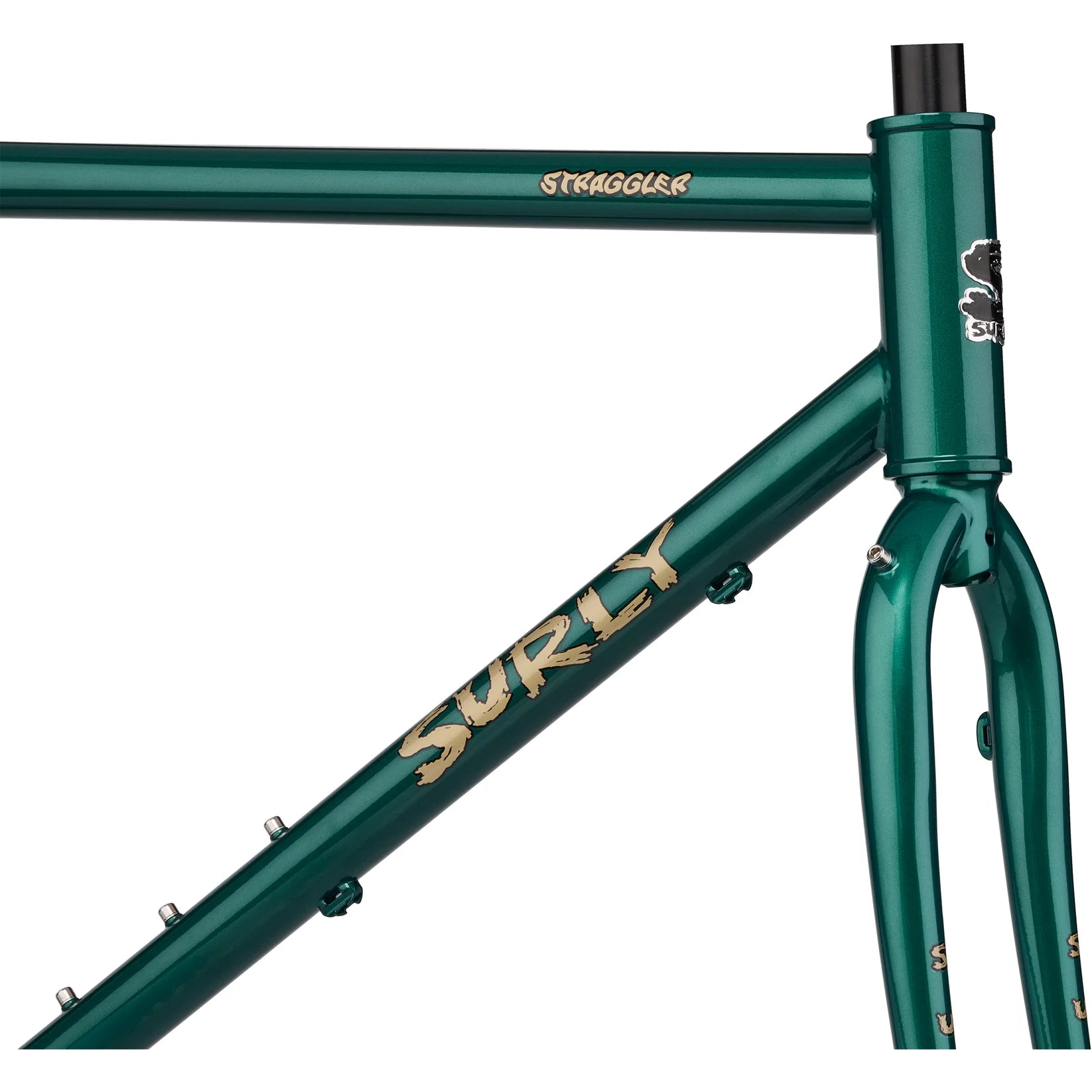

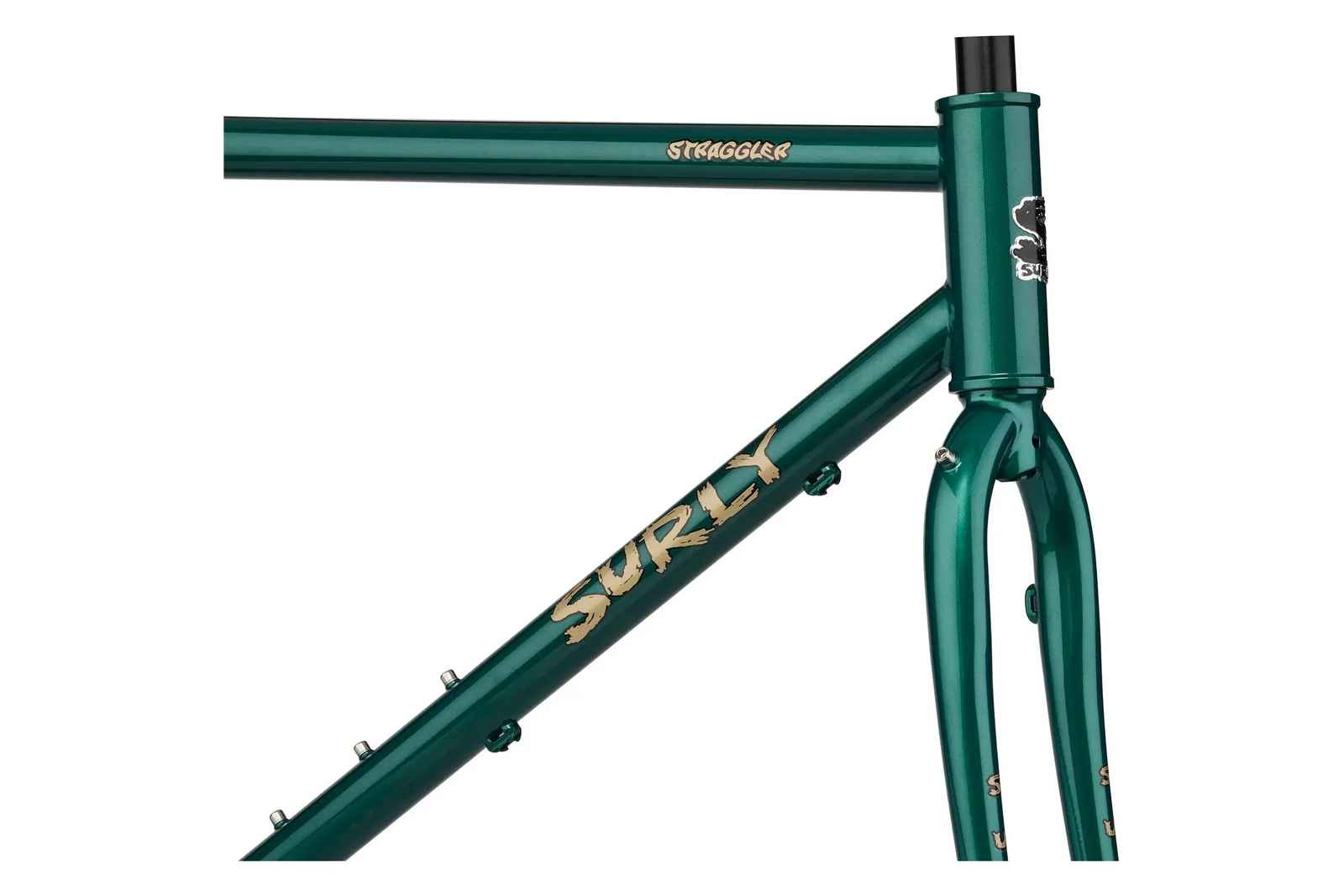

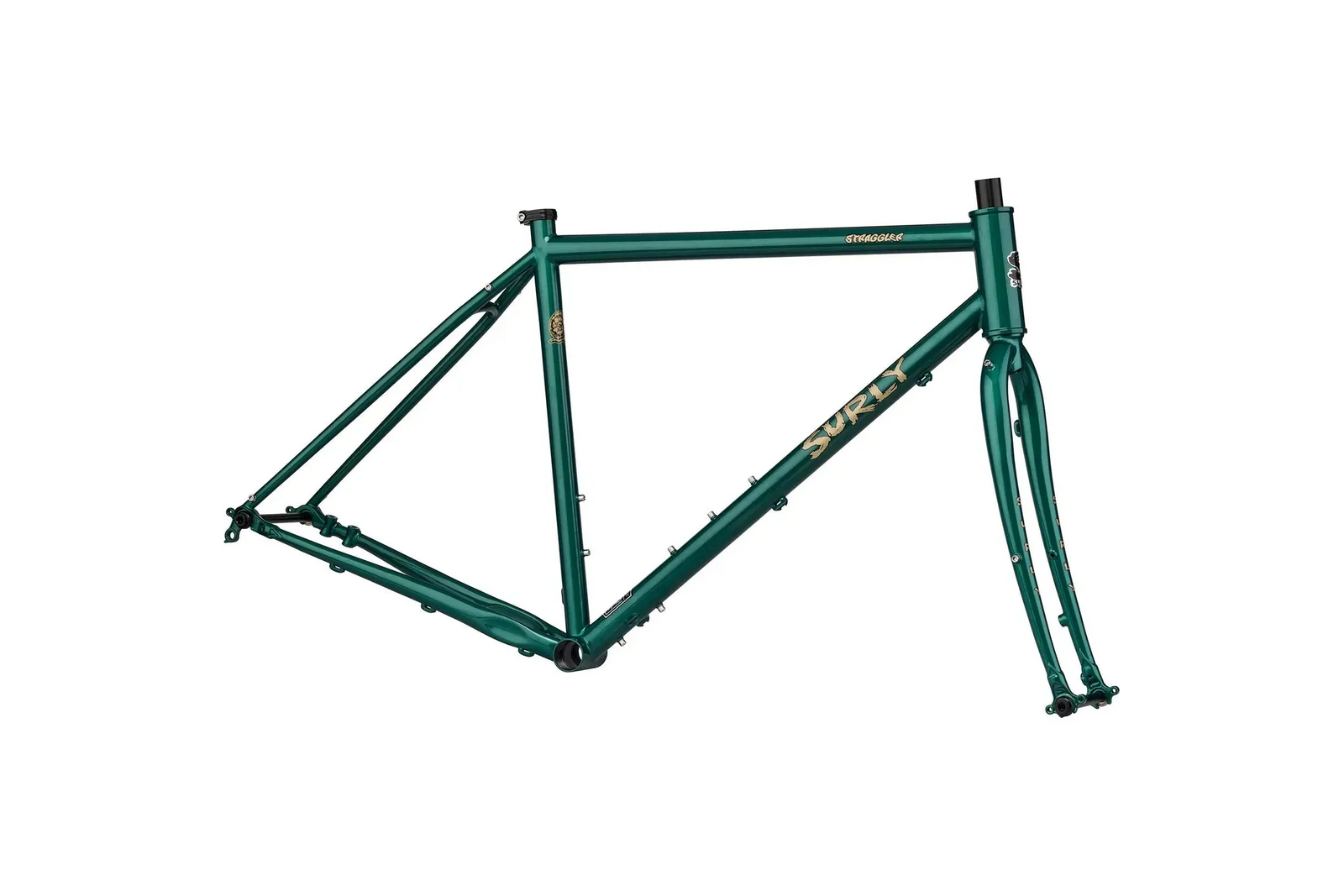

Surly Straggler Frameset 2.1

Name: Surly Straggler Frameset 2.1
Brand: Surly
SKU: FRARST2906
Price: 1899.0 NZD
Availability: InStock

.price-ui--loading { display: block !important; opacity: 1 !important; }

$1,899.00$0.00

Description

Ride Where the Pavement Ends

If you only have room for one bike in your life, Straggler can (and should) be your one and only.

A decade-long hiatus taught us there’s more work to be done when it comes to resplendent riding on unpaved terrain. Thus, the new Straggler emerges with a dialed-in fit range and comfortable geometry, ready to roll with thru-axle wheels, flat-mount brakes, and zero ego.

It's a bike down for a lot of stuff, but it really shines when it’s kicking up dust to help you blow off some steam and get back to those dirt roots. No more missed opportunities or dead ends –– the Straggler’s taking every rowdy detour or weekend rendezvous it can get. It’s the ultimate day-tripper, cross-terrain explorer, and boundary-pusher, ready for you to plow through challenges, not obstacles.

Straggler’s capabilities extend into some light cargo setups, so you can do double-duty when hitting the trails and running around town. Tack on one of our Pack Racks and maybe a frame bag when you need to grab some groceries on the way back to civilization –– knowing with Straggler, you always have an exit plan.

650b or 700c wheels (varies by frame size) for optimized rider fit
Racks and fender mounts, plus two standard and one three-pack bottle mounts on all frames

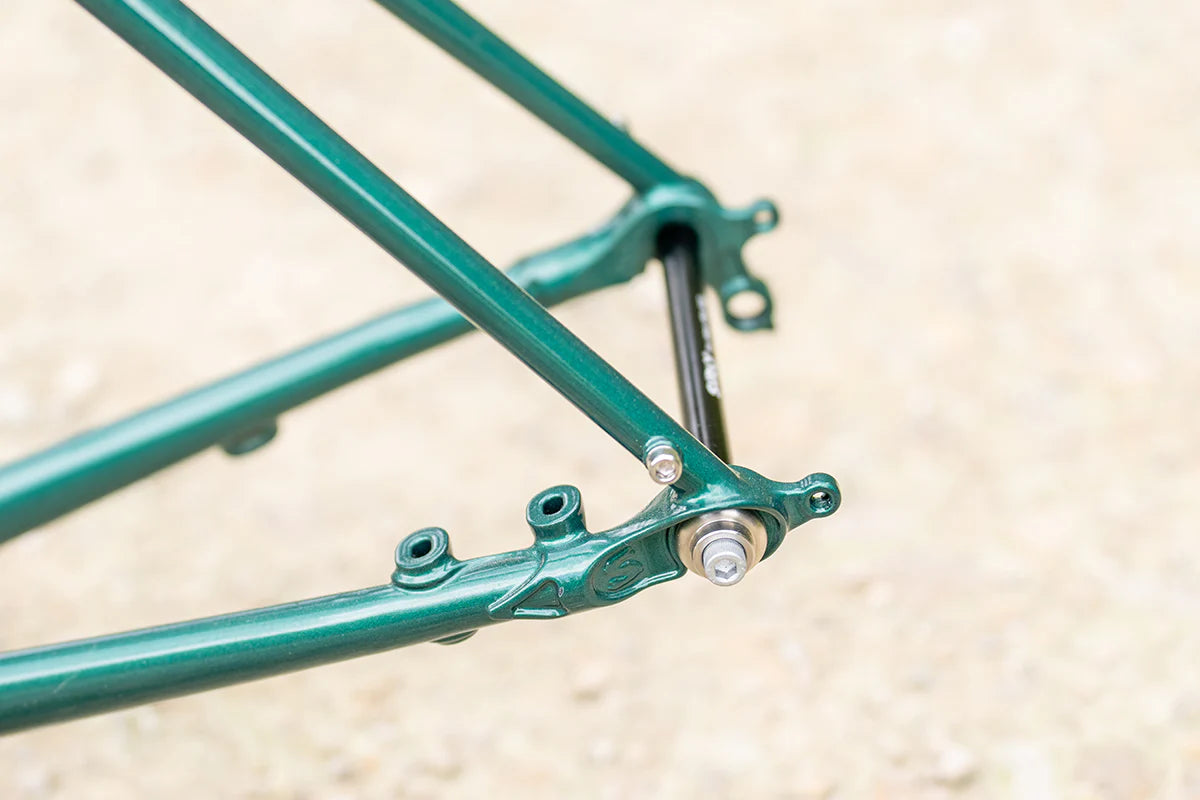

Updated thru-axle dropouts for improved stiffness and handling
Modern flat-mount brake mounts, internal dropper routing, and 44mm headtube
Lower bottom bracket and sloping top tube adds stability and better standover
50mm tire clearance w/o fenders on 700c for confident, comfortable riding on eroded terrain

Specifications

Frameset

Frame: Straggler, thru-axle, 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Color: Subtropic Algae

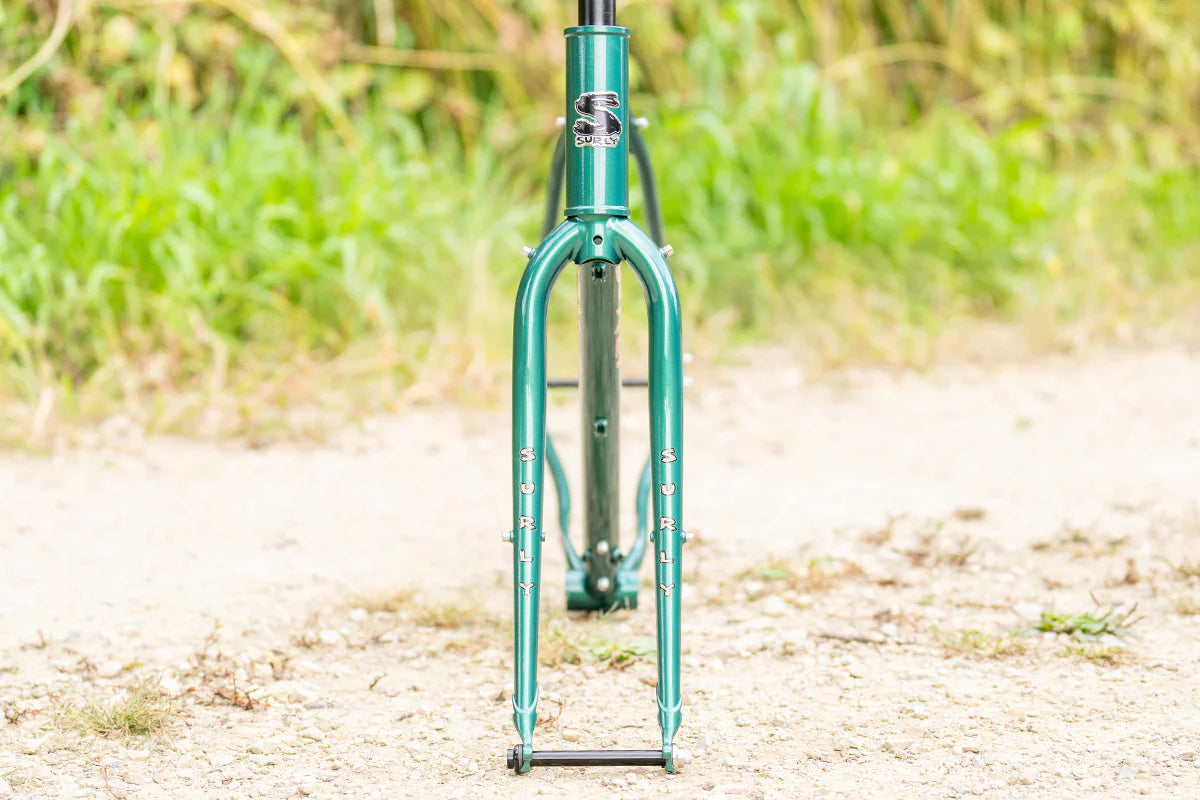

Fork: Straggler, thru-axle, 4130 Chromoly, Natch tubing, TIG welded, brazed lugs, E.D. coated

Components

Seatpost Clamp: Surly Stainless, 30.0 mm

Drivetrain

Front Axle: Surly thru-axle, 12 × 100 mm

Rear Axle: Surly thru-axle, 12 × 142 mm

Weight

Frame: 9 lb 1 oz (56 cm) including seat collar and front/rear thru-axles

Warranty

Frame Warranty

LIMITED WARRANTY

This Surly product is warranted against defects in materials and
workmanship for three years from the date of retail purchase of the
product, subject to the limitations detailed below. Save your dated
receipt for proof of purchase.

This warranty does NOT cover the following:

Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler

Products that have been modified, neglected, used in competition or
for commercial purposes, misused or abused, involved in accidents or
anything other than normal use

Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold

Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product

Normal wear and tear

Labor required to remove and/or refit and re-adjust the product within the bicycle assembly

This limited warranty is expressly limited to the repair or
replacement of a defective product, at the option of Surly, and is the
sole remedy of the warranty. This limited warranty applies only to the
original purchaser of the Surly product and is not transferrable. This
warranty applies only to products purchased through an authorized dealer
or distributor. In no event shall Surly be liable for any loss,
inconvenience or damage, whether direct, incidental, consequential, or
otherwise resulting from breach of any express or implied warranty or
condition, of merchantability, fitness for a particular purpose, or
otherwise with respect to our products except as set forth herein.

This limited warranty gives the consumer specific legal rights, and
those rights and other rights may vary from place to place. This limited
warranty does not affect your statutory rights.

TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE
AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS
INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Geometry

Metric

Size	46 (650b)	49 (650b)	52 (650b)	54 (700c)	56 (700c)	58 (700c)	61 (700c)	64 (700c)
A. Effective Top Tube	500.0 mm	520.0 mm	540.0 mm	555.0 mm	570.0 mm	585.0 mm	605.0 mm	630.0 mm
B. Stand Over	682.0 mm	716.0 mm	746.0 mm	779.0 mm	807.0 mm	830.0 mm	857.0 mm	895.0 mm
C. Reach	363.9 mm	362.9 mm	365.3 mm	391.4 mm	389.1 mm	392.5 mm	403.5 mm	419.5 mm
D. Stack	507.9 mm	530.4 mm	554.0 mm	570.7 mm	591.6 mm	610.6 mm	639.1 mm	667.7 mm
E. Total Seat Tube Length	390.0 mm	430.0 mm	460.0 mm	490.0 mm	520.0 mm	545.0 mm	570.0 mm	620.0 mm
F. Headtube Length	90.0 mm	110.0 mm	135.0 mm	120.0 mm	140.0 mm	160.0 mm	190.0 mm	220.0 mm
G. Headtube Angle	70.0°	71.0°	71.0°	71.5°	72.0°	72.0°	72.0°	72.0°
H. Seat Tube Angle	75.0°	73.5°	72.5°	74.0°	73.0°	72.5°	72.5°	72.5°
I. BB Drop	62.0 mm	62.0 mm	62.0 mm	72.0 mm	72.0 mm	72.0 mm	72.0 mm	72.0 mm
J. BB Height	277.0 mm	277.0 mm	277.0 mm	285.5 mm	285.5 mm	285.5 mm	285.5 mm	285.5 mm
K. Chainstay Length	416.0 mm	416.0 mm	416.0 mm	435.0 mm	435.0 mm	435.0 mm	435.0 mm	435.0 mm
L. Fork Length Axle to Crown	387.5 mm	387.5 mm	387.5 mm	407.6 mm	407.6 mm	407.6 mm	407.6 mm	407.6 mm
M. Fork Offset	44.0 mm	44.0 mm	44.0 mm	44.0 mm	44.0 mm	44.0 mm	44.0 mm	44.0 mm
N. Wheelbase	984.4 mm	982.1 mm	992.6 mm	1033.6 mm	1033.2 mm	1042.7 mm	1063.0 mm	1088.3 mm
Crank Arm Length	165.0 mm	165.0 mm	165.0 mm	170.0 mm	170.0 mm	170.0 mm	170.0 mm	110.0 mm
Handlebar Width	400.0 mm	420.0 mm	440.0 mm	460.0 mm	460.0 mm	480.0 mm	500.0 mm	520.0 mm
Recommended Rider Height	147.0 – 157.0	155.0 – 165.0	160.0 – 170.0	166.0 – 177.0	173.0 – 183.0	179.0 – 189.0	184.0 – 194.0	193.0 – 203.0
Stem Length	70.0 mm	80.0 mm	90.0 mm	90.0 mm	100.0 mm	100.0 mm	100.0 mm	110.0 mm
