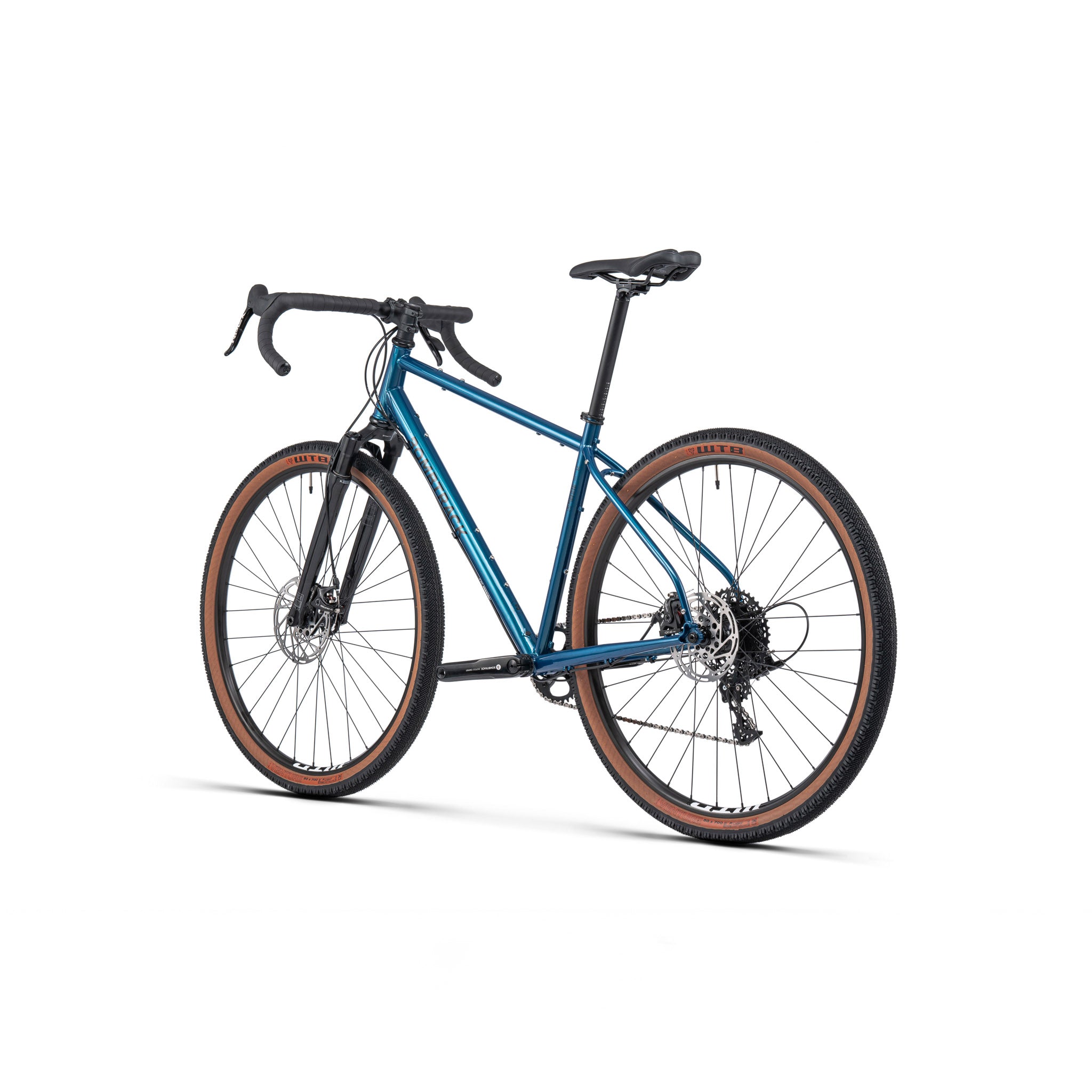

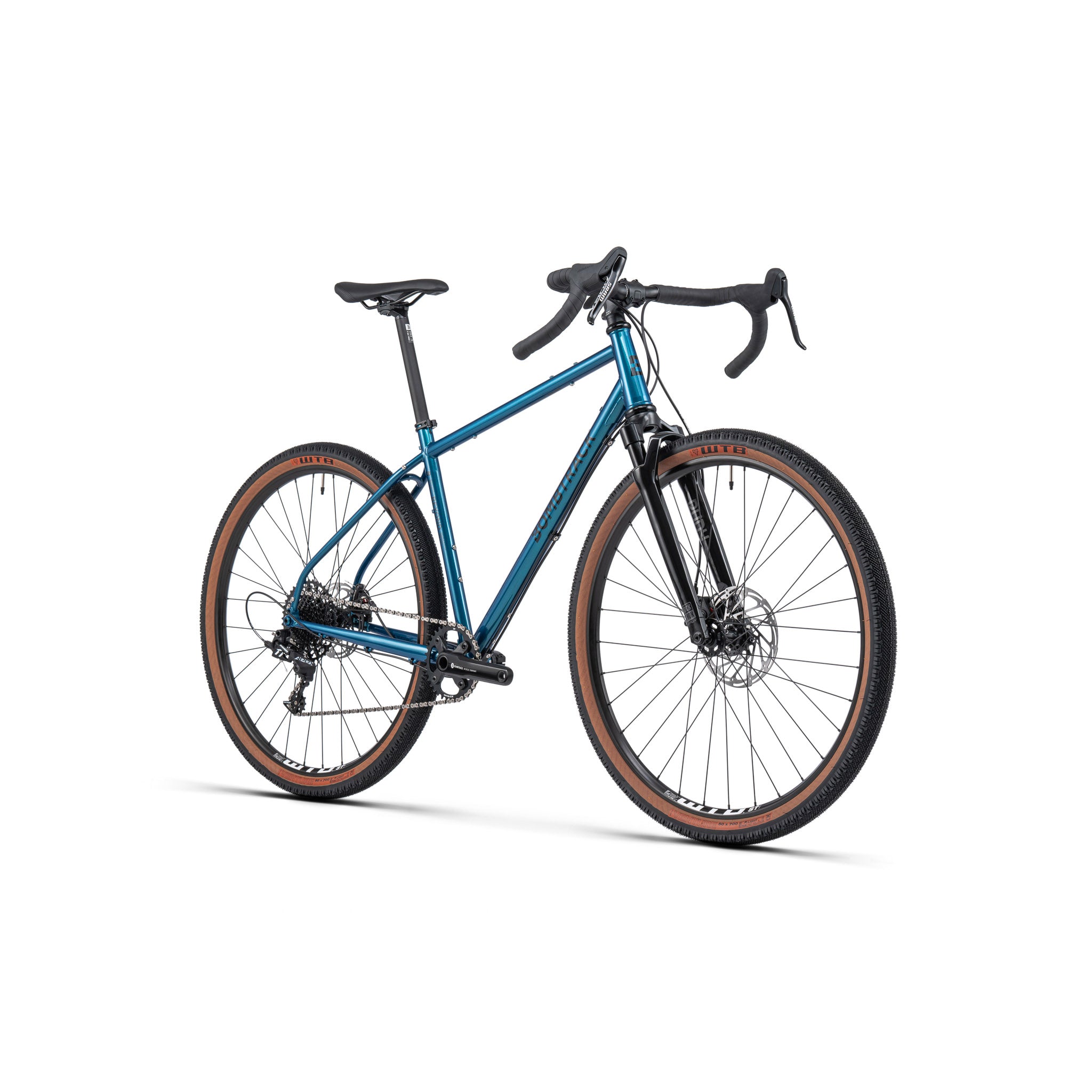

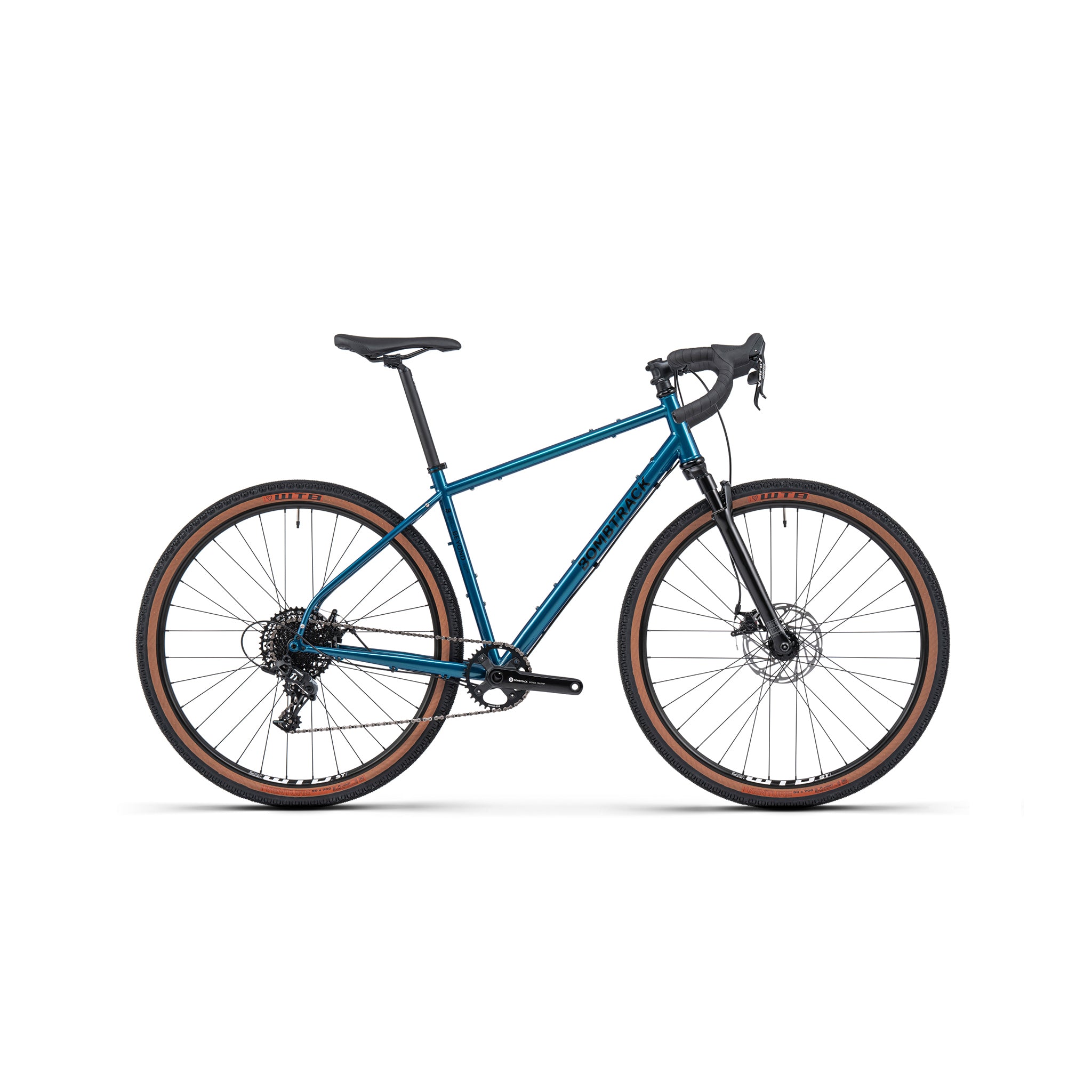

The Beyond SUS combines a steel adventure frame with a RockShox Rudy XPLR suspension fork offering 40 mm of travel. It is designed to add comfort and control on rough gravel and uneven tracks while retaining useful luggage-mounting options.
SRAM Apex 1 × 11 shifting, a 36T chainring and an 11–42T cassette keep the drivetrain simple. TRP Spyre C mechanical disc brakes, flared drop bars and tubeless-ready WTB Venture tyres complete the build.
Specifications
| Frame | 4130 double butted chromoly, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell |
|---|---|

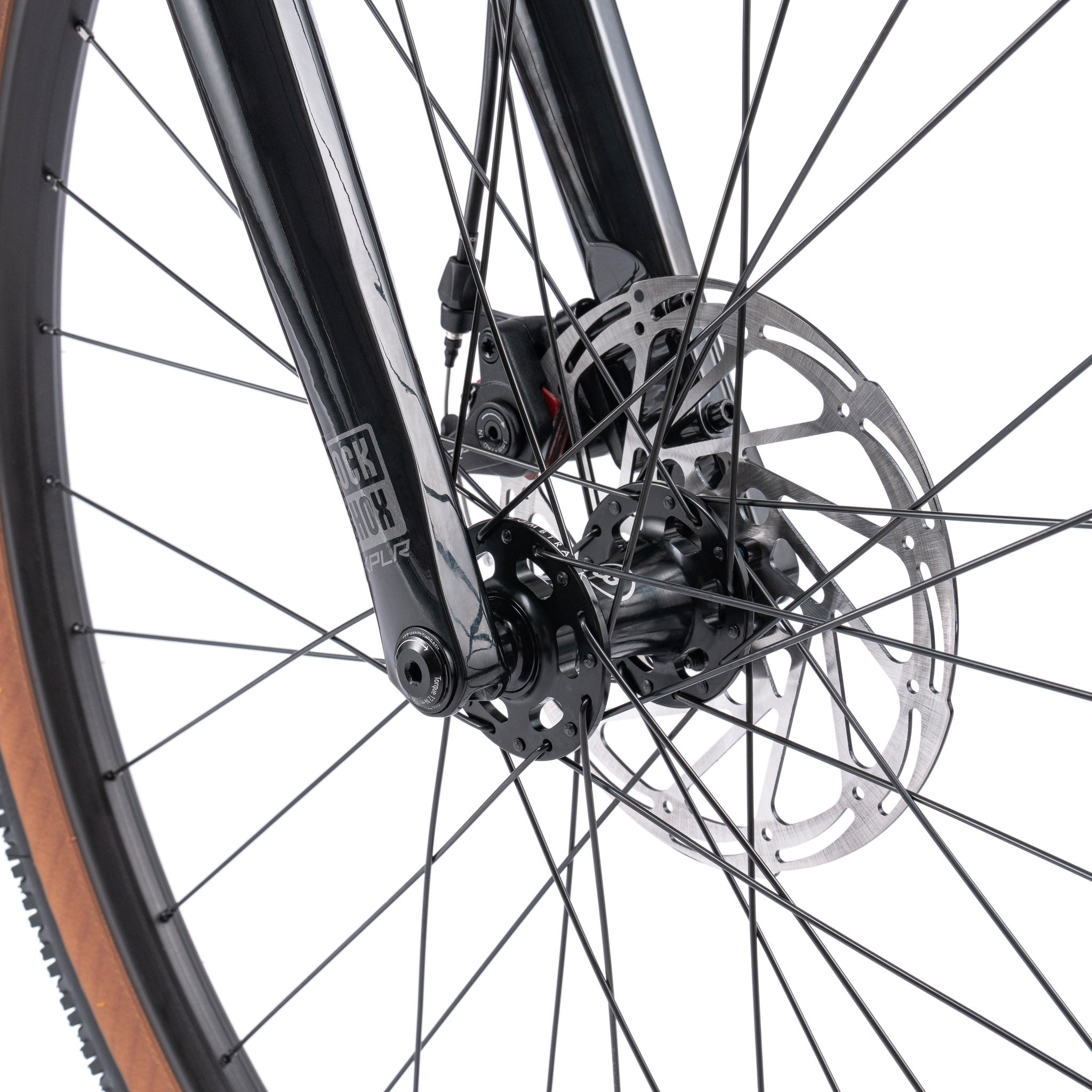

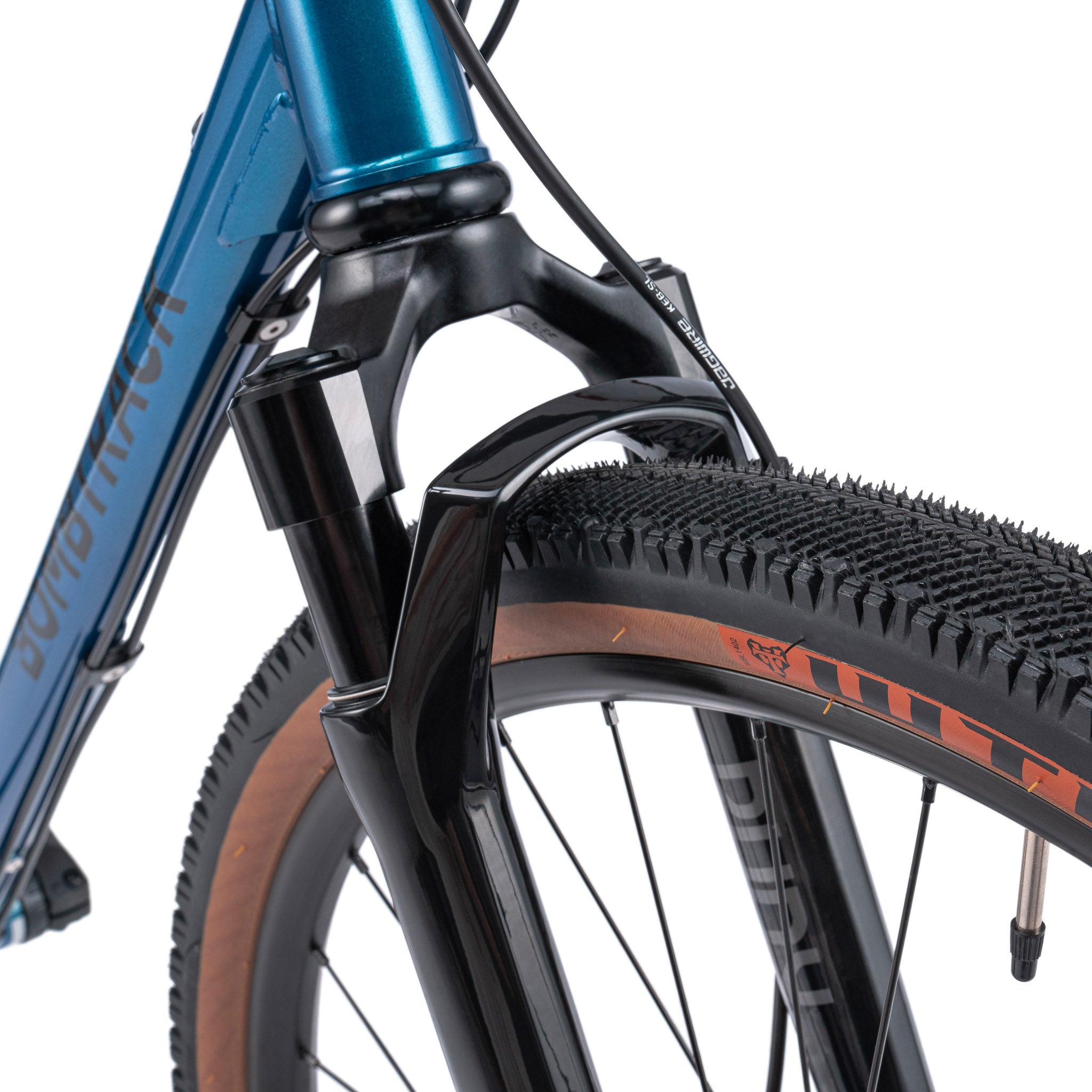

| Fork | RockShox Rudy XPLR suspension fork, 1.1/2" - 1.1/8", 40 mm travel, 51 mm offset |
| Handlebar | Bombtrack Tackle gravel bar, 31.8 mm, 25° flare |
| Grips | Bombtrack Command bar tape |

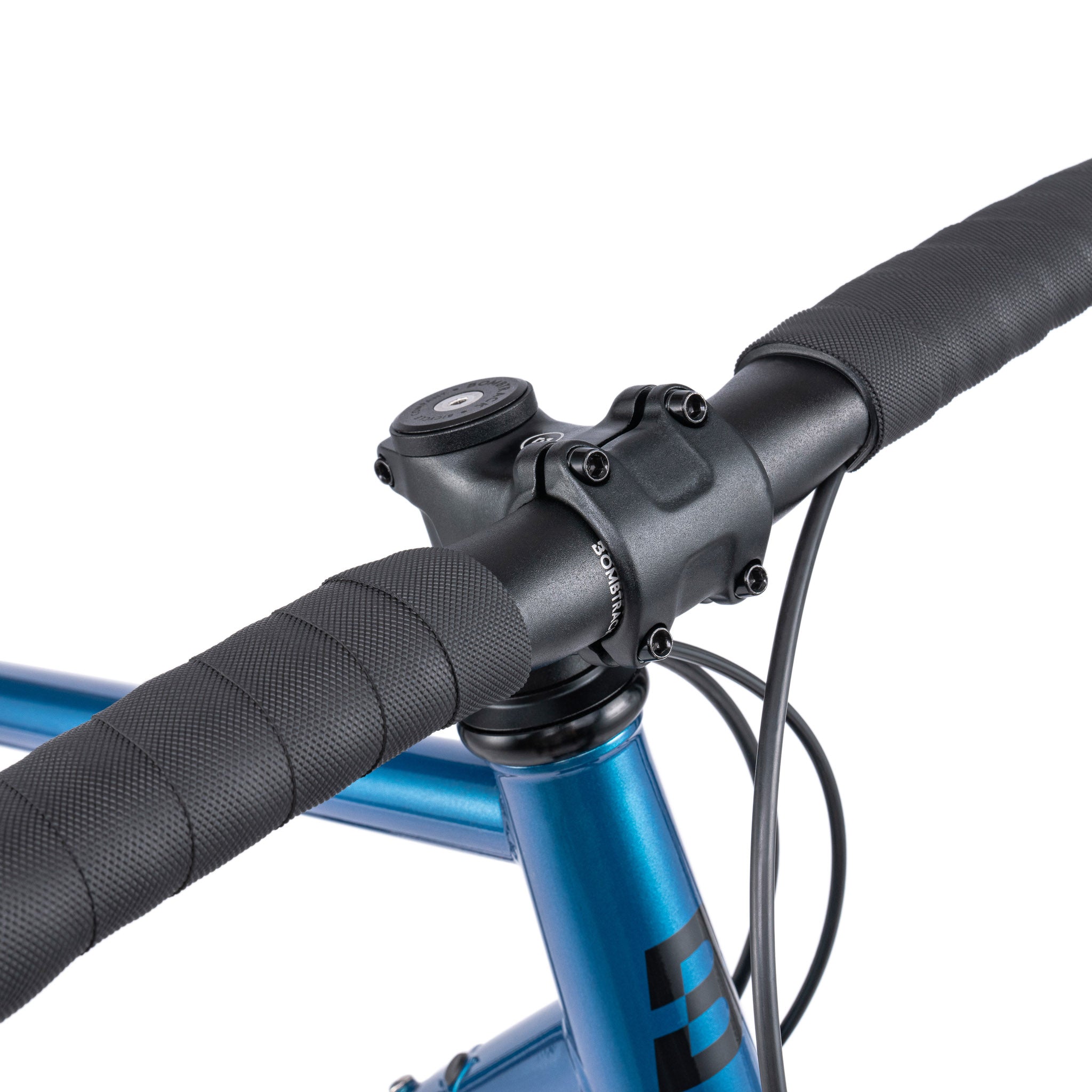

| Stem | Bombtrack Tramp forged aluminium stem, 3° |
| Headset | Sealed external aheadset, 1.1/2'' - 1.1/8'' |

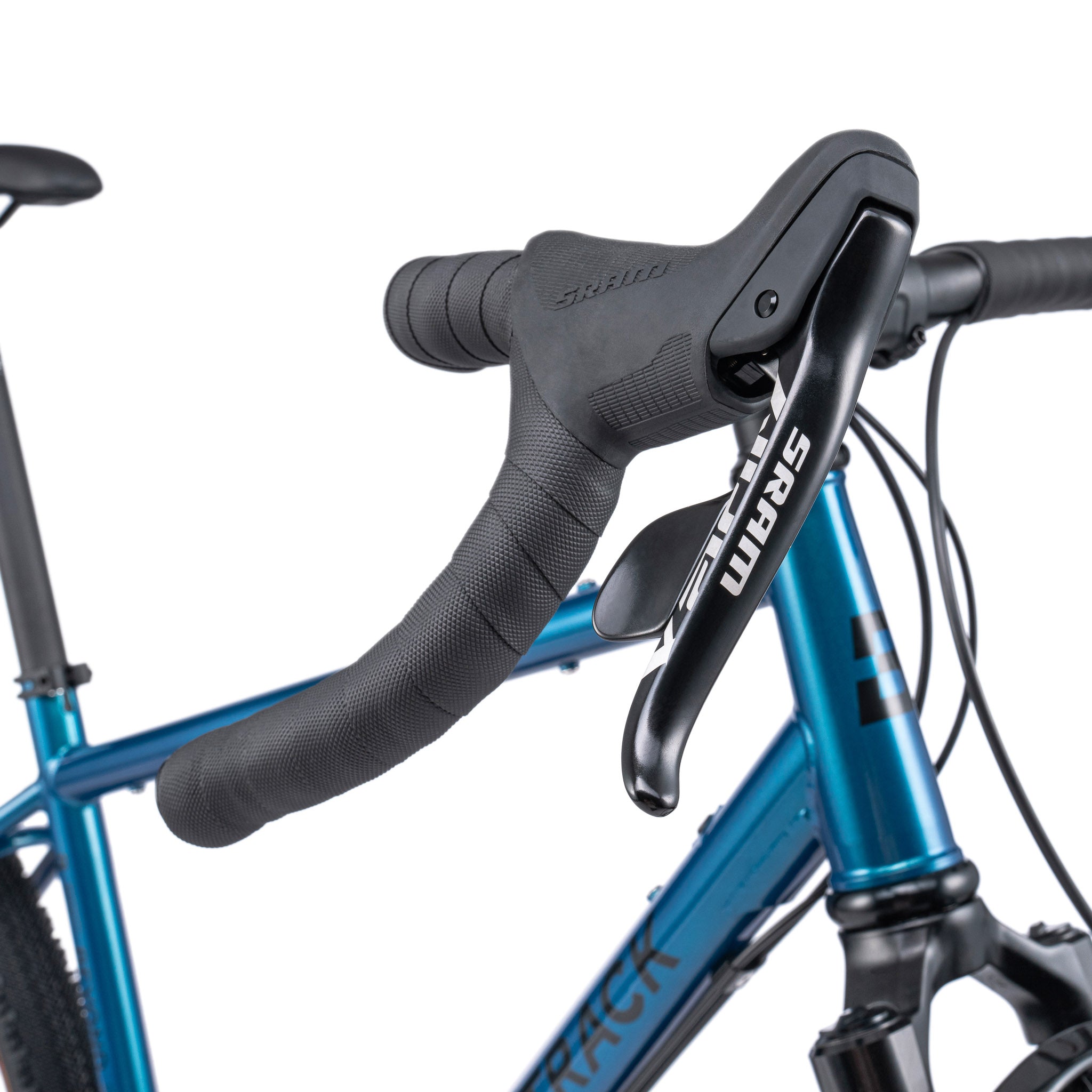

| Brake levers | SRAM Apex DoubleTap mechanical |
| Shifter | SRAM Apex double tap 1 x 11 |

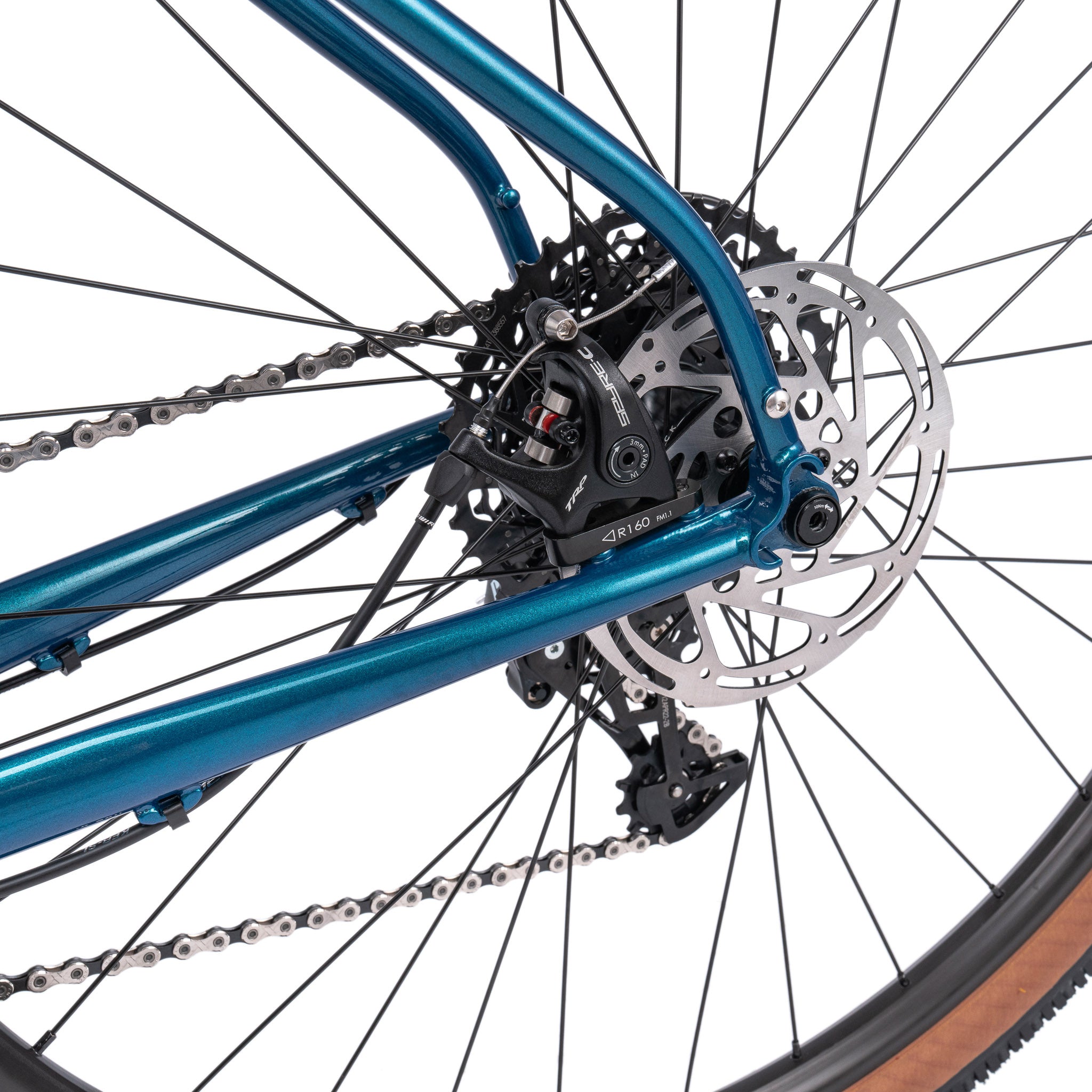

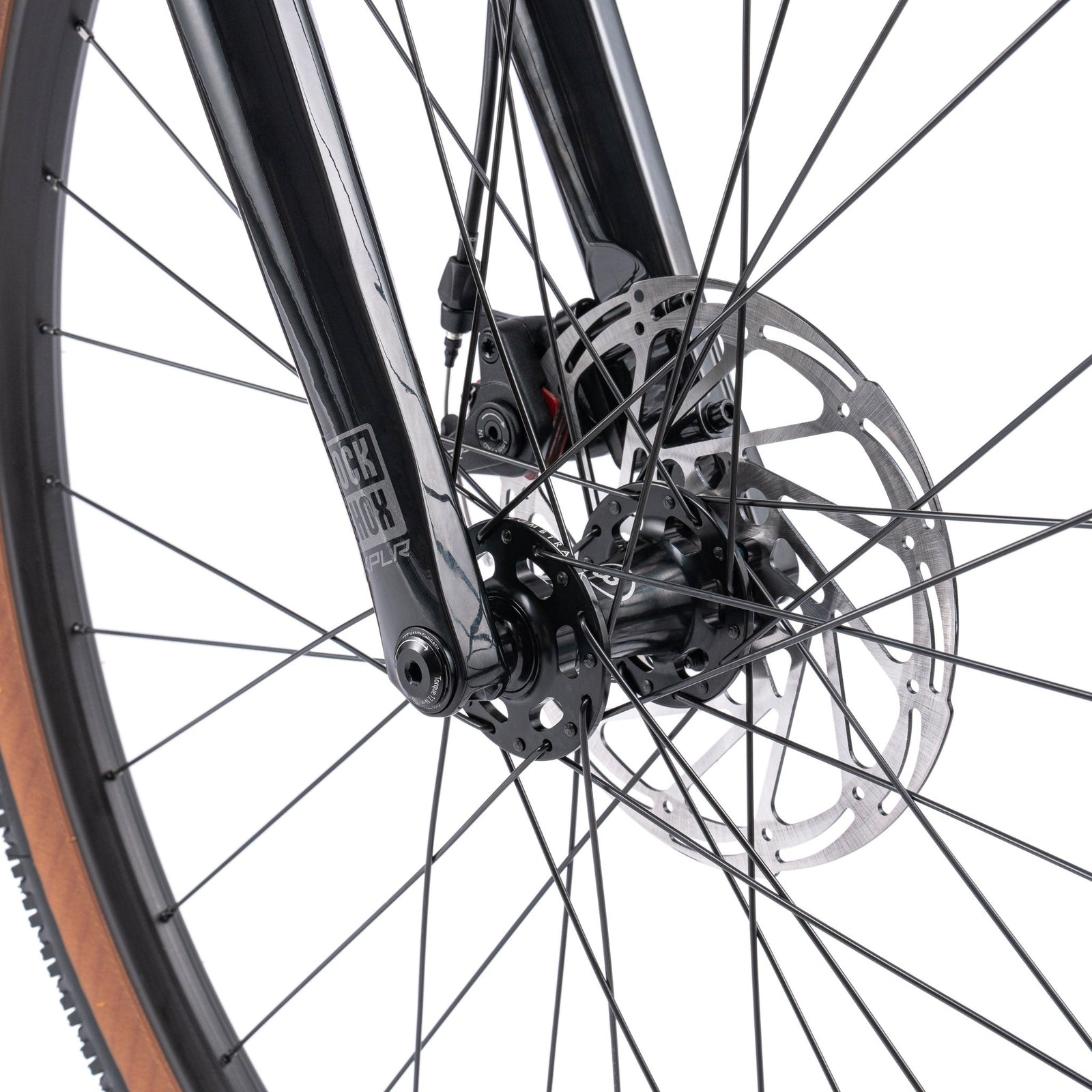

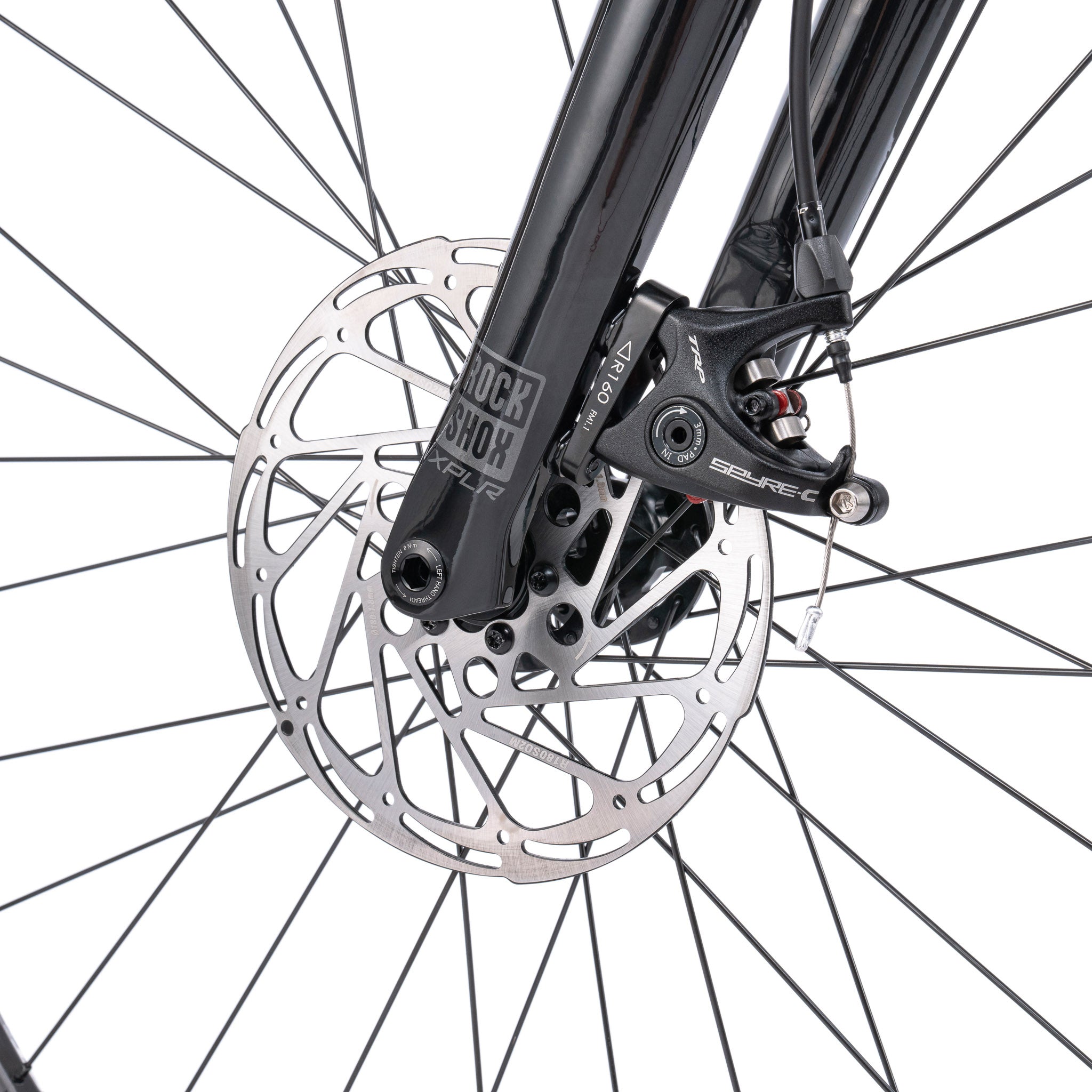

| Brakes | TRP Spyre C mechanical disc brakes |
| Rotors | SRAM Centerline 180 mm front and 160 mm rear rotor |

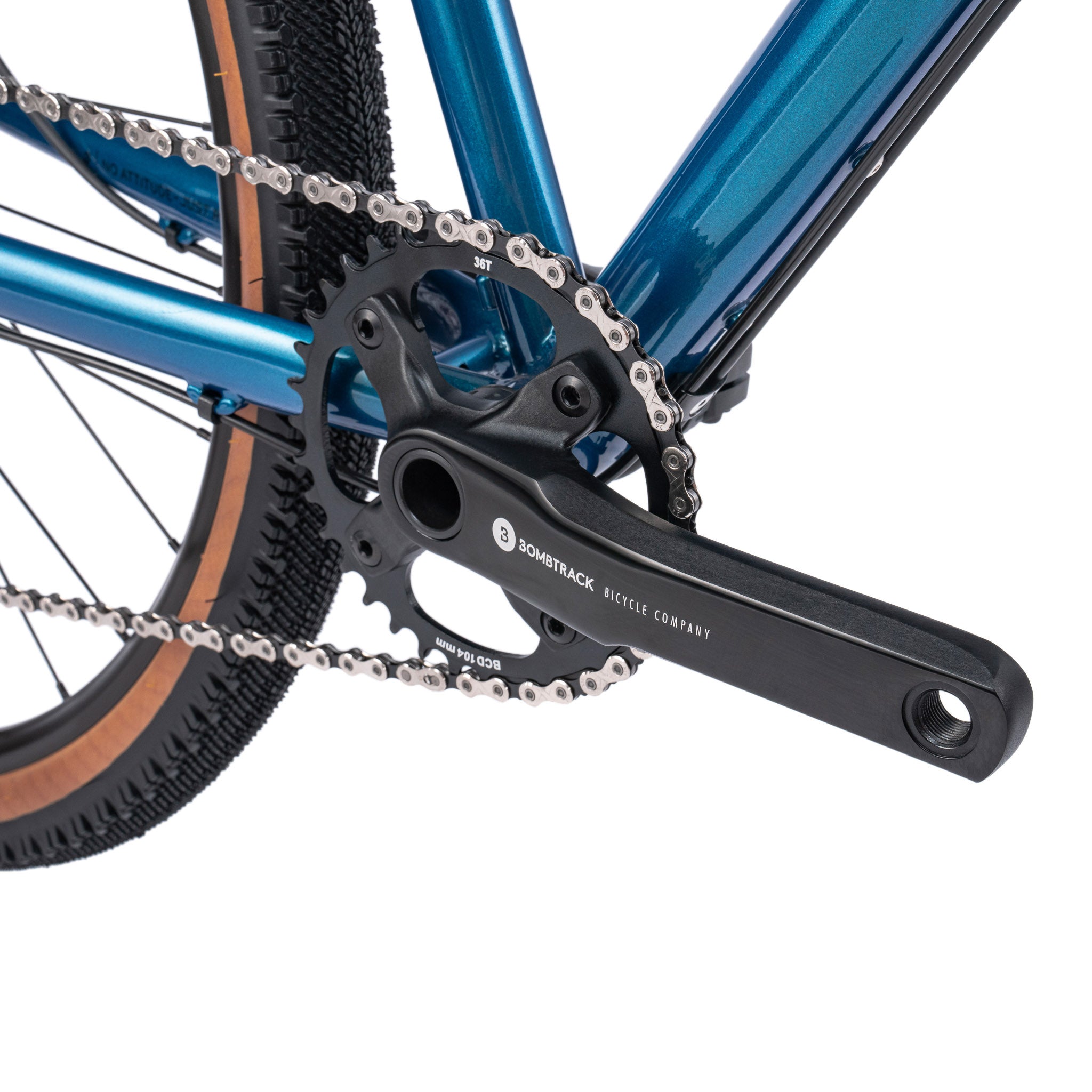

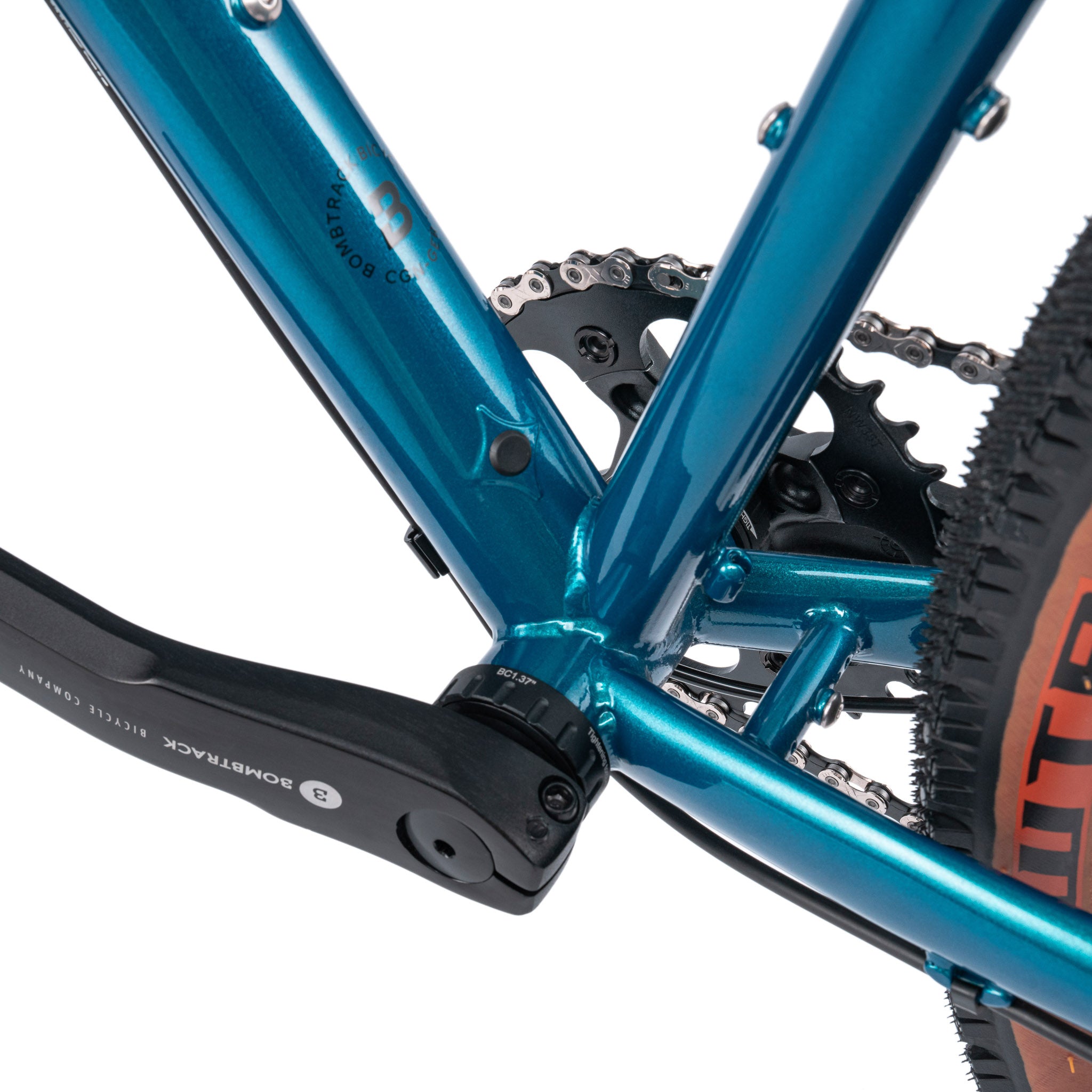

| Crankset | Bombtrack Ames forged aluminium crank, 24 mm spindle |
| Bottom bracket | BSA sealed BB, external cups |
| Pedals | Not included |
| Chain | KMC X11 chain, 1/2'' x 11/128'', 114L |
| Chainring | Aluminium, narrow-wide, 36 T |
| Cassette | SRAM PG-1130 11-speed, 11 - 42 T |
| Front derailleur | Not fitted (1× drivetrain) |

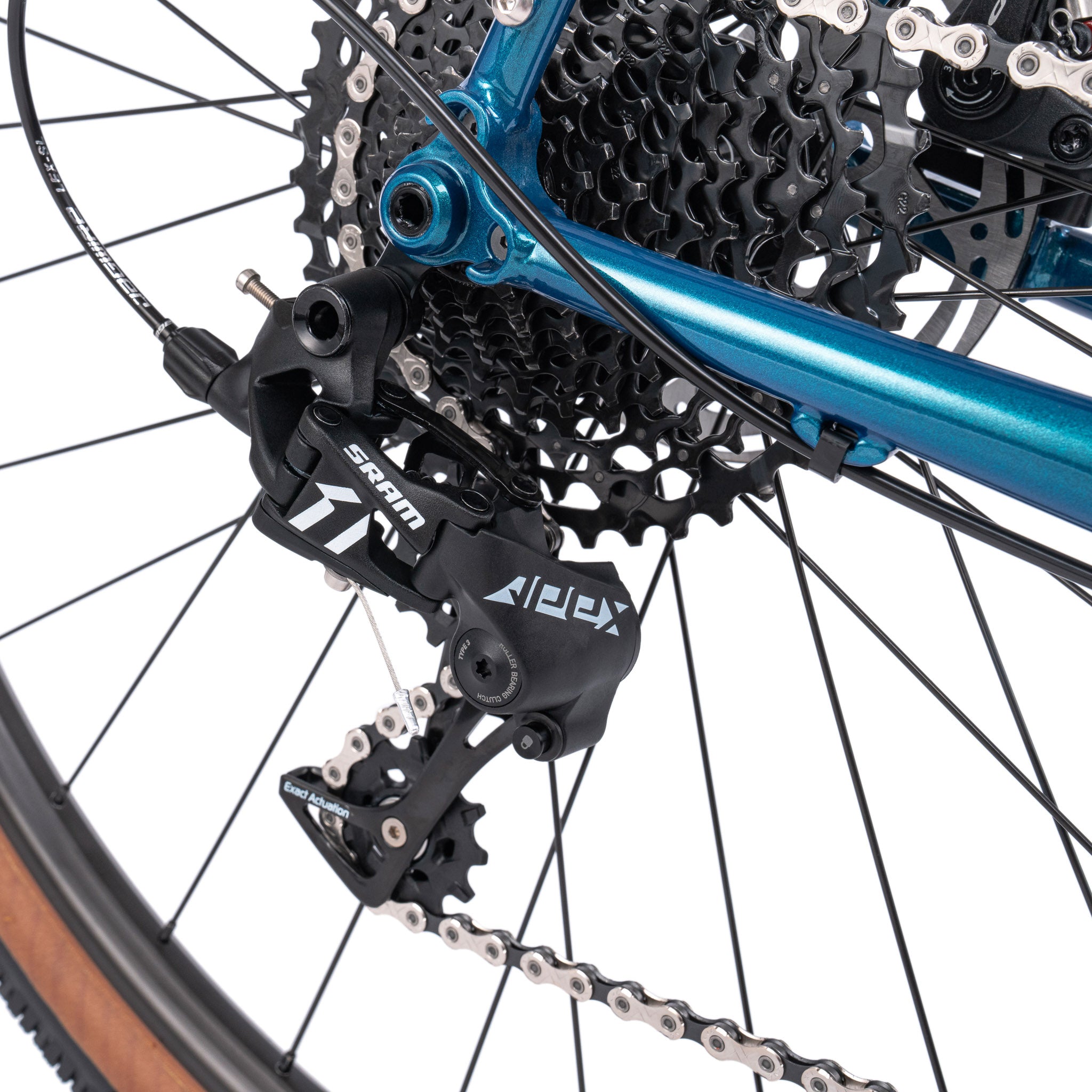

| Rear derailleur | SRAM Apex 1, clutch, long cage |
| Front hub | Bombtrack Arc sealed hub, 6-bolt disc |
| Rear hub | Bombtrack Arc sealed hub, 11-speed, 6-bolt disc |
| Through-axles | 12 x 100 mm / 12 x 142 mm |
| Front rim | WTB ST i23 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i23 double wall, TCS 2.0, 32h |
| Saddle | Bombtrack Fuzz saddle |
| Seat post | Seido Beech 27.2 mm x 400 mm |
| Seat clamp | Bombtrack Prime 29.8 mm |
| Front tyre | WTB Venture TCS Light / Fast Rolling XS - S 27.5'' x 1.9'' / M - XL 29'' x 2.0'', tubeless ready |
| Rear tyre | WTB Venture TCS Light / Fast Rolling XS - S 27.5'' x 1.9'' / M - XL 29'' x 2.0'', tubeless ready |
| Complete weight | 12.3 kg (size M) |
| Frameset weight | 2540 g frame (size M, incl. TA, bolts, seatclamp, hanger) |
| Maximum rider weight | 135 kg including luggage (Bombtrack specification) |
| ASTM riding condition | 2 |
Specifications describe the listed build. Appearance, finish and minor component details may vary.
