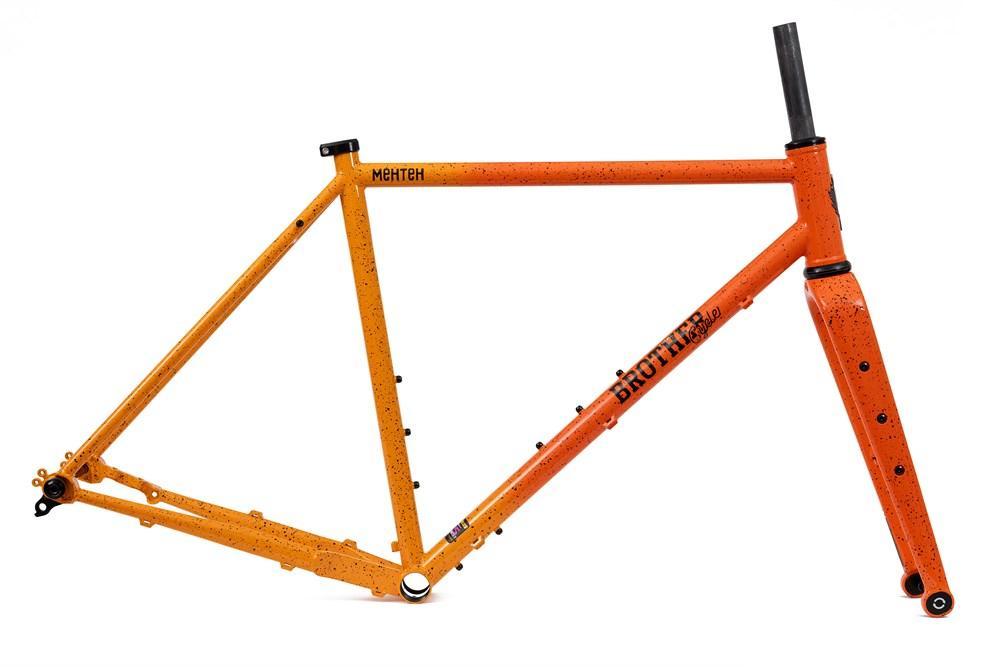

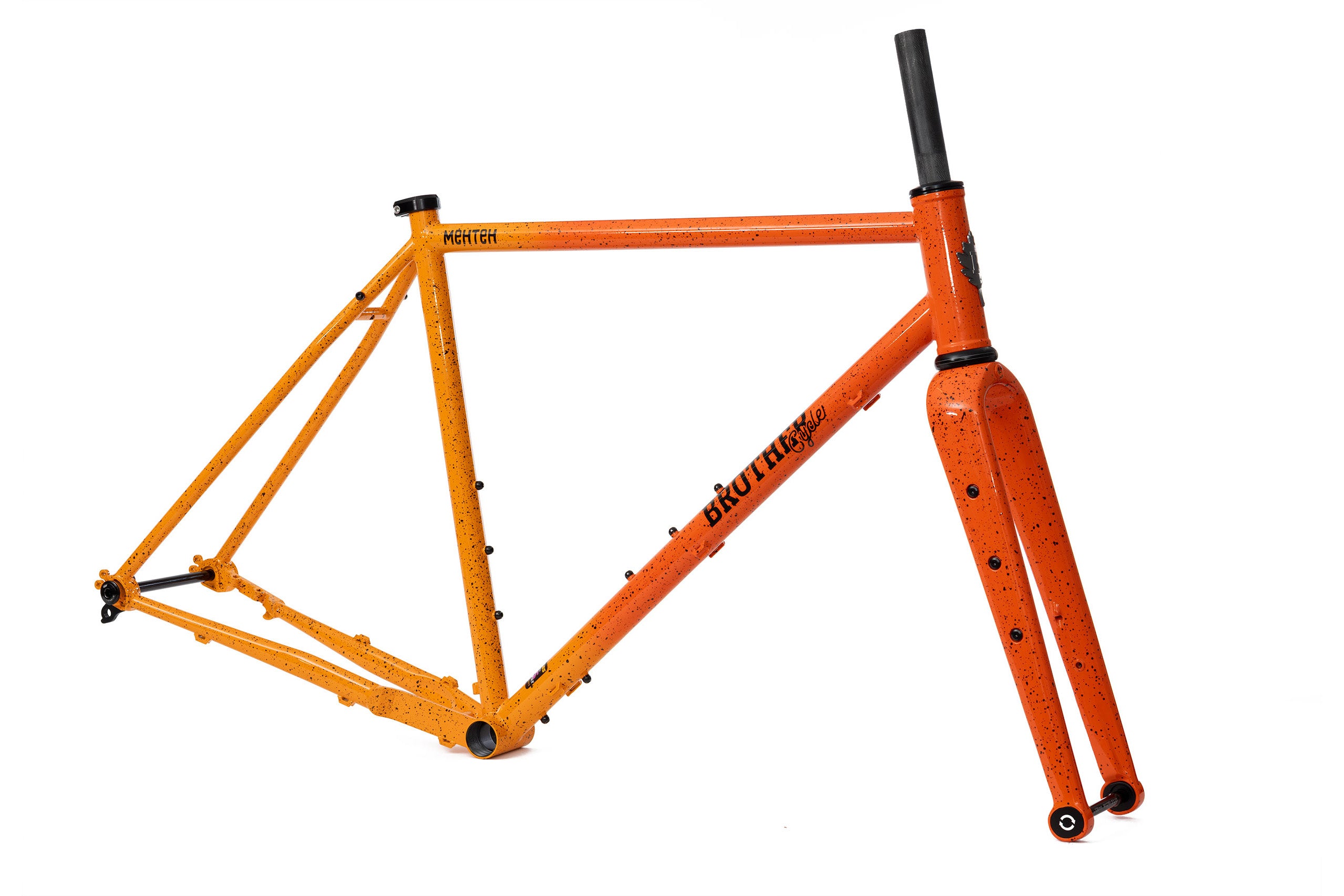

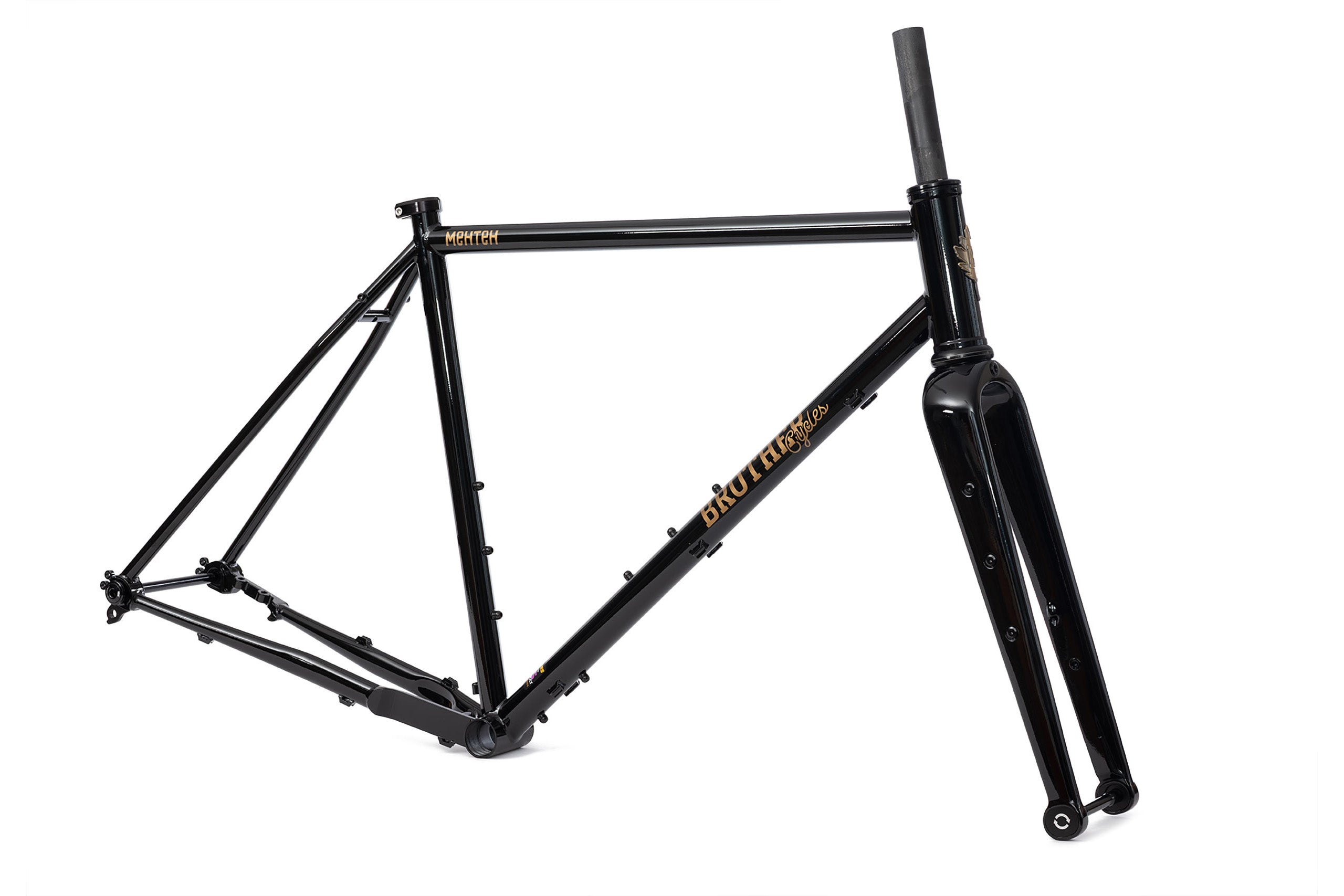

Brother Cycles Mehteh Frameset

Limited frames due in store March. Get in touch to secure yours.

gday@bicyclejunction.co.nz

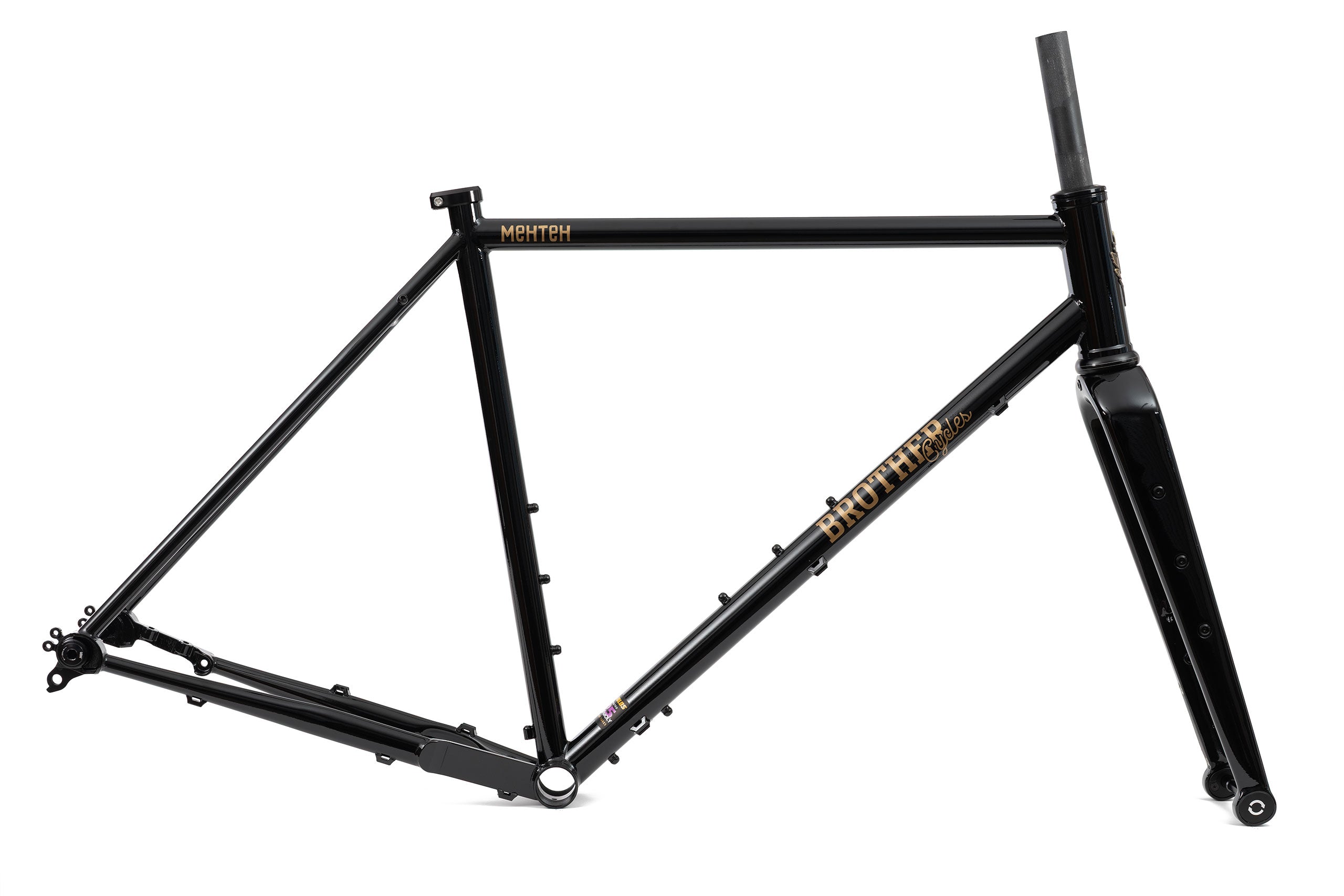

The Mehteh is a Reynolds 725 steel gravel frame – a fast and agile drop bar bike, designed for long days in the saddle on varied terrain. Brother have pushed the tyre clearances beyond what you’d find on the average gravel bike giving the option of taking your ride even further off-road. Whether that’s an after work gravel dash or a full blown bikepacking adventure.

The personality of the Mehteh (pronounced /meɪteɪ/) is reflected in its name – a Himalayan word for the mountain dwelling Yeti which literally translates as “Man Beast”!

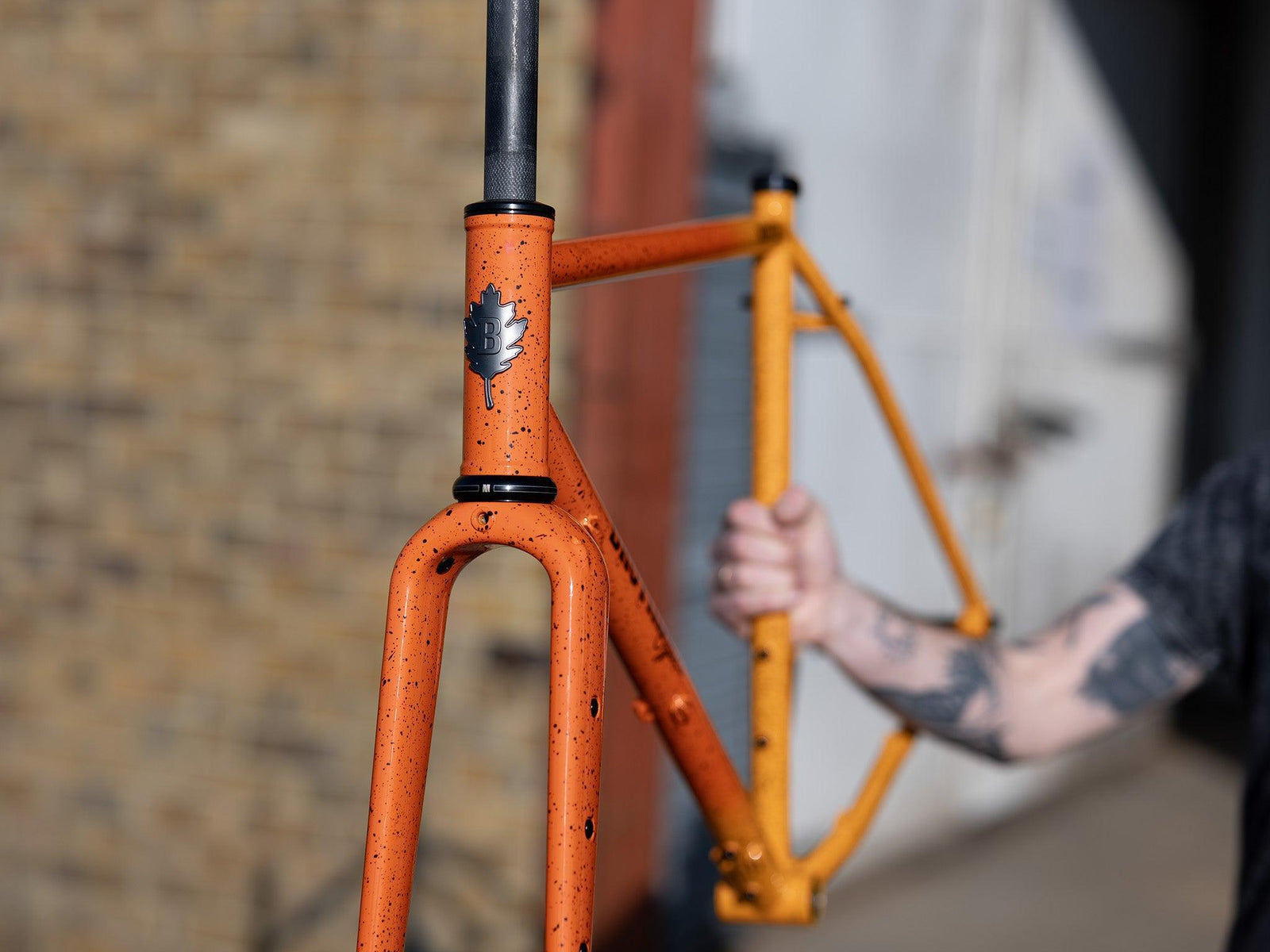

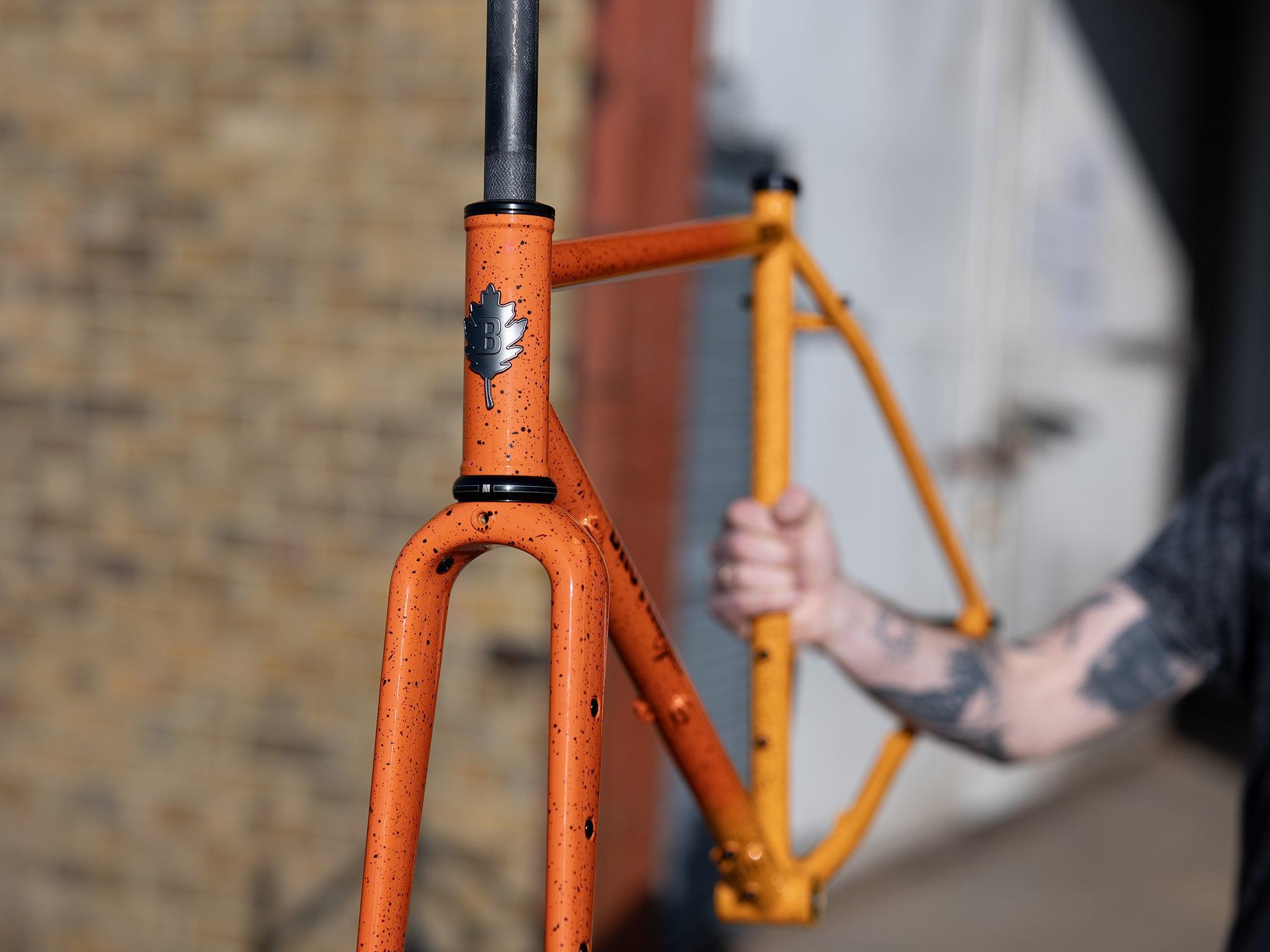

The Mehteh is constructed out of Reynolds 725 steel; a heat treated tubing famed for its strength and weight saving properties and an ideal material for the challenges of gravel riding and bikepacking. This is now matched with the Brother carbon gravel fork up front – featuring full carbon construction, fender mounts and triple cage mounts on each fork blade. The frame and fork have clearance for up to 650b x 2.1″ or 700c x 45 tyres to help you through the rough stuff.



Specification

Frame tubing: Reynolds 725 heat treated chromoly double-butted main triangle, ED coated
Brake compatibility: flat mount, 160mm max rotor size

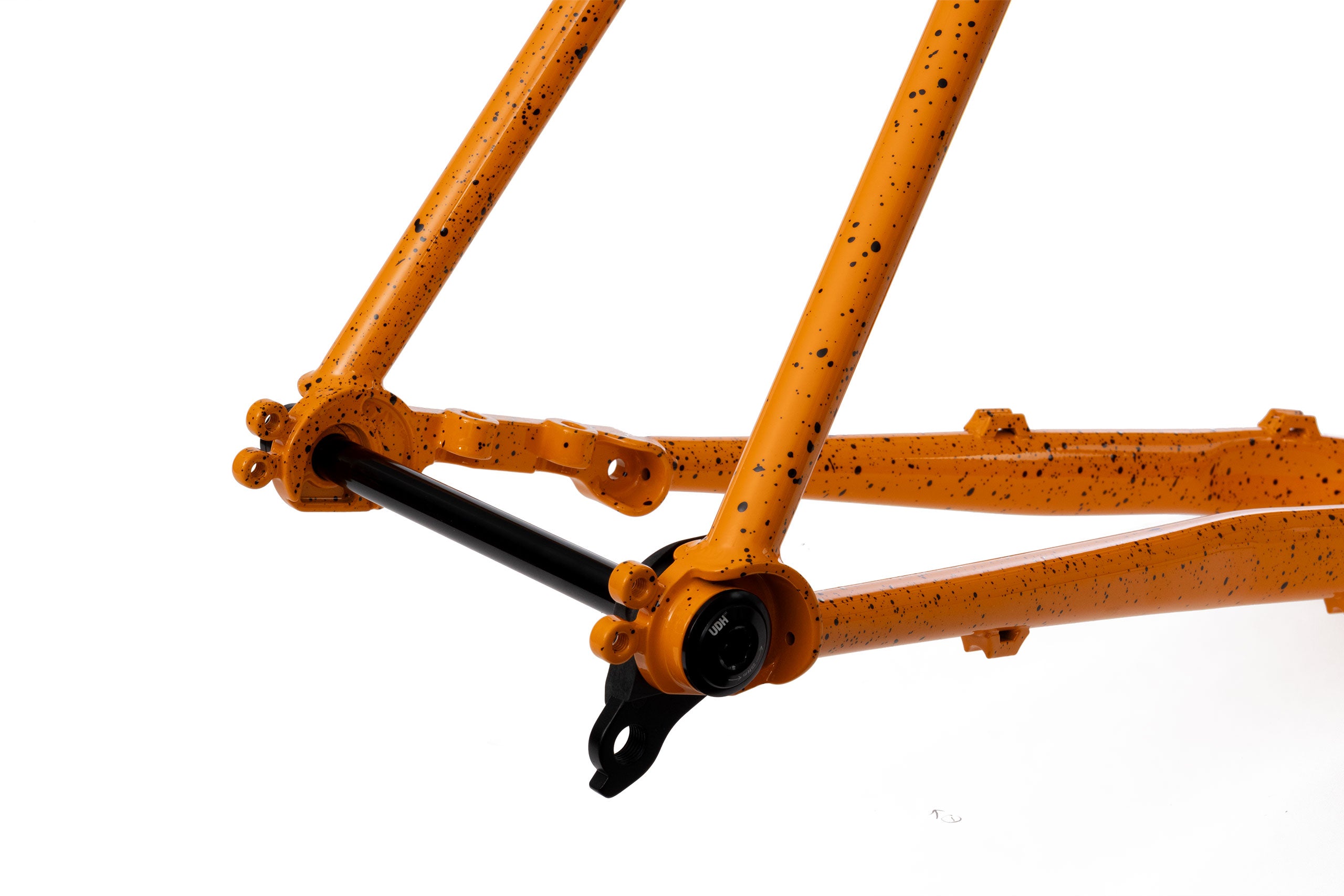

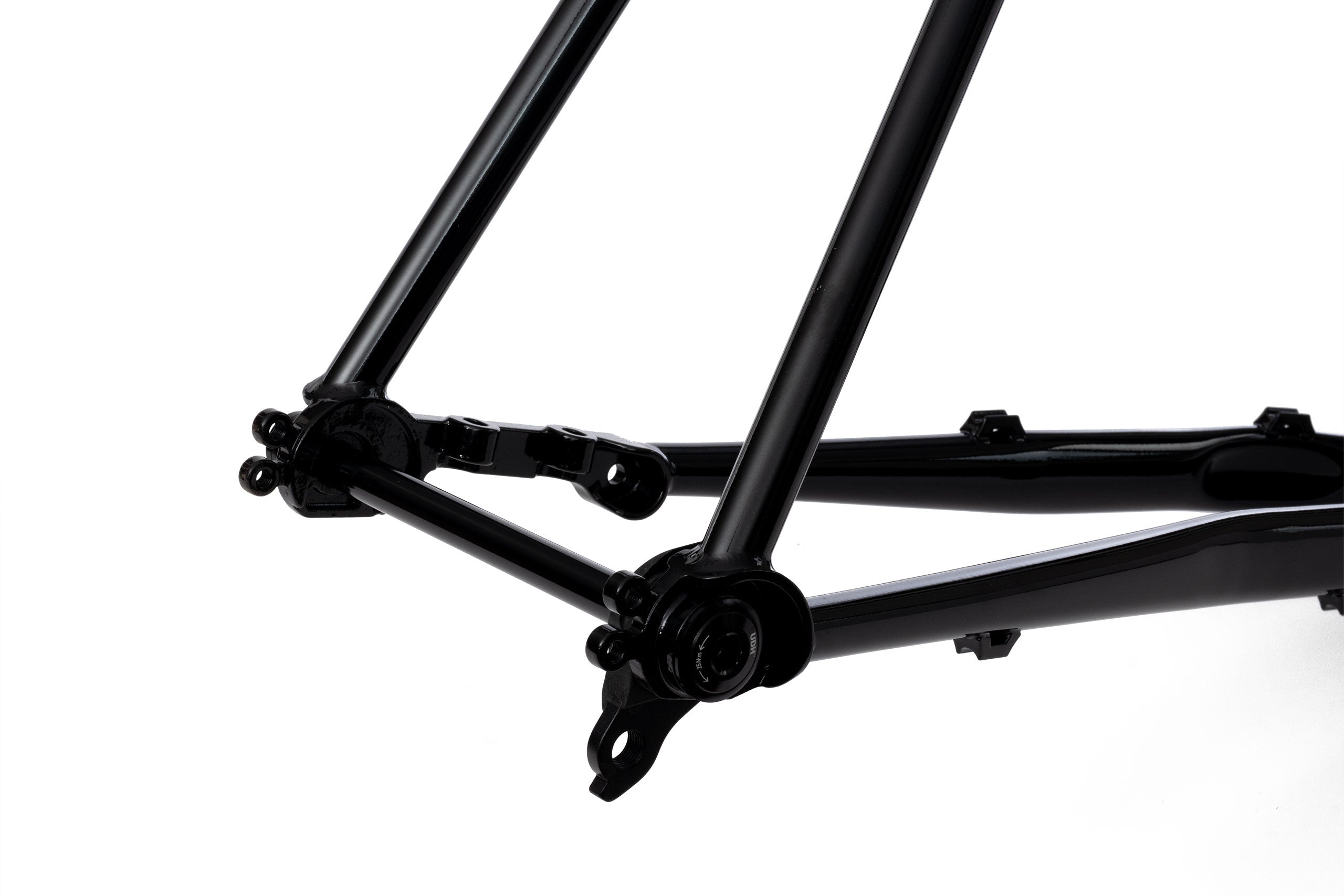

Rear Dropouts: 12x142mm TA (included)
Seat post diameter: 27.2mm
Seat clamp diameter: 30mm (included)
Headset: 44mm, ZS44/28.6 upper, EC44/40 lower (not included)
Front derailleur clamp diameter: 28.6mm
Bottom bracket shell: 68mm bottom bracket, ISO threaded
Maximum tyre clearance: 700c x 45mm, 650b x 56mm
Fork: 1.5″ – 1.1/8″ tapered steerer full carbon disc fork, mudguard mounts, triple cage mounts, 12x100mm TA (included)
Full-length cable housing guides for derailleurs and brakes
Stealth dropper post routing
3 sets bottle cage mounts on all sizes

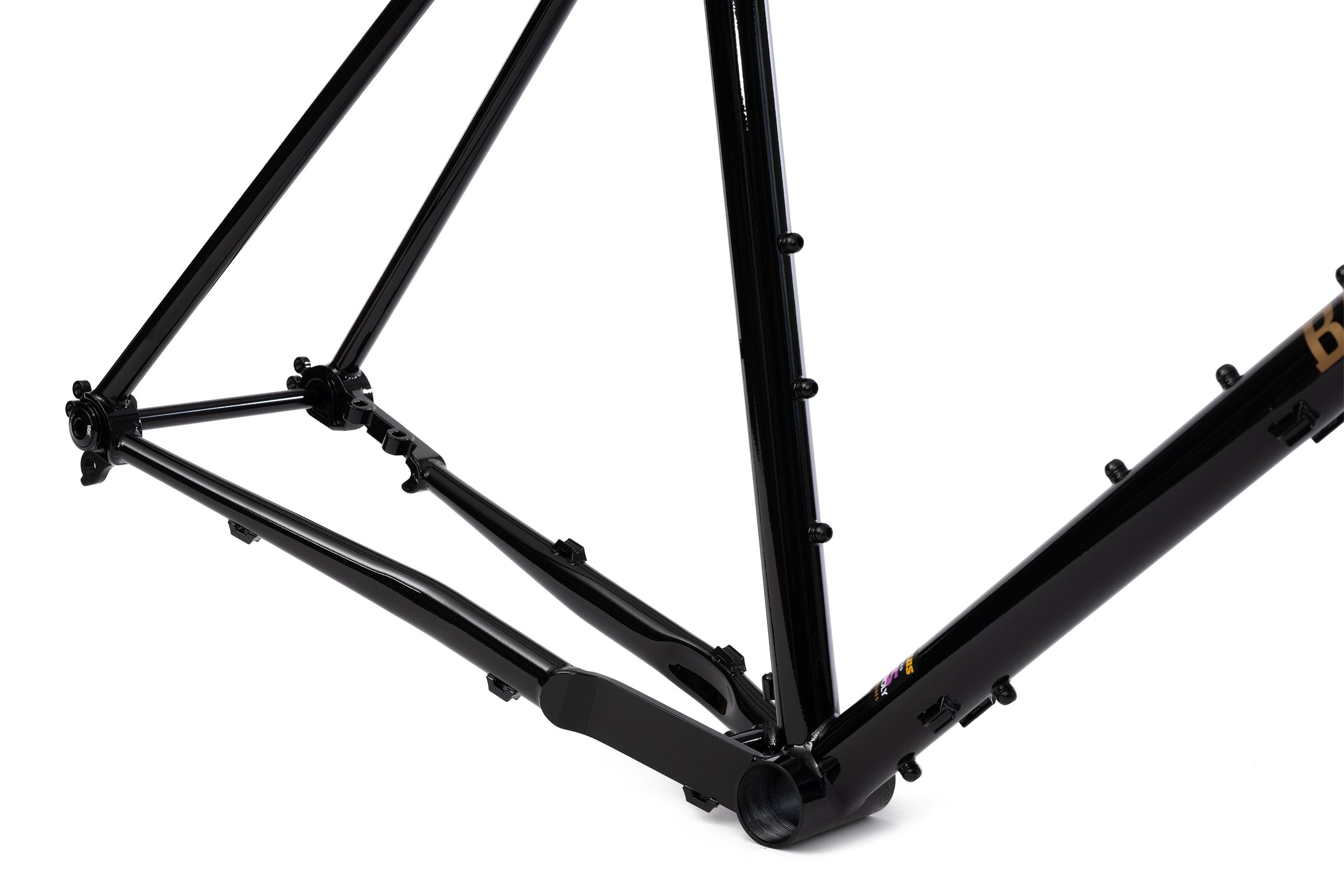

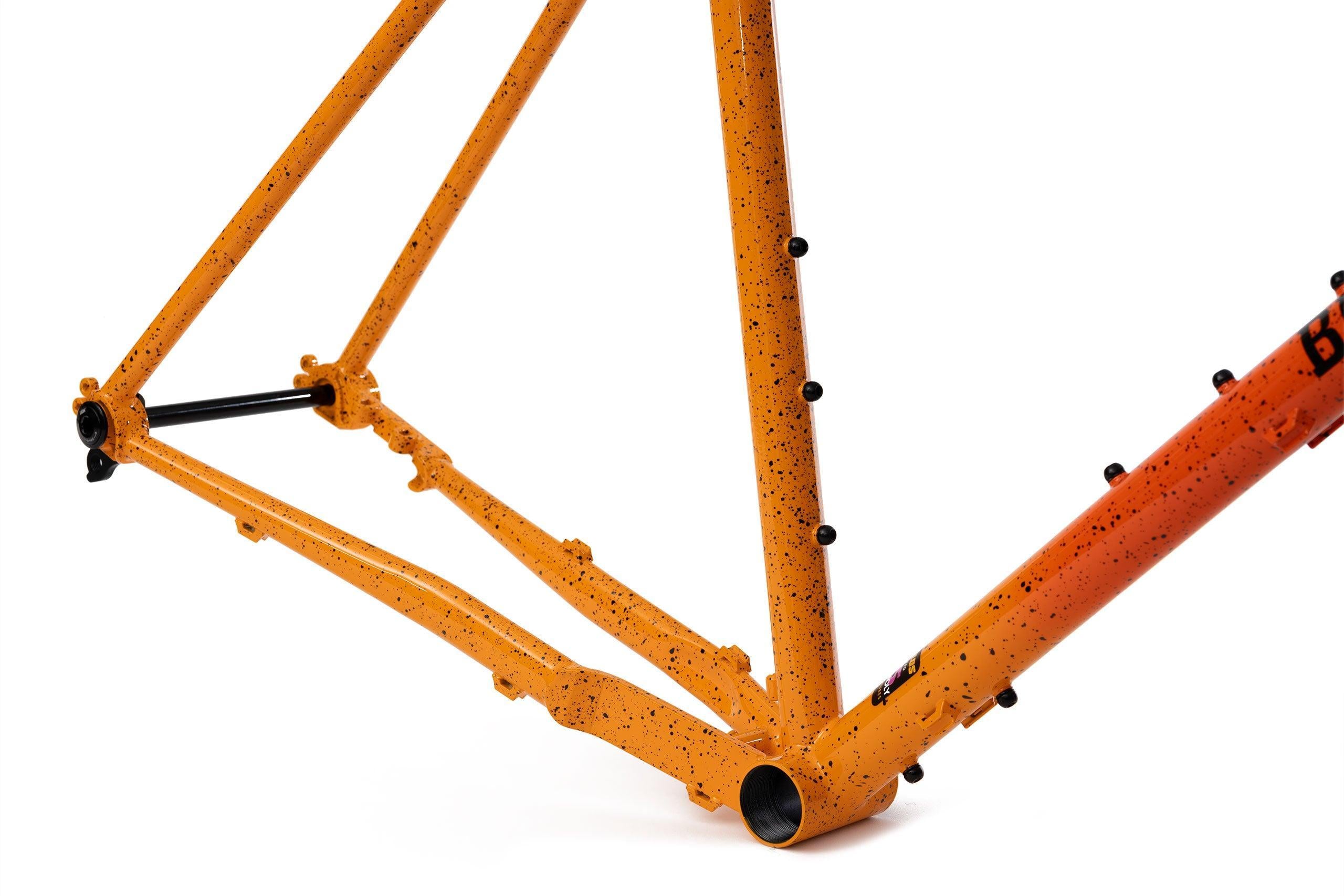

Rear rack and mudguard mounts
Chainring clearance: up to up to 52-39-30t triple, 50-34t double, 48t single
Frame weight (medium): 2.2kg
Fork weight (uncut steerer): 0.55kg
