Availability & Ordering
We list all framesets currently available from Brother Cycles as “in stock.” While we have a few on hand, most orders will be fulfilled via special order with approximately 14-day delivery.
To confirm ETA or any other questions, get in touch:
shop@bicyclejunction.co.nz | 04 385 2362

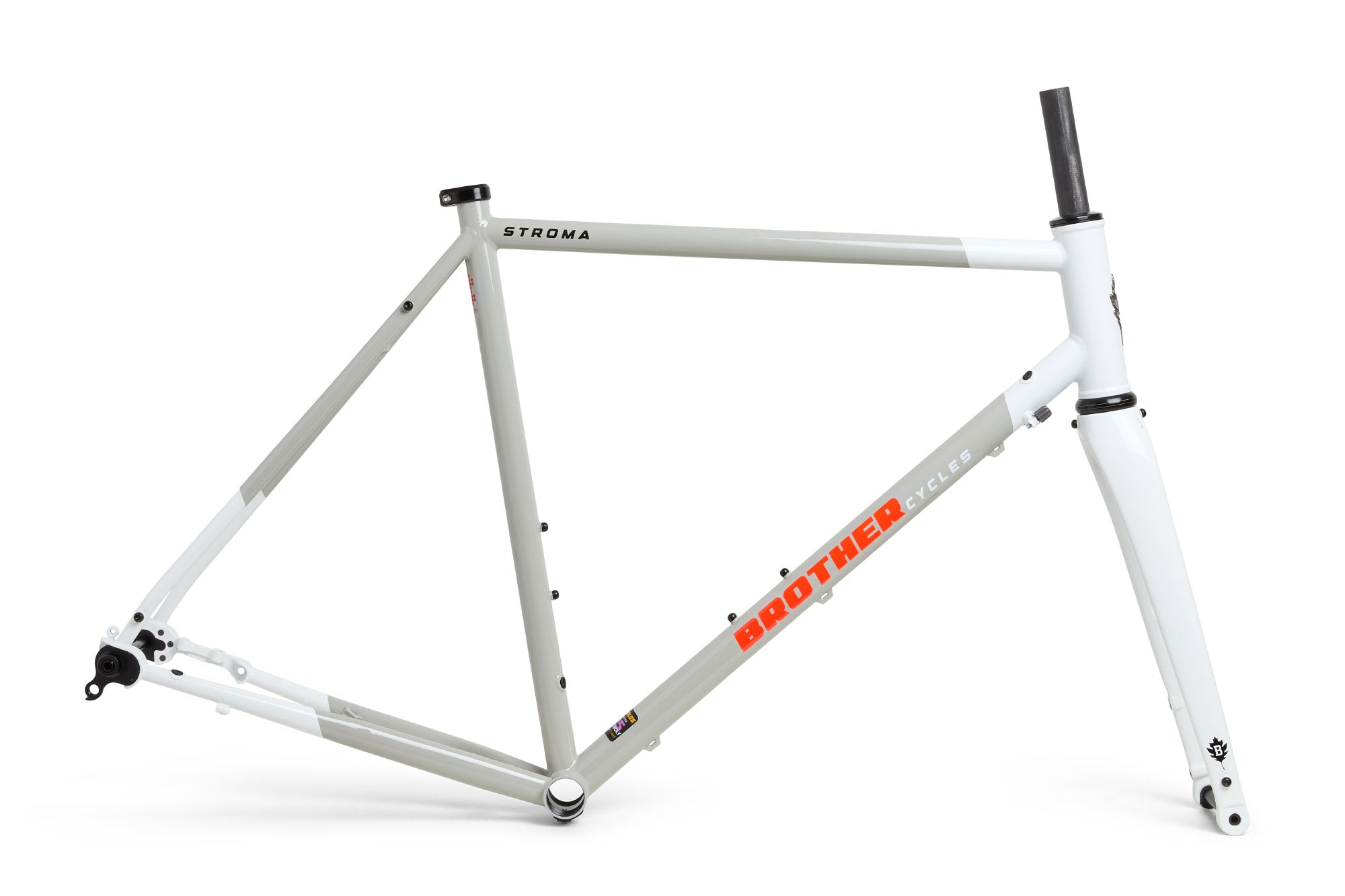

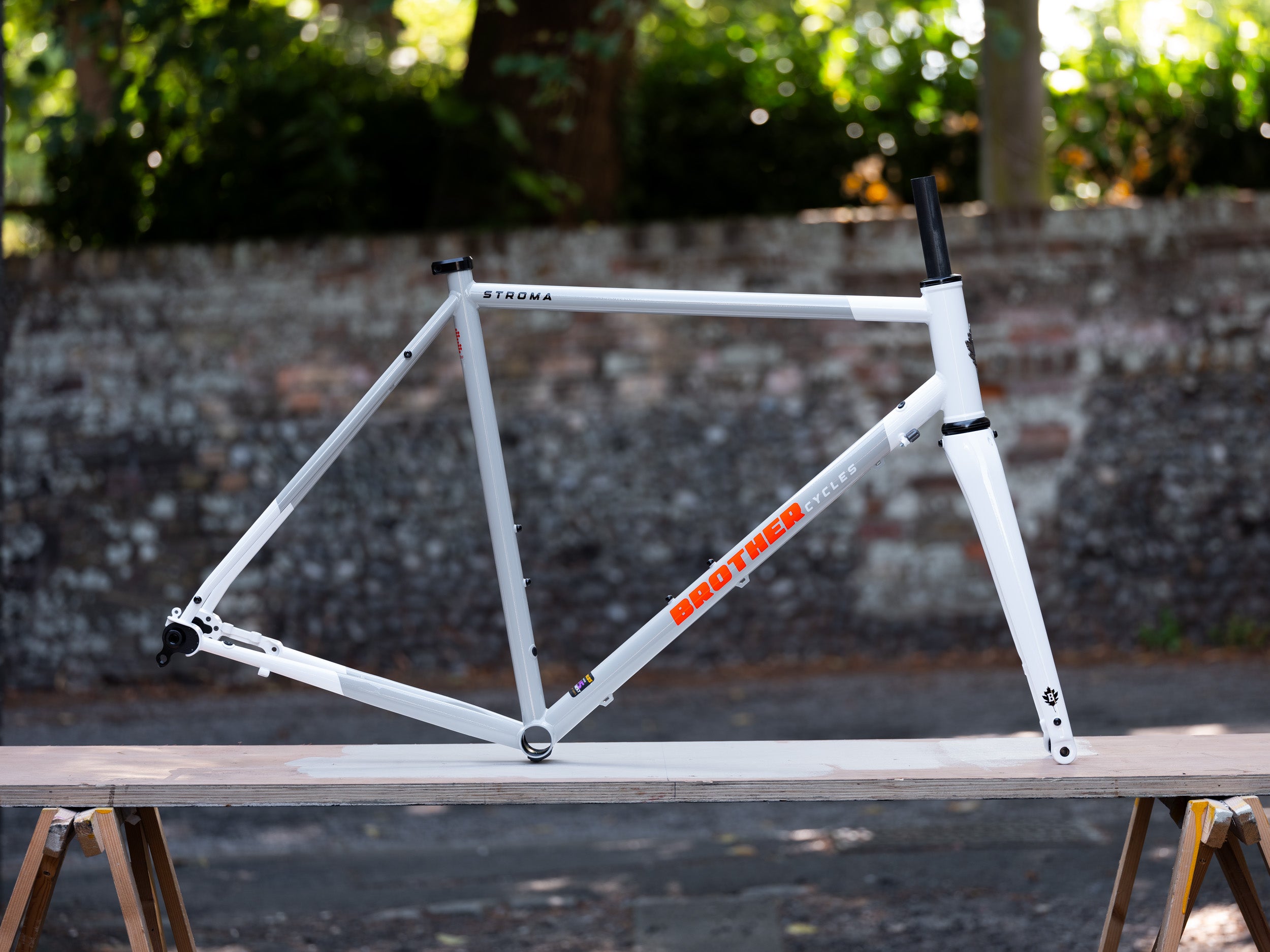

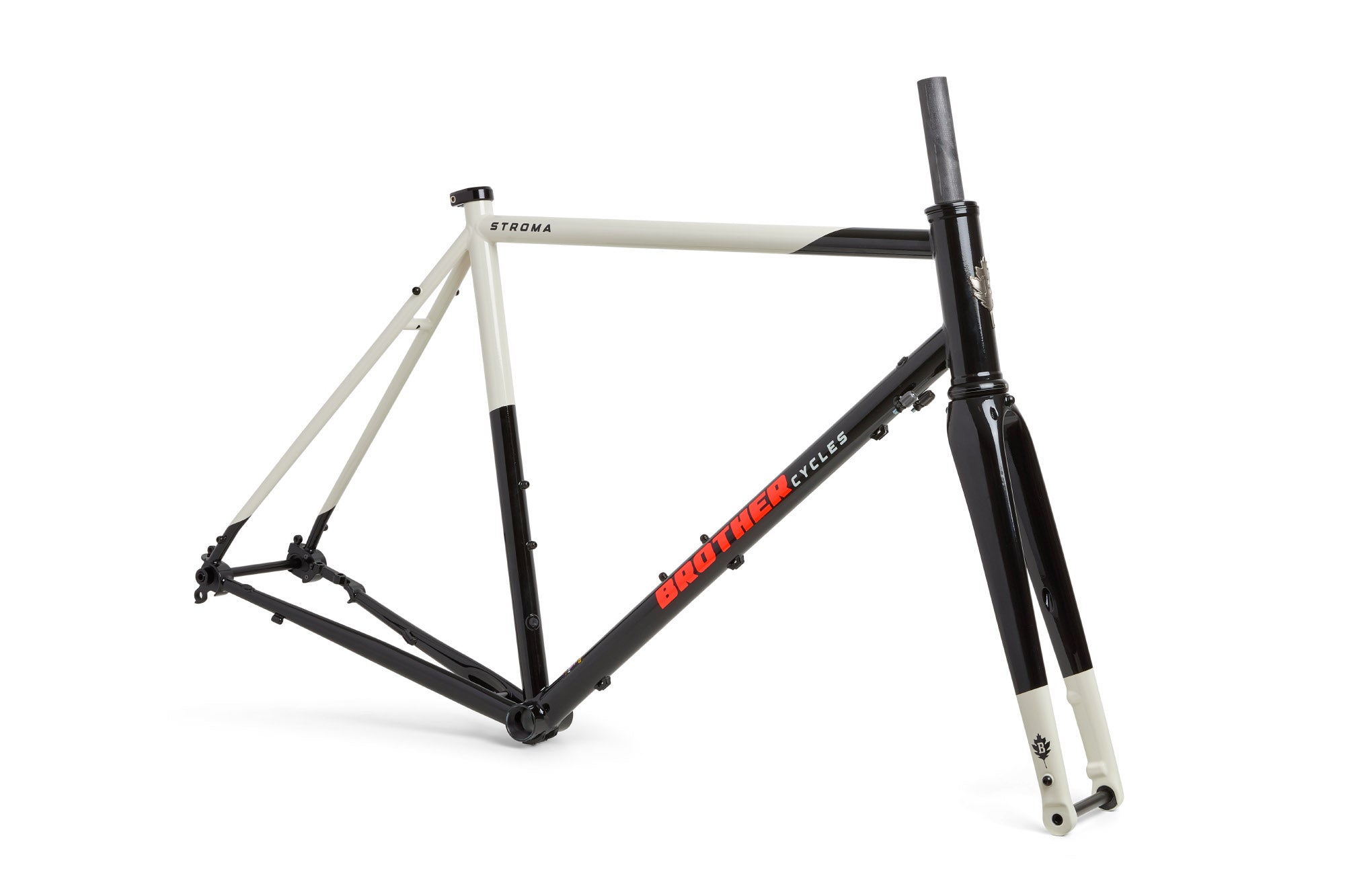

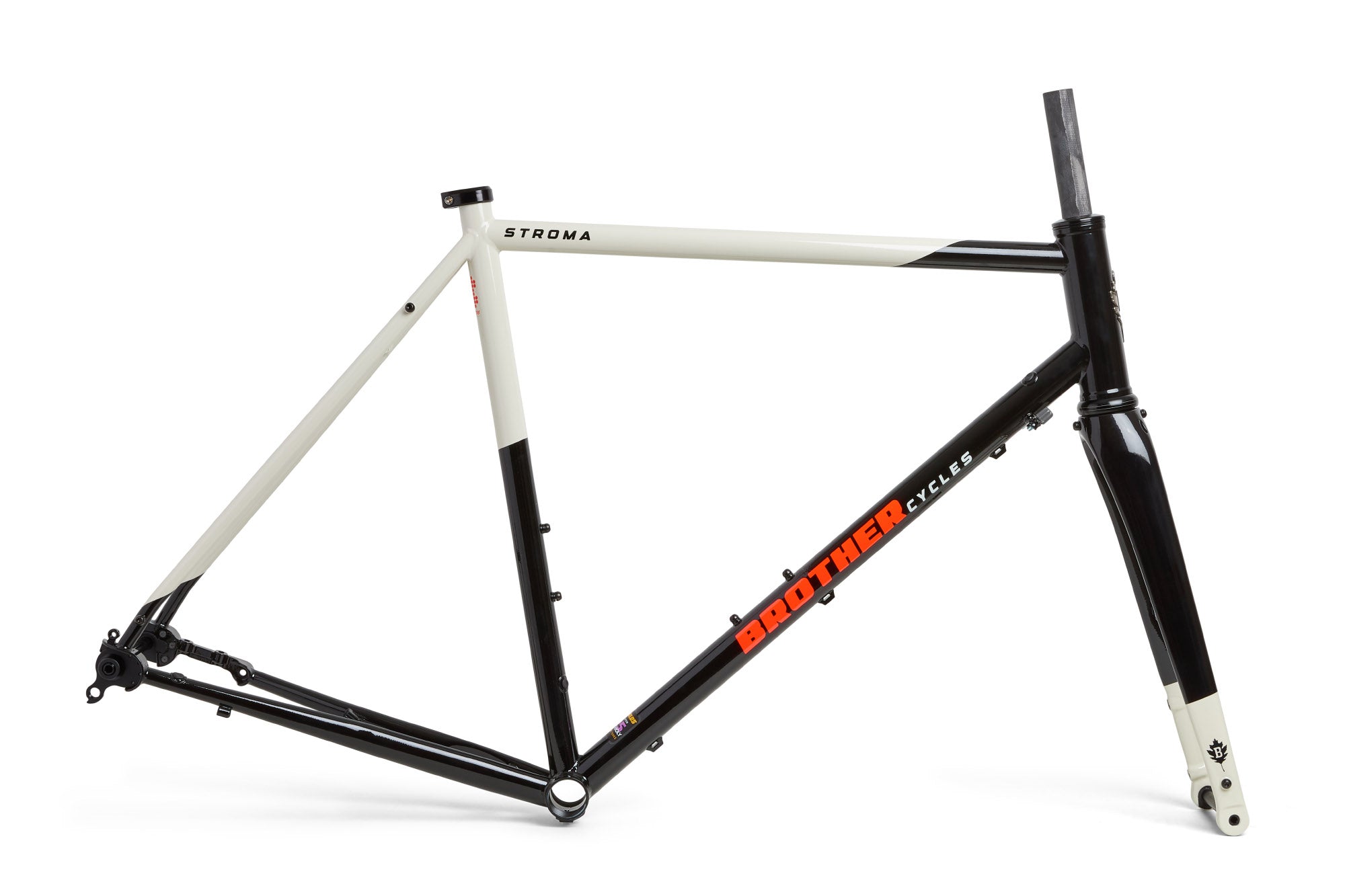

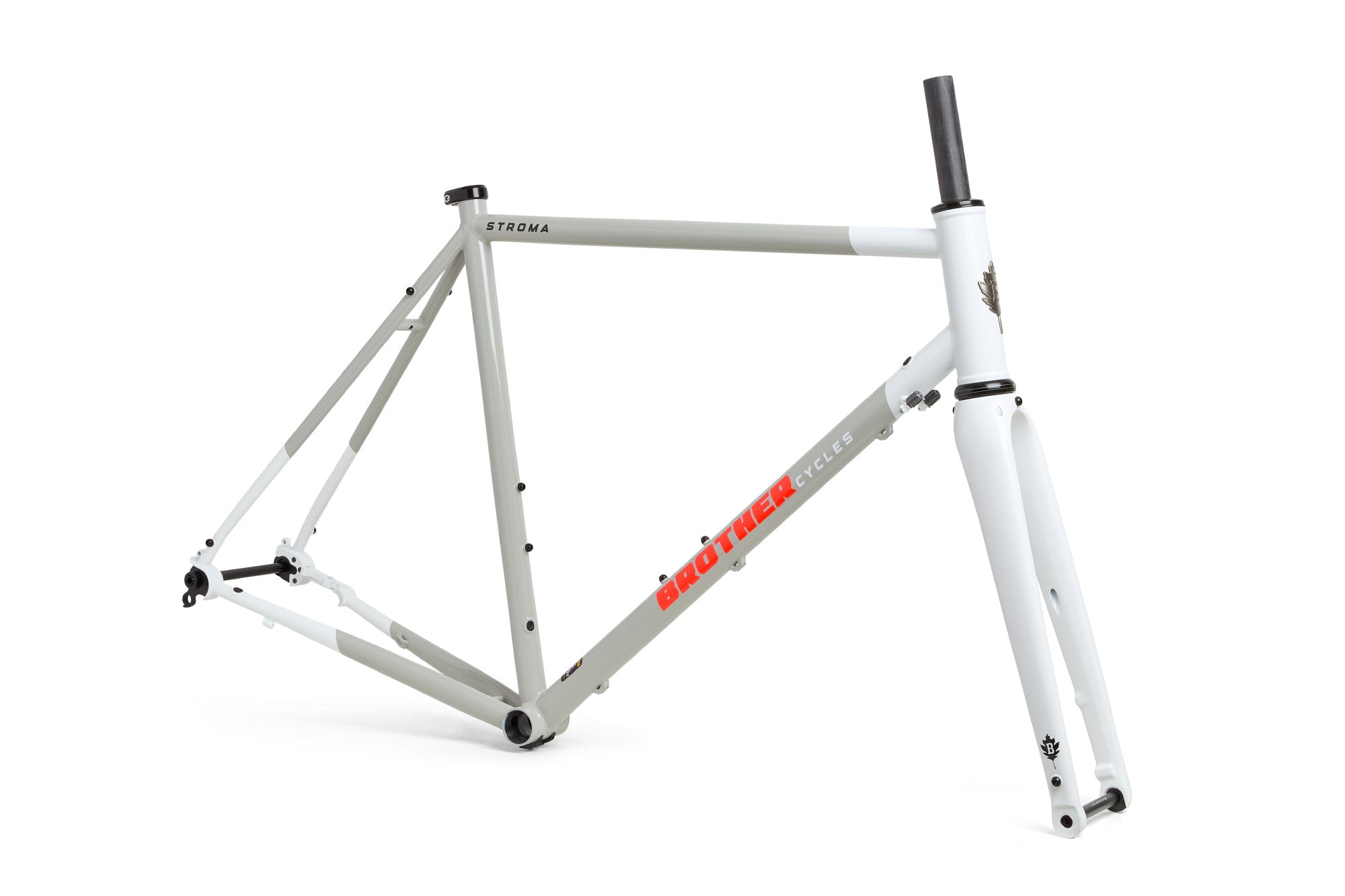

Brother Cycles Stroma Frameset – Endurance Ready, Weather Proof
Fast, comfortable, and ready for any road—rain or shine.

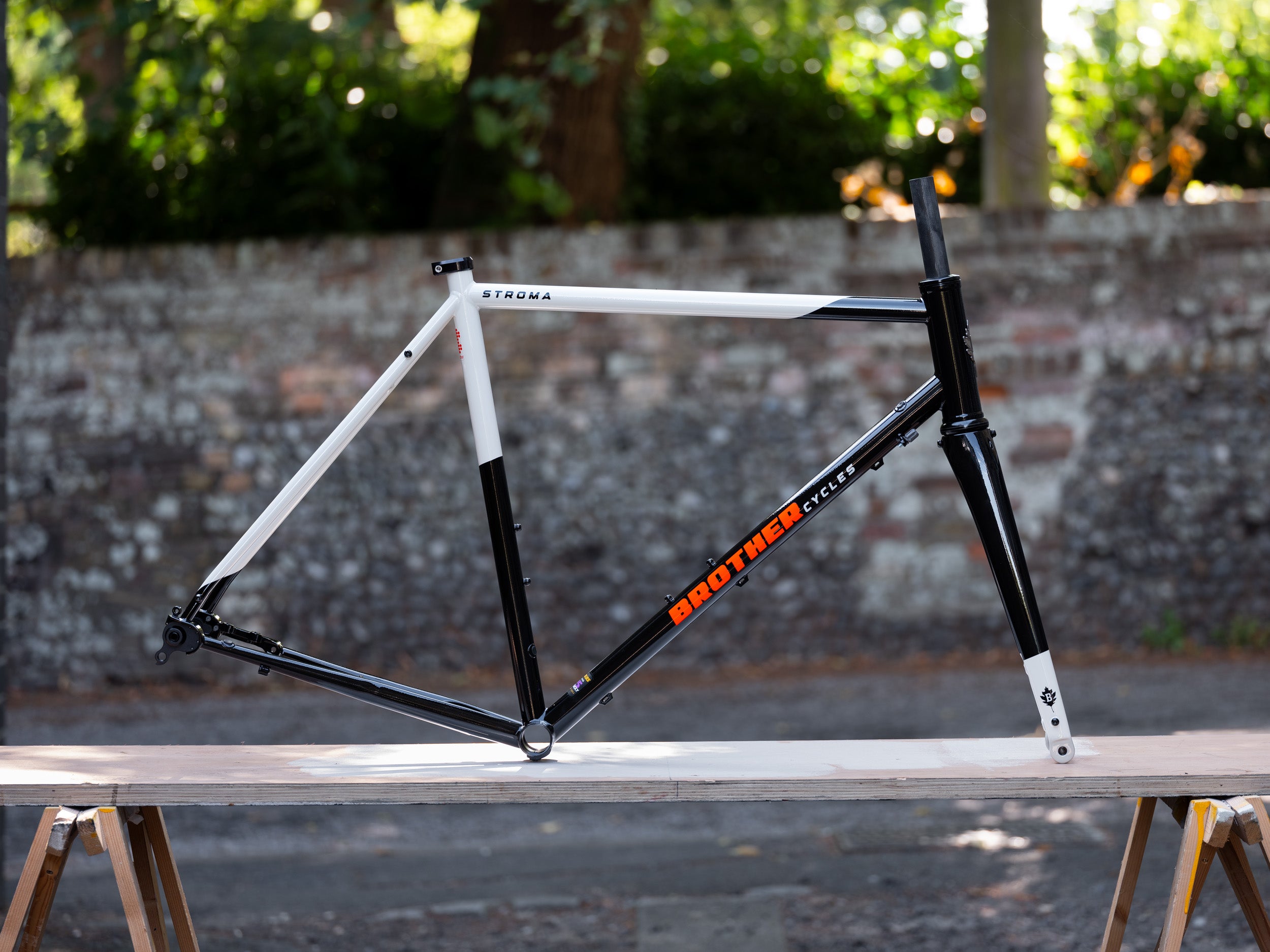

The Stroma is our versatile, year-round road bike, designed for the ever-changing weather and road surfaces of the UK and beyond. All-road, fast gravel, endurance – however you want to classify it, the Stroma is fast, responsive and comfortable over distance, no matter how rough the road gets.
The Stroma lives up to its namesake; a remote island off the north east coast of Scotland, battered by ferocious weather and near-impenetrable tides.

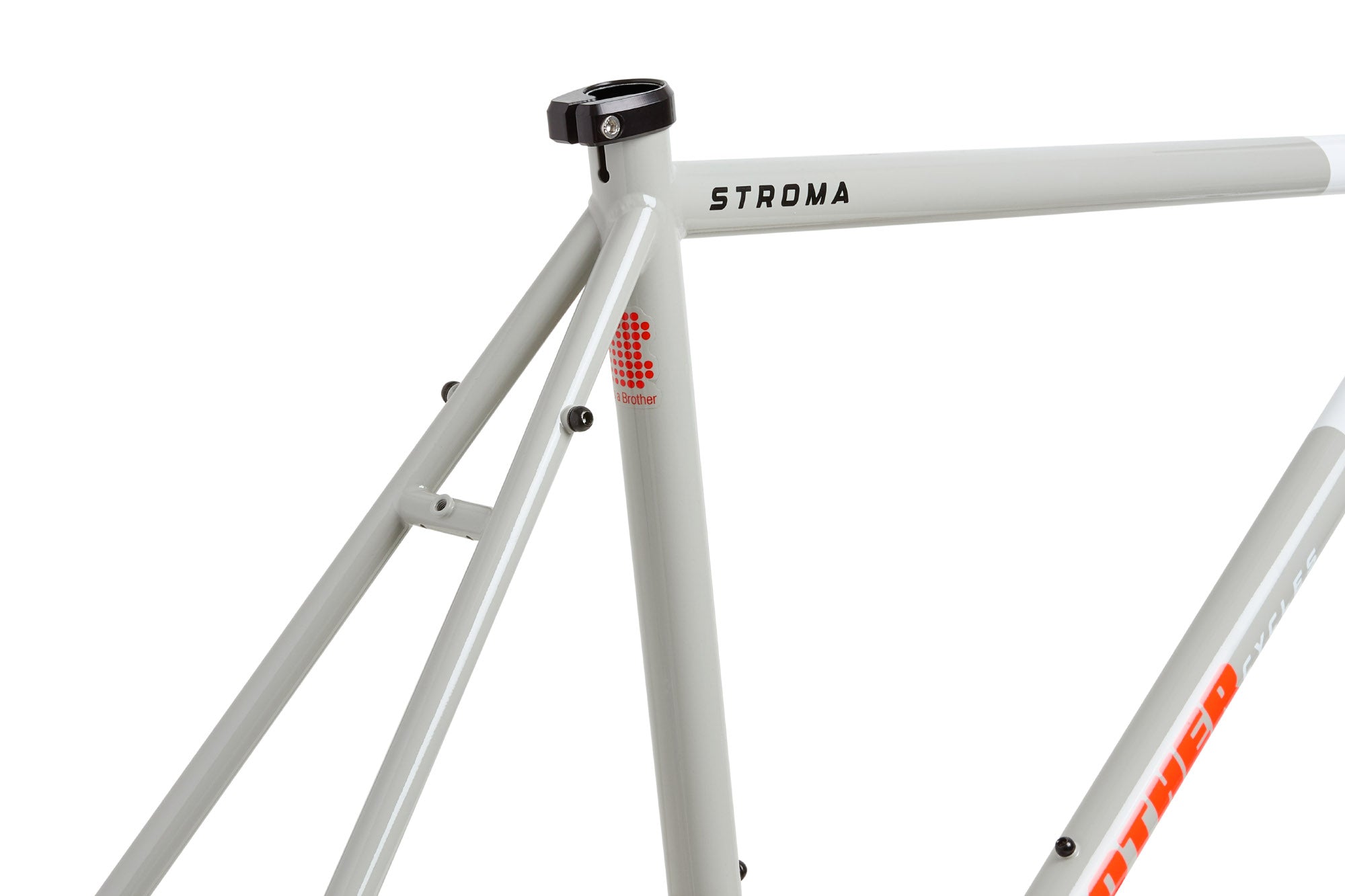

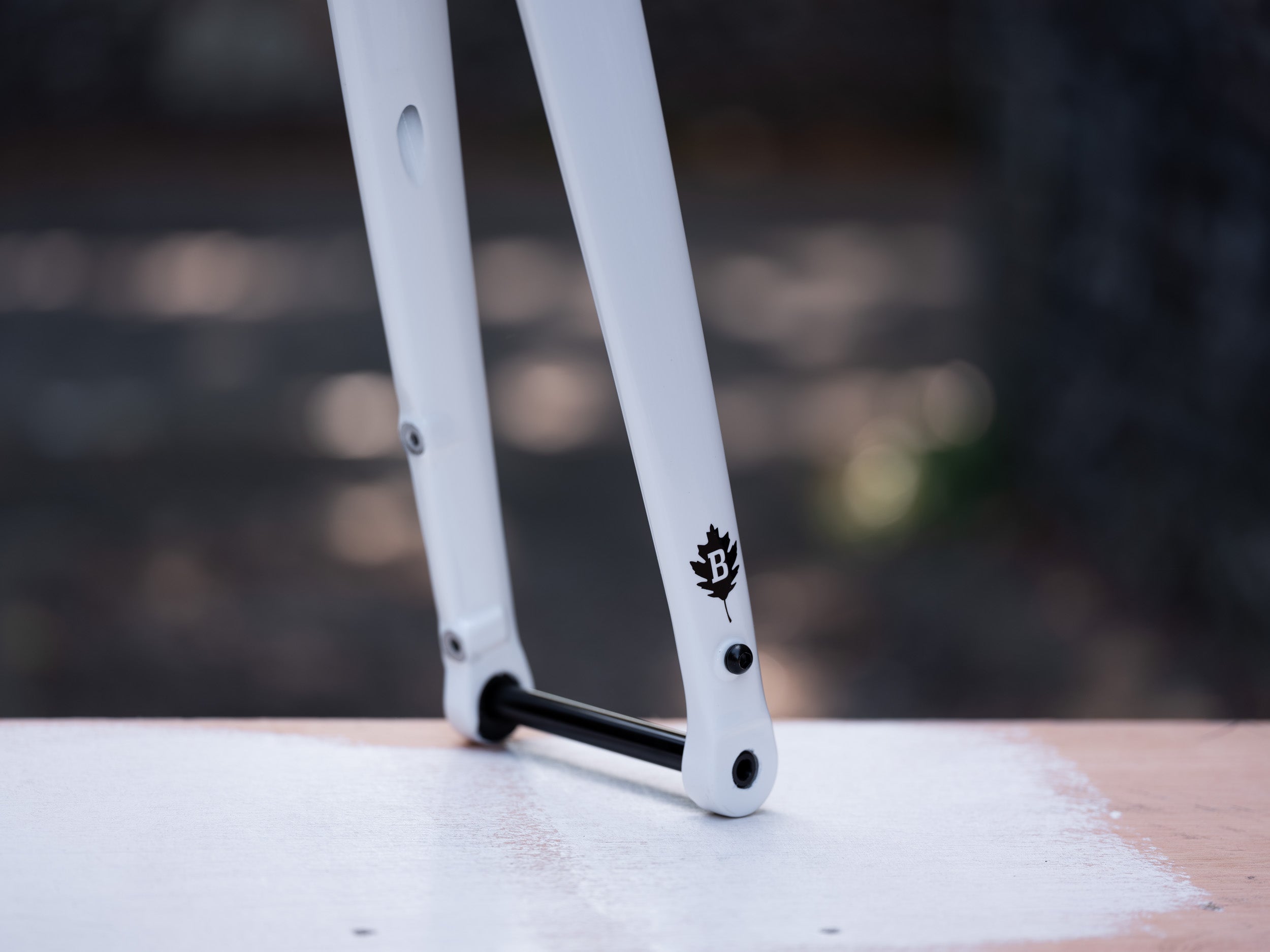

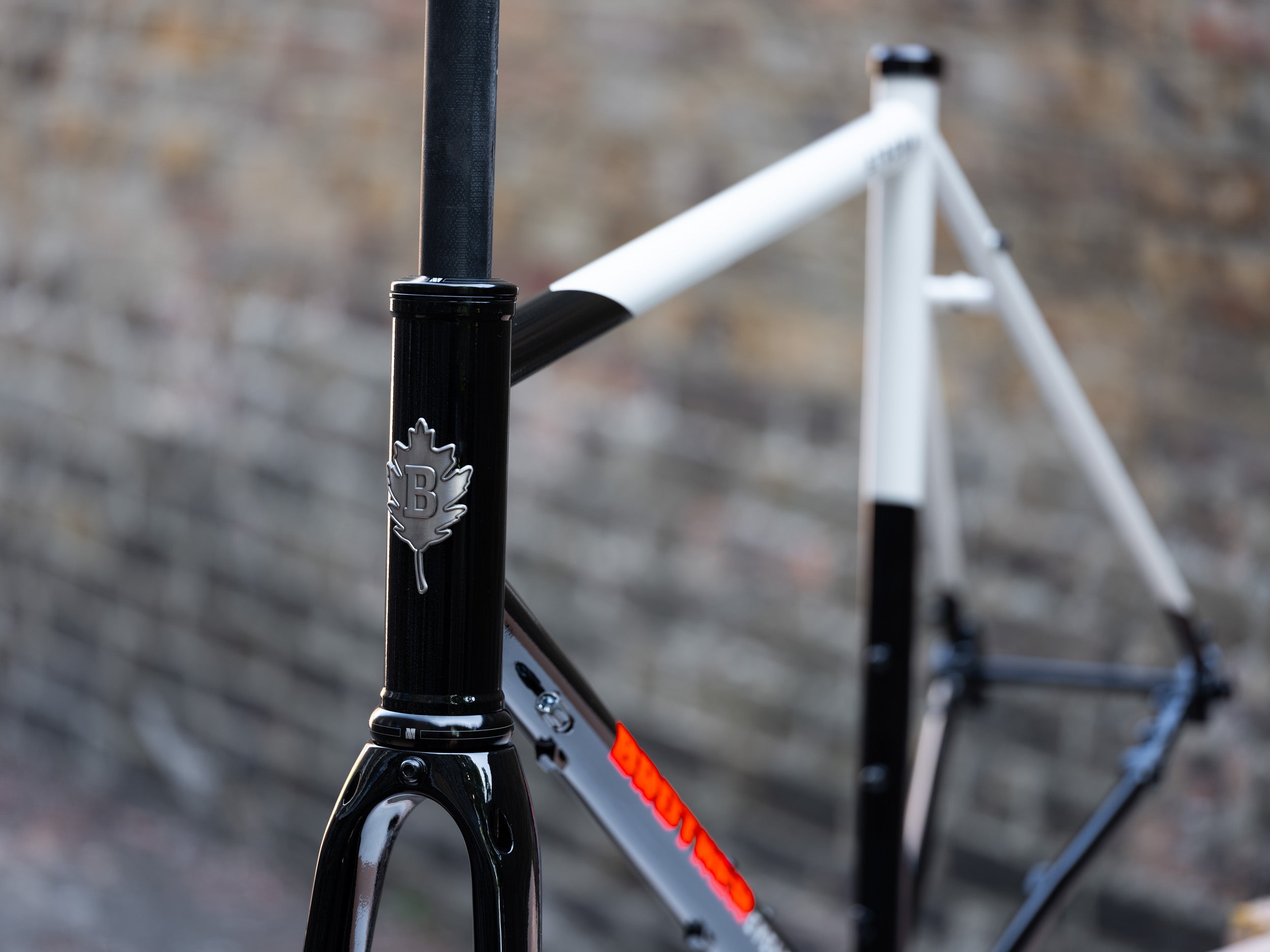

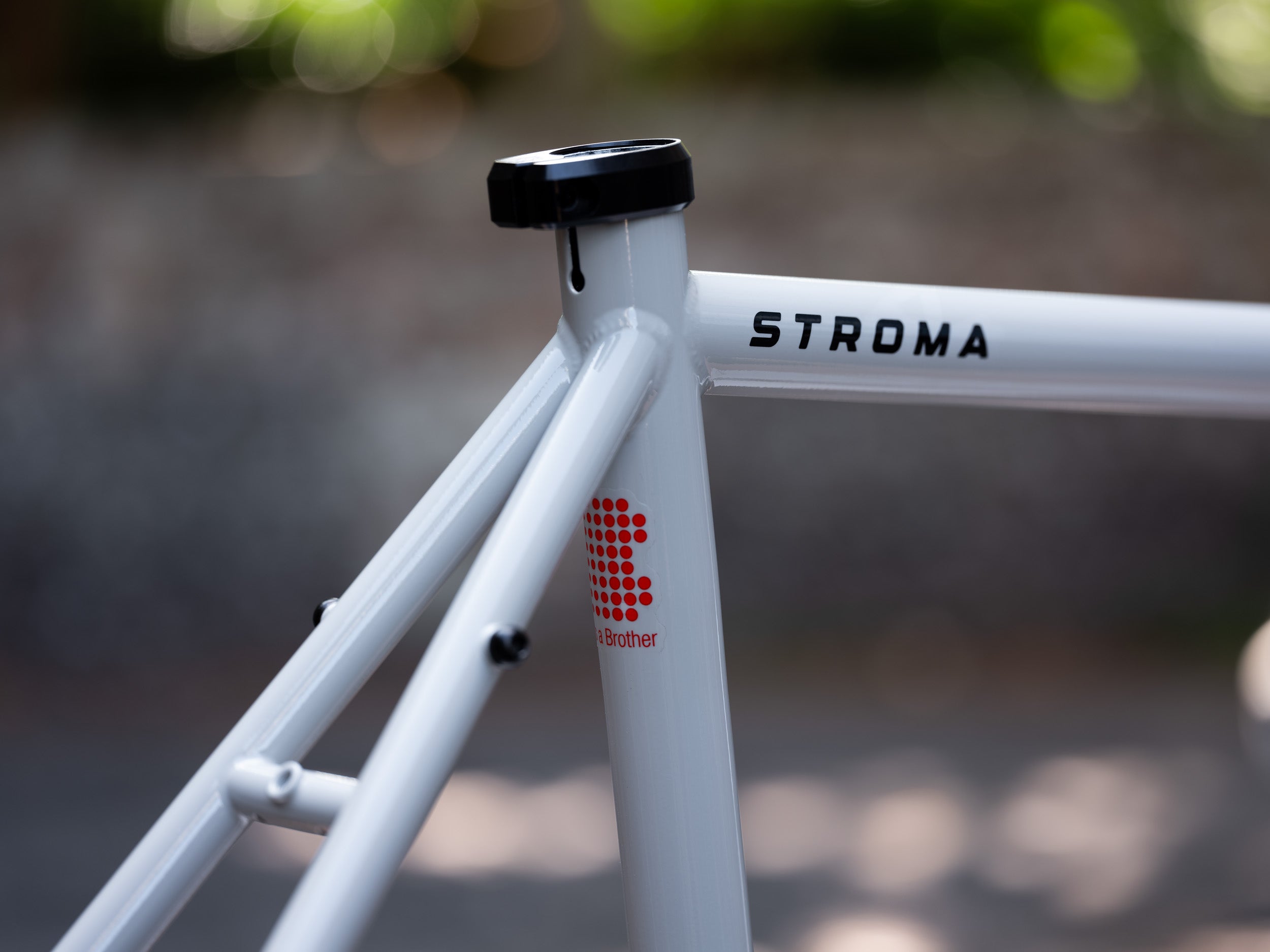

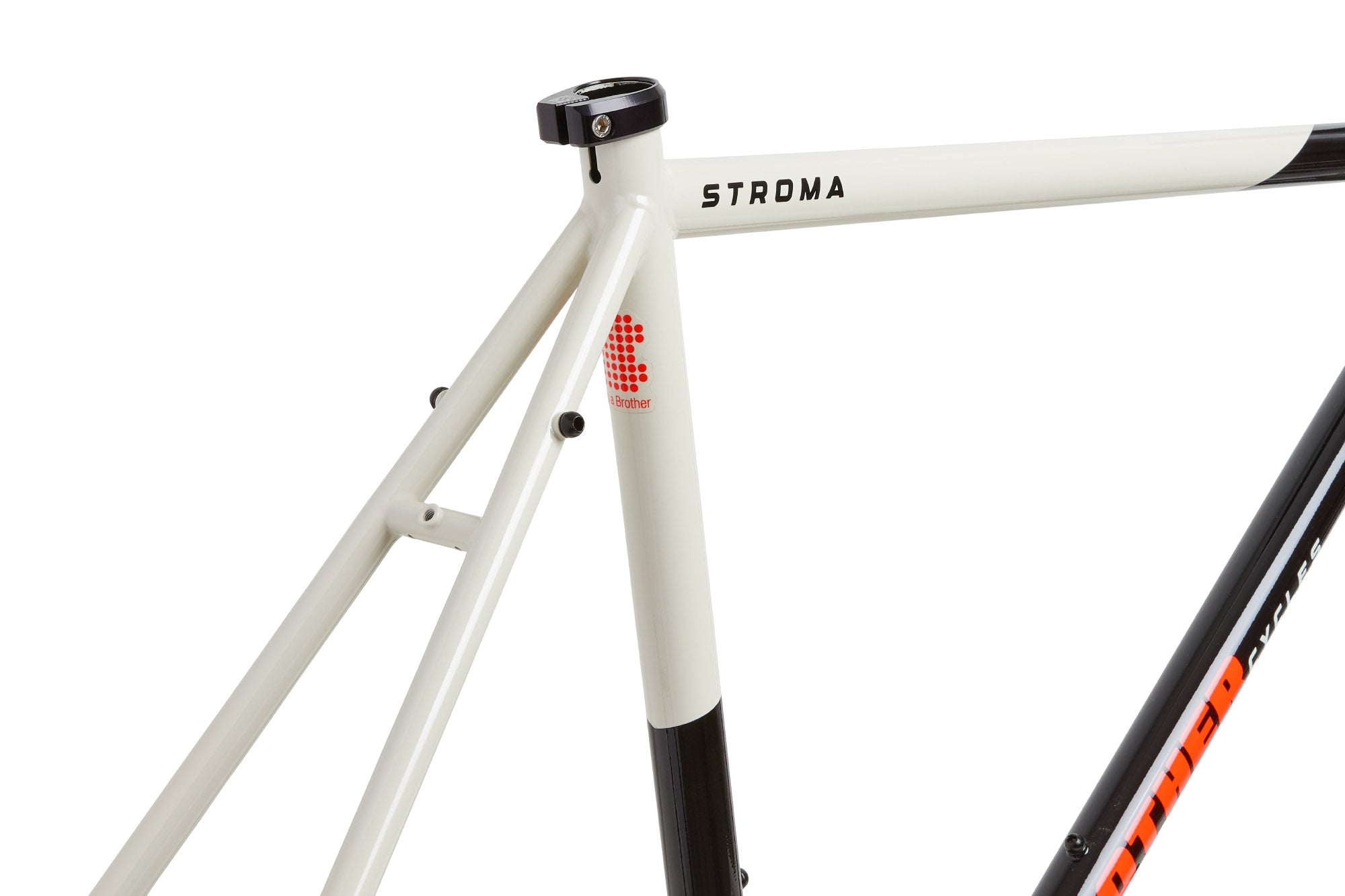

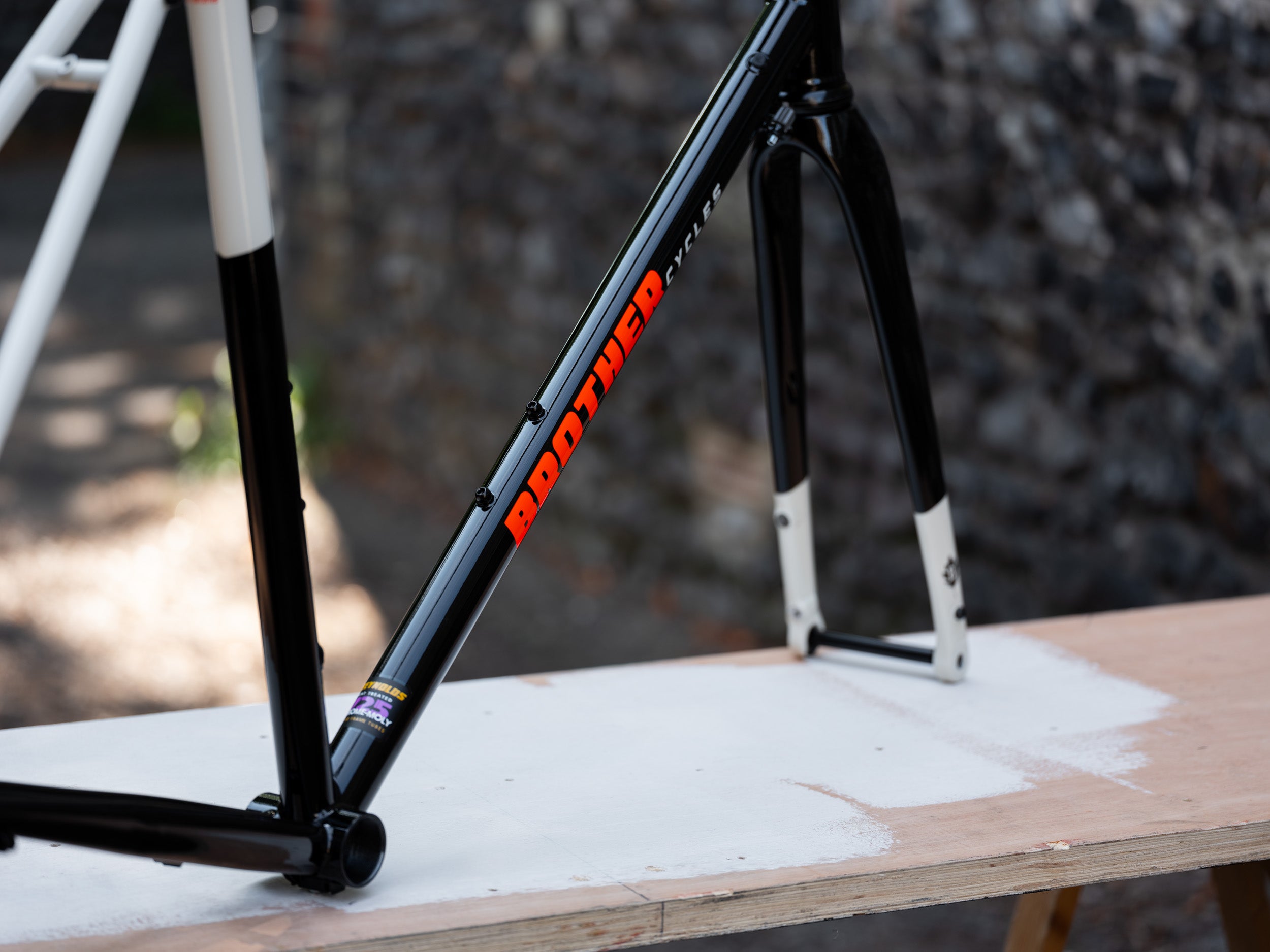

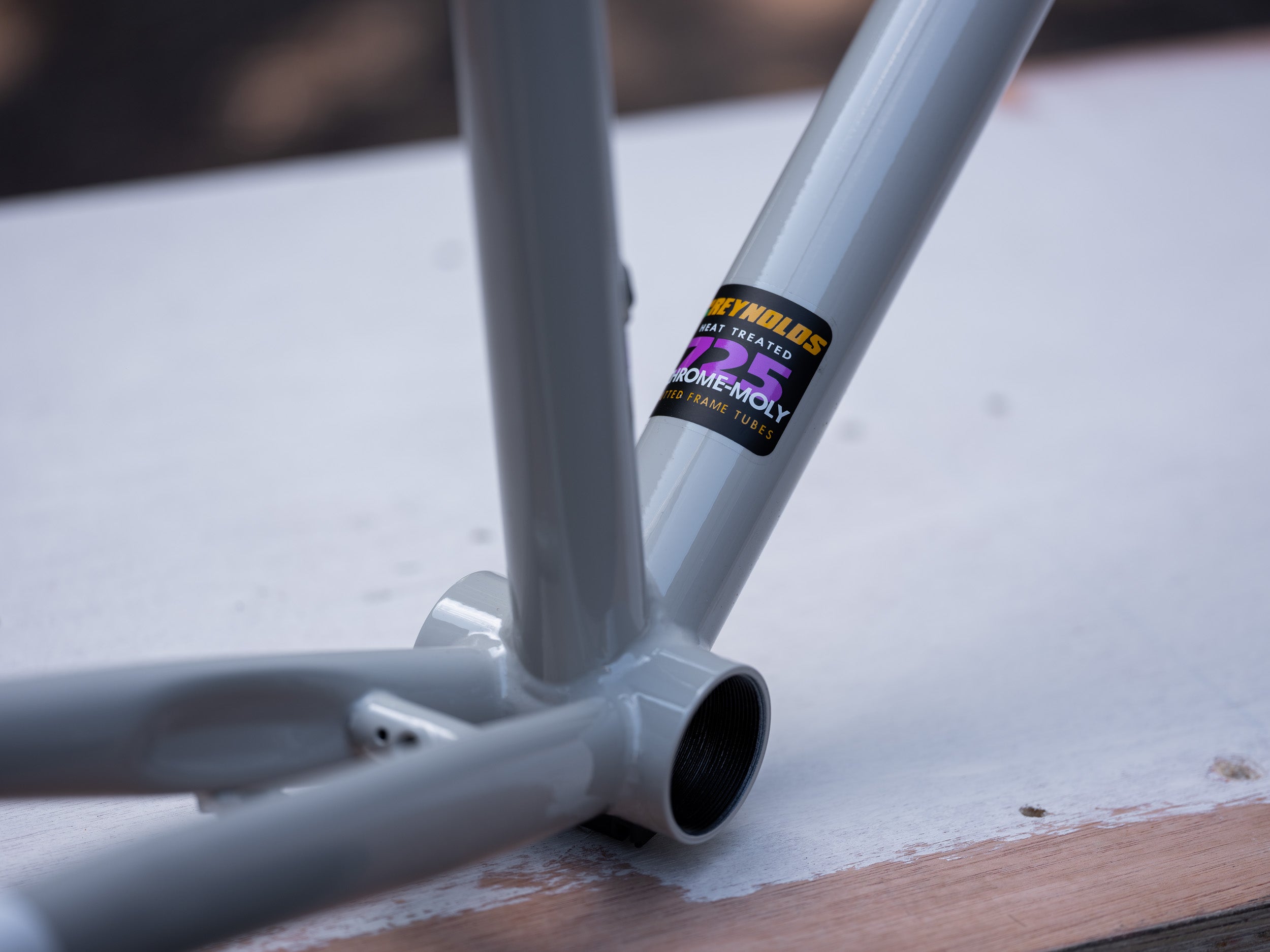

The frame is built from Reynolds 725 steel – a heat-treated tubing that offers an excellent balance of strength, weight and ride quality, and one we think is particularly well suited to a bike designed to be ridden year-round. Up front, our full-carbon road fork keeps things light and responsive, with internal dynamo routing, further enhancing the Stroma's endurance credentials.
There's clearance for up to 38mm tyres, or 32mm with full mudguards, with fitted eyelets on both the frame and fork.

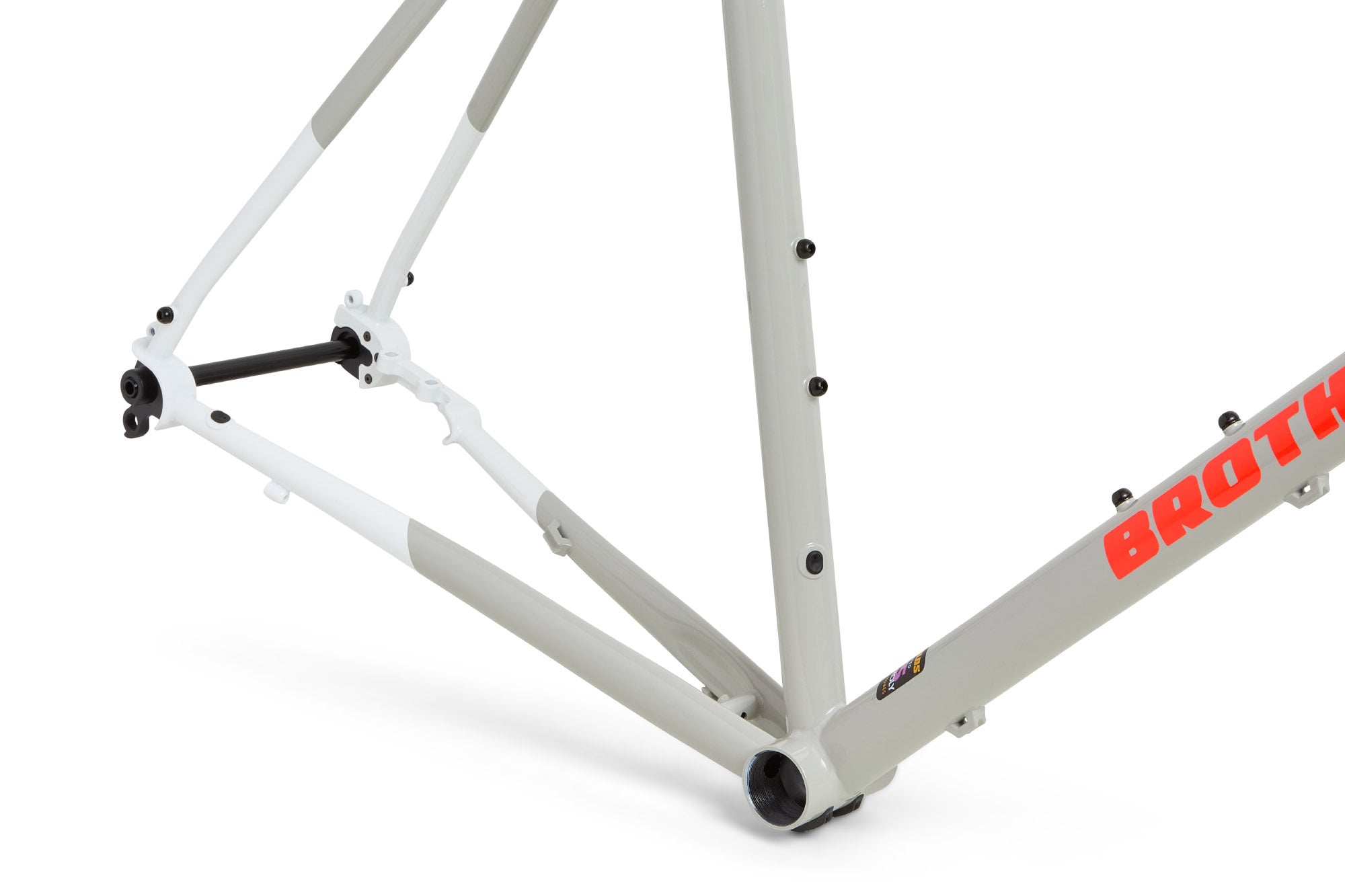

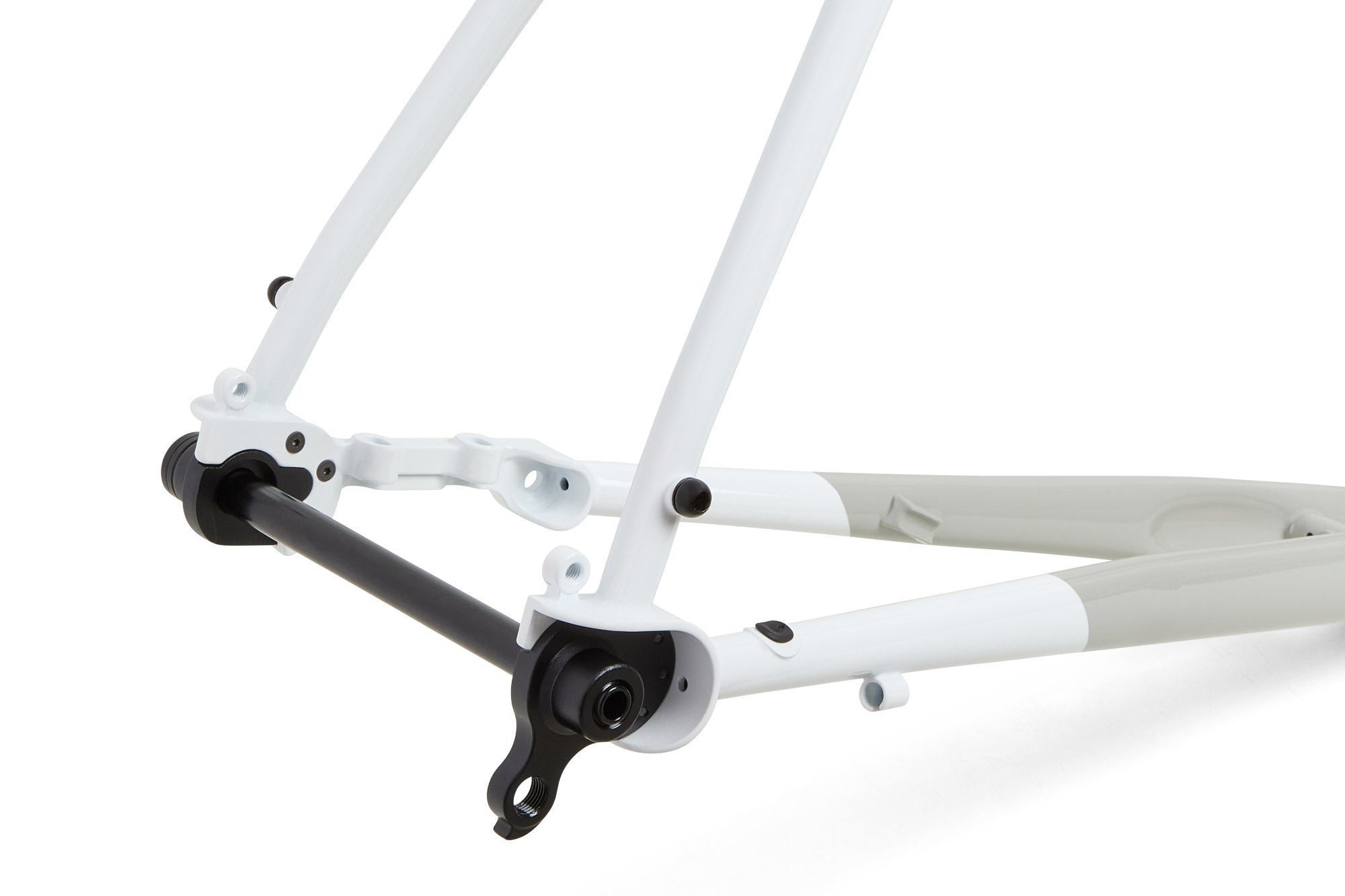

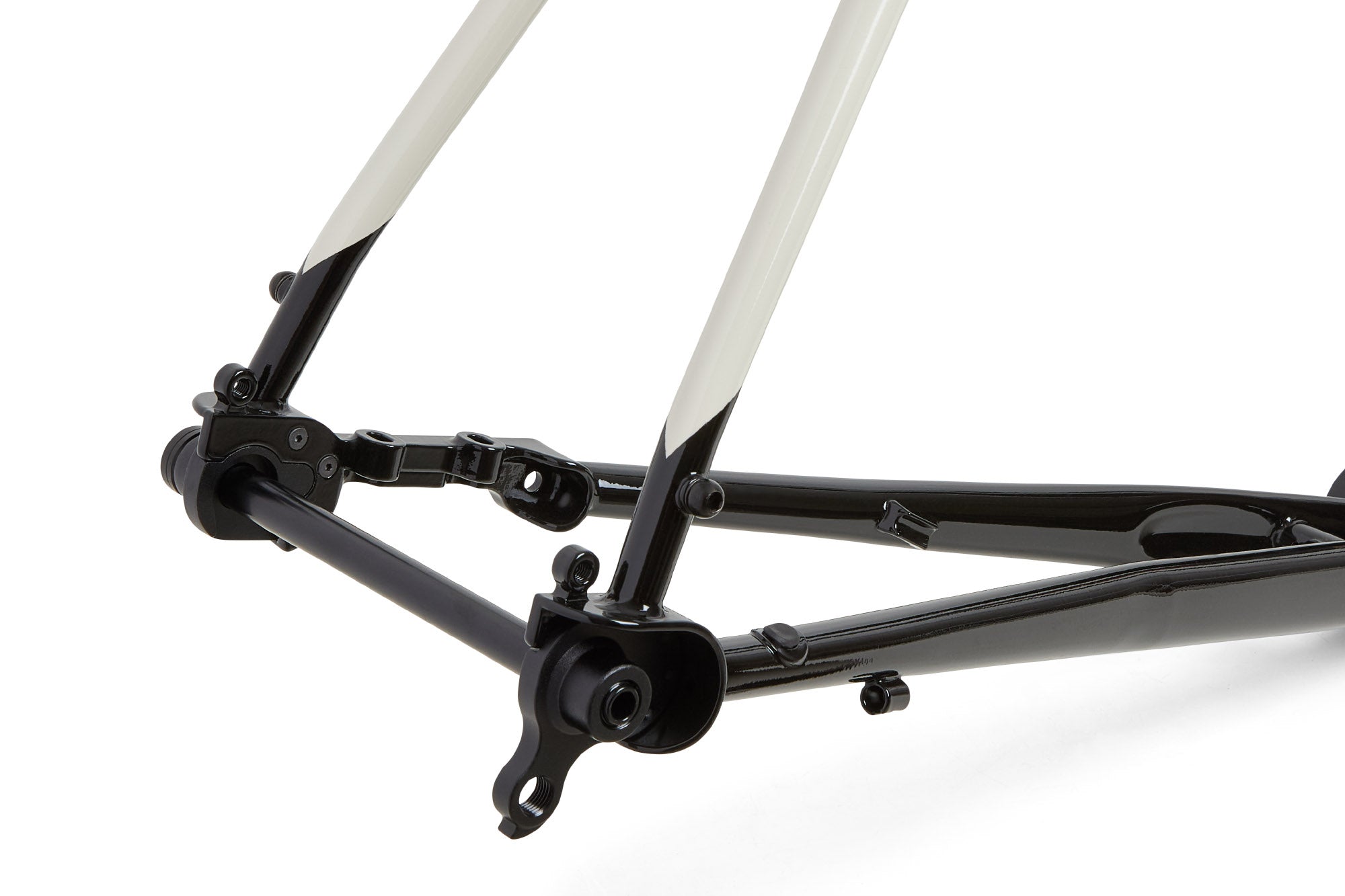

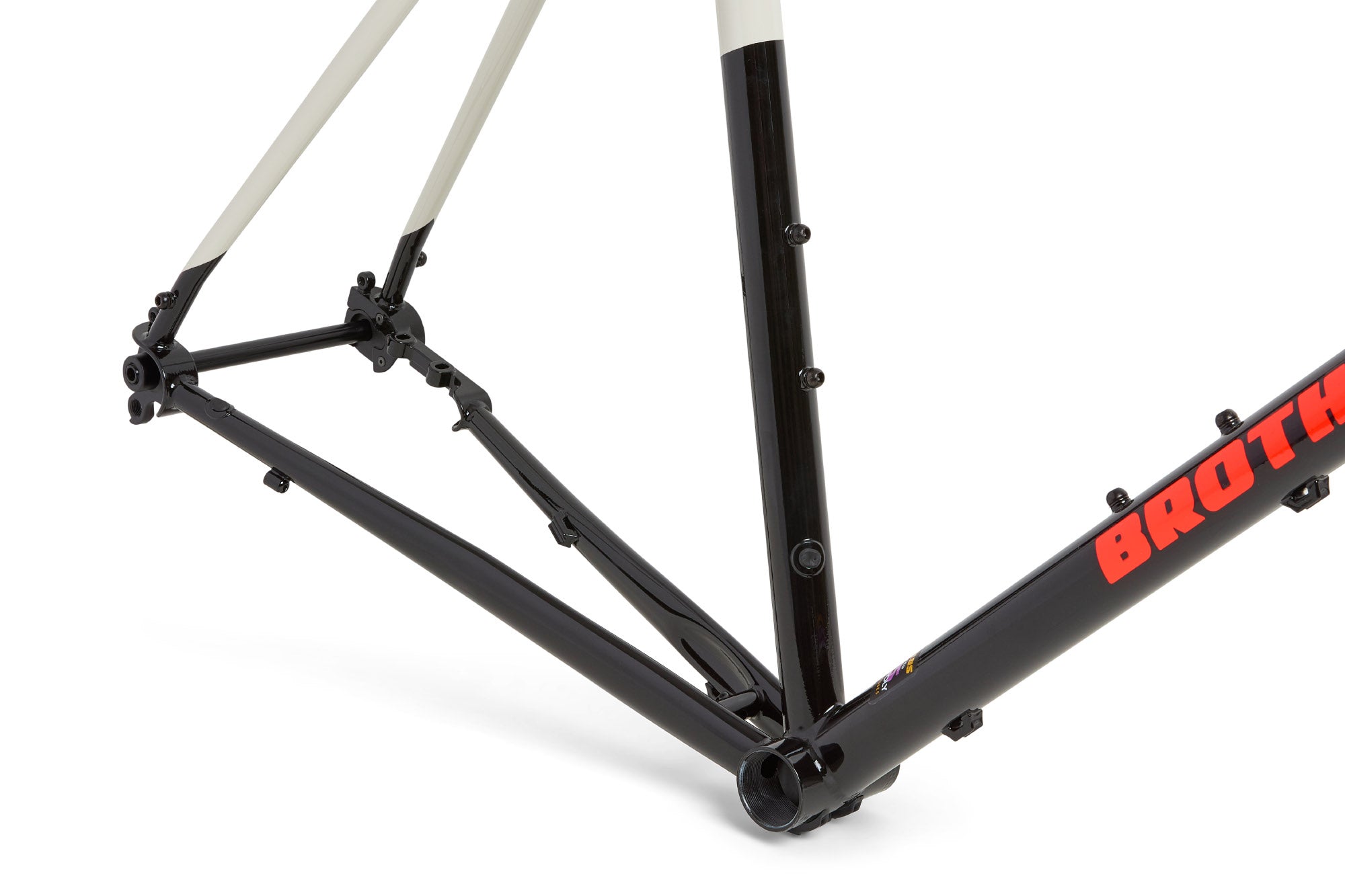

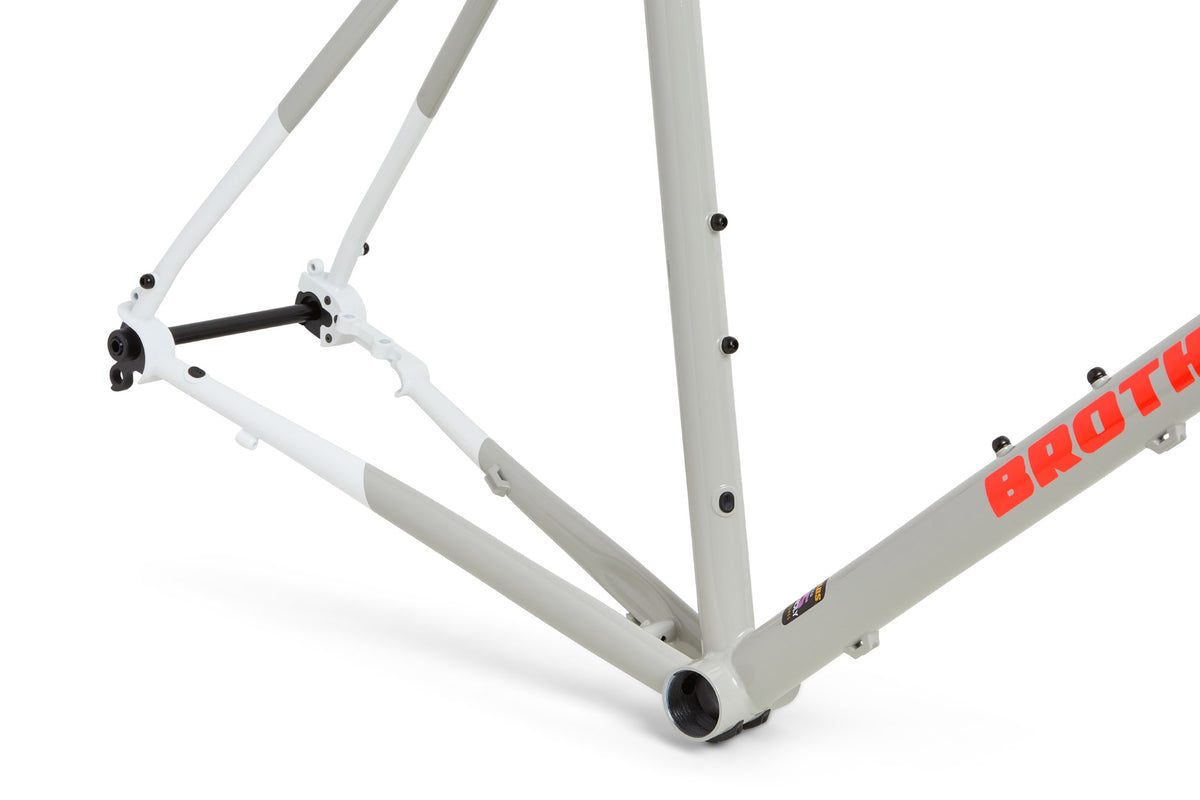

Other details include thru-axle flat-mount dropouts, replaceable dropout inserts, two bottle cage mounts, rear rack mounts and Di2 routing – which also neatly doubles as internal routing for a rear dynamo light.
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Seat tube C–T (mm) | 500 | 520 | 540 | 560 | 580 |
| Top tube C–C (mm) | 510 | 526 | 542 | 557 | 572 |
| Effective top tube (mm) | 522 | 540 | 557 | 572 | 587 |
| Head tube (mm) | 110 | 125 | 140 | 160 | 180 |
| Head angle (°) | 71 | 72 | 72.5 | 72.5 | 72.5 |
| Seat angle (°) | 74 | 73.5 | 73 | 73 | 73 |
| BB drop (mm) | 70 | 70 | 70 | 70 | 70 |
| Chainstay (mm) | 420 | 420 | 420 | 420 | 420 |
| Fork axle–crown (mm) | 381 | 381 | 381 | 381 | 381 |
| Fork rake (mm) | 45 | 45 | 45 | 45 | 45 |
| Stack (mm) | 532 | 550 | 563 | 585 | 604 |
| Reach (mm) | 369 | 377 | 385 | 393 | 402 |
| Wheelbase (mm) | 990 | 995 | 1002 | 1017 | 1032 |
