Linus Roadster Sport 3

Specifications

Weight:

Small: 14 kg / 31 lbs

Medium: 14.5 kg / 32 lbs

Large: 14.7 kg / 32.4 lbs

Frame:

Hi-ten steel with Chromoly down tube

Fork:

Hi-ten steel

Headset:

1" alloy top / steel base

Bottom Bracket:

Cartridge

Crankset:

Small: 3-piece forged aluminium, 165 mm, 46T chainring, painted steel chainguard

Medium / Large: 3-piece forged aluminium, 170 mm, 46T chainring, painted steel chainguard

Shifter:

Shimano twist shifter

Front Hub:

Sealed bearings, aluminium, 36H

Rear Hub:

Shimano Nexus internal 3-speed freewheel hub

Cog:

Shimano 22T

Chain:

KMC 410, CP

Spokes:

14g stainless with brass/CP nipples (front)

13g stainless with brass/CP nipples (rear)

Rims:

Double-wall alloy

Tires:

Small: Linus Elysian 559×32c, black, reflective stripe

Medium / Large: Linus Elysian 700×32c, black, reflective stripe

Olive colourway includes Elysian cream tyres

Brake Levers:

Tektro alloy

Front Brake:

Alloy dual-pivot caliper with quick release

Rear Brake:

Alloy dual-pivot caliper with quick release

Handlebar:

Custom polished aluminium, 550 mm × 165 mm, 25.4 mm clamp

Grips:

Hand-stitched genuine brown leather

Stem:

Alloy road quill, 80 mm × 180 mm, 18° rise

Seatpost:

Alloy, adjustable, 25.4 mm

Saddle:

Touring brown leatherette

Pedals:

Alloy

Fenders:

Painted steel with retro brackets and stainless braces

Extras:

Rear rack, front and rear reflectors, alloy kickstand

ROADSTER FRAME HEIGHT RECOMMENDATIONS:

• Small: 5'0" - 5'4" / 152.4cm - 162.5cm
• Medium: 5'4" - 5'9" / 162.5cm - 175.2cm
• Large: 5'9" - 6'2" / 175.2cm - 187.9cm

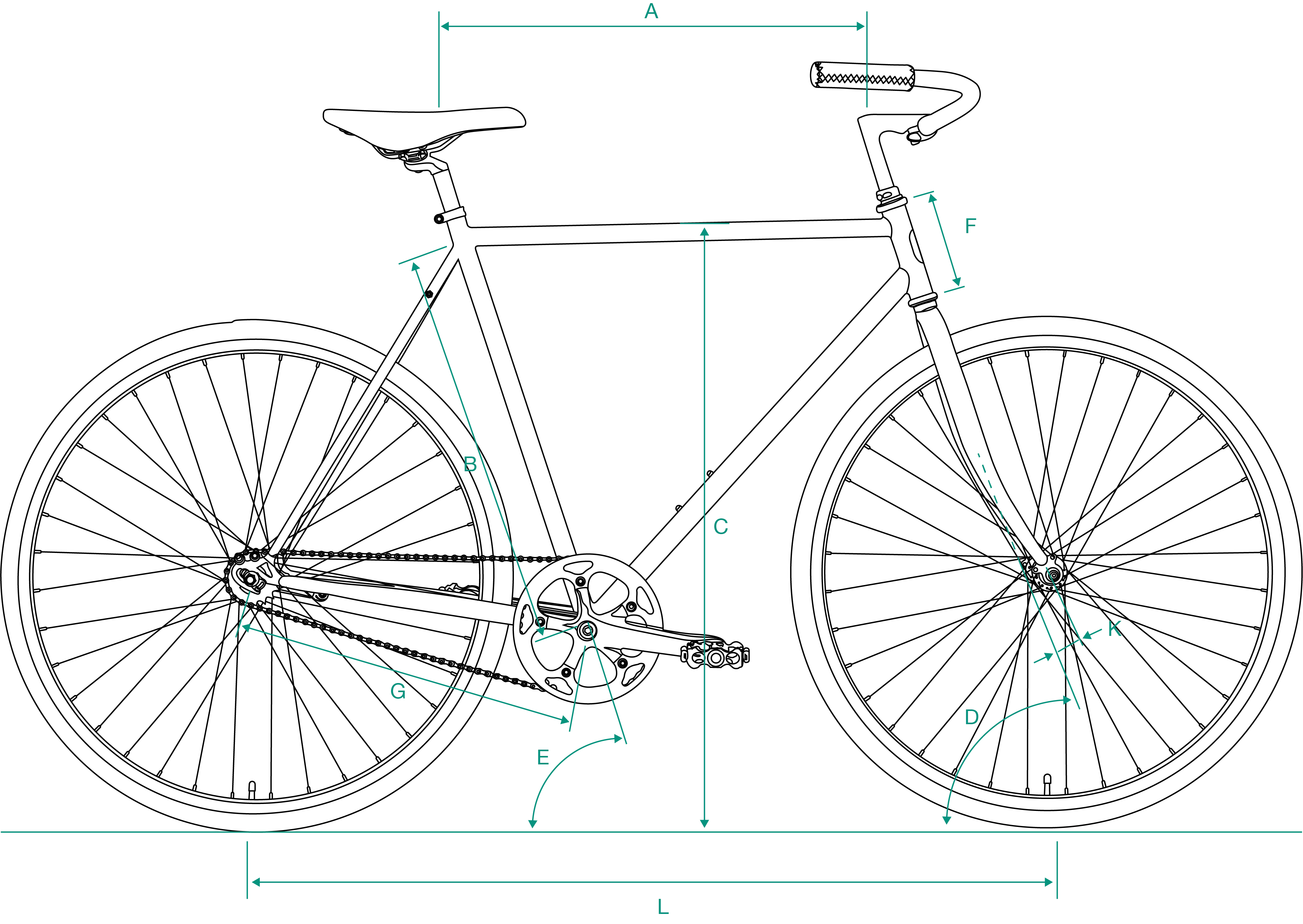

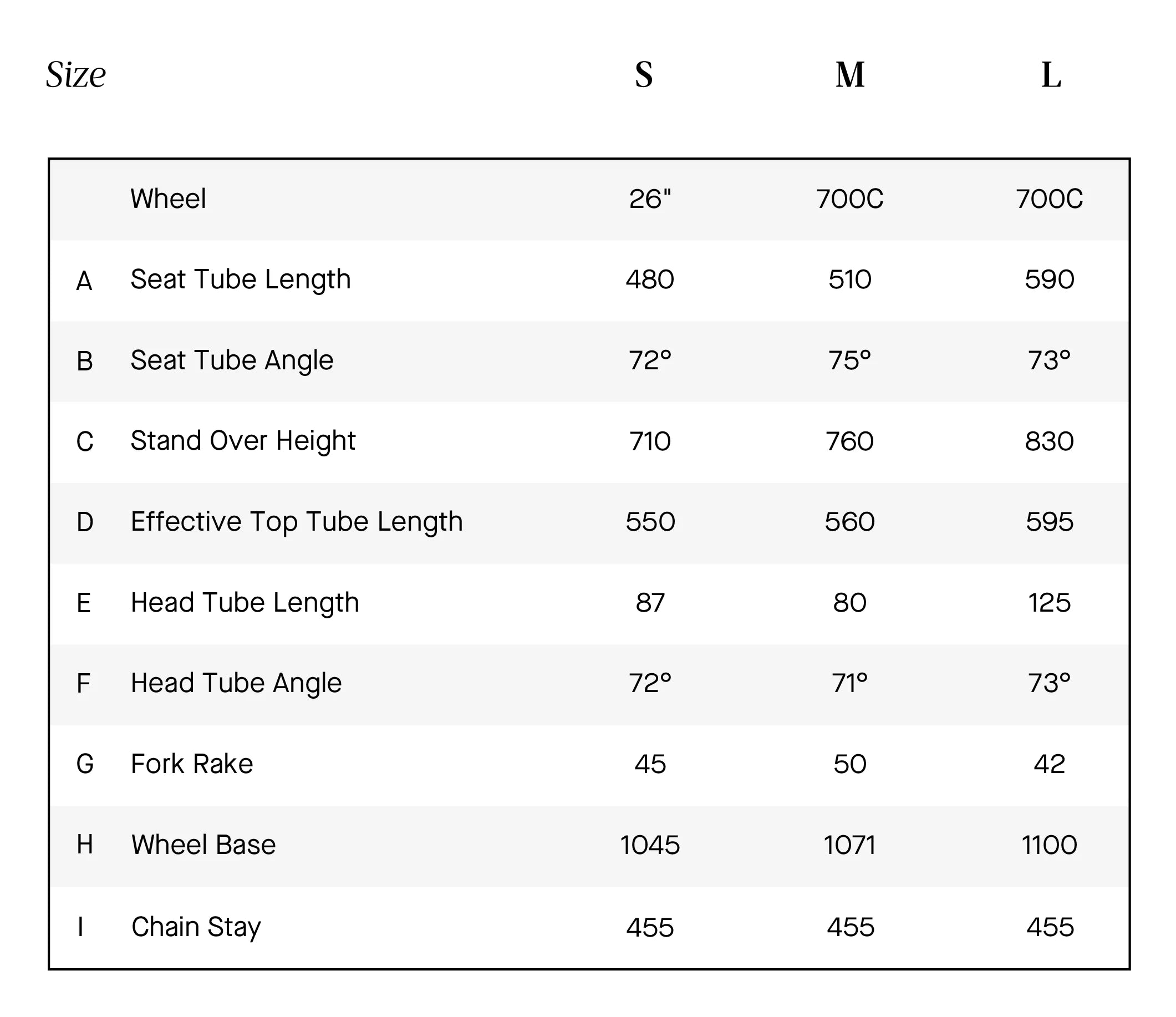

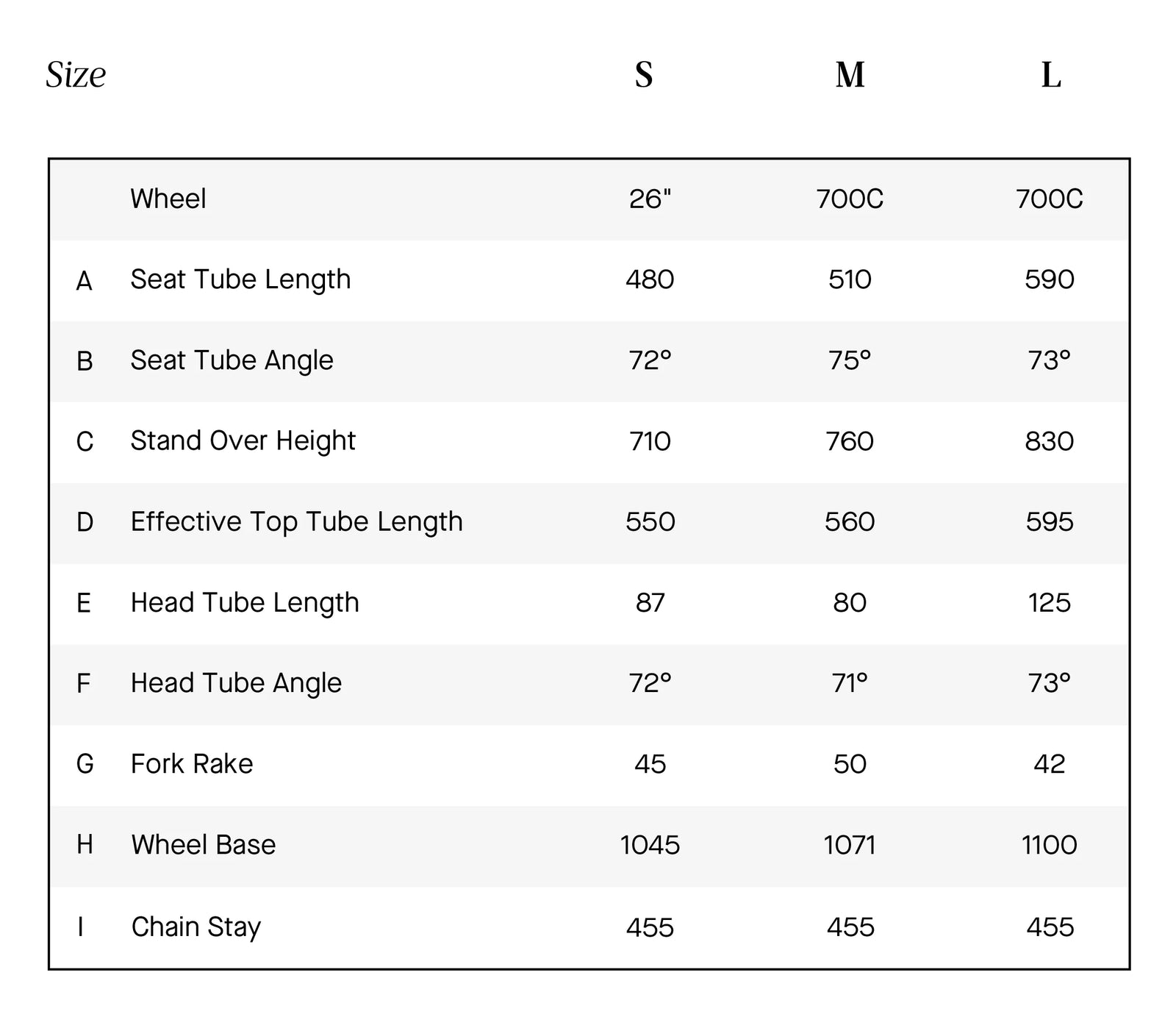

FRAME SIZE:

• Small: 48cm
• Medium: 51cm
• Large: 59cm

STANDOVER HEIGHT:

• Small: 72.3cm
• Medium: 76cm
• Large: 83cm

EFFECTIVE TOP TUBE LENGTH:

• Small: 56.5 cm
• Medium: 55.5 cm
• Large: 59.5cm

*Note: Some riders may be a little outside these height range recommendations but prefer the feel of a larger or smaller size. Stand over height measurement is not as important as how the bike geometry feels while it is being ridden. As long as the rider can reach the ground while sitting on the saddle, even if it's just their toes, this size will be compatible with their height
