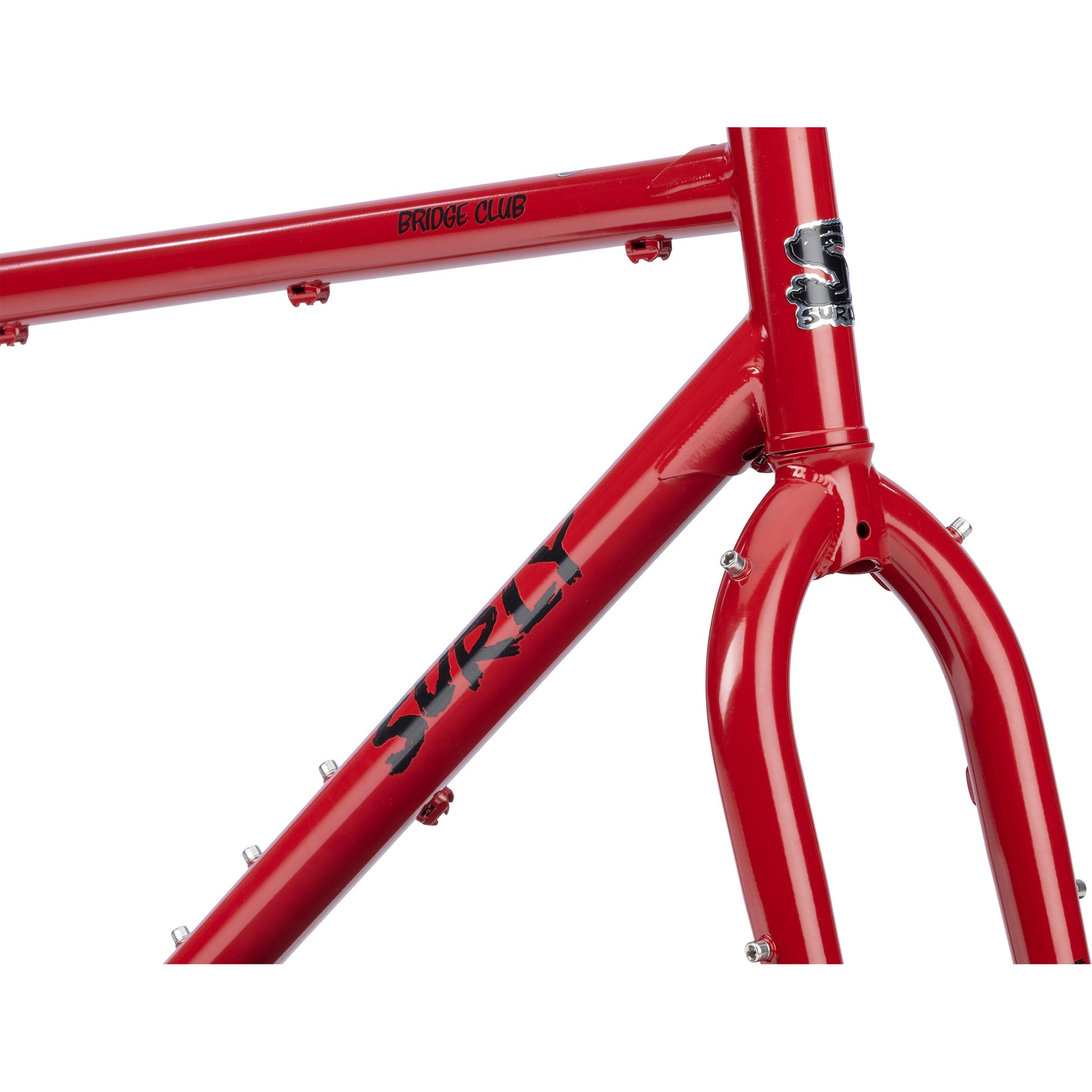

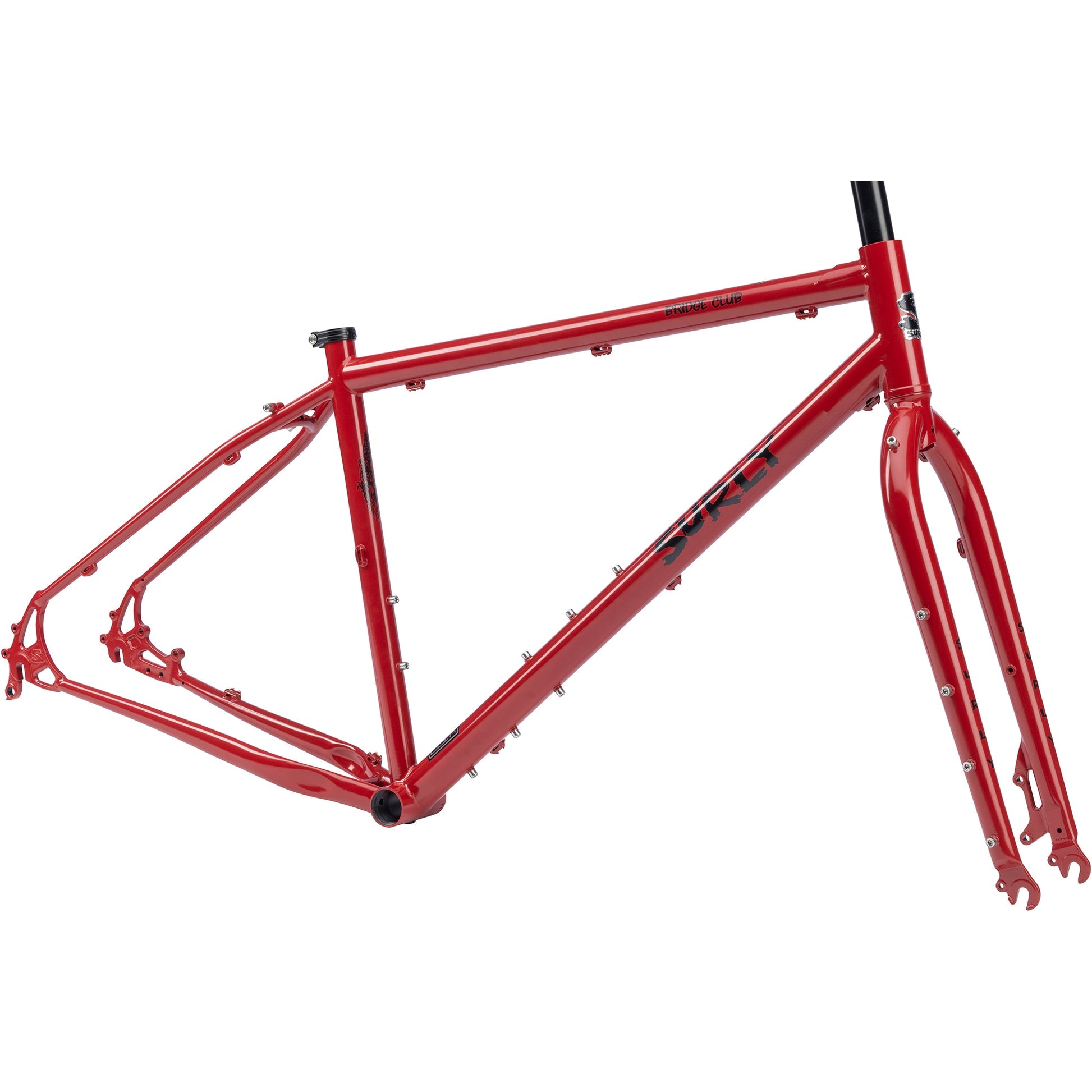

Build an all-road touring bike that is equally happy on sealed roads and dirt tracks. The Bridge Club pairs a practical steel frame and fork with generous tyre clearance and useful mounts for racks, panniers, bottles and bikepacking luggage.
Includes the matching chromoly frame and fork and a 30mm seatpost clamp. Wheels and build components are sold separately.
Specifications
| Frame | 4130 Chromoly Natch tubing; double-butted main triangle, TIG welded and E.D. coated |
|---|---|
| Fork | 4130 chromoly; double-butted tapered blades, TIG welded and E.D. coated; 420mm axle-to-crown |
| Tyre clearance without mudguards | 26 × 3.0 inches; 27.5 × 2.8 inches; 700c × 47mm |
| Tyre clearance with mudguards | 26 × 2.8 inches; 27.5 × 2.6 inches; 700c × 47mm |
| Rear spacing | 138mm Gnot-Boost; accepts 10 × 135mm or 10 × 141mm hubs |
| Front spacing | 10 × 100mm |
| Brakes | 51mm IS disc mounts; front 203mm and rear 180mm maximum rotors |
| Headset / steerer | EC34; straight 1⅛ inch steerer; 30mm crown race |
| Seatpost / clamp | 27.2mm / 30mm; not dropper compatible |
| Bottom bracket | 73mm threaded, 1.37 × 24 TPI |
| Bottle mounts | S and XL: one standard plus two three-pack mounts |
| Fork and mudguard mounts | Fork luggage mounts; front and rear mudguard mounts |
