Surly Grappler CUES House Build - X Small
Built in the Bicycle Junction workshop for backroads, bikepacking and everyday detours.

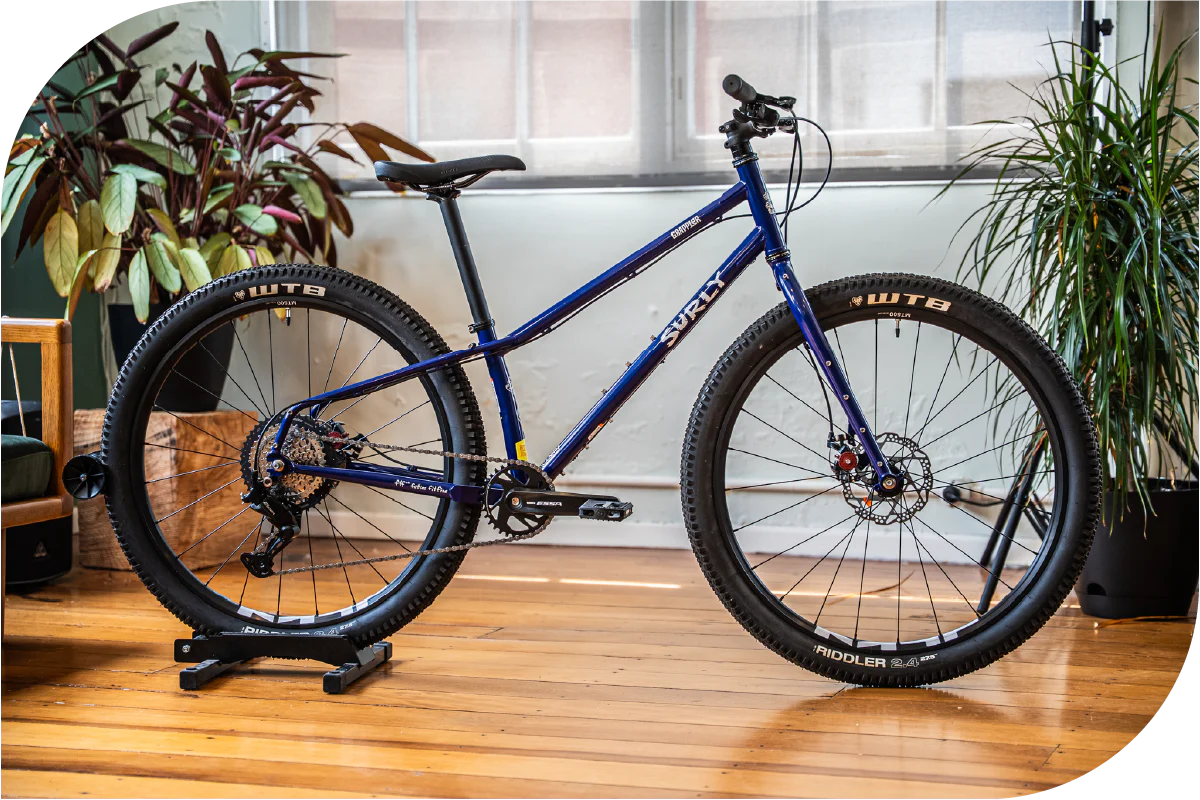

NOTE: images are placeholder from a previous build. Images of this build available from 15th October.
Our Grappler CUES House Build pairs Surly’s steel adventure frameset with a flat-bar cockpit, Shimano CUES 1 × 11 gearing and 27.5-inch wheels. It’s a versatile setup for riders who want to link gravel roads, trail sections and the daily commute, with room to load up for a longer trip.
The build shares its CUES drivetrain and finishing kit with our Ogre CUES house build. A 32T chainring and wide-range 11–50T LINKGLIDE cassette provide low gearing for climbs with luggage, while Shimano hydraulic disc brakes bring controlled stopping to the mix.
Teravail Ehline 27.5 × 2.5-inch tyres—the same tyres fitted to the current Bridge Club—add generous volume and off-road grip. The flat bar keeps the controls close at hand, and the SDG Bel-Air V3 saddle rounds out a practical setup for long days exploring.
Build highlights
- Surly Grappler chromoly steel frame and fork, with mounts for carrying gear.
- Shimano CUES 1 × 11 drivetrain with a 32T chainring and 11–50T cassette.
- 27.5-inch wheels with Teravail Ehline 2.5-inch tyres.
- Shimano hydraulic disc brakes with 160mm rotors.
- Flat-bar cockpit, BBB stem and seatpost, and SDG Bel-Air V3 saddle.
- Custom assembled in the Bicycle Junction workshop.
Build specification
| Component | Specification |
|---|---|
| Frameset | Surly Grappler chromoly steel frame and fork |
| Drivetrain | Shimano CUES 1 × 11-speed |
| Shifter | Shimano CUES SL-U6000 RAPIDFIRE PLUS, right, 11-speed |
| Rear derailleur | Shimano CUES RD-U6000, 10/11-speed, 50T maximum |
| Crankset | Shimano CUES FC-U6000-1, 170mm, 32T |
| Cassette | Shimano LINKGLIDE CS-LG700, 11-speed, 11–50T |
| Chain | Shimano LINKGLIDE CN-LG500 |
| Bottom bracket | Shimano Deore BB-MT501, BSA, 68/73mm |
| Brakes | Shimano BR-MT410 hydraulic disc brakes with BL-MT401 levers, front and rear |
| Rotors | Shimano Centre Lock, 160mm front and rear |
| Wheel size | 27.5-inch |
| Tyres | Teravail Ehline 27.5 × 2.5-inch, Durable casing, 60 TPI, tubeless ready, front and rear |
| Headset | Cane Creek 40 or similar |
| Stem | BBB RoadForce II, 60mm, 31.8mm clamp, ±6°, black alloy |
| Handlebar | Surly flat bar or similar |
| Saddle | SDG Bel-Air V3, steel rails, black |
| Seatpost | BBB Skyscraper, 400mm, two-bolt, black |
Planning a loaded tour or looking for an everyday bike that can take the scenic route? Get in touch to discuss fit, build availability and luggage options.
