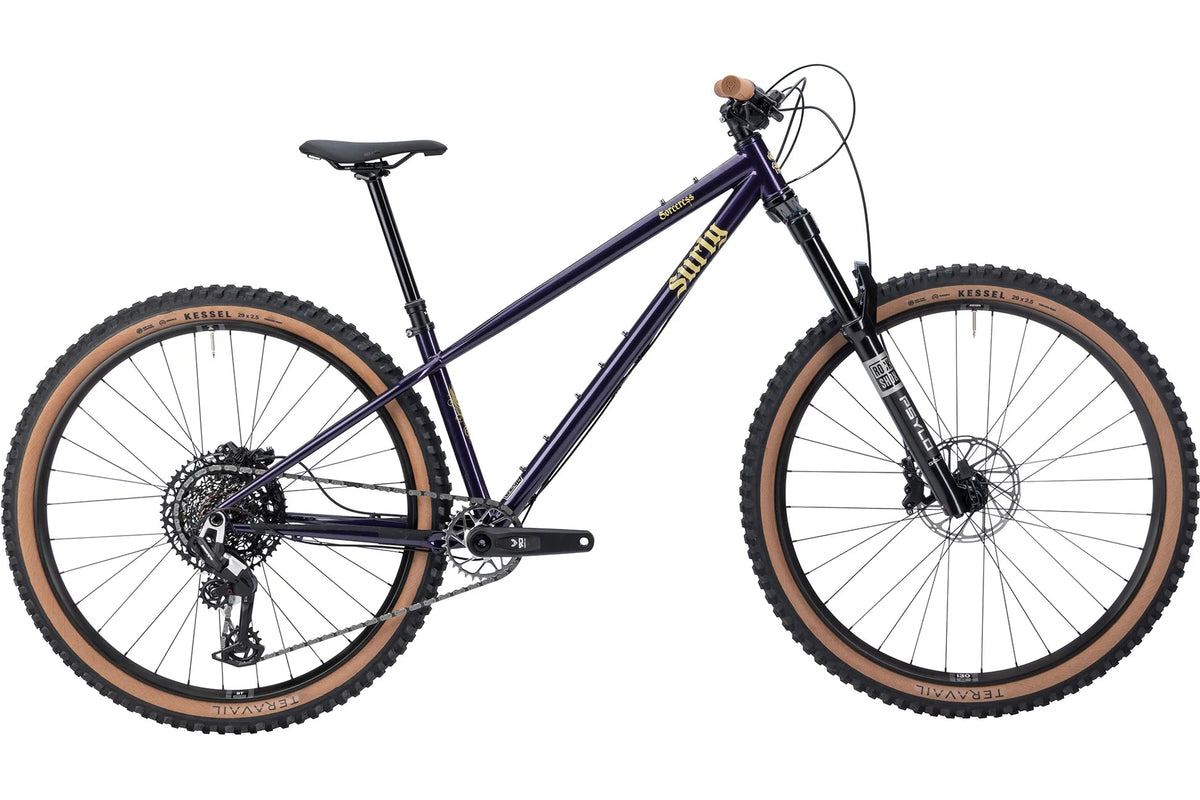

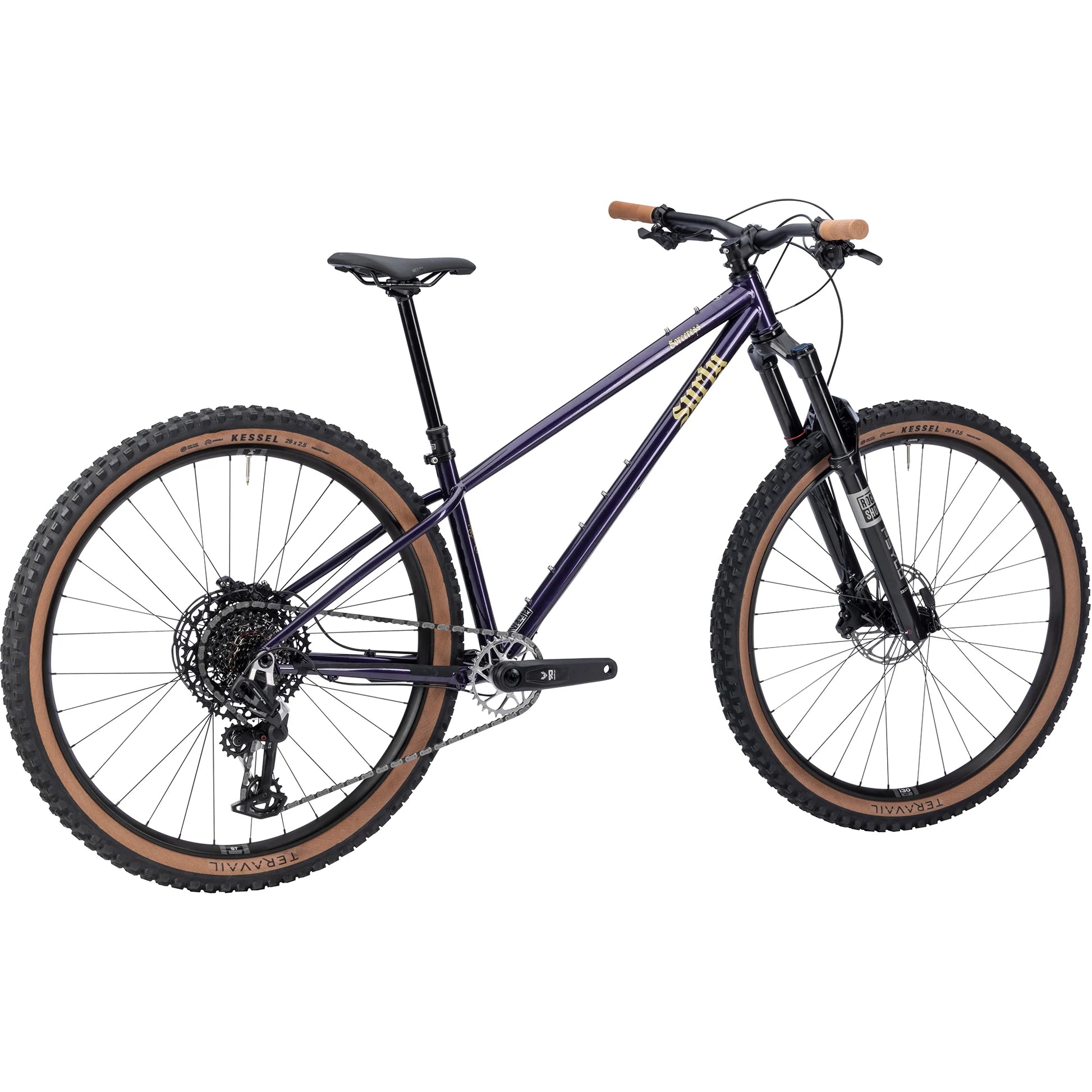

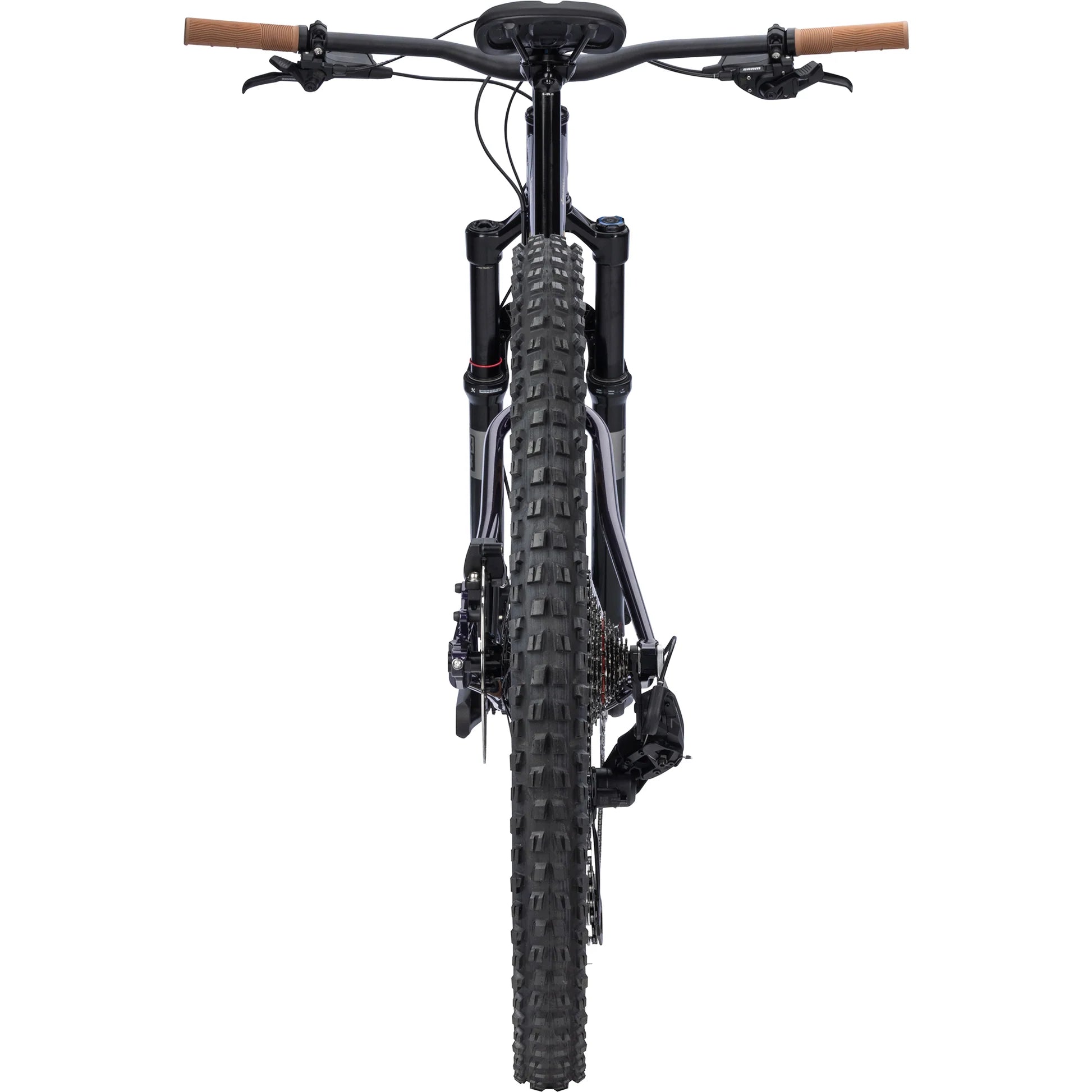

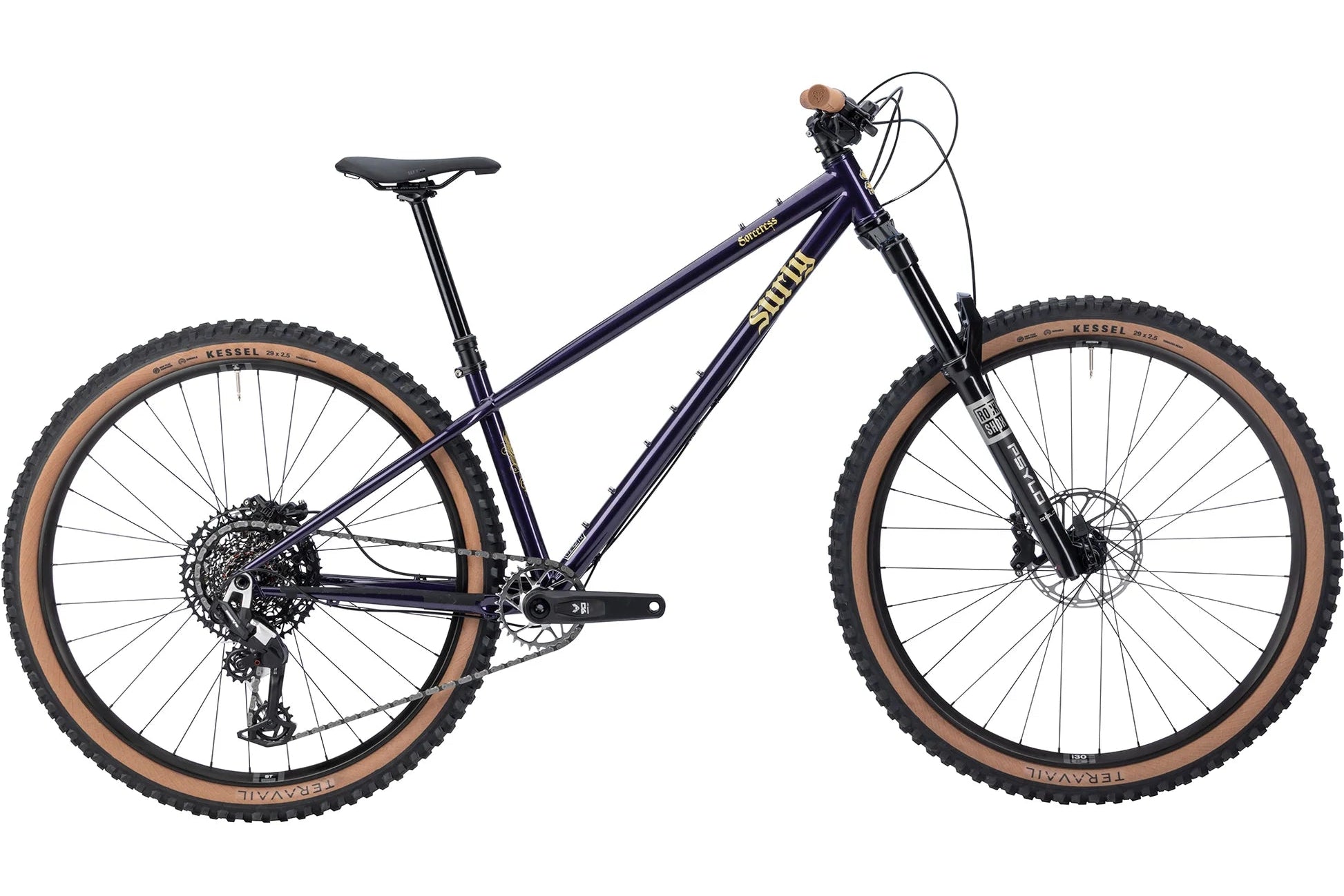

A Trail-born Steel Shapeshifter
Our modern trail hardtail with geared and single-speed abilities, Sorceress conjures a spellbinding singletrack experience wherever and whenever you summon it.
Let Sorceress be your guide through steep and gnarly dirt realms; it thrives on flowy, feature-rich singletrack and technical descents where things get loose and fast.
Sorceress channels modern trail geometry with intent. A long front centre, steep seat tube angle, and slack head angle deliver a ride that feels planted when it needs to be, efficient on the climbs, and playful when the trail opens up. With generous standover and space for longer dropper posts, there’s less saddle in the way and more room to move when it counts.
The alchemy of Surly Natch chromoly steel tubing, tuned specifically for Sorceress, gives it a ride quality that’s lively without being harsh. It smooths out the chatter while still feeling responsive under power - exactly what you want from a hardtail that’s meant to be pushed.
True to form, Sorceress is a bit of a shapeshifter. Developed alongside SRAM, the DUH dropout system (patent pending) lets you run a traditional UDH hanger, a Full-Mount drivetrain, or convert to single-speed with the right hardware. It’s a frame that doesn’t lock you into one way of doing things.
Whatever trail magic you’re chasing, Sorceress is built to meet you there.
Key Features
Frame Steel frame with modern, hard-charging trail geometry designed around a 140mm suspension fork for a balanced mix of playfulness, efficiency, and control
Dropouts DUH dropout system (patent pending) compatible with SRAM UDH, Full-Mount, and single-speed drivetrain setups (conversion parts sold separately)
Mounts Room for two bottles on MD–XL sizes; one bottle on XS–SM sizes
Fit Inclusive standover clearance and dropper compatibility designed to suit riders from 146cm to 199cm
Drivetrain SRAM Eagle 90 Transmission 12-speed for smooth, durable shifting with a wide gear range
Brakes SRAM DB6 4-piston hydraulic disc brakes for consistent, confident stopping power
Tires Teravail Kessel tyres (29 x 2.5” or 27.5 x 2.5” on XS) for traction, control, and grip in varied trail conditions
| Size | X-Small (27.5") | Small (29") | Medium (29") | Large (29") | X-Large (29") |
|---|---|---|---|---|---|
| A. Effective Top Tube | 560 mm | 590 mm | 617 mm | 645 mm | 675 mm |
| B. Stand Over | 730 mm | 763 mm | 782 mm | 796 mm | 809 mm |
| C. Reach | 415 mm | 437 mm | 463 mm | 484 mm | 507 mm |
| D. Stack | 580 mm | 614 mm | 618 mm | 646 mm | 673 mm |
| E. Total Seat Tube Length | 300 mm | 330 mm | 360 mm | 410 mm | 460 mm |
| F. Headtube Length | 95 mm | 95 mm | 100 mm | 130 mm | 160 mm |
| G. Headtube Angle | 64.0° | 65.0° | 65.0° | 65.0° | 65.0° |
| H. Seat Tube Angle | 76.0° | 76.0° | 76.0° | 76.0° | 76.0° |
| I. BB Drop | 55 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| J. BB Height | 303 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| K. Chainstay Length | 410 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| L. Fork Length Axle to Crown | 498 mm | 518 mm | 518 mm | 518 mm | 518 mm |
| M. Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| N. Wheelbase | 1127 mm | 1166 mm | 1193 mm | 1227 mm | 1263 mm |
| Crank Arm Length | 165 mm | 165 mm | 165 mm | 170 mm | 170 mm |
| Handlebar Width | 740 mm | 740 mm | 800 mm | 800 mm | 800 mm |
| Recommended Rider Height | 146 - 159 cm | 156 - 169 cm | 166 - 179 cm | 177 - 189 cm | 187 - 199 cm |
| Stem Length | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
