Build a capable steel hardtail for technical trails with the Surly Sorceress. Designed around a 140mm suspension fork, its modern geometry, generous tyre clearance and internally routed dropper compatibility give you room to create your own trail build.

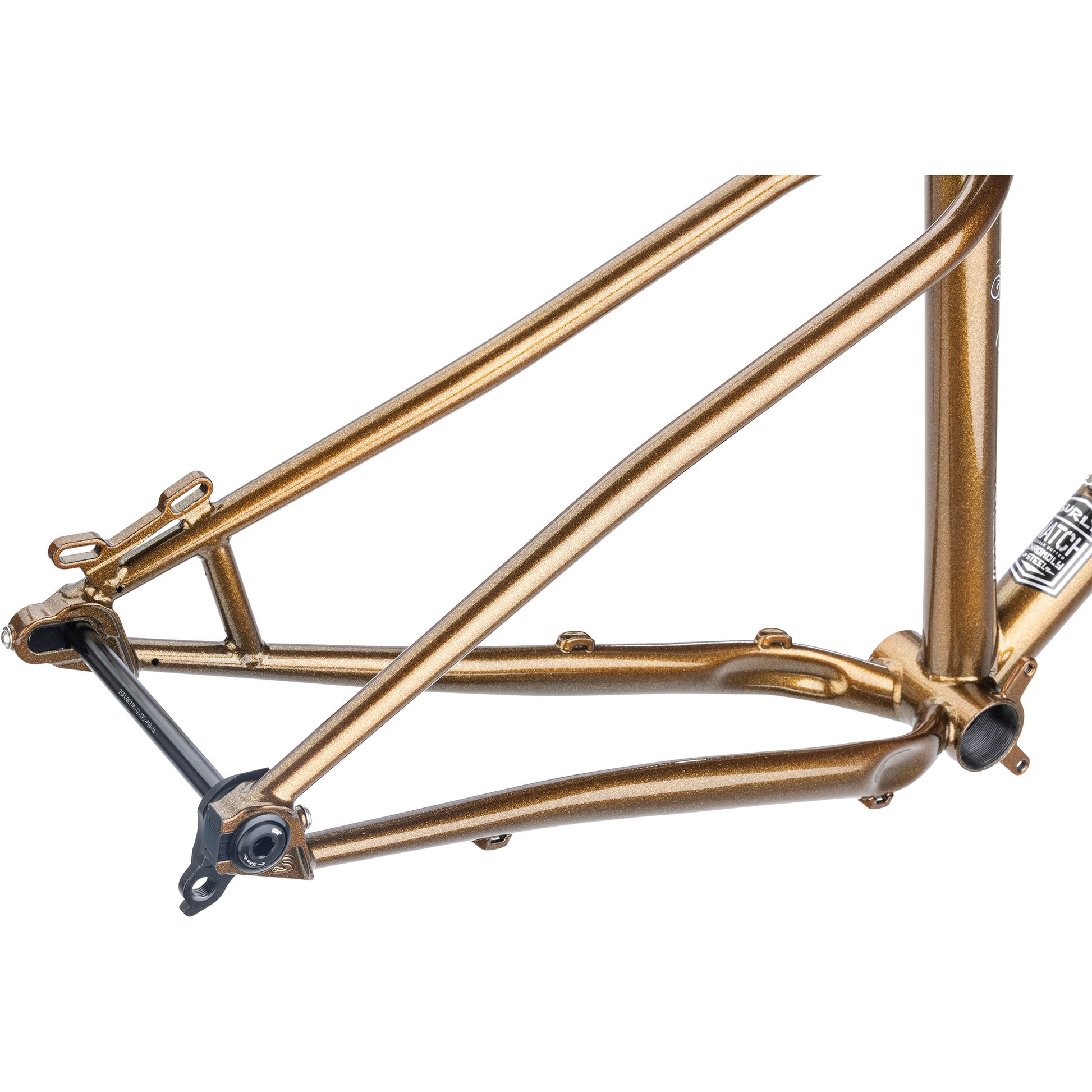

The DUH dropout system supports a UDH derailleur hanger, SRAM Full Mount drivetrains or a singlespeed setup.
Frame only. Suspension fork, wheels and build components are sold separately.
Specifications
| Frame | Surly Chromoly Natch tubing; double-butted main triangle, TIG welded and E.D. coated |
|---|---|
| Fork compatibility | 130–150mm travel; 44–47mm offset; tapered 1⅛–1½ inch steerer |
| Wheel and tyre clearance | XS: 27.5 × 2.6 inches; S–XL: 29 × 2.6 inches |
| Rear axle | 12 × 148mm; Surly singlespeed axle included |
| Rear brake | 51mm IS disc mount; 203mm maximum rotor |
| Headset | ZS44/28.6 upper; EC44/40 lower |
| Seatpost / clamp | 30.9mm / 33.1mm; internal dropper routing |
| Bottom bracket | 73mm threaded, 1.37 × 24 TPI |
| Drivetrain | 1×, 55mm chainline; 32T maximum chainring |
| Bottle mounts | XS–S: one three-pack; M–XL: one standard and one three-pack |
