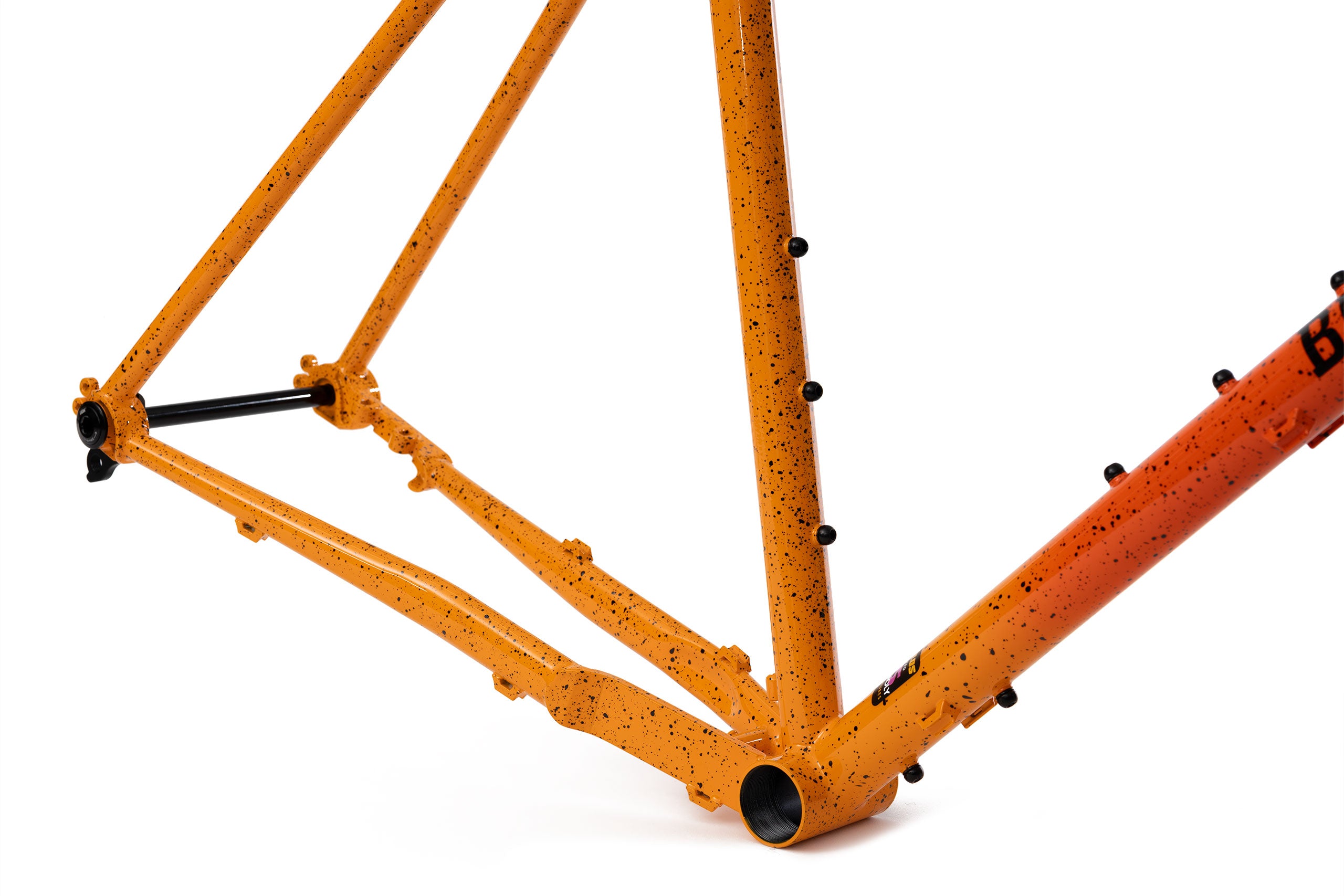

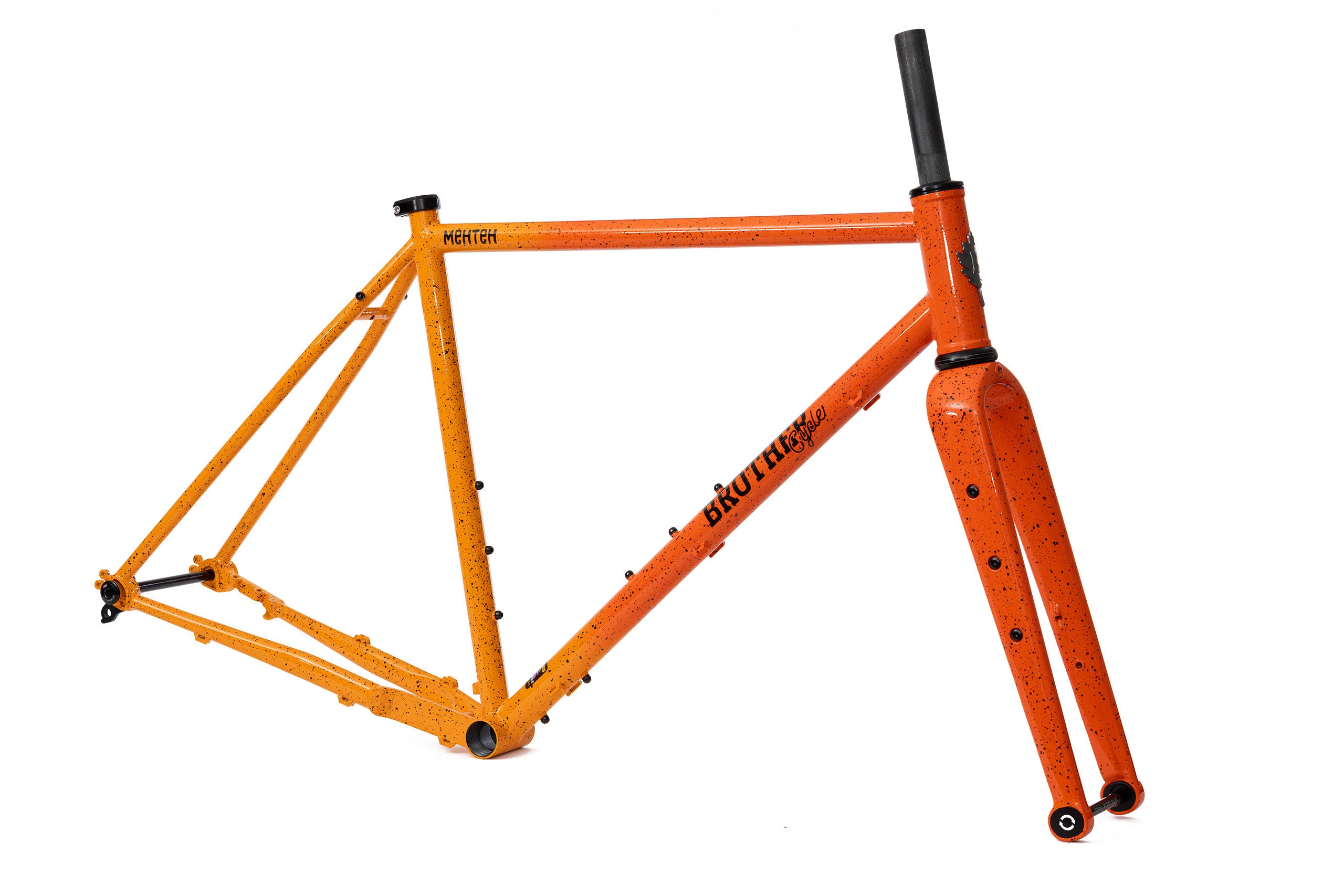

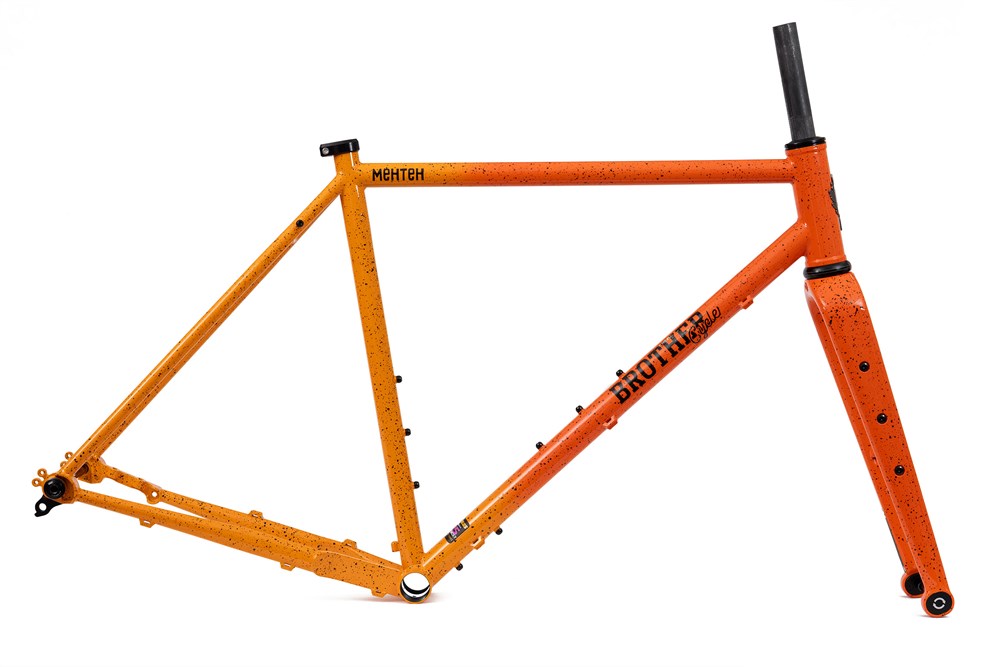

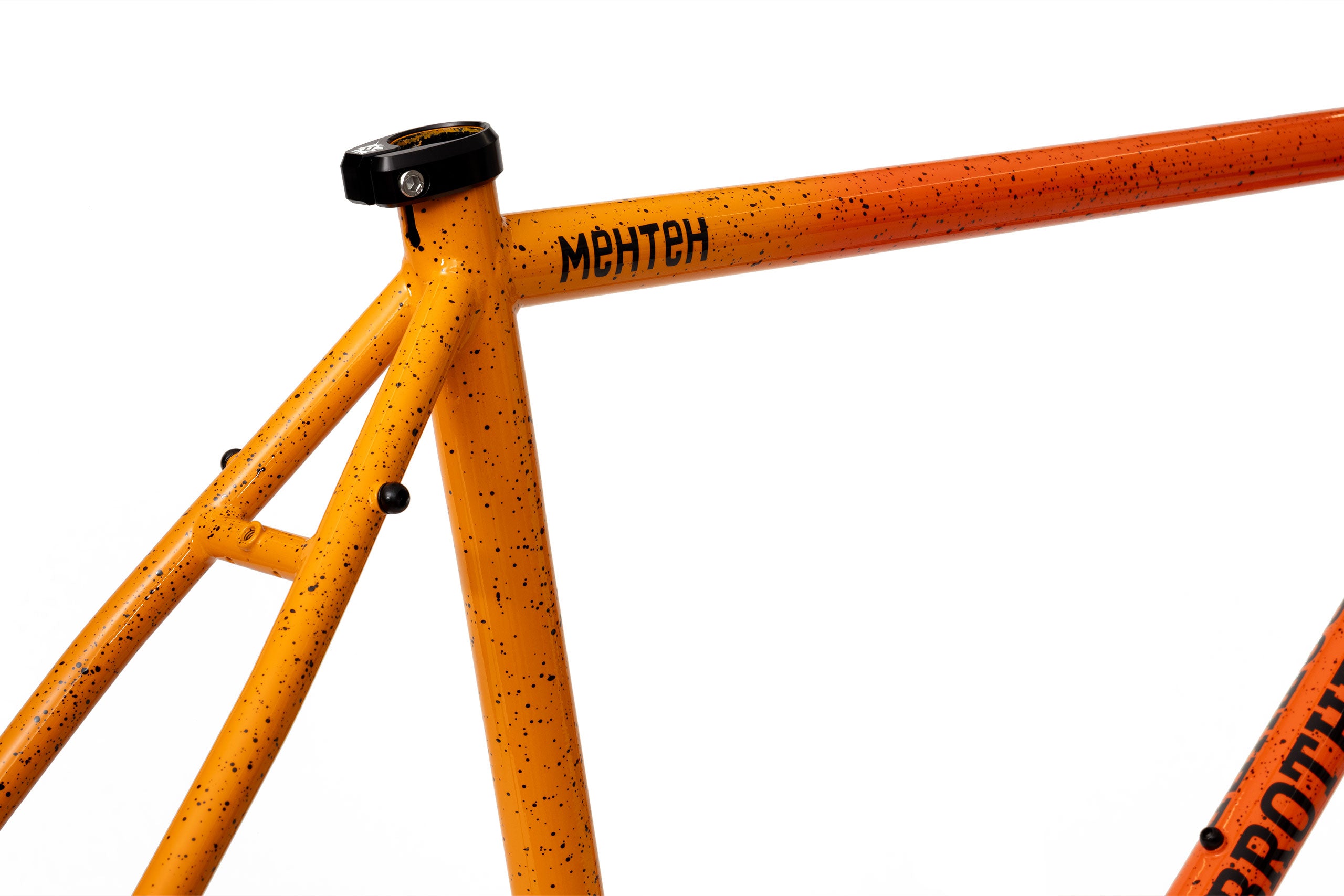

New Colourways! Brother Cycles are refreshing stock! All sizes available. Shipping from late April. Only a couple Large Tequila Sunrise framesets left - these are available now.
Availability & Ordering
We list all framesets currently available from Brother Cycles as “in stock.” While we have a few on hand, most orders will be fulfilled via special order with approximately 14-day delivery.
To confirm ETA or any other questions, get in touch:
shop@bicyclejunction.co.nz | 04 385 2362

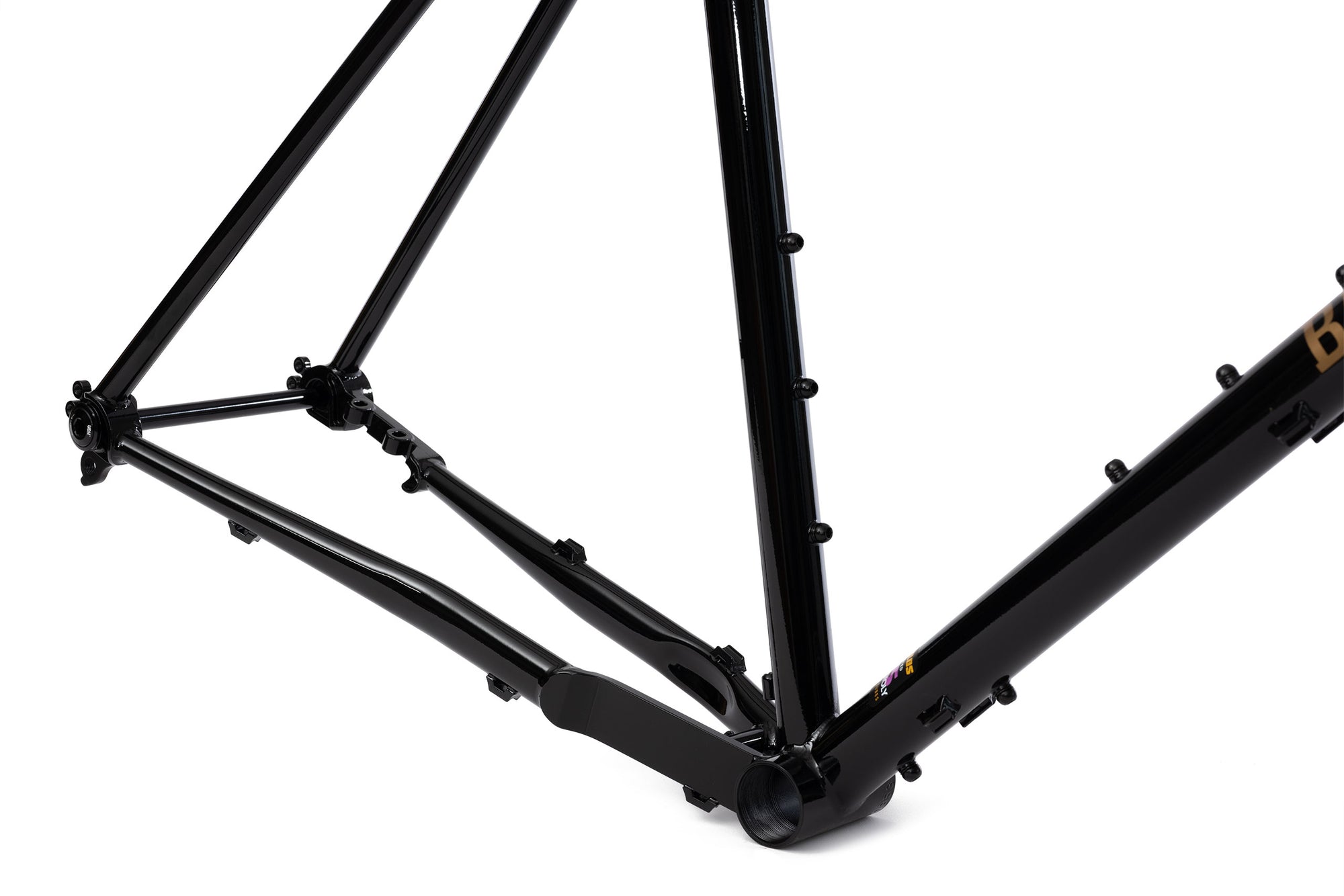

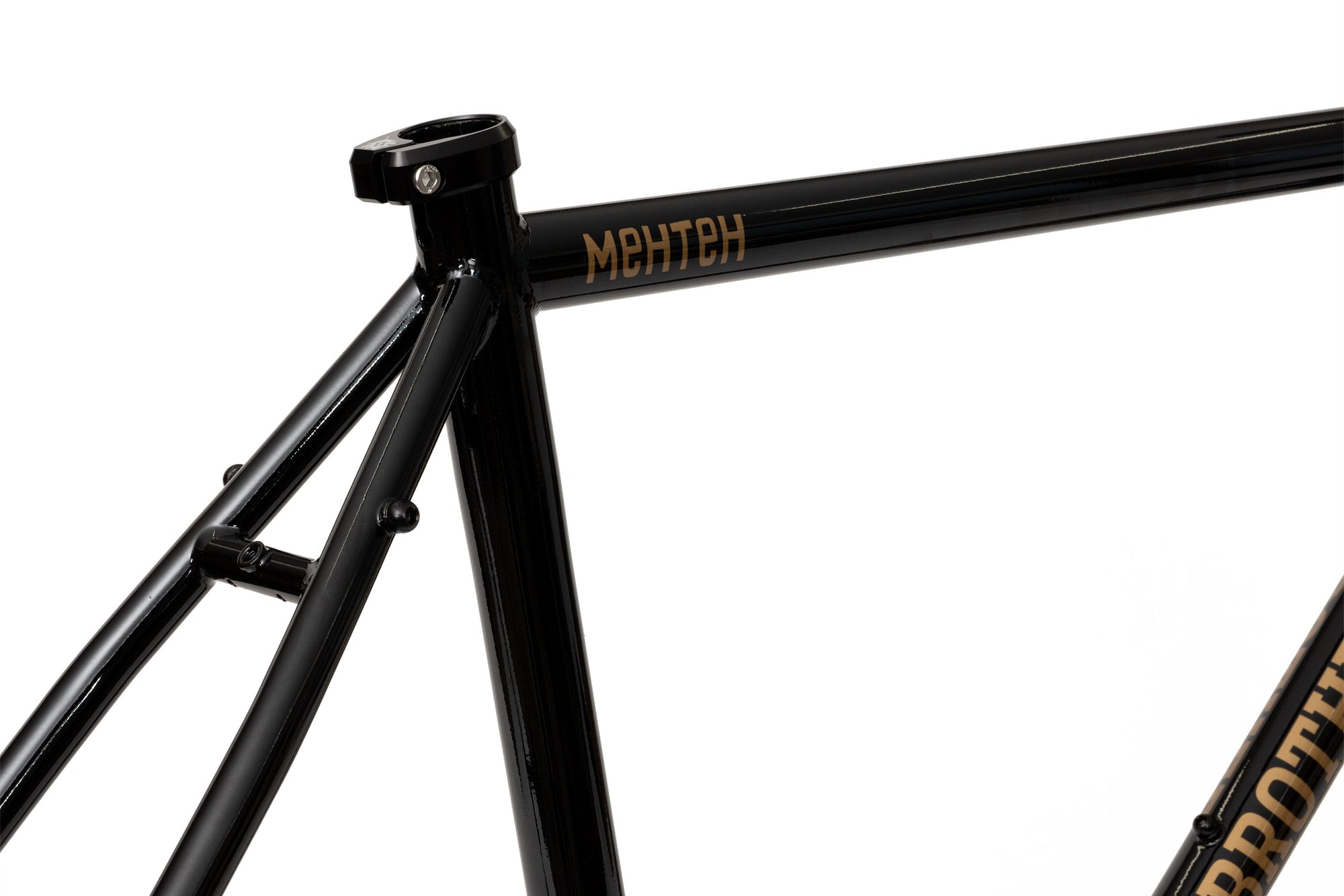

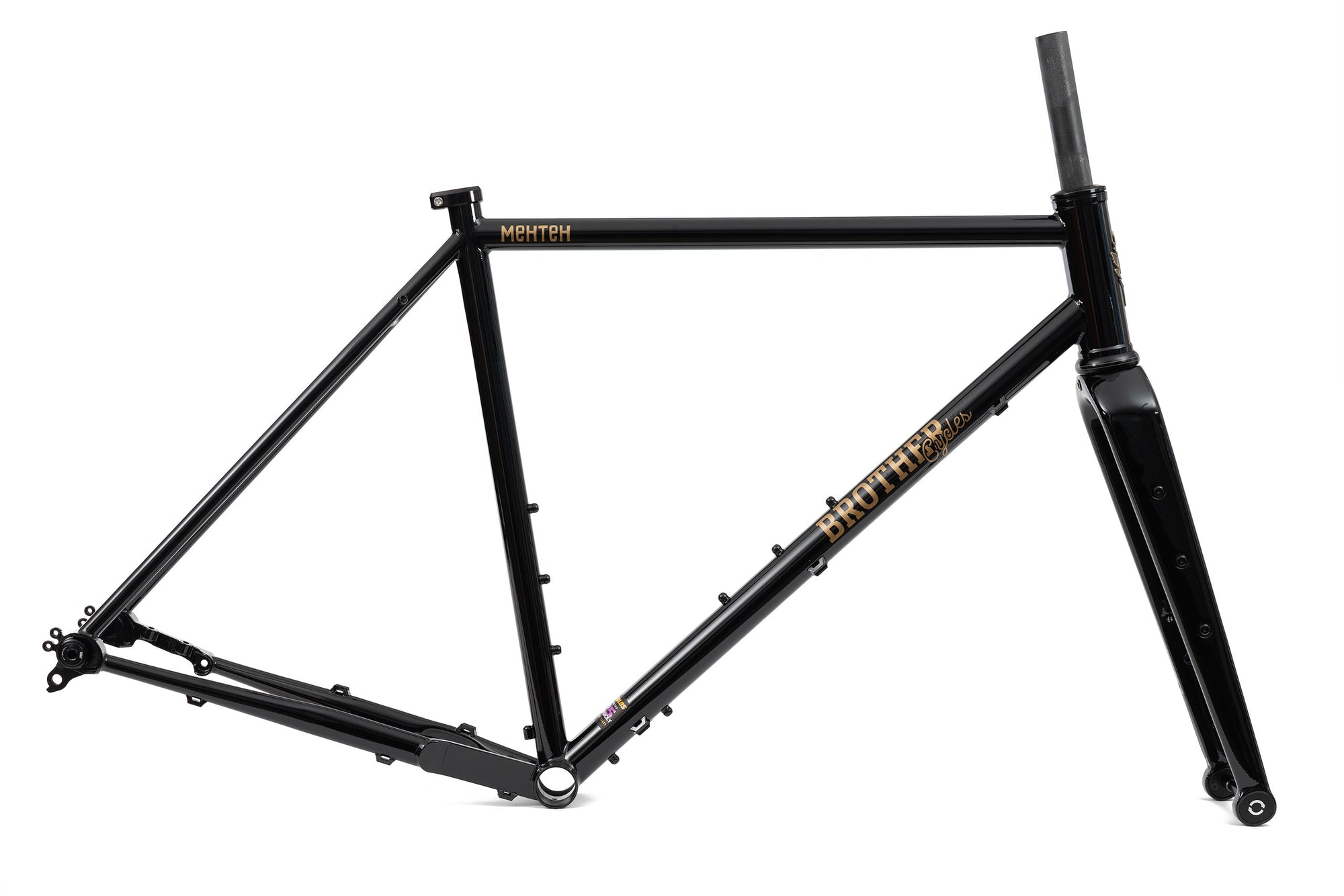

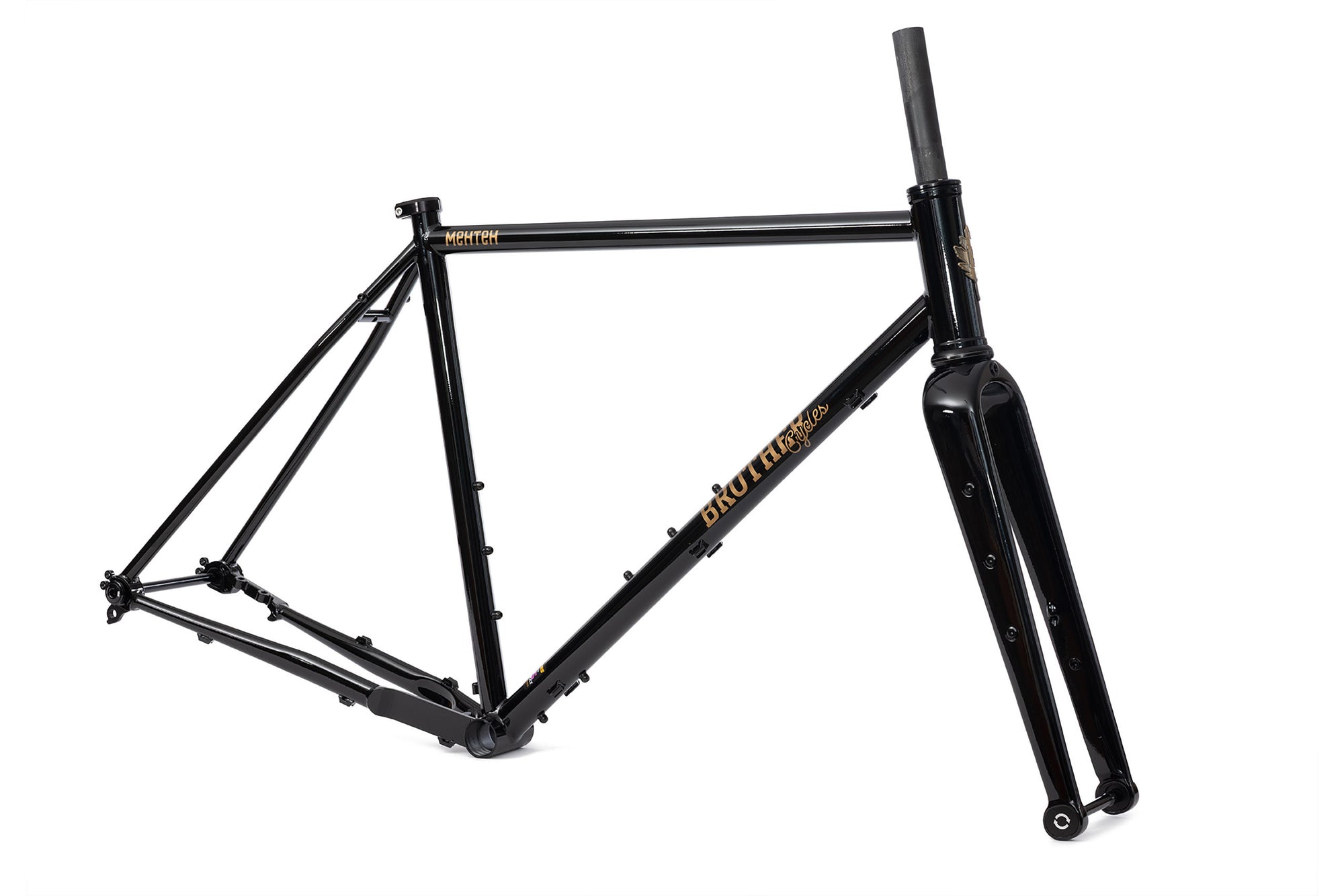

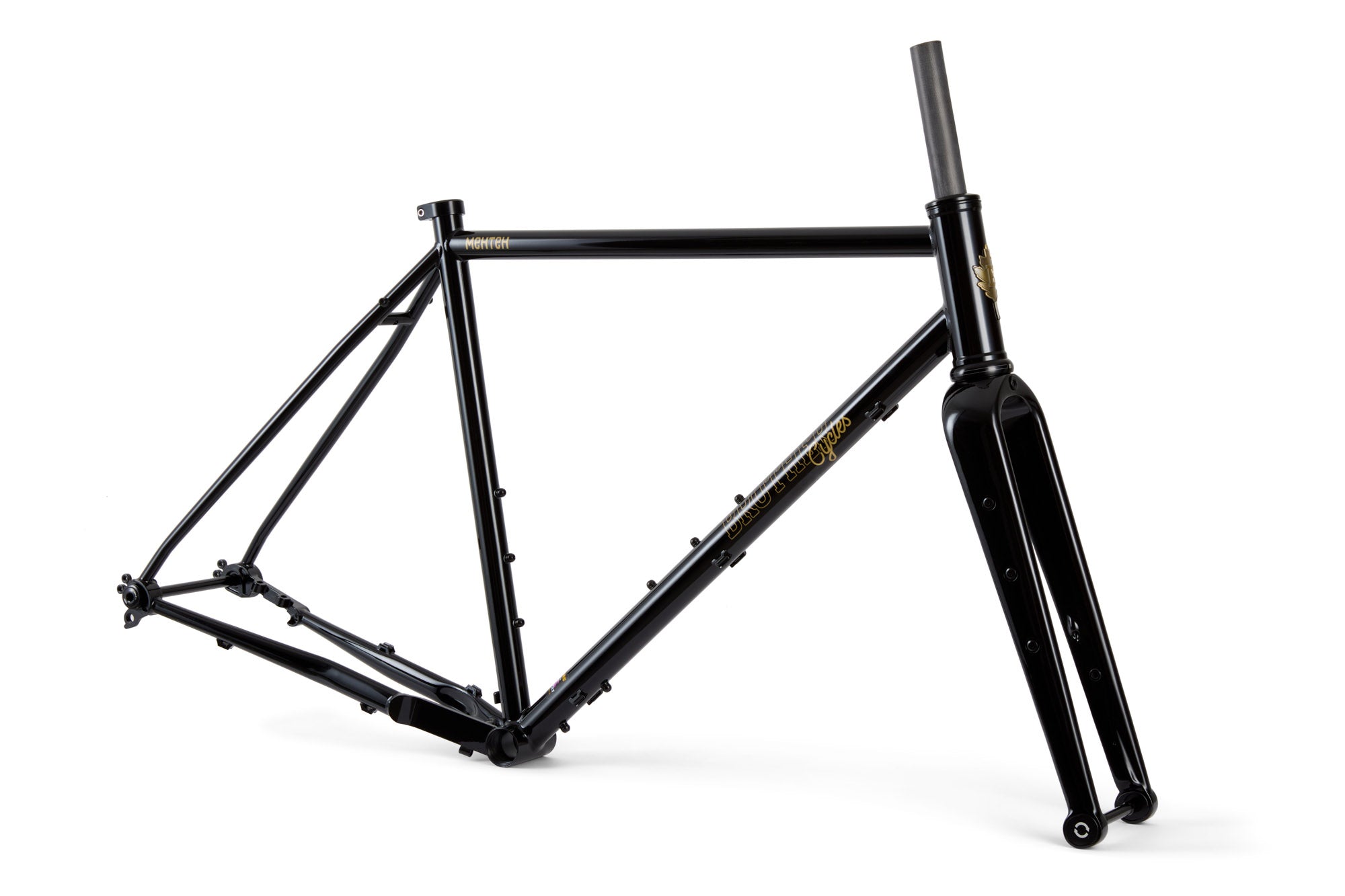

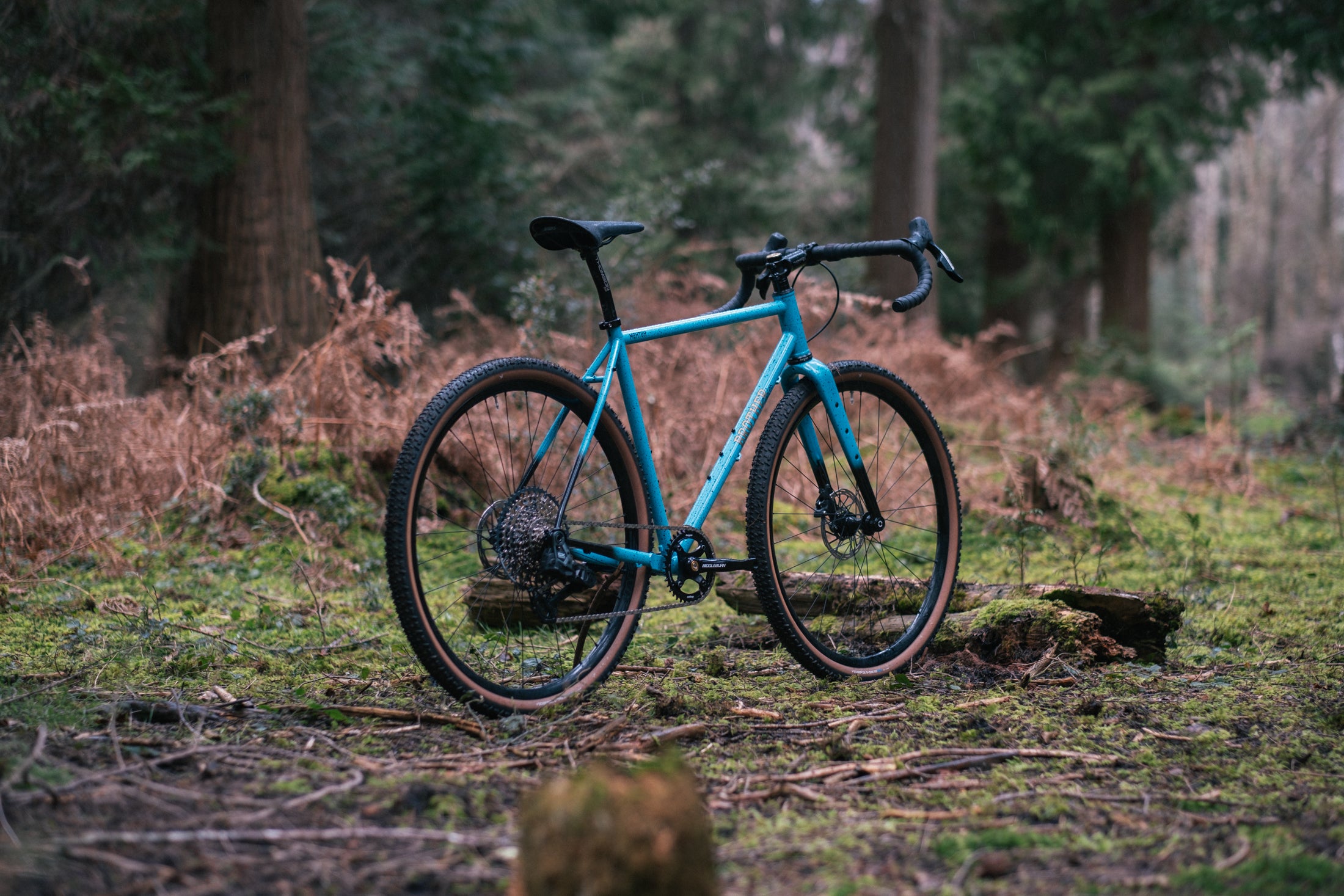

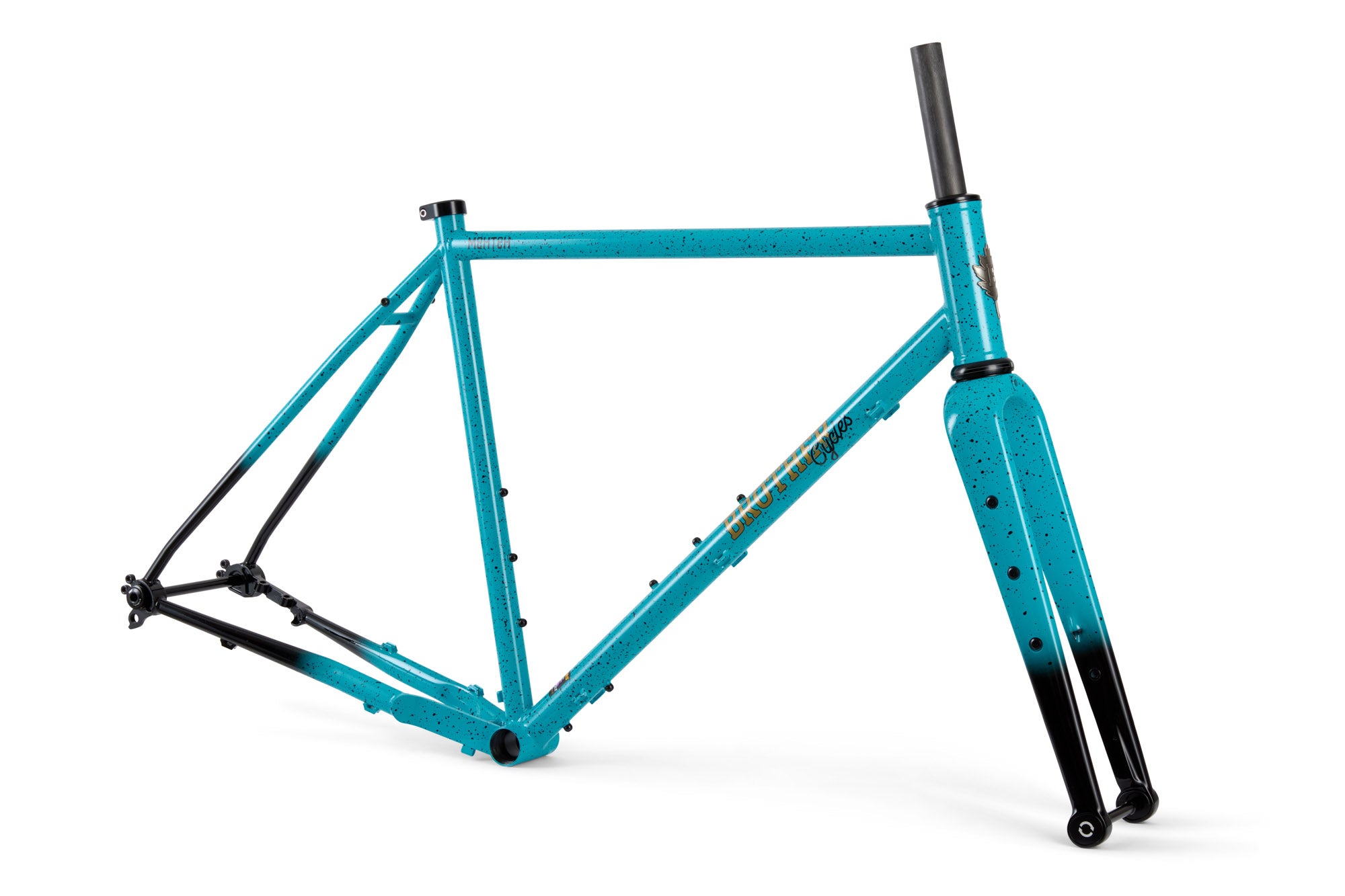

Brother Cycles Mehteh Frameset
All-terrain ready. Bikepacking approved.

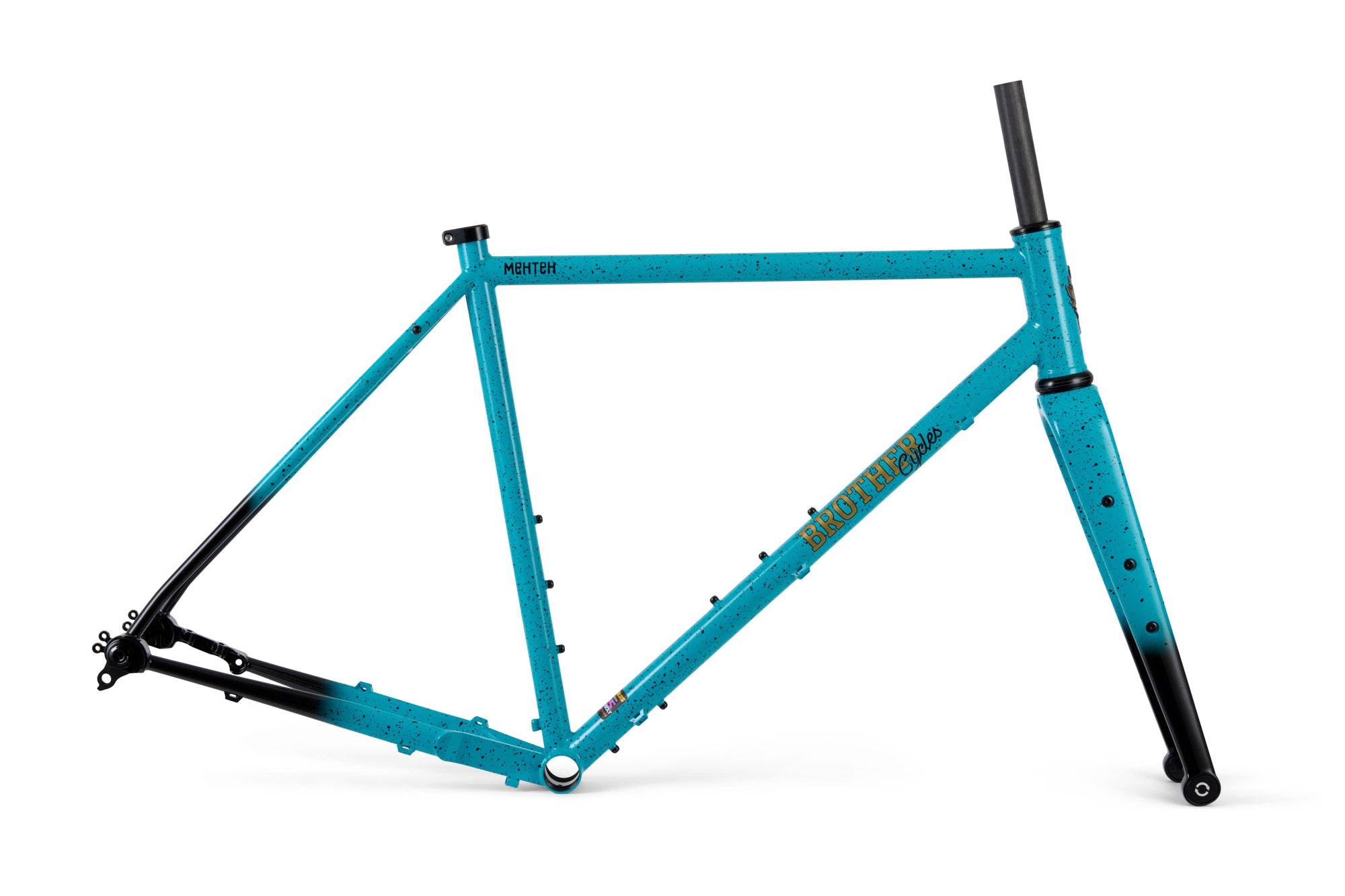

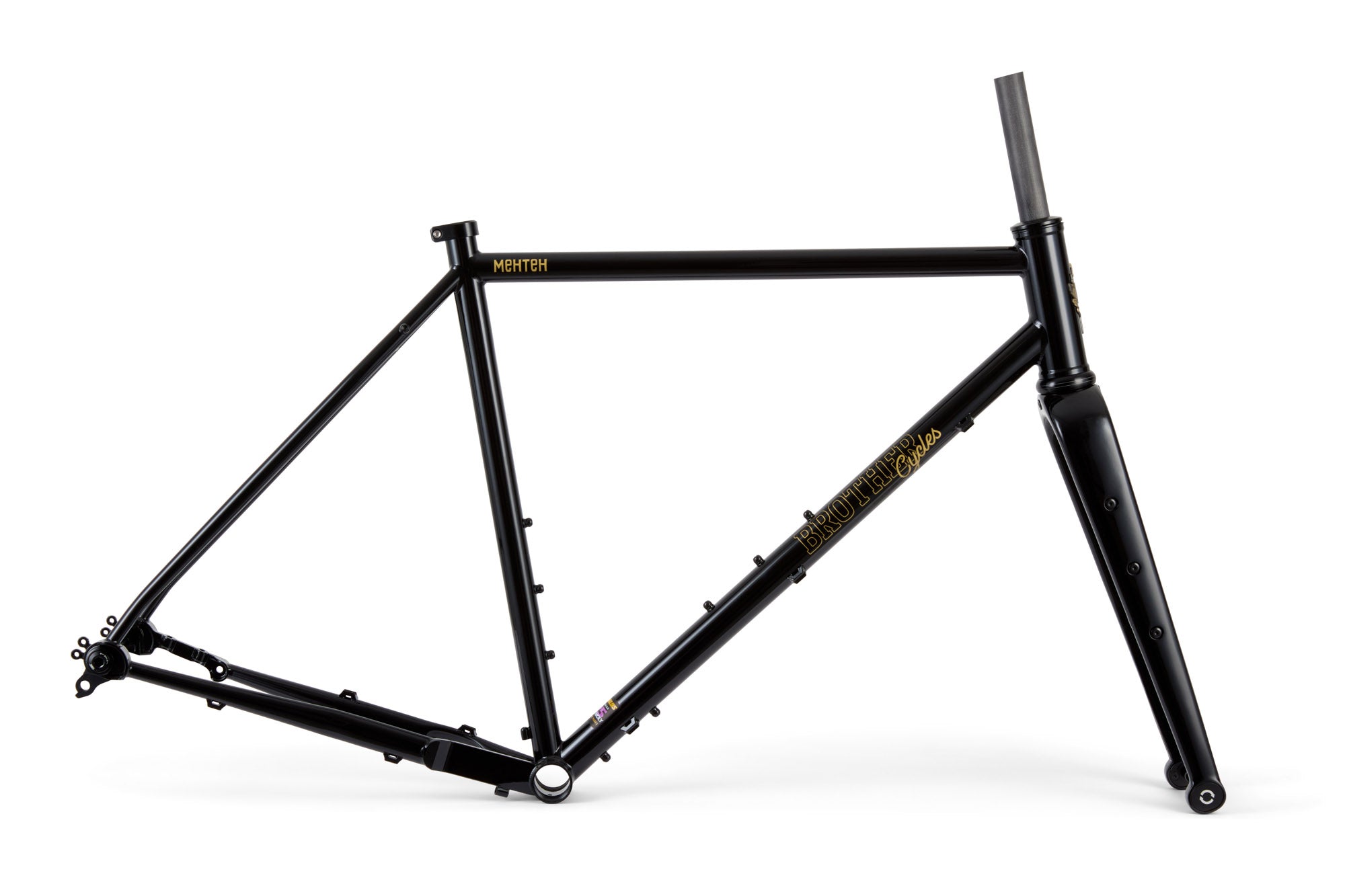

The Mehteh (pronounced May-tay) is Brother Cycles’ ultimate steel gravel frameset—built for long days in the saddle, remote trails, and full-blown bikepacking missions. Crafted from durable Reynolds 725 heat-treated steel and matched with a feature-rich full carbon gravel fork, the Mehteh is designed to push well beyond the usual gravel limits.
With huge tyre clearance (700x50 or 650Bx2.2”), updated UDH-compatible dropouts, and mounts for bottles, bags, racks, and dynamo lighting, the Mehteh is a blank canvas for your biggest rides—whether that’s a weekend gravel loop or racing the Atlas Mountains.
Key Features
-
Frame: Reynolds 725 heat-treated double-butted chromoly (ED coated)
-
Fork: Brother full carbon fork with tapered steerer
-

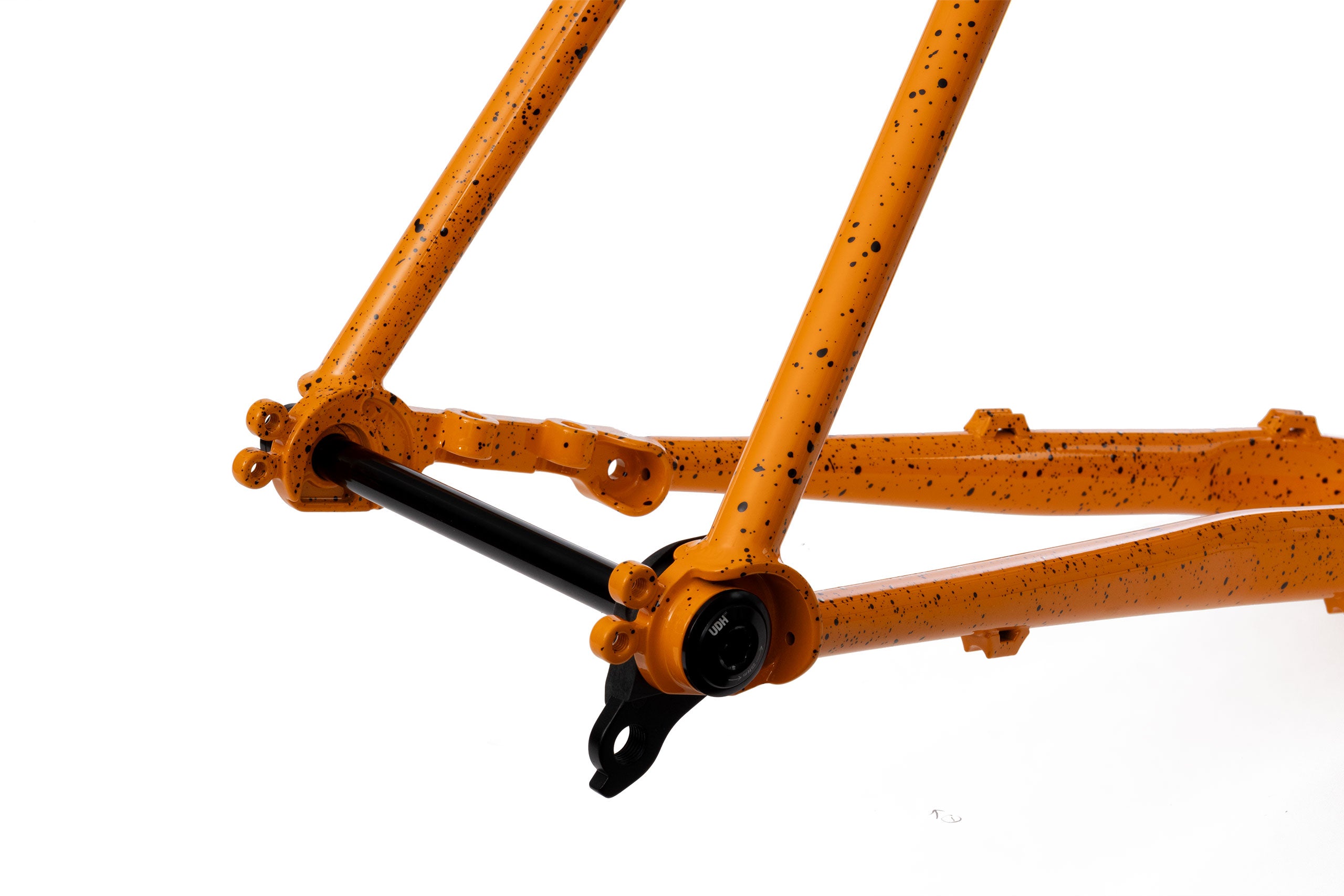

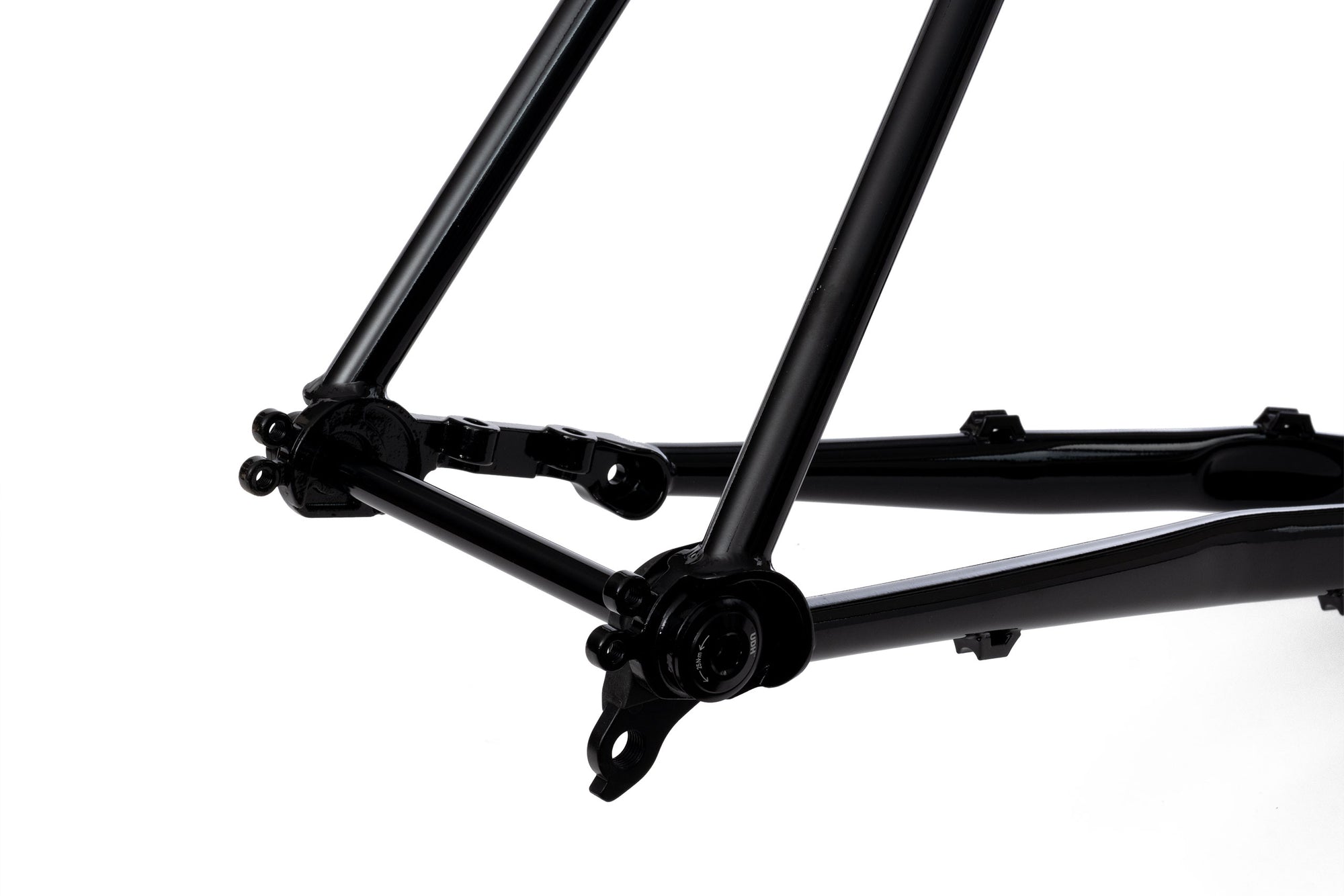

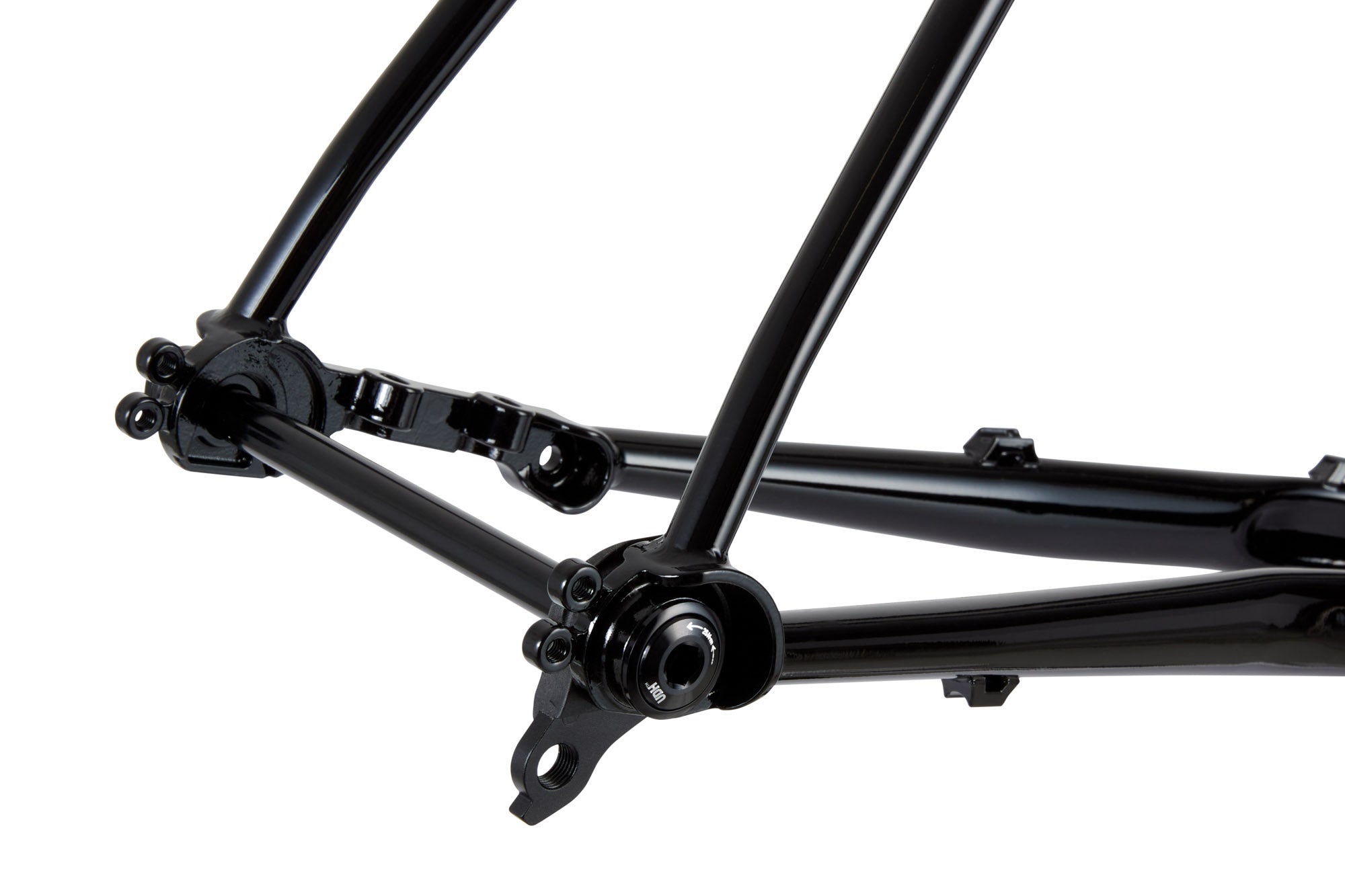

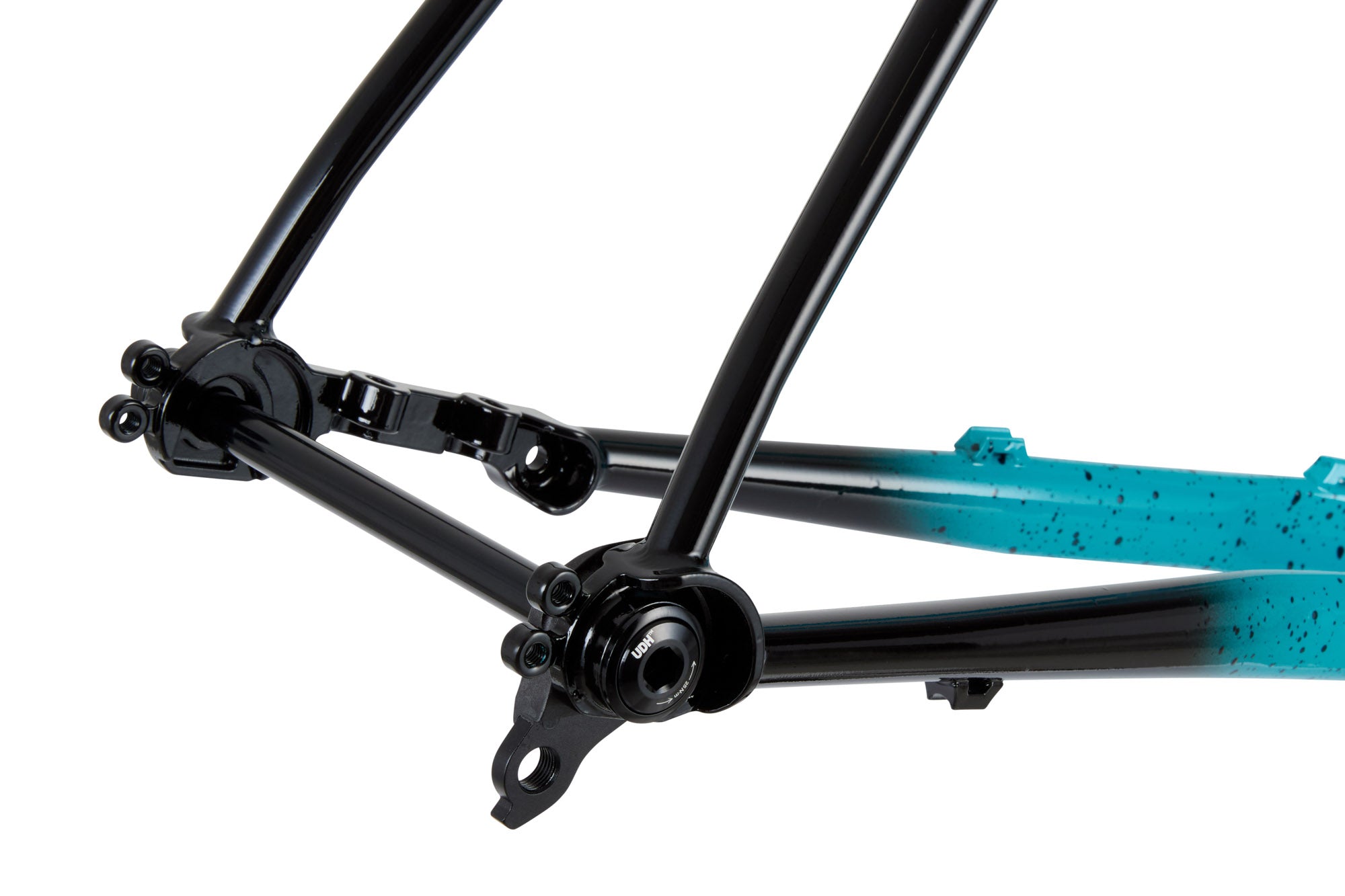

Updated UDH-compatible dropouts – run standard or SRAM Full Mount mechs
-
Tyre clearance: Up to 700x50c or 650Bx2.2”
-
Mounts: 3 x bottle cage, rear rack & mudguard, triple cage on fork legs
-
Cable routing: Full-length for derailleurs & brakes
-
Axles: 12x142mm rear, 12x100mm front (thru-axles included)
-
Brakes: Flat-mount disc, 160mm max rotors
-
Bottom Bracket: 68mm ISO threaded
-
Headset: 44mm (ZS44/EC44) – not included
-

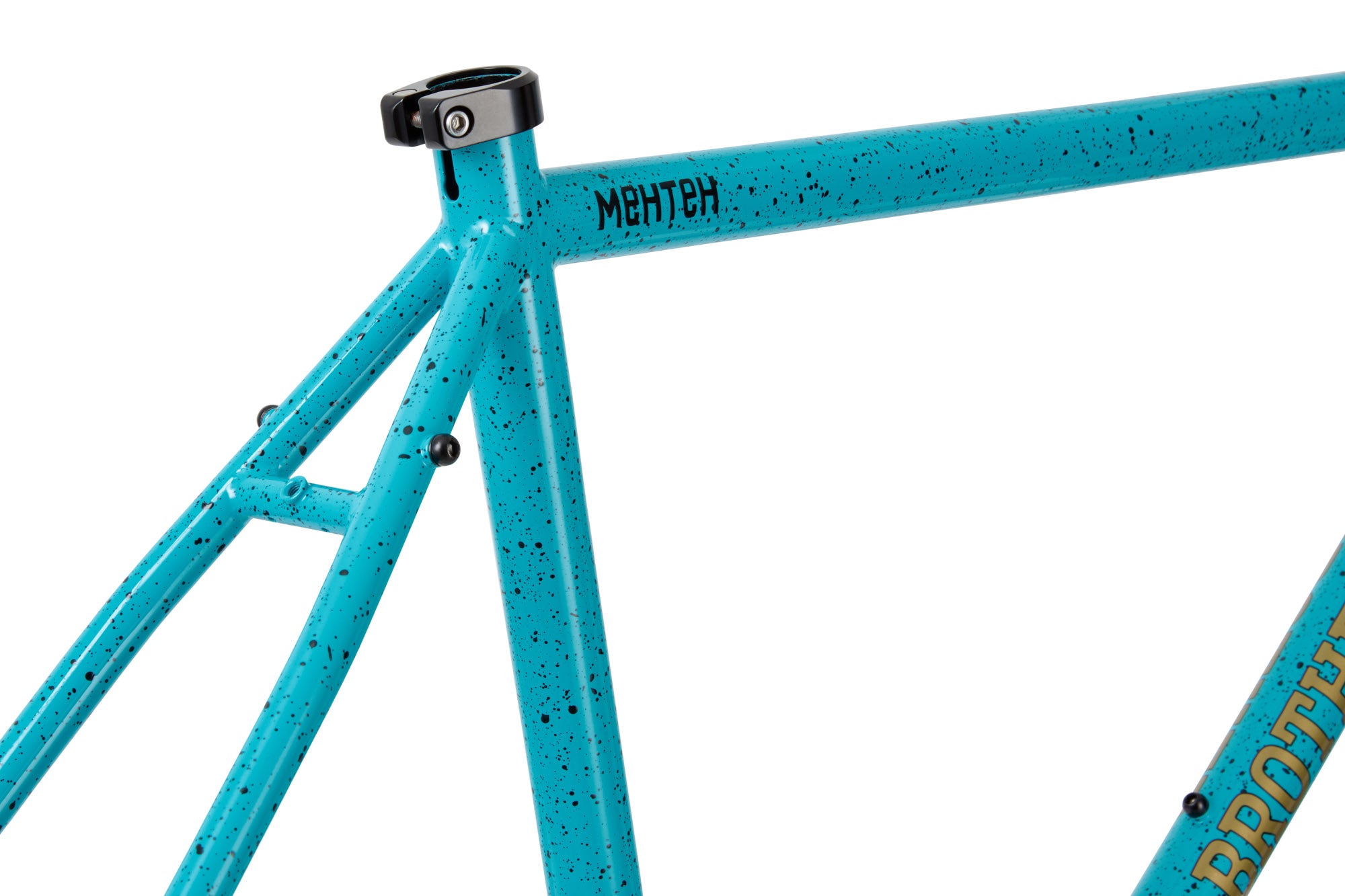

Seatpost: 27.2mm | Clamp: 30mm (included)
-
Front derailleur clamp: 28.6mm
-
Chainring clearance: 1x up to 48t | 2x up to 50/34 | Triple up to 52/39/30
-
Weight (Medium): Frame 2.3kg | Fork 0.55kg
From gravel loops in the Alps to ultra races in Morocco, the Mehteh has proven itself time and again.
| Size | xSmall | Small | Medium | Large | xLarge | XXLarge |
|---|---|---|---|---|---|---|
| Seat Tube (C-T) | 490mm | 510mm | 530mm | 550mm | 570mm | 590mm |
| Top Tube (C-C) | 510mm | 527mm | 543mm | 558mm | 573mm | 588mm |
| Top Tube (Effective) | 525mm | 544mm | 561mm | 576mm | 591mm | 606mm |
| Head Tube | 110mm | 125mm | 140mm | 160mm | 180mm | 200mm |
| Head Angle | 70.5° | 71° | 71.5° | 71.5° | 71.5° | 71.5° |
| Seat Angle | 74° | 73.5° | 73° | 73° | 73° | 73° |
| BB Drop | 70mm | 70mm | 70mm | 70mm | 70mm | 70mm |
| Chainstay | 430mm | 430mm | 430mm | 430mm | 430mm | 430mm |
| Fork Length (A-C) | 398mm | 398mm | 398mm | 398mm | 398mm | 398mm |
| Fork Rake | 47/52mm | 47/52mm | 47/52mm | 47/52mm | 47/52mm | 47/52mm |
| Stack | 545mm | 561mm | 577mm | 596mm | 615mm | 634mm |
| Reach | 369mm | 378mm | 385mm | 394mm | 403mm | 412mm |
| Wheelbase | 1009mm | 1019mm | 1026mm | 1042mm | 1057mm | 1073mm |
