Description

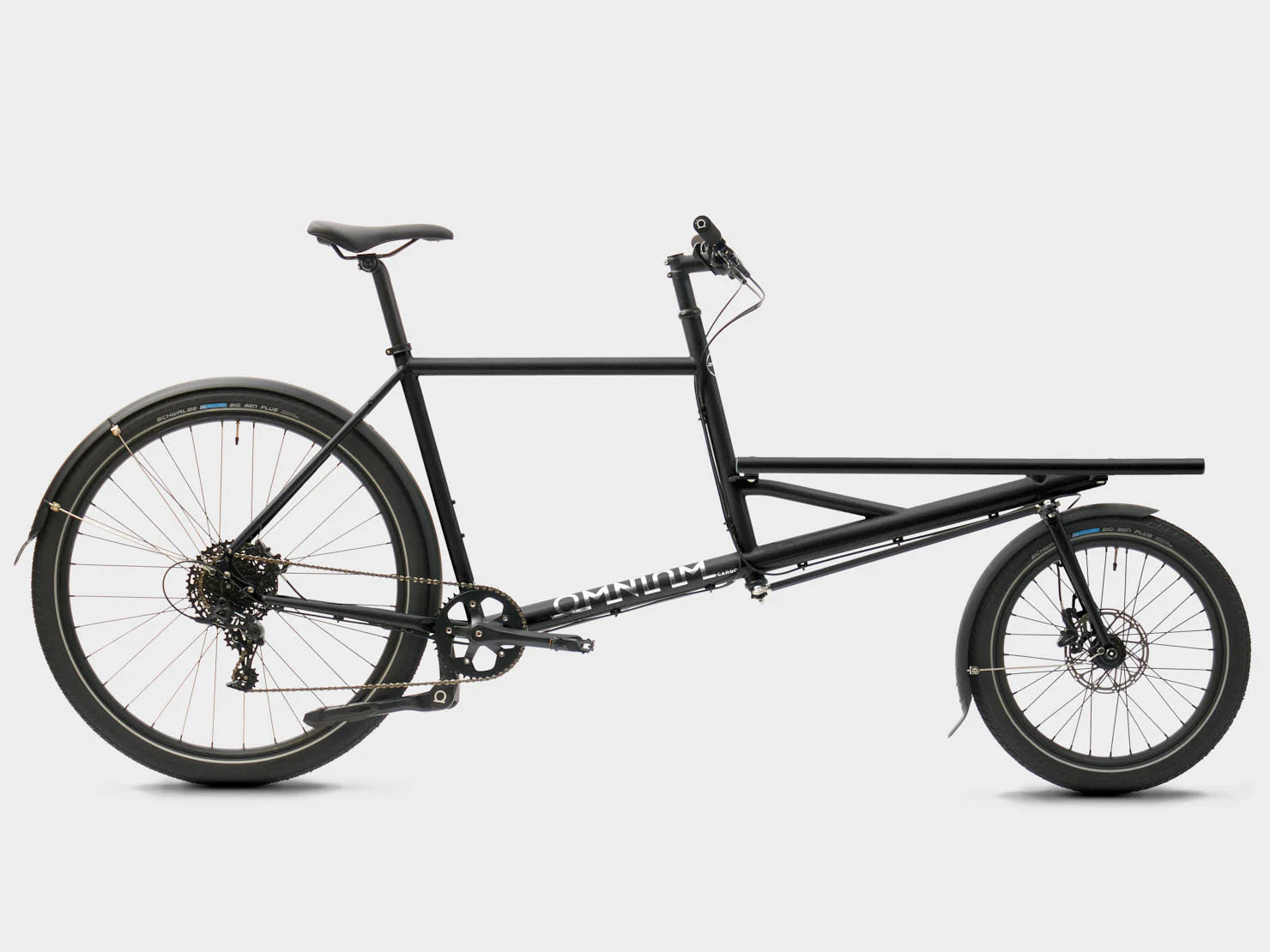

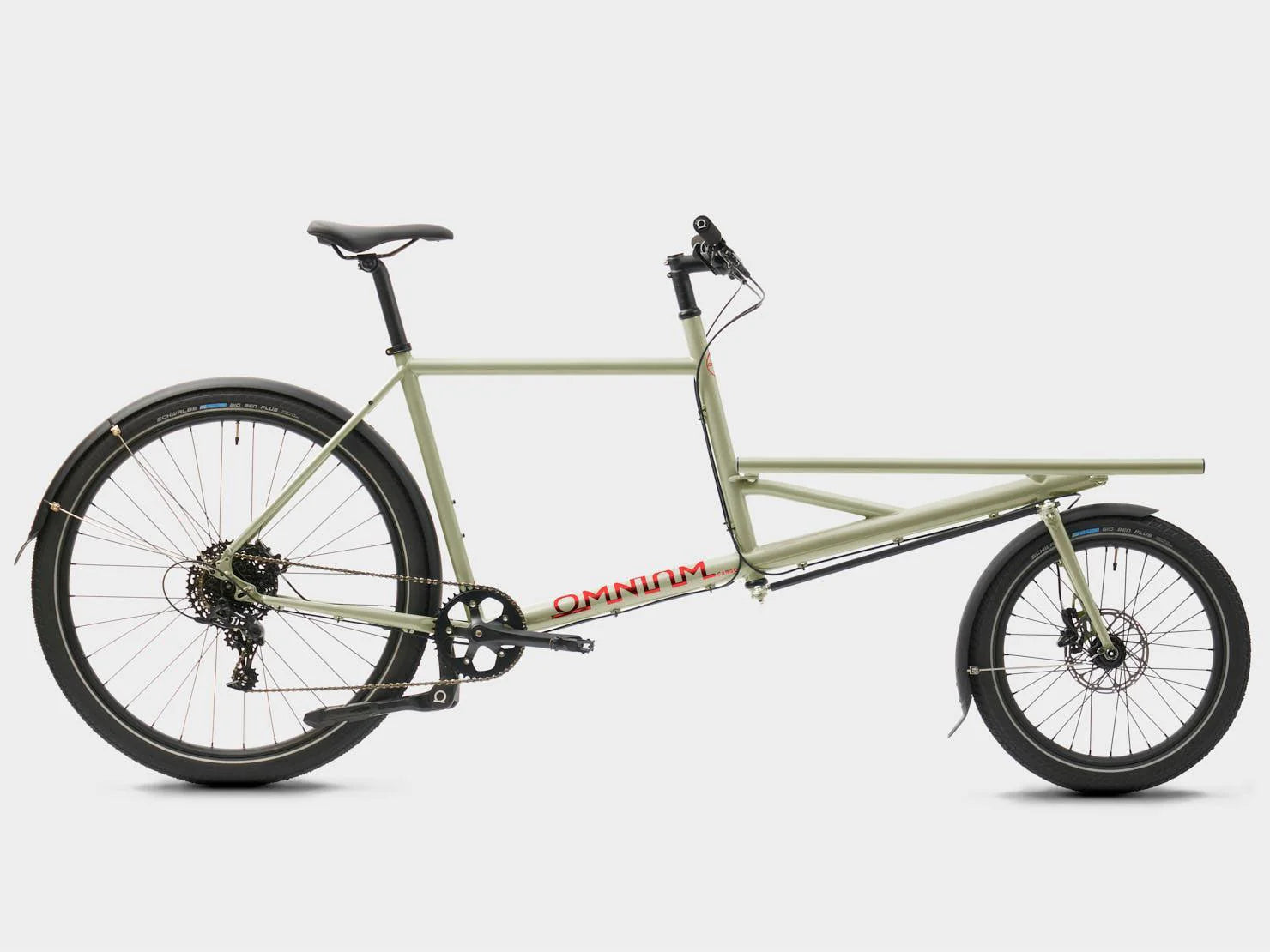

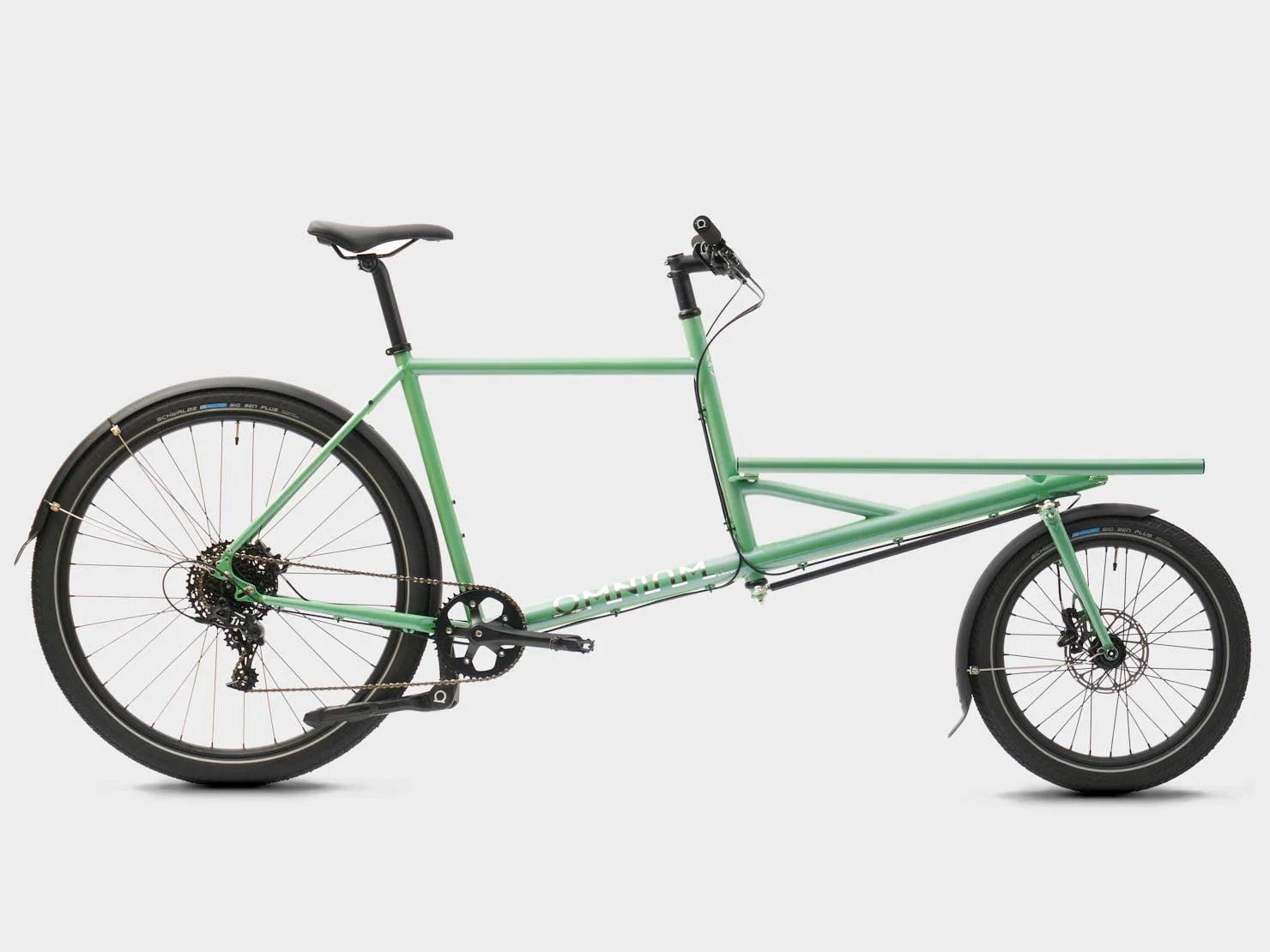

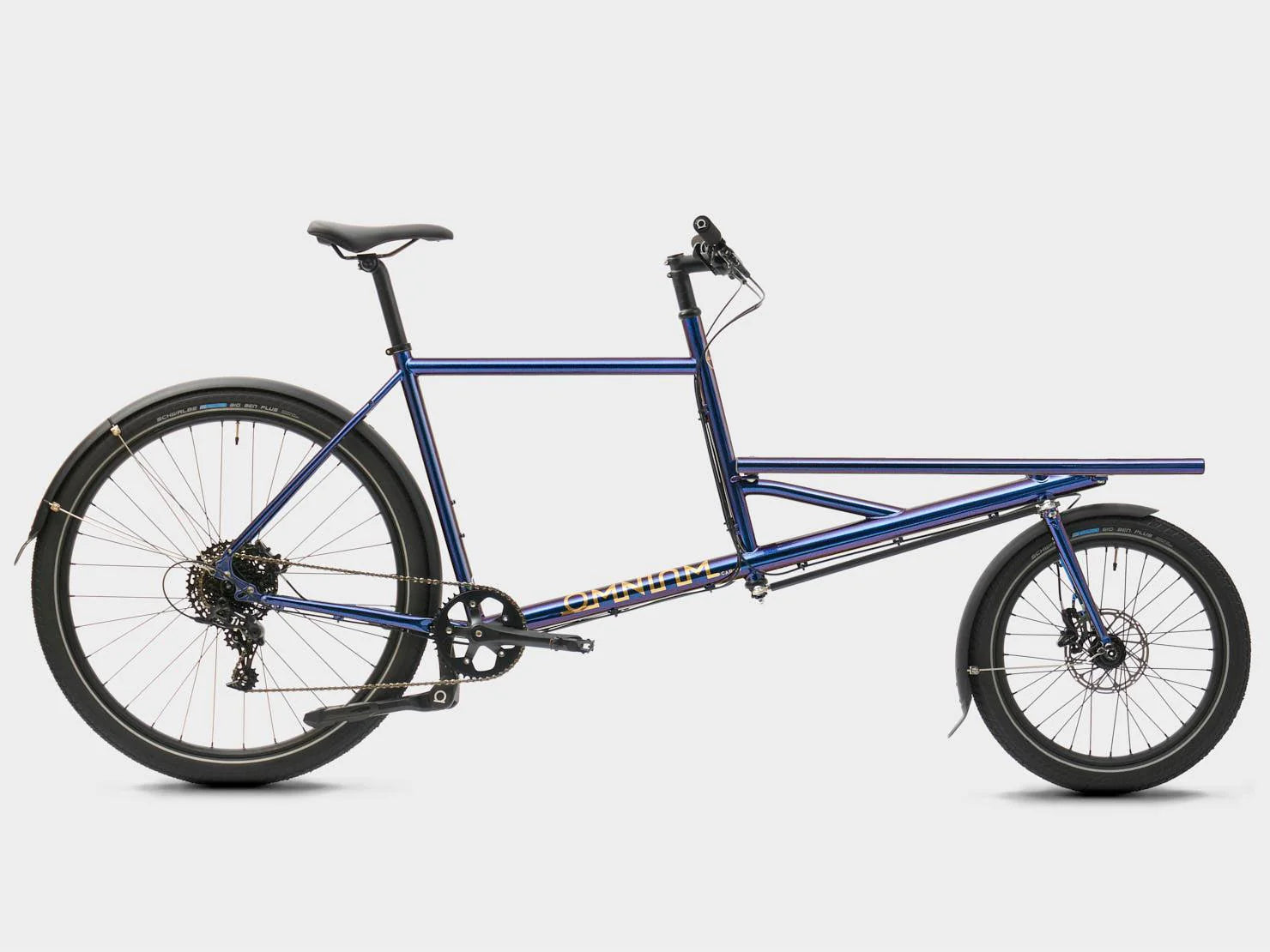

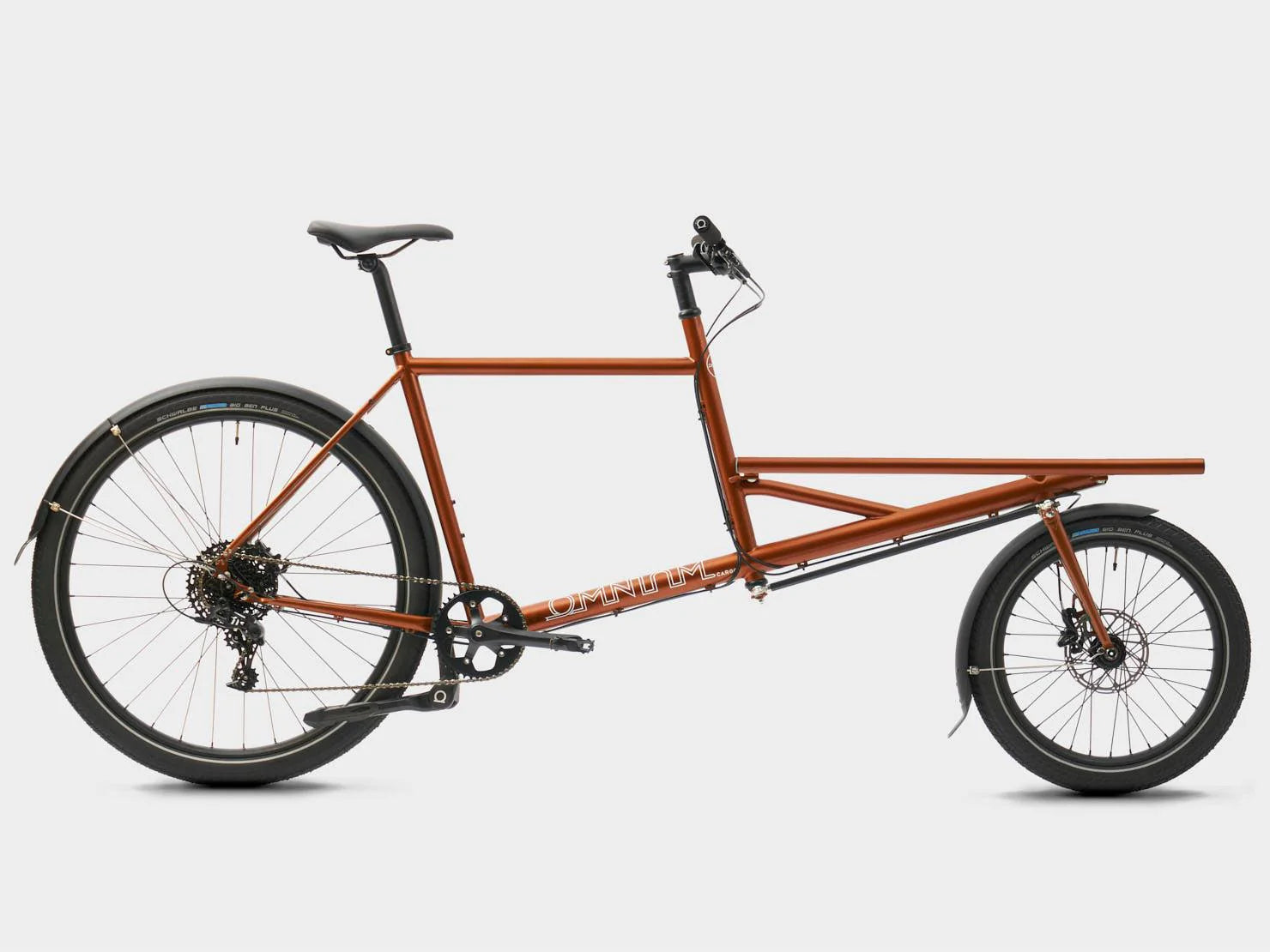

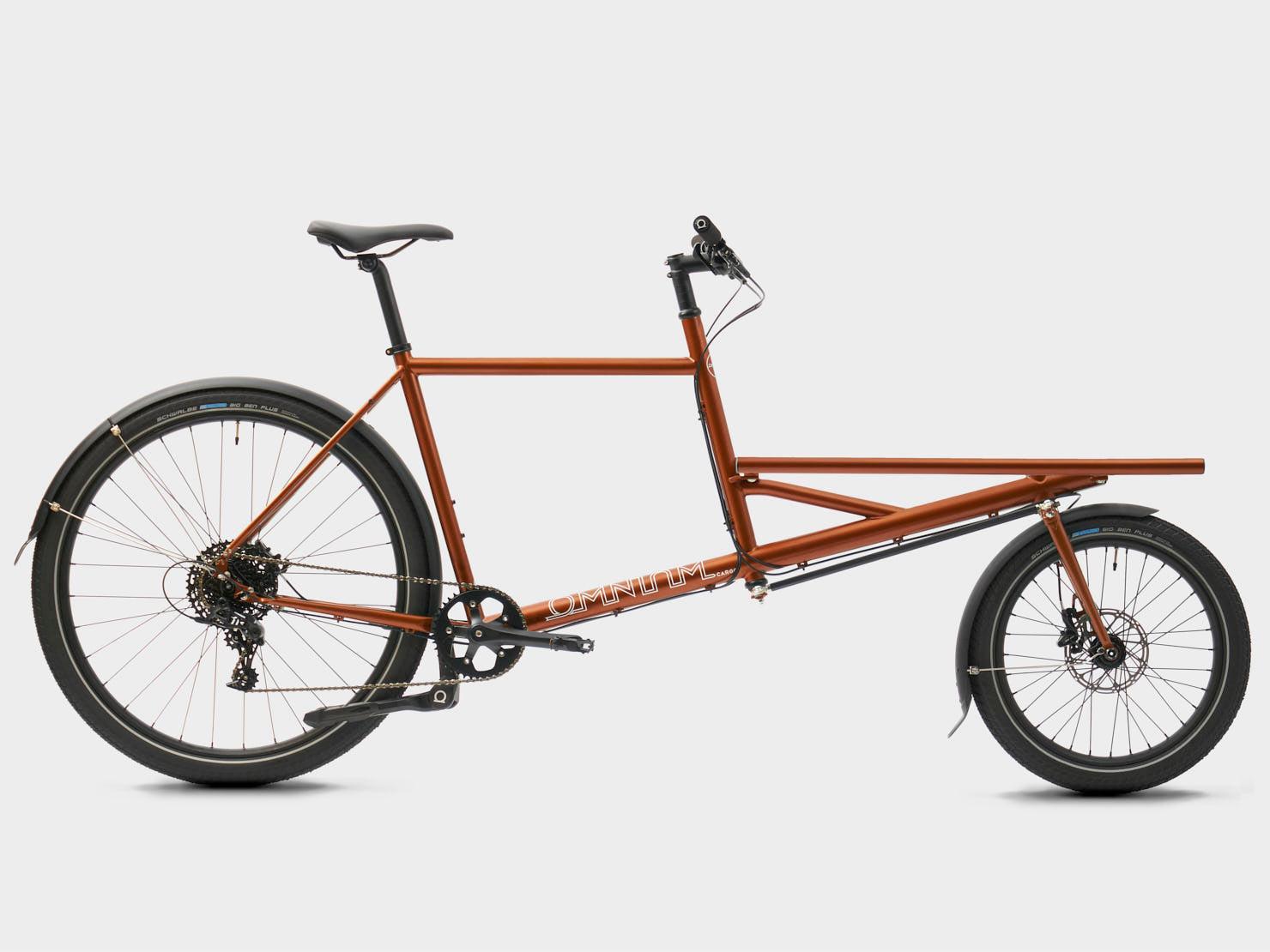

The Cargo V3 everybody! The same fast and light Omnium as you know it, now with adjustable rocker dropouts! With the big comfy tires and trusty thru axles of the WiFi, now combined with the new super functional dropouts, we once again we feel we’ve created the ultimate cargo bike where versatility is at the top of the list.
The adjustable rocker dropouts allow you to run a variety of drivetrain options (sorry not simultaneously), ranging from external gears with a derailleur to internal gears and belt drive! Heck you can even run it fixed if you’re that type of nut! The swappable inserts allow you to chose between thru axle and quick release depending on your rear hub spacing and gear component choice. Maybe even carry a spare set to easily replace a broken gear hanger if need be.
The Cargo is an incredibly versatile, lightweight and fast cargo bike that can handle heavy loads and big objects with ease.
The best part is, it rides like a normal bike when unloaded, due to its clever construction and familiar geometry.
The Cargo is also the model with the longest wheelbase, which calls for very stable handling. The wheelbase also allows for great stability when loading the rack on your own, as the weight is positioned in the middle of the front wheel and the kickstand.
Need to pick up your new dream sofa? Easy. Bringing your kid to the daycare before work? No problem! Bring a computer for work or a change of clothes for the gym in a waterproof duffle and you‘re good to go, rain or shine, all year long.
Design
The Cargo V3 is designed around 55mm (2.15″) tires front and rear. The list of benefits tied to bigger tires like these is long, but here’s a few we find important. High volume tires run at lower tire pressure, creating a significant layer of suspension between you and the ground. This results in far more comfort and control while riding on all surfaces, making easy work of rough roads, gravel, and cobblestones. The fast semi-slick tire tread design results in a minor rolling speed penalty, but more importantly increases grip, stability, and also reduces the risk of punctures.
The frame and fork have also been updated to take 15 x 100mm front and 12 x 142mm rear thru axles. Although thru axles were first seen on downhill mountain bikes in the late 90’s, most disc brake bikes these days use them. They make perfect sense on our cargo bikes. The axle bolts through a closed hole in the frame and fork, then through the hub, and threads directly into the dropout on the other side. Most importantly, this system increases stiffness, rigidity under braking and load, and reduces the risk of incorrect installation and disk brake rub.
Specifications
| Frame material | Double-Butted Chromoly Steel Frame |
| 5 Sizes | XS, S, M, L, XL |
| Seat post diameter | 31.6 mm |
| Seat post clamp size | 34.0 mm |
| Rear Wheel | TA Insert: 622, 12 x 142mm spacing, disc only QR Insert: 622, 10 x 135mm spacing, disc only |
| Front Wheel | 406, 15 x 100 mm spacing, disc only |
| Tyre clearance, front | 55mm with mudguards |
| Tyre clearance, rear | 55mm with mudguards |
| Thru Axle Rear | 12×142, 172mm long, 19mm thread length, 1.75mm pitch |
| Thru Axle Front | 15×100, 125mm long, 17mm thread length, 1.5mm pitch |
| Fork headset | 1 1/8″ Threaded Integrated with locking cap |
| Steerer headset | 1 1/8″ Ahead |
| Bottom Bracket | BSA 68mm |
| Q-Factor/Stance | 145mm |
| Gears | For 1x rear derailleur gear system |
| Standard Rack Weight | 1320g +/- |
| Rack dimensions | 83cm × 50cm |
| Rack bolt size | M15 x 15mm |
| Weight | Complete Medium bike weighs 20kg |
| Maximum loading weight on front rack | 85 kg |
| Maximum total loading weight incl. rider | 175 kg |
Components
| Brakes | Shimano MT500, 160mm Rotors |
| Gears | Shimano Deore M5100 11 SPD, Shimano SLX 11-40T Cassette, KMC 11 SPD chain EPT |
| Stem | 6061 Aluminium, 80mm, 31.8mm, Matte Black |
| Handlebar | 6061 Aluminium, 700mm Wide, 15mm Rise, 31.8mm, Matte Black |
| Seatpost | 31.6mm 6061 Aluminium, 15mm Setback, Matte Black |
| Grips | Omnium Foam Lock-on, Black |
| Crankset | Driveline, 42t, CNC Narrow Wide Chainring |
| Bottom Bracket | FSA, Square Taper, 68mm BSA |
| Headset/s | VP Components, Sealed Bearings External Cup (EC34) 1-1/8″ for the Steerer Tube Integrated System (IS42) 1-1/8″ for the Fork |
| Saddle | Omnium Standard |
| Tyres | Schwalbe Big Ben Plus 55-622 (700×55mm) & 55-406 (20×2.15″). |
| Wheels | Omnium WiFi Wheelset: 12 x 142mm Thru Axle 622 (700c) rear & 15 x 100mm Thru Axle 406 (20″) front, 32 mm Internal Width |
| Kickstand | Omnium, Cast Aluminium Twin-Leg |
| Pedals | Platform, Black w/ Reflectors |
| Mudguards | WiFi 60mm Wide Matte Black |
Geometry
| Cargo V3 | XS (49.5) | S (52) | M (54.5)) | L (57) | XL (60) |
| STL – seat tube length (c-t) | 495 | 520 | 545 | 570 | 600 |
| TTL – top tube length (c-c / actual) | 505 | 520 | 545 | 570 | 600 |
| Stack | 533 | 557 | 581 | 605.5 | 634 |
| Reach | 349 | 357 | 375 | 394 | 415 |
| SO – standover height | 745 | 769.5 | 793.5 | 818 | 846 |
| BBH – bottom bracket height | 288 | 288 | 288 | 288 | 288 |
| BBD – bottom bracket drop | 81 | 81 | 81 | 81 | 81 |
| STA – seat tube angle | 74° | 74° | 74° | 74° | 74 |
| HTA1 – head tube angle rear | 74.5° | 74.7° | 75° | 75.4° | 75.5° |
| HTA2 – head tube angle front | 74.5° | 74.6° | 74.9° | 75.4° | 75.5° |
| WB – wheelbase | 1578 | 1590 | 1612 | 1632 | 1657 |
| A-C – axle to crown | 298.5 | 298.5 | 298.5 | 298.5 | 298.5 |
| R – rake | 45 | 45 | 45 | 45 | 45 |
| T – trail | 25.5 | 25 | 23.5 | 24 | 21 |
| CSL – chainstay length | 462 | 462 | 462 | 462 | 462 |
| FL – full bike length | 2208 | 2220 | 2241 | 2262 | 2286 |
Sizing
Height: 155 – 165cm — we recommend — size X-Small
Height: 165 – 175cm — we recommend — size Small
Height: 175 – 185cm — we recommend — size Medium
Height: 185 – 195cm — we recommend — size Large
Height: 195 – 205cm — we recommend — size X-Large
Sizing Guide
| Rider Height | Recommended Size |
|---|---|
| 155 – 165cm | X-Small |
| 165 – 175cm | Small |
| 175 – 185cm | Medium |
| 185 – 195cm | Large |
| 195 – 205cm | X-Large |
Geometry (Cargo V3)
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Seat Tube Length (c-t) | 495mm | 520mm | 545mm | 570mm | 600mm |
| Top Tube Length (c-c actual) | 505mm | 520mm | 545mm | 570mm | 600mm |
| Stack | 533mm | 557mm | 581mm | 605.5mm | 634mm |
| Reach | 349mm | 357mm | 375mm | 394mm | 415mm |
| Standover Height | 745mm | 769.5mm | 793.5mm | 818mm | 846mm |
| Bottom Bracket Height | 288mm | ||||
| Bottom Bracket Drop | 81mm | ||||
| Seat Tube Angle | 74° (all sizes) | ||||
| Head Tube Angle (rear) | 74.5° | 74.7° | 75° | 75.4° | 75.5° |
| Head Tube Angle (front) | 74.5° | 74.6° | 74.9° | 75.4° | 75.5° |
| Wheelbase | 1578mm | 1590mm | 1612mm | 1632mm | 1657mm |
| Axle to Crown | 298.5mm | ||||
| Rake | 45mm | ||||
| Trail | 25.5mm | 25mm | 23.5mm | 24mm | 21mm |
| Chainstay Length | 462mm (all sizes) | ||||
| Full Bike Length | 2208mm | 2220mm | 2241mm | 2262mm | 2286mm |
