Description

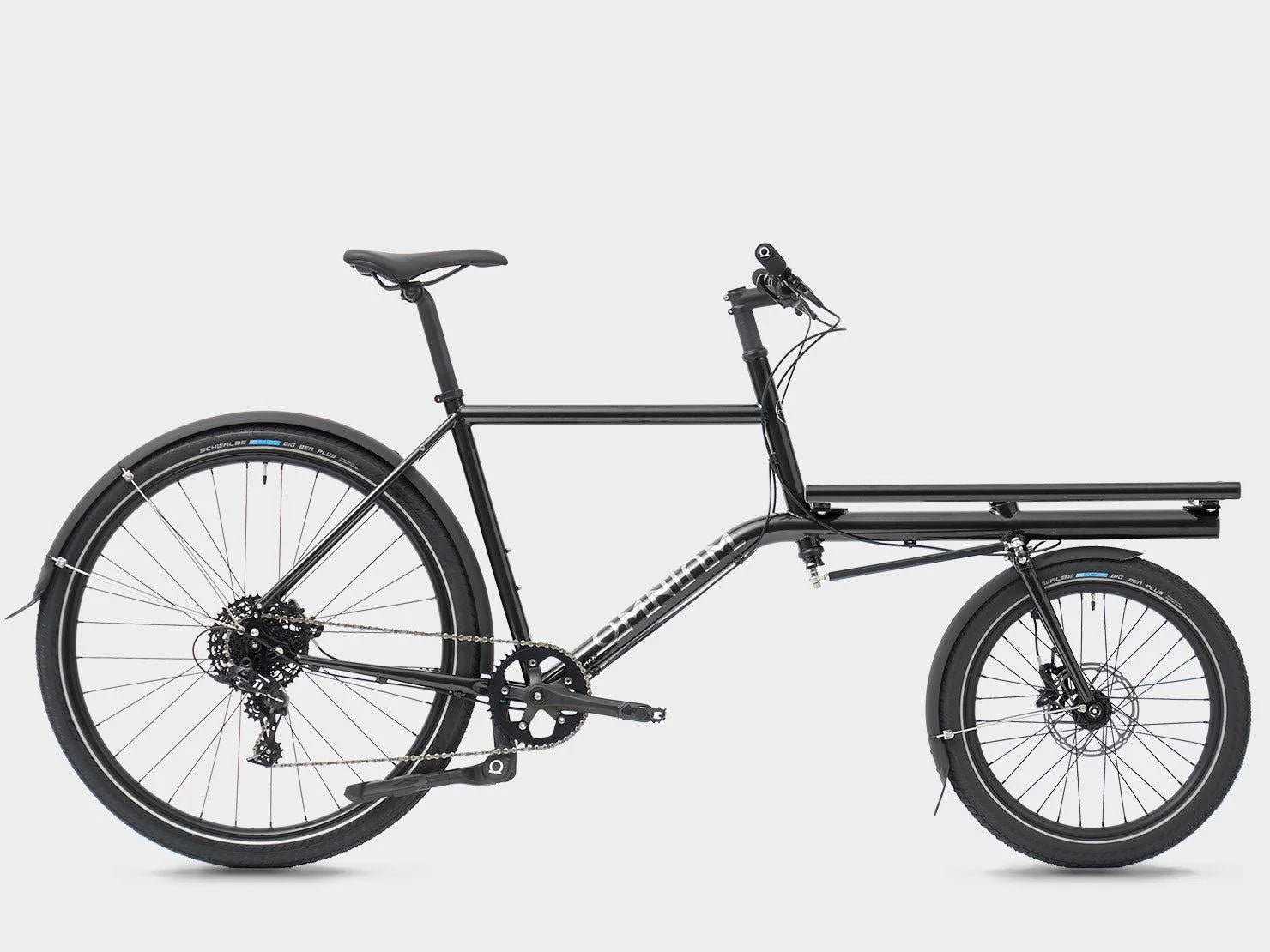

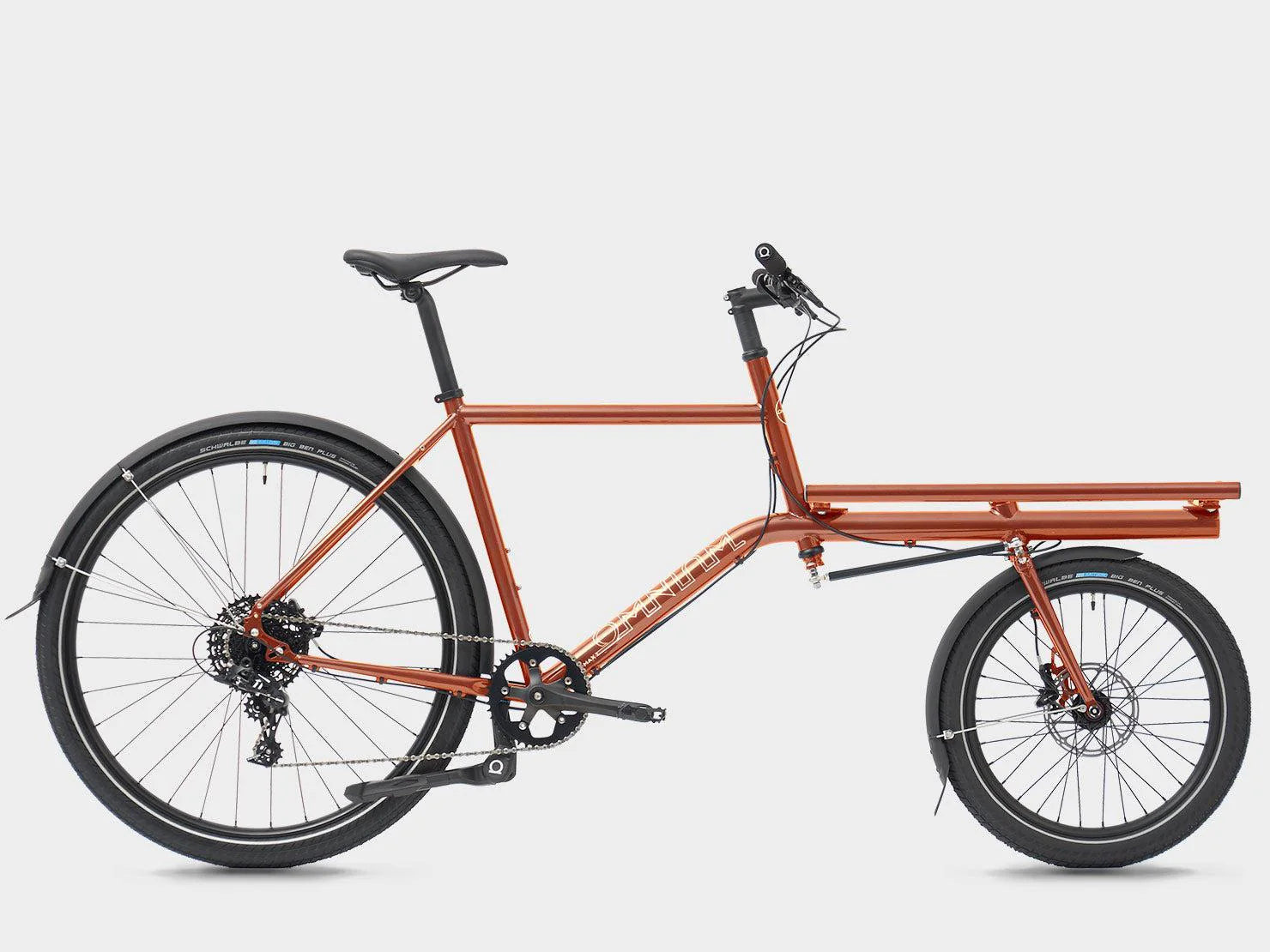

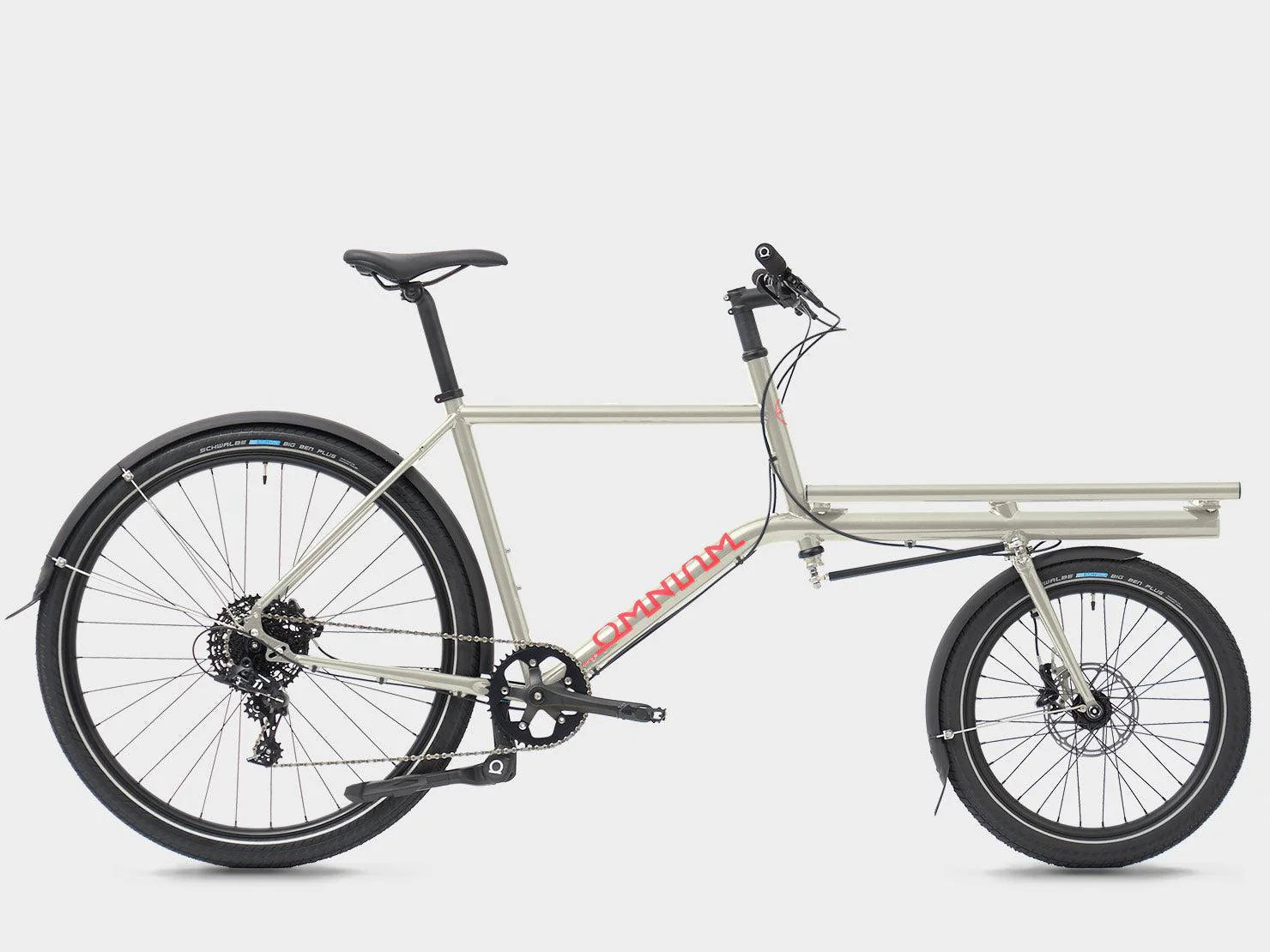

The Mini-Max V3 everybody! The same fast and light Omnium as you know it, now with adjustable rocker dropouts! With the big comfy tires and trusty thru axles of the WiFi, now combined with the new super functional dropouts, we once again we feel we’ve created the ultimate cargo bike where versatility is at the top of the list.
The adjustable rocker dropouts allow you to run a variety of drivetrain options (sorry not simultaneously), ranging from external gears with a derailleur to internal gears and belt drive! Heck you can even run it fixed if you’re that type of nut! The swappable inserts allow you to chose between thru axle and quick release depending on your rear hub spacing and gear component choice. Maybe even carry a spare set to easily replace a broken gear hanger if need be.
The Mini-Max is the middle child of the lot, taking the best from both the Cargo and Mini. The shorter wheelbase makes it handle more like a normal bike, resulting in a tighter turn radius and increased manoeuvrability.
Though the rack lacks the horns seen on the Cargo, it has the same webbing area and retains extender bar compatibility, meaning you can still take carry a heap of stuff!
The fact that the front wheel is positioned more in the middle of the rack is positive for steering and handling, while stability during heavy loads is slightly less than that of the Cargo.
The Mini-Max is for those who value snappier turns and a tighter parking spot, and aren‘t necessarily looking to max out hauling capabilities on the regular.
Design
The Mini-Max V3 is designed around 55mm (2.15″) tires front and rear. The list of benefits tied to bigger tires like these is long, but here’s a few we find important. High volume tires run at lower tire pressure, creating a significant layer of suspension between you and the ground. This results in far more comfort and control while riding on all surfaces, making easy work of rough roads, gravel, and cobblestones. The fast semi-slick tire tread design results in a minor rolling speed penalty, but more importantly increases grip, stability, and also reduces the risk of punctures.
The frame and fork have also been updated to take 15 x 100mm front and 12 x 142mm rear thru axles. Although thru axles were first seen on downhill mountain bikes in the late 90’s, most disc brake bikes these days use them. They make perfect sense on our cargo bikes. The axle bolts through a closed hole in the frame and fork, then through the hub, and threads directly into the dropout on the other side. Most importantly, this system increases stiffness, rigidity under braking and load, and reduces the risk of incorrect installation and disk brake rub.
Specifications
| Frame material | Double-Butted Chromoly Steel Frame |
| 5 Sizes | XS, S, M, L, XL |
| Gears | For 1x rear derailleur gear system |
| Seat post diameter | 31.6 mm |
| Seat post clamp size | 34.0 mm |
| Rear wheel | TA Insert: 622, 12 x 142mm spacing, disc only QR Insert: 622, 10 x 135mm spacing, disc only |
| Front wheel | 406, 15 x 100 mm spacing, disc only |
| Tyre clearance, front | 55mm with mudguards |
| Tyre clearance, rear | 55mm with mudguards |
| Thru Axle Rear | 12×142, 172mm long, 19mm thread length, 1.75mm pitch |
| Thru Axle Front | 15×100, 125mm long, 17mm thread length, 1.5mm pitch |
| Bottom bracket | BSA 68mm |
| Fork headset | 1 1/8″ Threaded Integrated with locking cap |
| Steerer headset | 1 1/8″ Ahead |
| Q-Factor/Stance | 145mm |
| Rack dimensions | 70cm × 50cm, made of Aluminum |
| Standard rack weight | 1320g +/- |
| Rack bolt size | M10 x 15mm |
| Weight | Complete Medium bike weighs 19kg |
| Maximum loading weight on front rack | 85 kg |
| Maximum total loading weight incl. rider | 150 kg |
Components
| Brakes | Shimano MT500, 160mm Rotors |
| Gears | Shimano Deore M5100 11 SPD, Shimano SLX 11-40T Cassette, KMC 11 SPD chain EPT |
| Stem | 6061 Aluminium, 80mm, 31.8mm, Matte Black |
| Handlebar | 6061 Aluminium, 700mm Wide, 15mm Rise, 31.8mm, Matte Black |
| Seatpost | 31.6mm 6061 Aluminium, 15mm Setback, Matte Black |
| Grips | Omnium Foam Lock-on, Black |
| Crankset | Driveline, 42t, CNC Narrow Wide Chainring |
| Bottom Bracket | FSA, Square Taper, 68mm BSA |
| Headset/s | VP Components, Sealed Bearings External Cup (EC34) 1-1/8″ for the Steerer Tube Integrated System (IS42) 1-1/8″ for the Fork |
| Saddle | Omnium Standard |
| Tyres | Schwalbe Big Ben Plus 55-622 (700×55mm) & 55-406 (20×2.15″). |
| Wheels | Omnium WiFi Wheelset: 12 x 142mm Thru Axle 622 (700c) rear & 15 x 100mm Thru Axle 406 (20″) front, 32 mm Internal Width |
| Kickstand | Omnium, Cast Aluminium Twin-Leg |
| Pedals | Platform, Black w/ Reflectors |
| Mudguards | WiFi 60mm Wide Matte Black |
Geometry
| Mini-Max V3 | XS (49.5) | S (52) | M (54.5) | L (57) | XL (60) |
| STL – seat tube length (c-t) | 495 | 520 | 545 | 570 | 600 |
| TTL – top tube length (c-c / actual) | 505 | 520 | 545 | 570 | 600 |
| Stack | 533 | 557 | 581.5 | 605.5 | 634.5 |
| Reach | 347.5 | 355.5 | 373 | 391 | 412.5 |
| SO – standover height | 745.5 | 769.5 | 793.5 | 818 | 846.5 |
| BBH – bottom bracket height | 288 | 288 | 288 | 288 | 288 |
| BBD – bottom bracket drop | 81 | 81 | 81 | 81 | 81 |
| STA – seat tube angle | 73.3 | 73.3 | 73.3 | 73.3 | 73.3 |
| HTA1 – head tube angle rear | 73.6 | 73.6 | 73.6 | 73.6 | 73.6 |
| HTA2 – Head tube angle front | 73.6 | 73.6 | 73.6 | 73.6 | 73.6 |
| WB – wheelbase | 1355 | 1370 | 1395 | 1420 | 1449.5 |
| A-C – axle to crown | 298.5 | 298.5 | 298.5 | 298.5 | 298.5 |
| R – rake | 45 | 45 | 45 | 45 | 45 |
| T – trail | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
| CSL – chainstay length | 462 | 462 | 462 | 462 | 462 |
| FL – full bike length | 1984.5 | 1999.5 | 2024.5 | 2049 | 2079 |
Sizing
Height: 155 – 165cm — we recommend — size X-Small
Height: 165 – 175cm — we recommend — size Small
Height: 175 – 185cm — we recommend — size Medium
Height: 185 – 195cm — we recommend — size Large
Height: 195 – 205cm — we recommend — size X-Large
Sizing Guide
| Rider Height | Recommended Size |
|---|---|
| 155 – 165cm | X-Small |
| 165 – 175cm | Small |
| 175 – 185cm | Medium |
| 185 – 195cm | Large |
| 195 – 205cm | X-Large |
Geometry (Mini-Max V3)
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Seat Tube Length (c-t) | 495mm | 520mm | 545mm | 570mm | 600mm |
| Top Tube Length (c-c actual) | 505mm | 520mm | 545mm | 570mm | 600mm |
| Stack | 533mm | 557mm | 581.5mm | 605.5mm | 634.5mm |
| Reach | 347.5mm | 355.5mm | 373mm | 391mm | 412.5mm |
| Standover Height | 745.5mm | 769.5mm | 793.5mm | 818mm | 846.5mm |
| Bottom Bracket Height | 288mm | ||||
| Bottom Bracket Drop | 81mm | ||||
| Seat Tube Angle | 73.3° (all sizes) | ||||
| Head Tube Angle | 73.6° (all sizes, front & rear) | ||||
| Wheelbase | 1355mm | 1370mm | 1395mm | 1420mm | 1449.5mm |
| Axle to Crown | 298.5mm | ||||
| Rake | 45mm | ||||
| Trail | 29.5mm | ||||
| Chainstay Length | 462mm (all sizes) | ||||
| Full Bike Length | 1984.5mm | 1999.5mm | 2024.5mm | 2049mm | 2079mm |
How to Choose the Right Cargo Bike
-
When you chat with us - whether in the shop or online - we’ll
usually start by asking two simple questions:Where do you ride? Do you tackle a big hill, cruise a long flat commute, or a bit of both?
What do you carry? Is it cargo, kids, or a mix of everything?
Big hills usually mean more power and stronger brakes. Long commutes might call for a high-speed option with a larger battery. Carrying kids or heavier gear means looking at stability and the right accessories.
It can feel overwhelming with so many models out there, but that also means there’s a perfect match for your lifestyle. We’ll help you find it - and you can take an extended test ride to make sure it really fits into your day-to-day.
If you want to explore yourself on our website, go to our cargo bike page and use the filters to narrow down your options based on how you answered the questions above.
-
Most longtail cargo bikes are set up to carry two kids on the back, like the Tern GSD or Specialized Porto. The popular Yuba Spicy Curry can carry three!
Front-loading cargo bikes can fit two or three passengers up front. Each bike can be customised with heaps of accessories -seats, footrests, baskets, rain covers - so we’ll help match the setup to your crew.
-
Non-electric cargo bikes are fine for flat, short trips with lighter loads. But if you’ve got hills, longer distances, or wriggly kids on board, an e-cargo bike will change your life. The motor takes the sting out of climbs, makes heavy loads manageable, and opens up bigger commutes without breaking a sweat.
-
Most e-cargo bikes will happily take you 40–80 km on a single charge. Your range depends on the terrain, assist level, and how much you’re carrying. Some models run dual batteries, which basically doubles your distance - handy for all-day missions.
-
Absolutely.
Cargo bikes are designed with families in mind. Add the right accessories - child seats, harnesses, rain covers - and they’re one of the safest, comfiest ways to get kids around town.
And the best part? Kids love the ride.
-
For a lot of families, yes.
Cargo bikes take care of school runs, shopping, work commutes, even weekend adventures. Many of our customers have sold their second cars and never looked back - some have even sold both! You can haul kids, groceries, pets, or gear without the fuel bills or parking headaches. Some households even call the cargo bike their “first car,” keeping the actual car for long trips and holidays.
