Bombtrack Beyond+ Midtail Frameset

Finance options available with:

Ask A Question x

Pre-order now. Estimated arrival: early December 2026. This is incoming pre-order stock, not stock currently held in our shop.

Frameset listing: frame only, not a complete bike. Fork and build components are not included.

Start your own cargo build with the Bombtrack Beyond+ Midtail frame. Its steel construction and integrated rear rack give you a practical foundation for everyday carrying, bikepacking and loaded adventures, with room to choose the parts that suit the way you ride.

The metallic burgundy frame uses double-butted 4130 chromoly tubing and a reinforced down tube. It is designed for a compatible rigid fork or a 120–140 mm suspension fork, with rack and mudguard mounts and internal dropper-post routing.

What is included

  • Bombtrack Beyond+ Midtail frame with integrated rear rack
  • 12 × 148 mm rear thru-axle
  • Bombtrack Origin 34.9 mm seat clamp

Fork, headset, wheels, drivetrain, brakes, cockpit, seatpost, saddle and carrying accessories are not included.

Need help building a full bike?

We do custom builds. Get in touch and tell us what you want to carry, where you ride and your budget. We can help choose compatible parts and put together a complete bike around this frame.

Complete-build inspiration

The examples below show a complete Bombtrack Beyond+ Midtail build for inspiration only. This listing is for the frame only; the fork, components and accessories shown are not included.

Complete Bombtrack Beyond+ Midtail build inspiration, side view; components not included
Complete-build inspiration only. Frame sold separately; components shown are not included.
Complete Bombtrack Beyond+ Midtail build inspiration, front three-quarter view; components not included
Example complete build. Get in touch to discuss your own custom build.

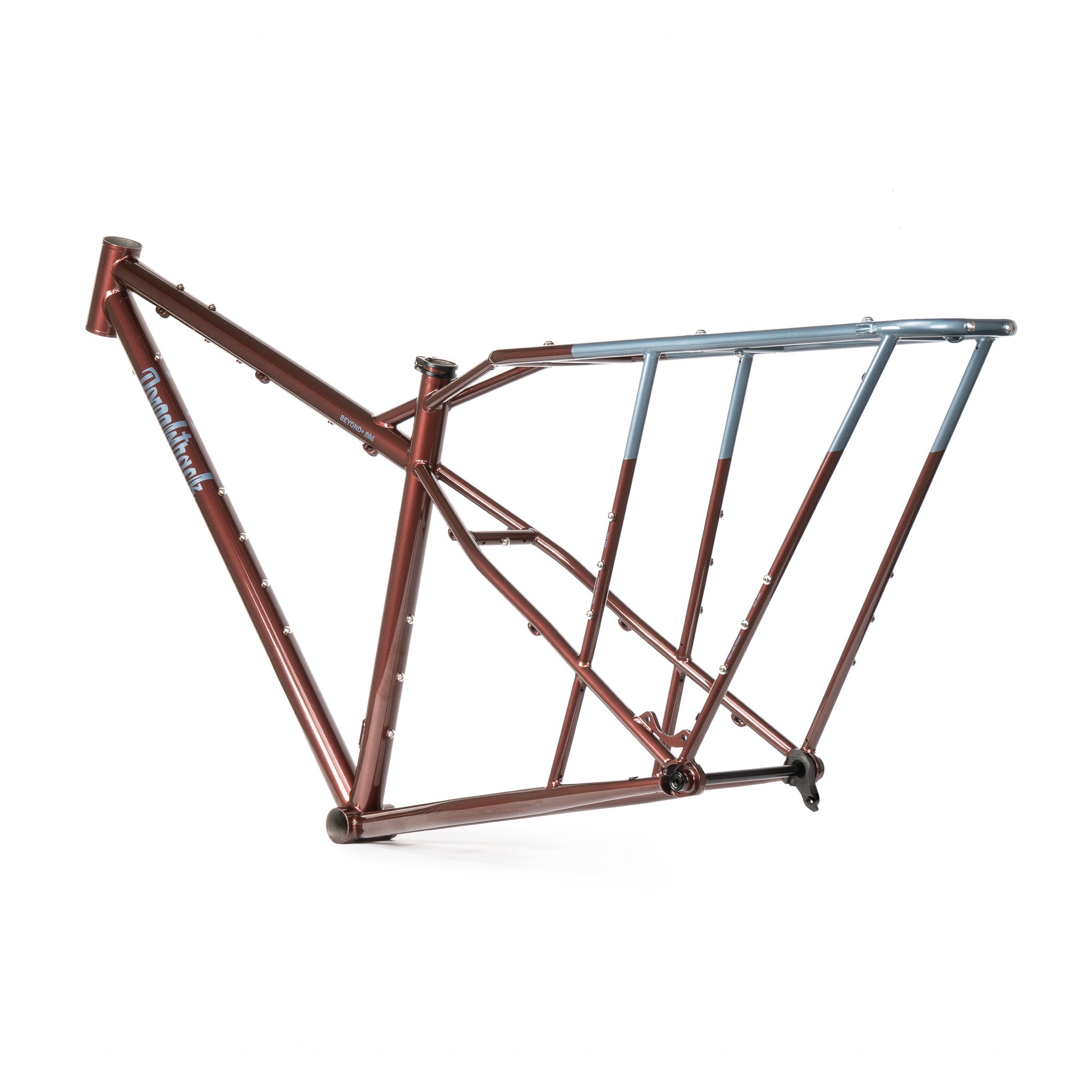

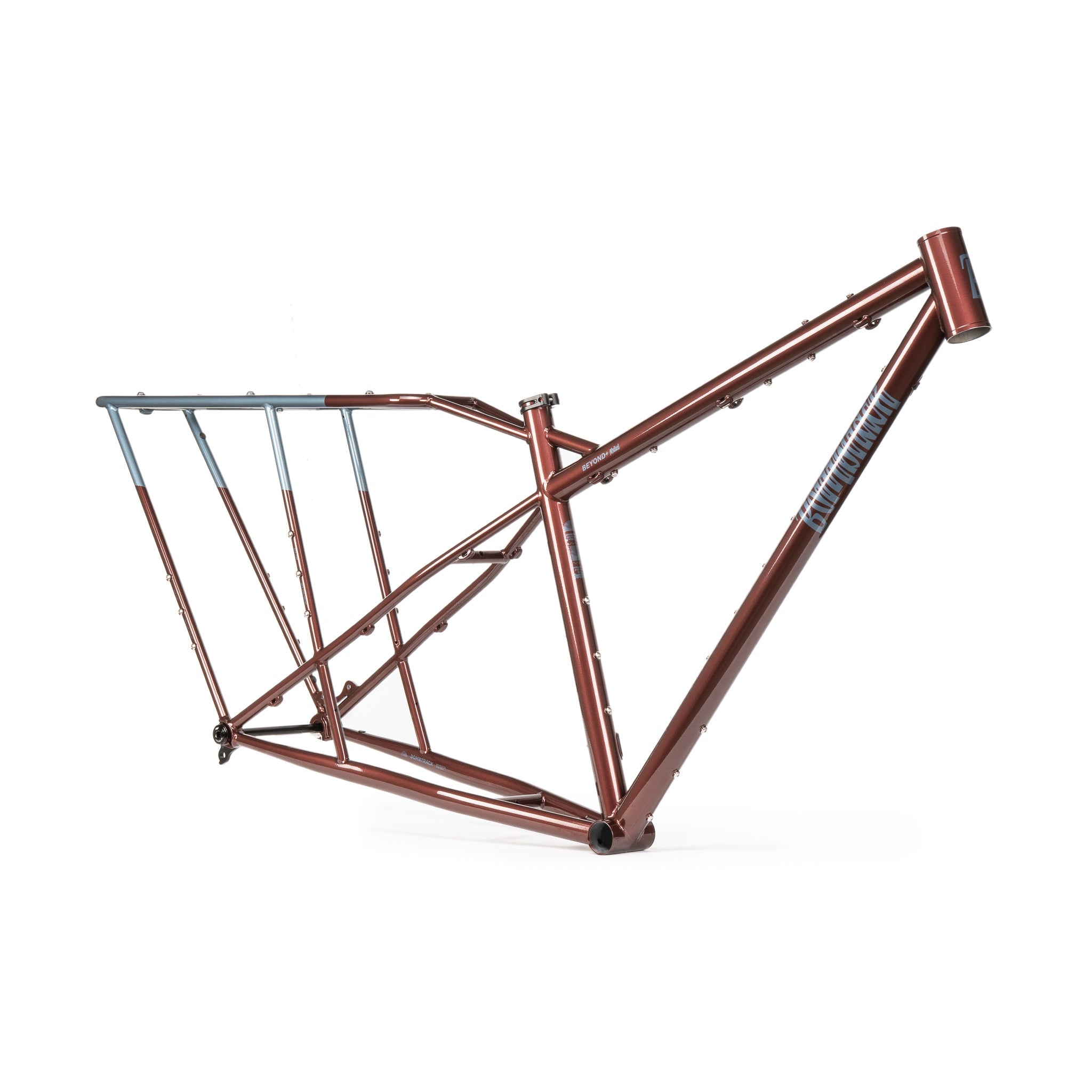

Frame only: Bombtrack Beyond+ Midtail frame with integrated rear rack; fork and complete-bike components are not included.

Colour: Metallic burgundy.

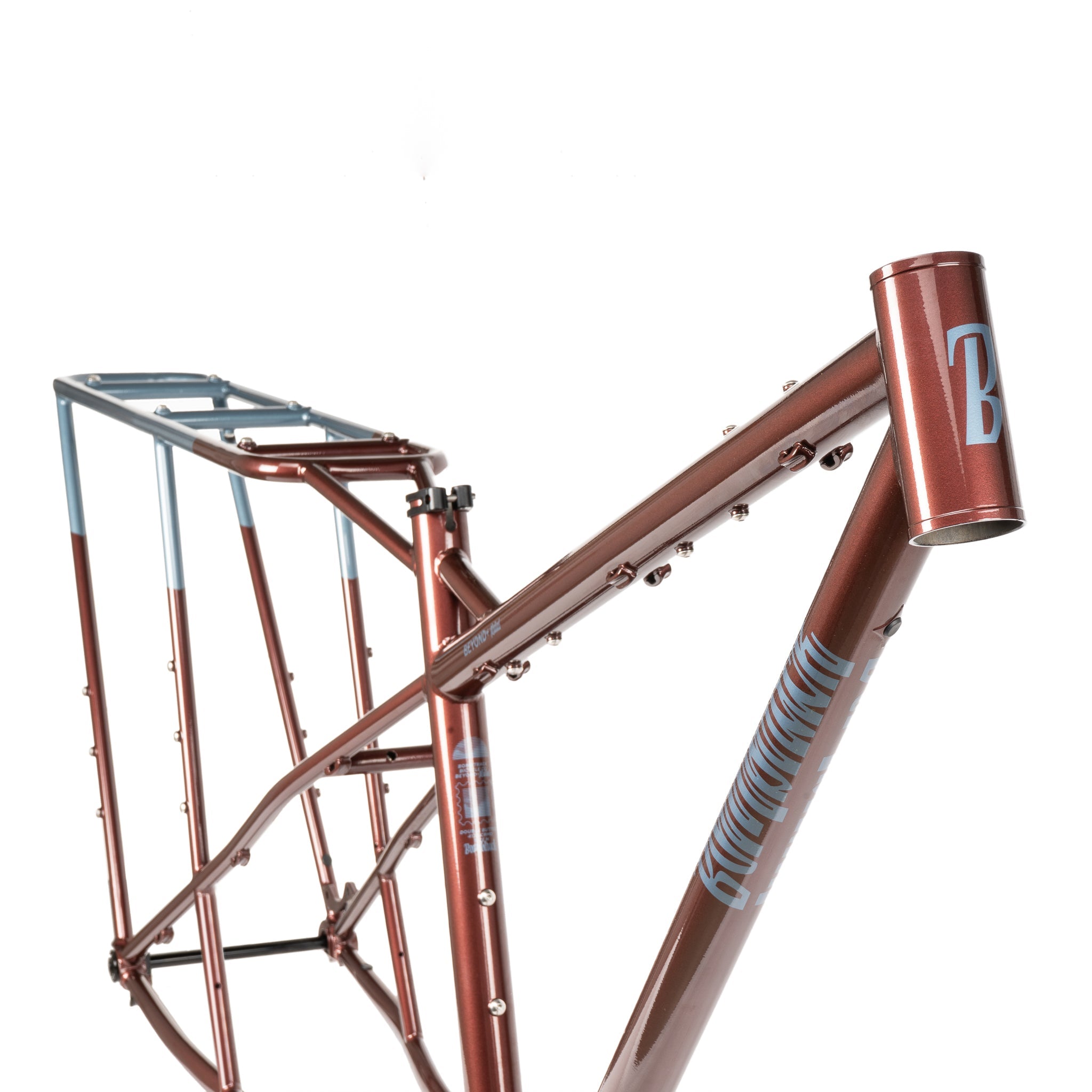

Frame: Double-butted 4130 chromoly steel; reinforced down tube; ED coating; rack and mudguard mounts; internal dropper-post routing.

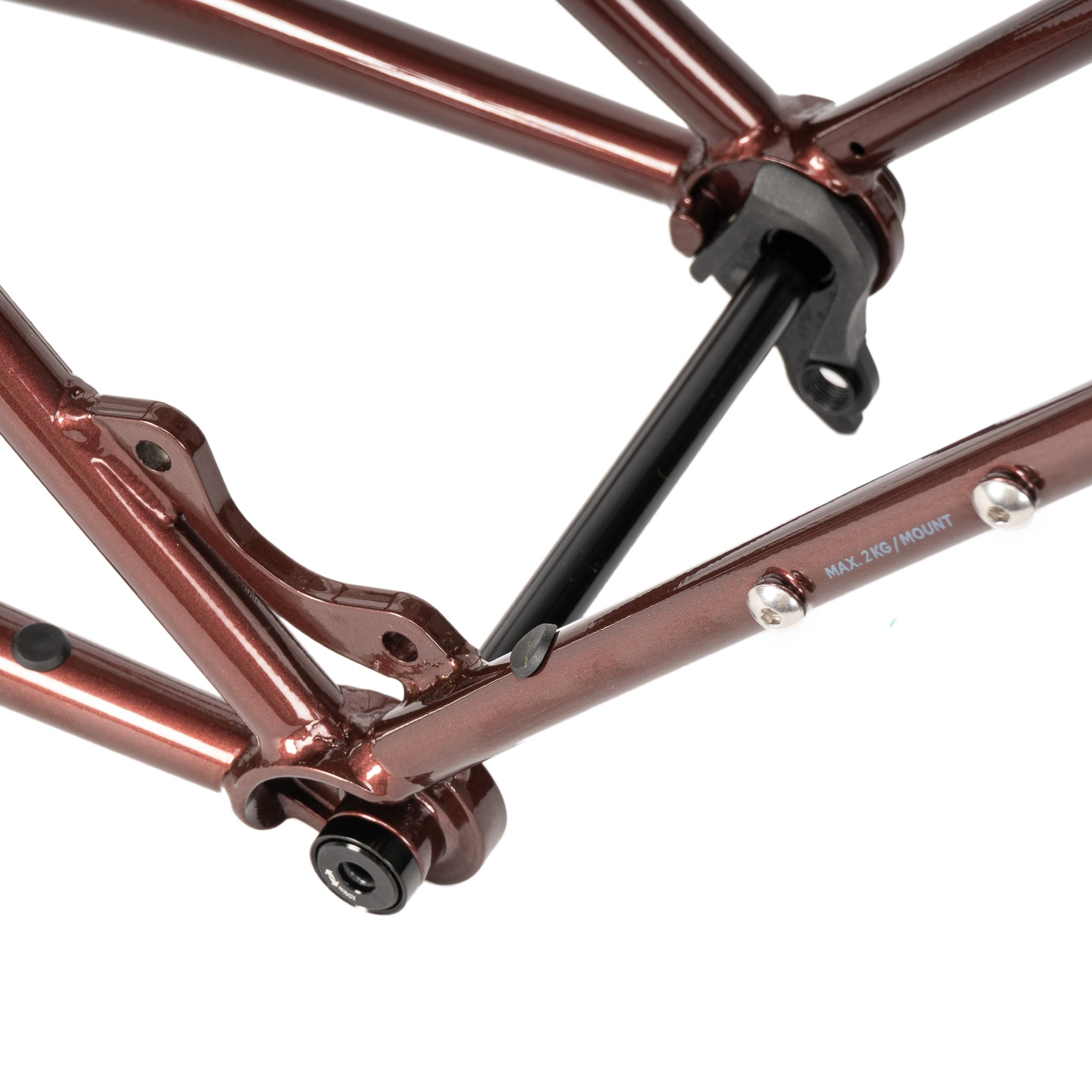

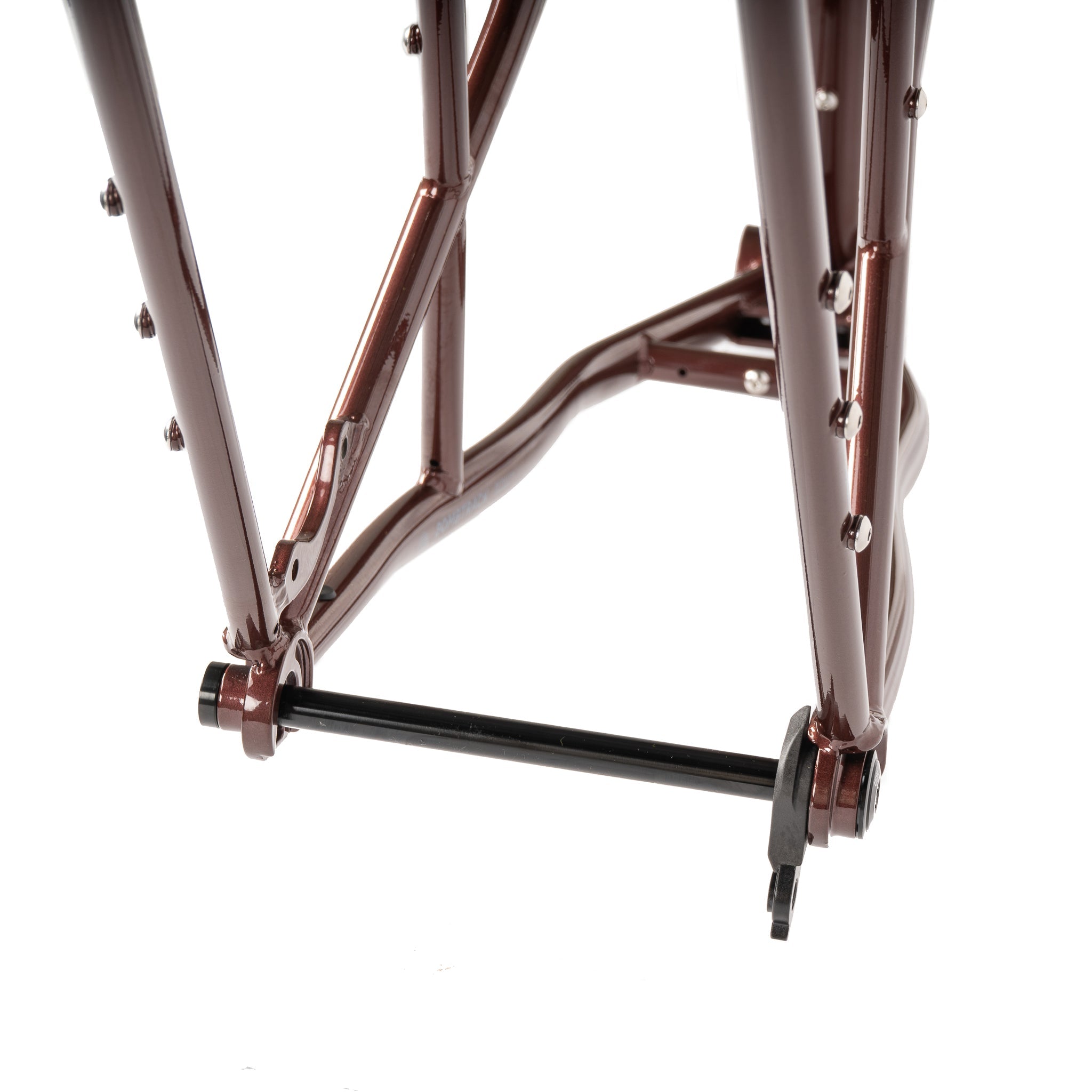

Included hardware: 12 × 148 mm rear thru-axle and Bombtrack Origin 34.9 mm seat clamp.

Fork compatibility: Seido BPS, Seido Taza or a compatible 120–140 mm suspension fork; fork supplied separately.

Rear spacing: Boost 148 mm.

Bottom bracket: 73 mm BSA threaded shell.

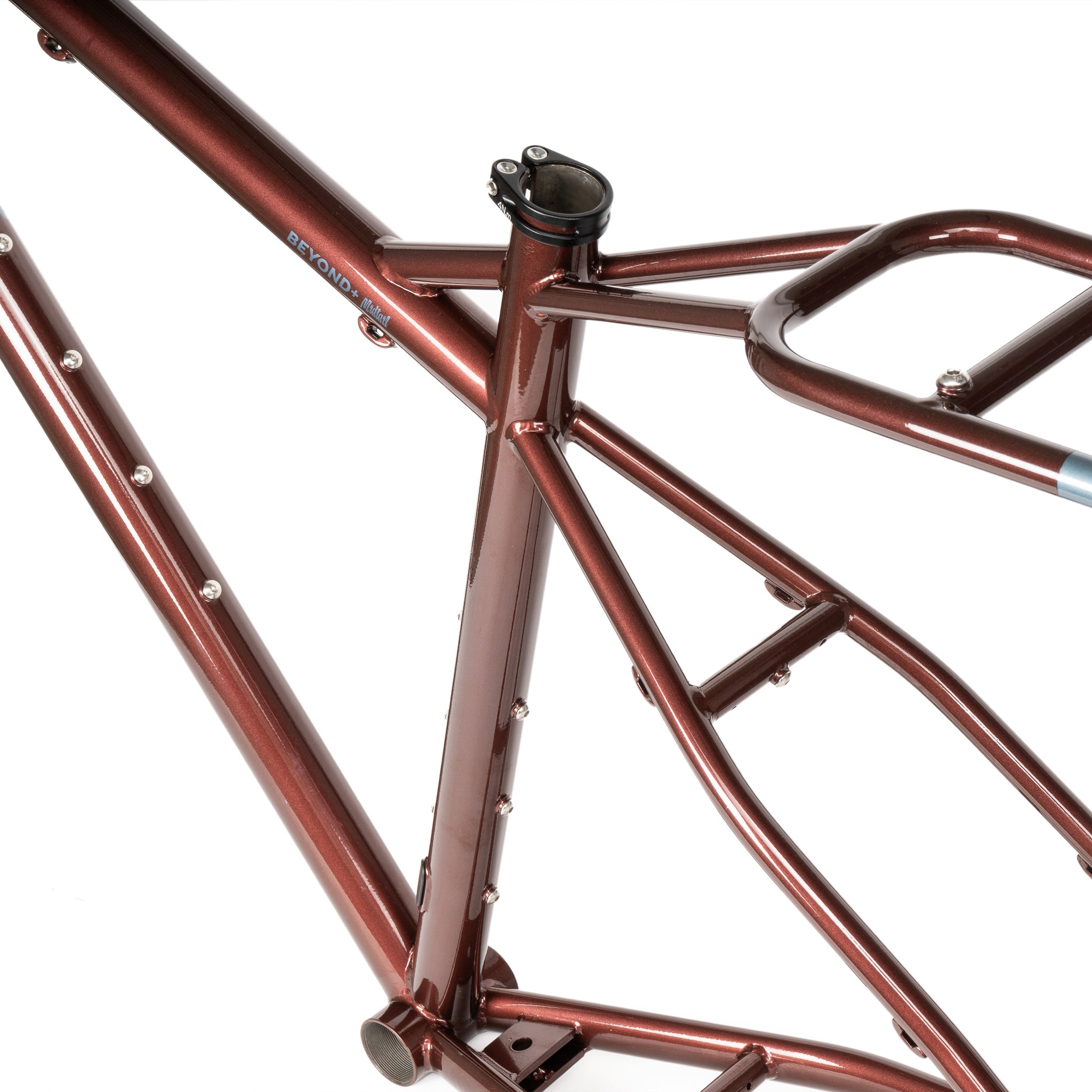

Seatpost: 30.9 mm diameter; seat clamp 34.9 mm.

Rear brake mount: IS; maximum rear rotor 180 mm.

Derailleur hanger: SRAM UDH.

Chainline: 52 mm. A 55 mm chainline can contact the driveside rack stay.

Maximum 1× chainring: 48T with 52 mm chainline.

Tyre clearance without mudguards: up to 29 × 3.0 in; tyres wider than 29 × 2.6 in reduce the maximum possible inner chain angle.

Frame weight: approximately 4,700 g in size M, including thru-axle and hanger.

Available pre-order sizes: M, L and XL. Estimated arrival early December 2026.

How to Choose the Right Cargo Bike

When you chat with us - whether in the shop or online - we’ll
usually start by asking two simple questions:

Where do you ride? Do you tackle a big hill, cruise a long flat commute, or a bit of both?

What do you carry? Is it cargo, kids, or a mix of everything?

Big hills usually mean more power and stronger brakes. Long commutes might call for a high-speed option with a larger battery. Carrying kids or heavier gear means looking at stability and the right accessories.

It can feel overwhelming with so many models out there, but that also means there’s a perfect match for your lifestyle. We’ll help you find it - and you can take an extended test ride to make sure it really fits into your day-to-day.

If you want to explore yourself on our website, go to our cargo bike page and use the filters to narrow down your options based on how you answered the questions above.

Most longtail cargo bikes are set up to carry two kids on the back, like the Tern GSD or Specialized Porto. The popular Yuba Spicy Curry can carry three!

Front-loading cargo bikes can fit two or three passengers up front. Each bike can be customised with heaps of accessories -seats, footrests, baskets, rain covers - so we’ll help match the setup to your crew.

Non-electric cargo bikes are fine for flat, short trips with lighter loads. But if you’ve got hills, longer distances, or wriggly kids on board, an e-cargo bike will change your life. The motor takes the sting out of climbs, makes heavy loads manageable, and opens up bigger commutes without breaking a sweat.

Most e-cargo bikes will happily take you 40–80 km on a single charge. Your range depends on the terrain, assist level, and how much you’re carrying. Some models run dual batteries, which basically doubles your distance - handy for all-day missions.

Absolutely.

Cargo bikes are designed with families in mind. Add the right accessories - child seats, harnesses, rain covers - and they’re one of the safest, comfiest ways to get kids around town.

And the best part? Kids love the ride.

For a lot of families, yes.

Cargo bikes take care of school runs, shopping, work commutes, even weekend adventures. Many of our customers have sold their second cars and never looked back - some have even sold both! You can haul kids, groceries, pets, or gear without the fuel bills or parking headaches. Some households even call the cargo bike their “first car,” keeping the actual car for long trips and holidays.
