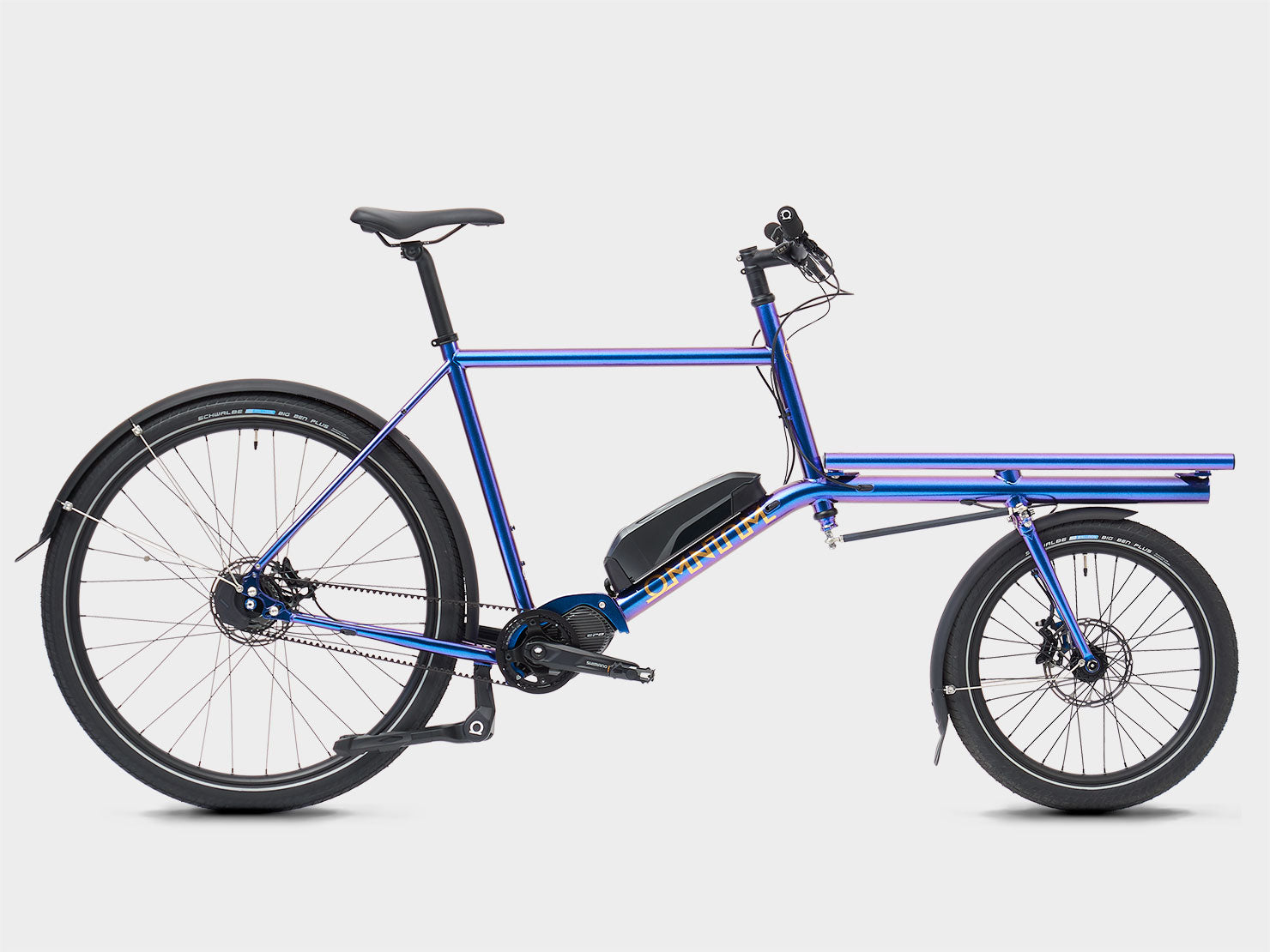

Omnium E-Mini-Max V3

Finance options available with:

│ Please contact us to confirm availability before purchasing online │ In stock models available from supplier, out of stock models may be available if listed on omniumcargo.com official website│

Description

The Mini-Max is the middle child of the lot, with the best of both the Cargo and Mini. The shorter wheelbase makes it handle more like a normal bike, resulting in a tighter turn radius and increased manoeuvrability.

Though the rack lacks the horns seen on the Cargo, it retains extender bar compatibility, and can still take some pretty impressive loads!

The fact that the front wheel is positioned more in the middle of the rack is positive for steering and handling, while stability during heavy loads is slightly less than that of the Cargo.

The Mini-Max is for those who value snappier turns and a tighter parking spot, and aren‘t necessarily looking to max out hauling capabilities on the regular.

DESIGN

Omnium E-Mini-Max with integrated Shimano EP8 Cargo drive unit. The powerful Shimano EP8-CRG motor is strong enough to handle the steepest of hills with a load, yet intuitive enough to give you just the right amount of support every pedal stroke along the way. Designed specifically to give you that natural feel of riding a normal bike. The system weighs only 2.8kg, one of the lightest motors on the market. Stable, smooth intuitive power for improved bike handling over every part of your day. Solidly supports speeds up to 32 km/h.

Battery
Ultra-durable, replaceable, powerful battery specially designed for the rigors of cargo biking. Low profile design for improved impact and vibration resistance. High-capacity long-lasting Li-Ion battery of 504Wh to cover more territory. Supported travel up to 100 km on one charge. 1,000 charge cycles with no significant power loss.

Electronic Shifting
With the e-bike specific Nexus inter-5e hub we introduce electronic shifting on all e-bikes. This makes for easy and maintenance free gear shifting. The hub offers a 263% gear range with optional automatic shifting.

Gates Beltdrive
Extremely durable and maintenance free Gates Beltdrive drivetrain will make sure you won’t drop or break the chain due to the high torque of the drive unit. It will run smooth for thousands of km without having to grease it. Moreover, you won’t have oil on your drivetrain to smush your trousers or your hands when changing an inner tube or adjusting the rear wheel.

Frame & Geometry

• Frame: Double-butted Chromoly steel

• Sizes: XS, S, M, L, XL

• Seatpost Diameter: 31.6 mm

• Seatpost Clamp: 34.0 mm

• Fork Headset: 1 1/8″ threaded integrated with locking cap

• Steerer Headset: 1 1/8″ Ahead

• Thru Axle Front: 15×100, 125 mm long, 17 mm thread, 1.5 mm pitch

• Rear Wheel: 622, 12 x 142 mm spacing, disc only

• Front Wheel: 406, 15 x 100 mm spacing, disc only

• Tyre Clearance (front & rear): 55 mm with mudguards

• Recommended Max Weight (rider + load): 150 kg

• Complete Bike Weight: 28 kg (including webbing)

Rack

• Dimensions: 70 × 50 cm aluminium

• Weight: 1320 g +/-

• Bolt Size: M10 x 15 mm

Geometry

• Standover Height: 745 – 846 mm (size dependent)

• Wheelbase: 1355 – 1450 mm

• Chainstay Length: 462 mm

• Full Bike Length: 1985 – 2079 mm

• Bottom Bracket Height: 288 mm

• Seat Tube Angle: 73.3°

• Head Tube Angle: 73.6°

• Reach: 348 – 413 mm

• Stack: 533 – 635 mm

Sizing Guide

• Height 165 – 175 cm → Size Small

• Height 175 – 185 cm → Size Medium

• Height 185 – 195 cm → Size Large

E-System

• Motor: Shimano Steps EP8-CRG

• Crankset: Shimano Steps FC-EM600, 165 mm with Gates 39T chainring

Drivetrain

• Gearing: Shimano Nexus 5 internal gear hub

• Belt: Gates Carbon Drive CDX 125T

• Rear Sprocket: Gates CDX 28T

• Shifters: Enviolo Twist Display Pure

Brakes

• SRAM Guide RE, 4-piston hydraulic disc, IS 160 mm rotors (front & rear)

Cockpit

• Stem: 3D forged 6061 aluminium, 80 mm, oversize 31.8 mm

• Handlebar: 6061 aluminium, 700 mm wide, 15 mm rise

• Seatpost: Forged alloy 6061, 31.6 mm, 15 mm setback

• Grips: Omnium lock-on foam

• Saddle: Omnium Standard Saddle

• Headset: VP Components, sealed bearings

Wheels & Tyres

• Rear Wheel: Nexus Inter-5e, 622 (700c), QR, 38 mm rim

• Front Wheel: Thru-axle 406 (20"), 38 mm rim

• Tyres: Schwalbe Big Ben Plus 55-622 (700x55 mm) & 55-406 (20x2.15″)

Accessories

• Kickstand: Omnium cast aluminium twin-leg

• Pedals: Cast metal platform, black

• Mudguards: WiFi 60 mm matte black

Sizing Guide

• Height 165 – 175 cm → Size Small

• Height 175 – 185 cm → Size Medium

• Height 185 – 195 cm → Size Large

Warranty Information

Frame & Fork Warranty

• 5-year limited warranty on frame and fork (original purchaser, provided loading limits are respected)

Components & Accessories

• Standard limited warranty for components and replaceable frame parts; extended frame coverage does not apply to these items
