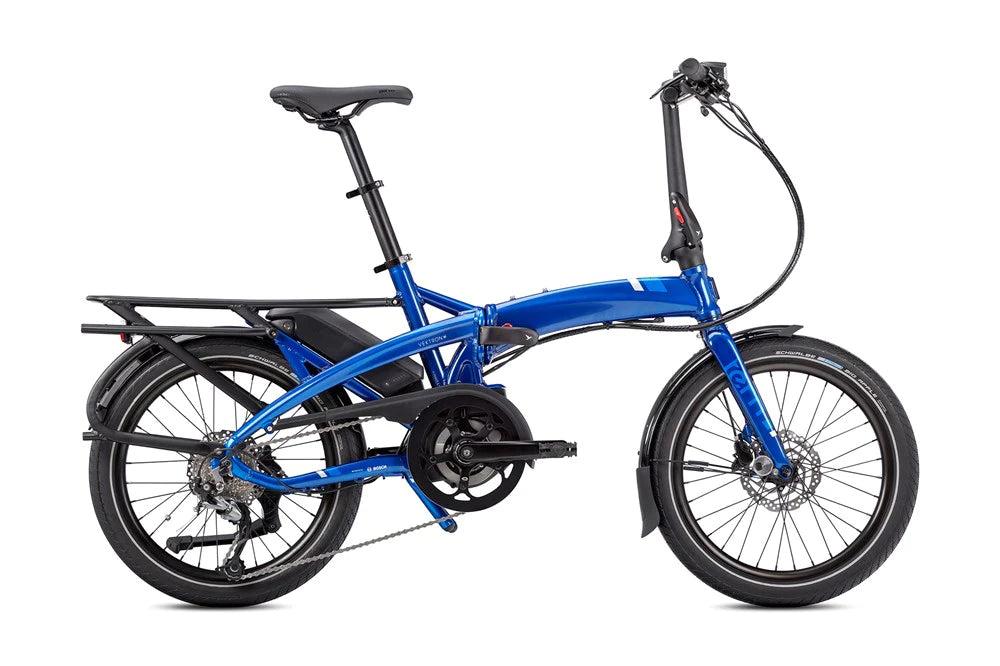

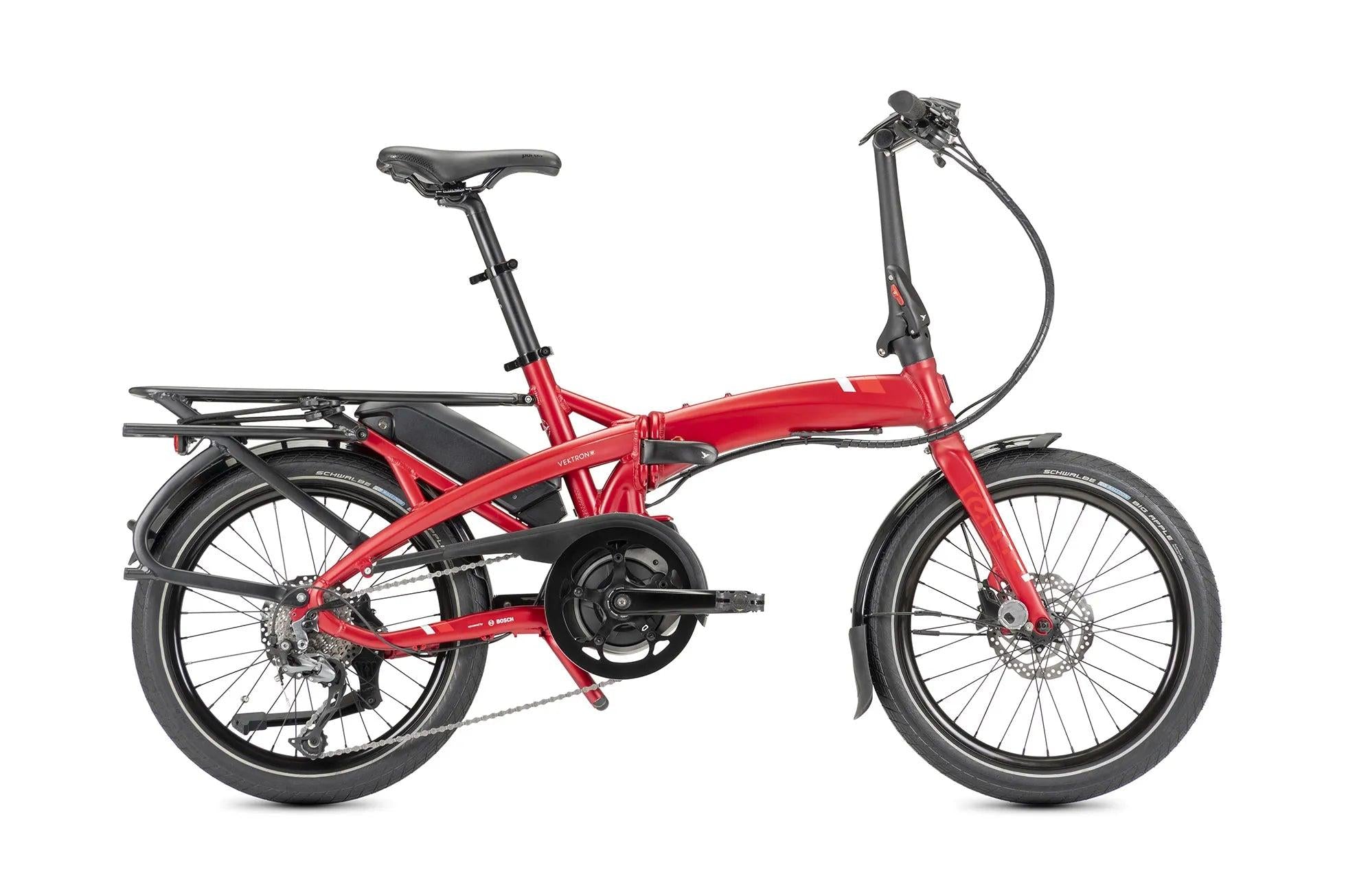

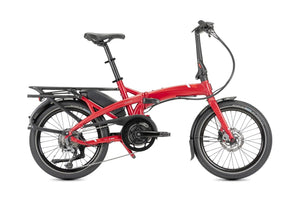

Tern Vektron Q9 Folding E-Bike

Available now. Test bike in store.

The Vektron Q9 is equipped with hydraulic disc brakes, a sturdy rear rack, Valo Direct light, and fenders—so it is ideal for all-season commuting in the city.

In test after test, the Vektron is called the best folding ebike on the market. The updated Vektron gets even better with improved geometry, Bosch’s newest and virtually silent motor, and a burly, extended rack. With a Vektron, a lot of your car trips will start turning into bike trips.

School runs have never been more fun! The Vektron is designed to fit a Thule Yepp Maxi or a Nexxt Maxi seat—no adapters needed.

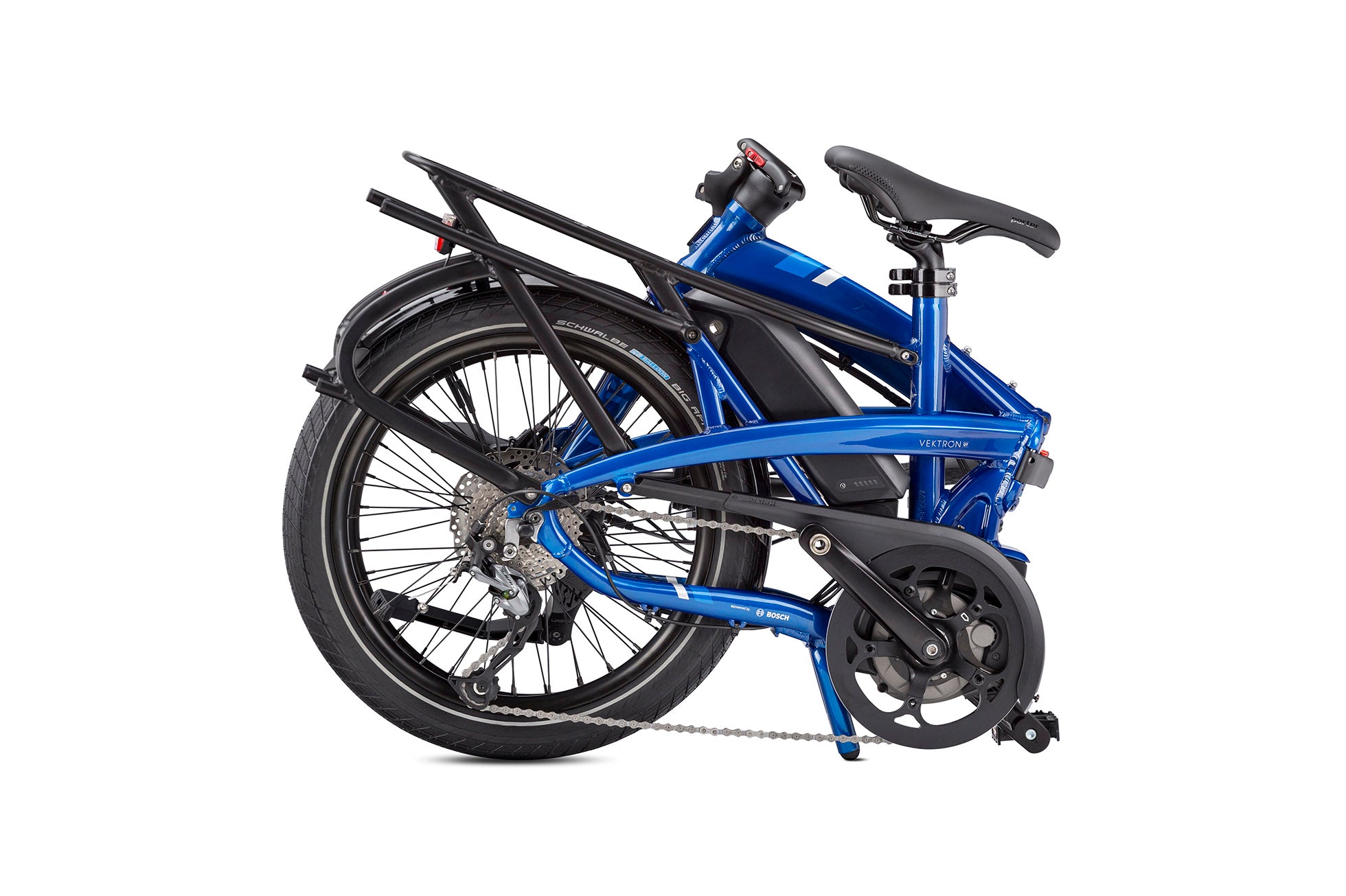

Once you fold your Vektron, it’s easy to roll it around. The new frame design also lets you keep the bike in vertical position when folded, so stopping and going is easier than ever.

  • German-engineered Bosch Active Line electric drivetrain—the industry leader in electric bike technology

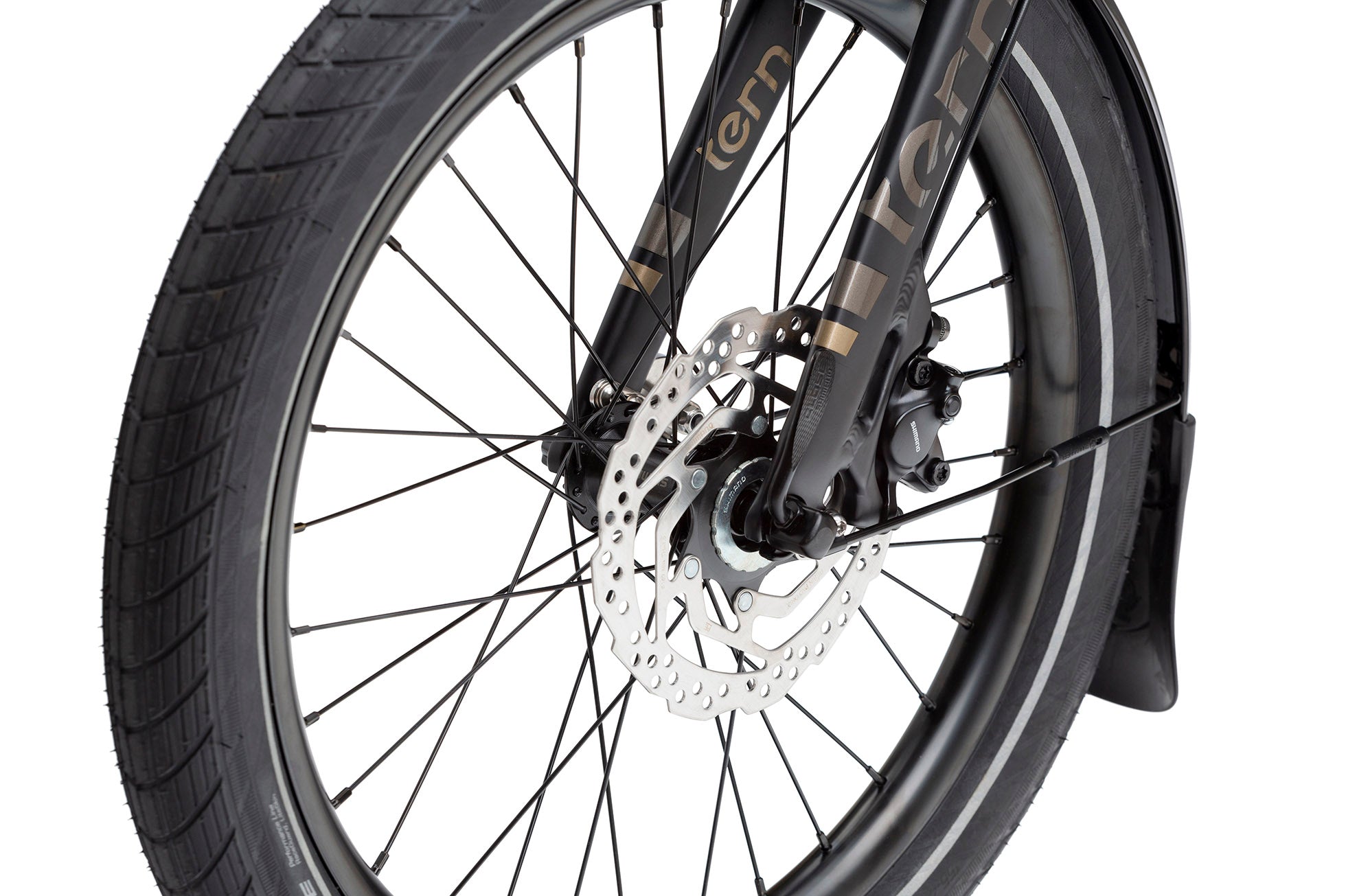

  • Hydraulic disc brakes for all-weather stopping power
  • New frame design, with a reclining battery for a lower center of gravity and better ride
  • Integrated Atlas Rack works seamlessly with Thule Yepp Maxi and Nexxt Maxi child seats—no adapters needed
  • Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family

GENERAL INFO
  • SPEEDS: 1 x 9
  • WEIGHT: 21.9 kg (48.3 lb)
  • GEAR INCHES: 33" - 97" (2.65 - 7.72 m)
  • FOLDING SIZE: 41 × 86 × 68 cm (16.1 × 33.9 × 26.8 in)
  • FOLDING TIME: 10 sec
  • FRAME SIZES: One size
  • DISTANCE: SEATPOST TO HANDLEBAR: 62 - 69 cm (24.4 - 27.2 in)
  • DISTANCE: SADDLE TO PEDAL: 67 - 110 cm (26.4 - 43.3 in)
  • SUGGESTED RIDER HEIGHT: 147 - 195 cm (57.9 - 76.8 in)
  • MAX GROSS VEHICLE WEIGHT: 125 kg (275.6 lb)
  • MAX RIDER WEIGHT: 105 kg (231.5 lb)



FRAME
  • FRAME: Vektron G2 Frame
  • FORK: Tern Tarsus, 6061-Al, hydroformed



COCKPIT
  • HANDLEPOST: Tern Physis 3D, 3D forged, 5 patented technologies
  • STEM: Tern Andros, adjustable, forged construction, patented technology
  • HEADSET: Tern Flux, cartridge bearings, Physis integrated
  • HANDLEBAR: Flat bar, 6061-AL, Tern Andros adapted
  • GRIPS/BAR TAPE: Velo ergonomic, lock-on
  • SADDLE: Tern Porter, patented GripPad design
  • SEATPOST: Tern Telescope, 34.9 mm, Lite 2014-AL
  • SEATPOST CLAMP: Oversize, 6061-AL, 2pc



BRAKES
  • FRONT BRAKE: Shimano, hydraulic disc
  • REAR BRAKE: Shimano, hydraulic disc
  • BRAKE LEVERS: Shimano, hydraulic disc
  • BRAKE CABLE & HOUSING: Shimano, hydraulic disc



WHEELS
  • FRONT HUB: Shimano disc
  • REAR HUB: Shimano disc
  • SPOKES AND NIPPLES: Stainless
  • RIMS: Kinetix Comp, for disc
  • TIRES: Schwalbe Big Apple, 55-406, puncture protection, Reflex



TRANSMISSION
  • SHIFTER(S): Shimano Alivio, 1 x 9 spd, trigger
  • REAR DERAILLEUR: Shimano Alivio Shadow
  • CRANKSET: Vektron custom, forged 6061-AL crankarm
  • CASSETTE/FREEWHEEL: Shimano 11-32T, 9 spd
  • BOTTOM BRACKET: Motor integrated
  • CHAIN: 9 spd, DHT for eBike, GST corrosion resistant coating
  • PEDALS: MKS EZY
  • SHIFTER CABLE & HOUSING: Jagwire LEX-SL, slick treatment, alloy ferrules



E-SYSTEM
  • MOTOR: Bosch Active Line, 36 V/250 W, max speed 32kph
  • BATTERY: Bosch PowerPack 400 Wh
  • DISPLAY: Bosch Purion, 4 mode selectable, walk assist
  • RANGE: 400 Wh: 50-130 km (30-80 mi)
  • CHARGER: Bosch Compact Charger



BELLS & WHISTLES
  • BELL: Aluminum
  • CHAINGUARD: SKS Chainblade
  • KICKSTAND: URSUS MOOI, rear mount
  • CLIP SYSTEM: Magnetix 2.0
  • LUGGAGE SOCKET: Yes
  • FRONT LIGHT: Tern Valo Direct, integrated, 41 lux/150 lumens
  • REAR LIGHT: Herrmans H-Trace, for eBike
  • FENDERS: SplashGuard, stainless hardware

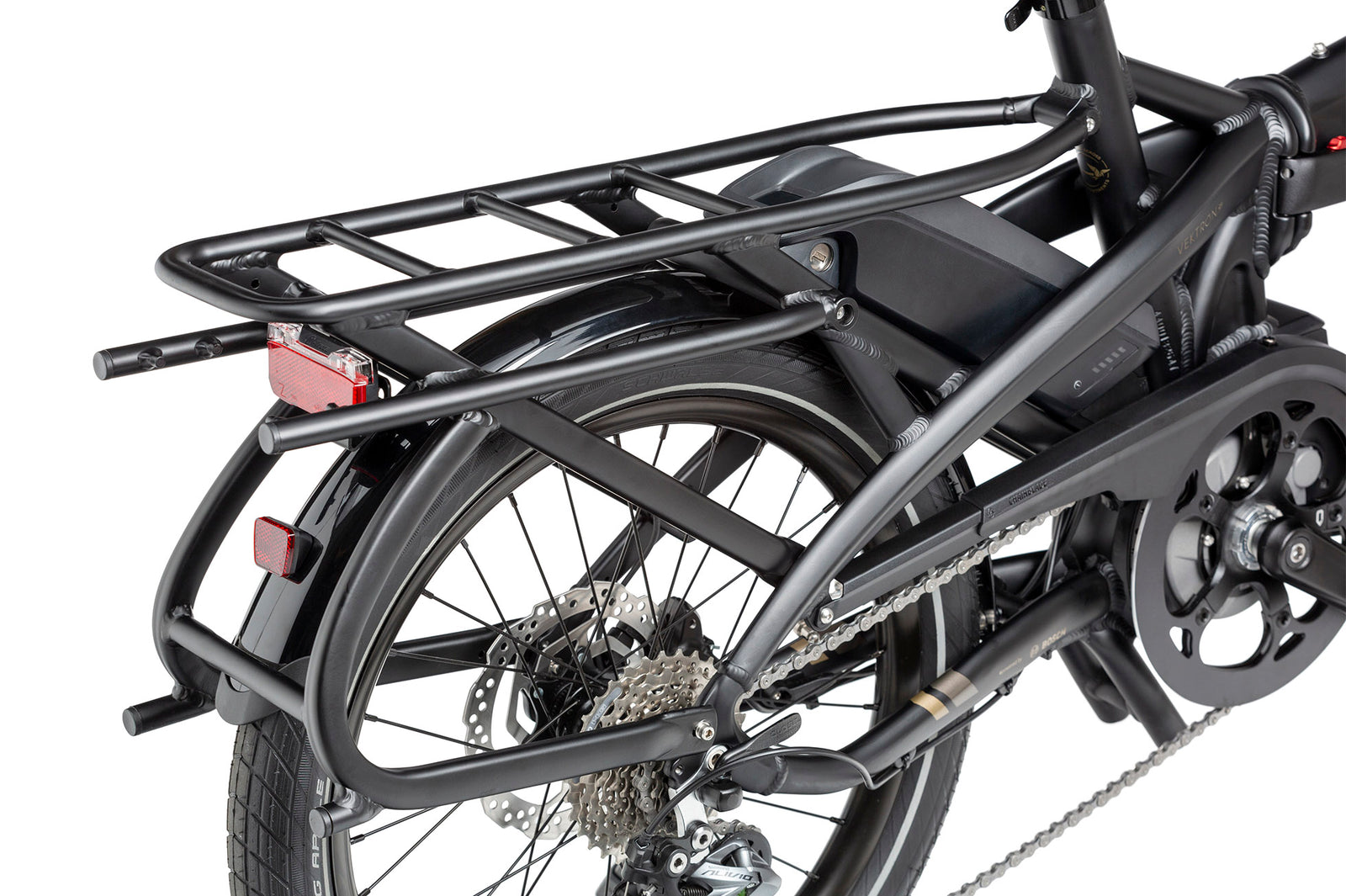

  • RACK(S): Atlas V Rack, integrated 8 point mounting, max load capacity 27 kg (59 lb)
