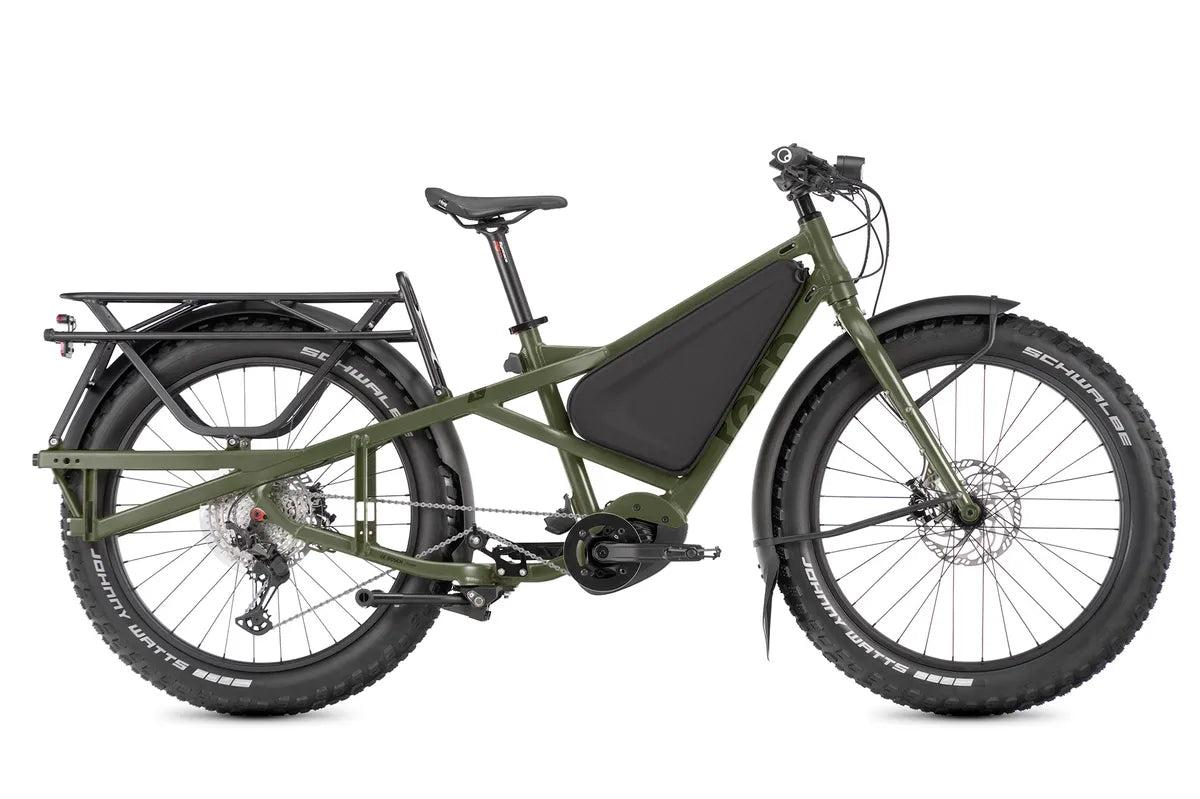

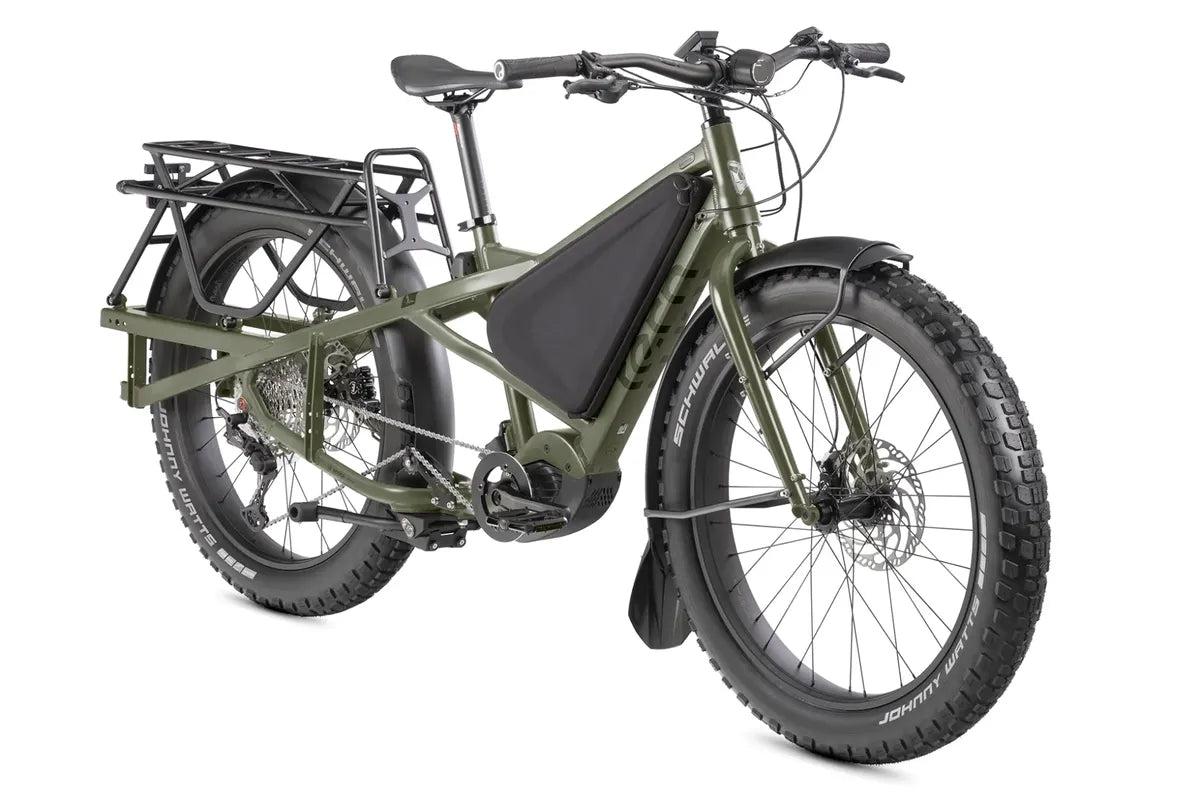

TERN Orox S12

EXPLORE NEW GROUND

WHAT MAKES IT AN S12?

  • Shimano Deore XT 1 x 12-speed groupset for fast and precise shifting
  • 27.5" stud-compatible Vee Snowball tires take on even the toughest conditions

OROX HIGHLIGHTS

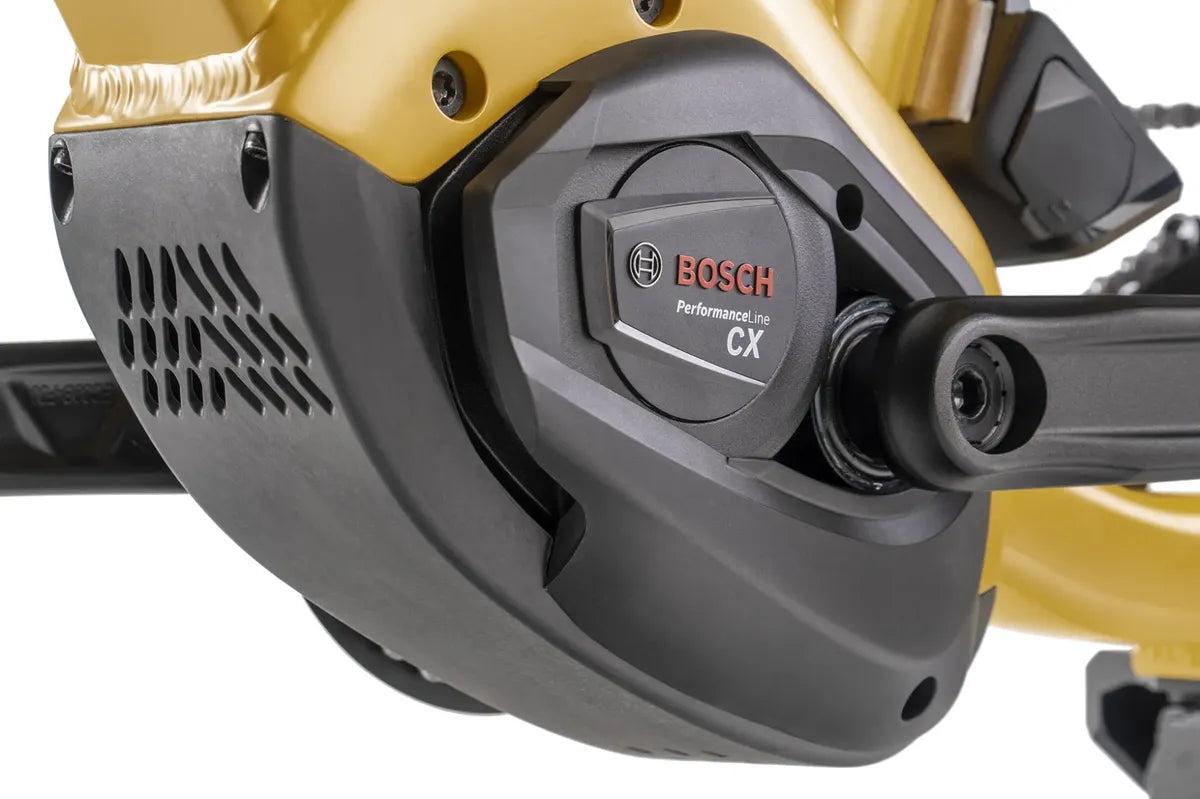

  • Hill-attacking Bosch Performance Line CX motor provides up to 85 Nm of torque and 340% support

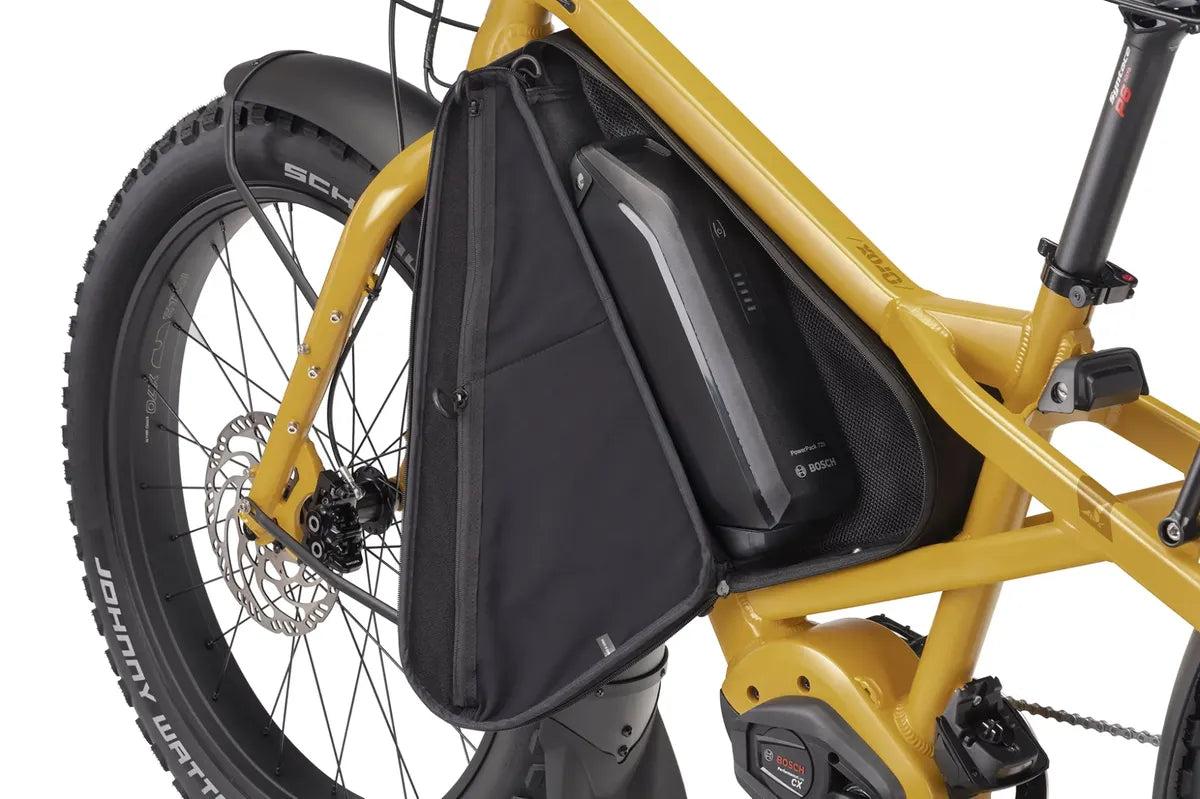

  • Dual-battery system draws from up to two batteries for ultra-long range
  • Bosch Smart System with ConnectModule lets you access and control advanced functions like eBike Alarm and eBike Tracking

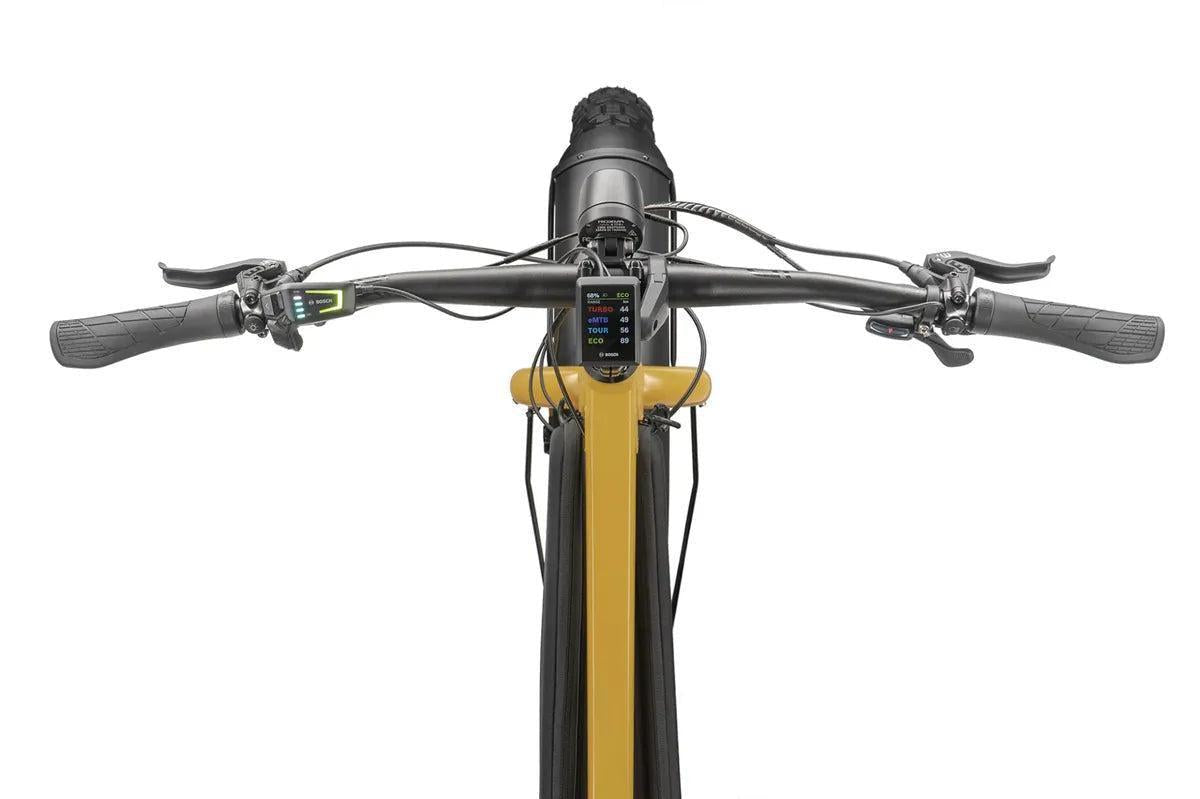

  • Splash and dust-proof Kiox 300 color display with LED remote for intuitive control
  • Powerful and responsive Magura 4-piston hydraulic brakes
  • EFBE-certified safe and reliable for massive hauls, with a Max Gross Vehicle Weight of 210 kg (462 lb) on pavement and 180 kg (397 lb) off-road
  • Two frame sizes to fit riders 155 - 195 cm (5’1” - 6’5”) tall, weighing up to 130 kg (286 lb)

SPECIFICATIONS

GENERAL INFO

SPEEDS 1 x 12
WEIGHT M: 37.1 kg (81.8 lb)
GEAR INCHES 1.48 - 7.54 m (18" - 95")
FRAME SIZES M, L
DISTANCE: SEATPOST TO HANDLEBAR

M: 61 - 66 cm (24 - 26 in)

L: 67 - 73 cm (26.4 - 28.7 in)

DISTANCE: SADDLE TO PEDAL

M: 71 - 99 cm (28 - 39 in)

L: 76.5 - 104.5 cm (30.1 - 41.1 in)

SUGGESTED RIDER HEIGHT

M: 155 - 185 cm (61 - 72.8 in)

L: 165 - 195 cm (65 - 76.8 in)

MAX GROSS VEHICLE WEIGHT

On-road: 210 kg (463 lb)

Off-road: 180 kg (396.8 lb)

MAX RIDER WEIGHT 130 kg (286.6 lb)

FRAME

FRAME Tern Orox, 6061-AL, patented design, EFBE tested and approved
FORK Atlas X, butted chromoly steel, EFBE tested and approved

COCKPIT

STEM Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified
HEADSET FSA, 1.5", angular contact bearings
HANDLEBAR Level Nine, AL-7050, 800 mm, riser, eMTB approved
GRIPS/BAR TAPE Ergon
SADDLE Ergon SM, E-Mountain Sport, CrMo Rail
SEATPOST Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved
SEATPOST CLAMP Tern Collar

BRAKES

FRONT BRAKE Magura MT5, 4-piston hydraulic disc, 203 mm rotor
REAR BRAKE Magura MT5, 4-piston hydraulic disc, 203 mm rotor
BRAKE LEVERS Magura MT5, hydraulic
BRAKE CABLE & HOUSING Magura, hydraulic

WHEELS

FRONT WHEEL Tern Atlas X, ultra-heavy duty cargo construction, 27.5"
REAR WHEEL Tern Atlas X, ultra-heavy duty cargo construction, 27.5"
FRONT HUB Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx
REAR HUB Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, Syntace X-12 standard
SPOKES & NIPPLES Stainless steel
RIMS Tern Atlas X, custom doublewall construction
TIRES Vee Snow Ball, 27.5 x 4 or Schwalbe Johnny Watts 27.5" x 4"

TRANSMISSION

SHIFTER(S) Shimano Deore, 1 x 12 spd
REAR DERAILLEUR Shimano Deore XT Shadow+
CRANKSET Tern Orox custom
CASSETTE/FREEWHEEL Shimano 10-51T, 12 spd
BOTTOM BRACKET Motor integrated
CHAIN KMC 12 spd, for eBike, EPT corrosion resistant coating
PEDALS MTB, non-slip
SHIFTER CABLE & HOUSING Jagwire LEX-SL, slick treatment, alloy ferrules

E-SYSTEM

MOTOR Bosch Performance CX, max speed 32 km/h / 20 mi/h (NZ)
BATTERY 725 Wh, Bosch Dual Battery pack ready
DISPLAY Bosch Kiox 300 w/ LED remote, electronic bike lock
RANGE 725 Wh: 84 - 146 km (52 - 91 mi)
1450 Wh: 168 - 292 km (104 - 181 mi)
CHARGER 220V, 4A (EU)
100-240V, 4A (US)
CONNECT MODULE Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation

BELLS & WHISTLES

BELL Pitch Plus, brass
TOOL Thru-axle lever, 4/5 mm, Torx 2.5 mm
CHAINGUARD Custom Bash Guard
PAINT PROTECTION ToughShield film on top and downtube, self-healing

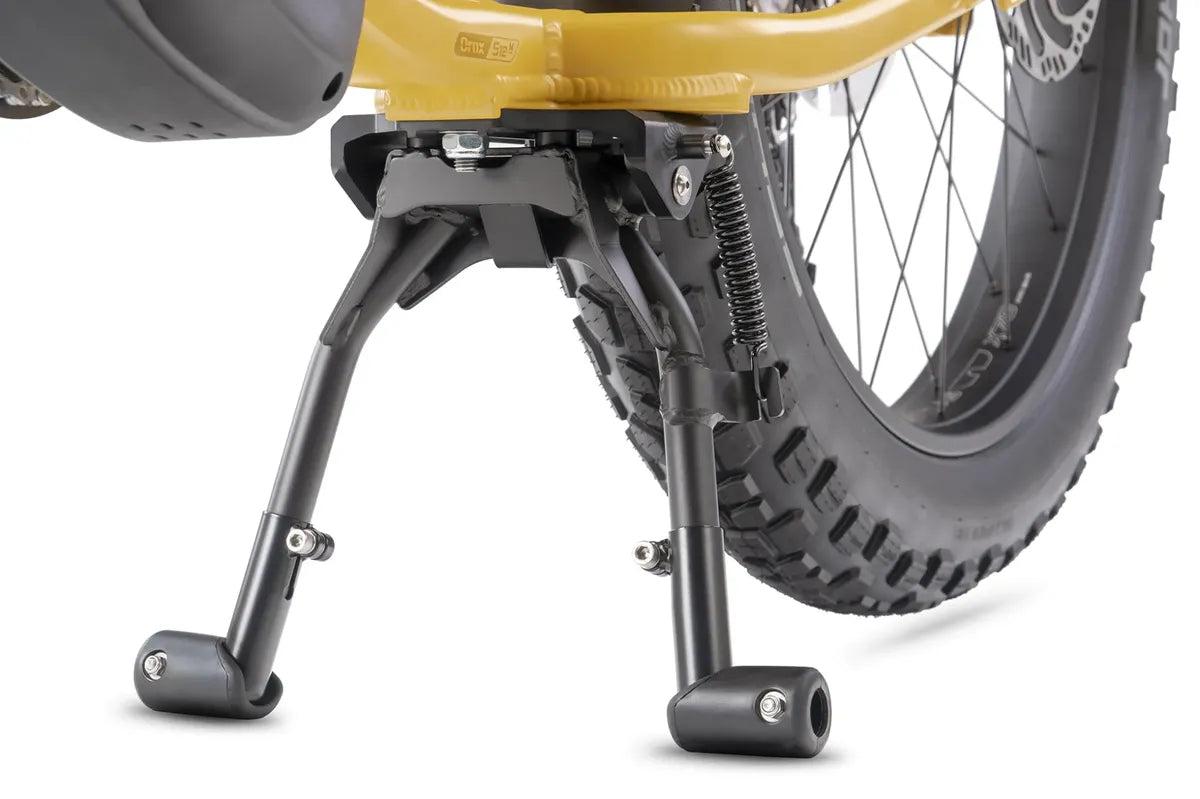

KICKSTAND Atlas Kickstand XL Cargo ready

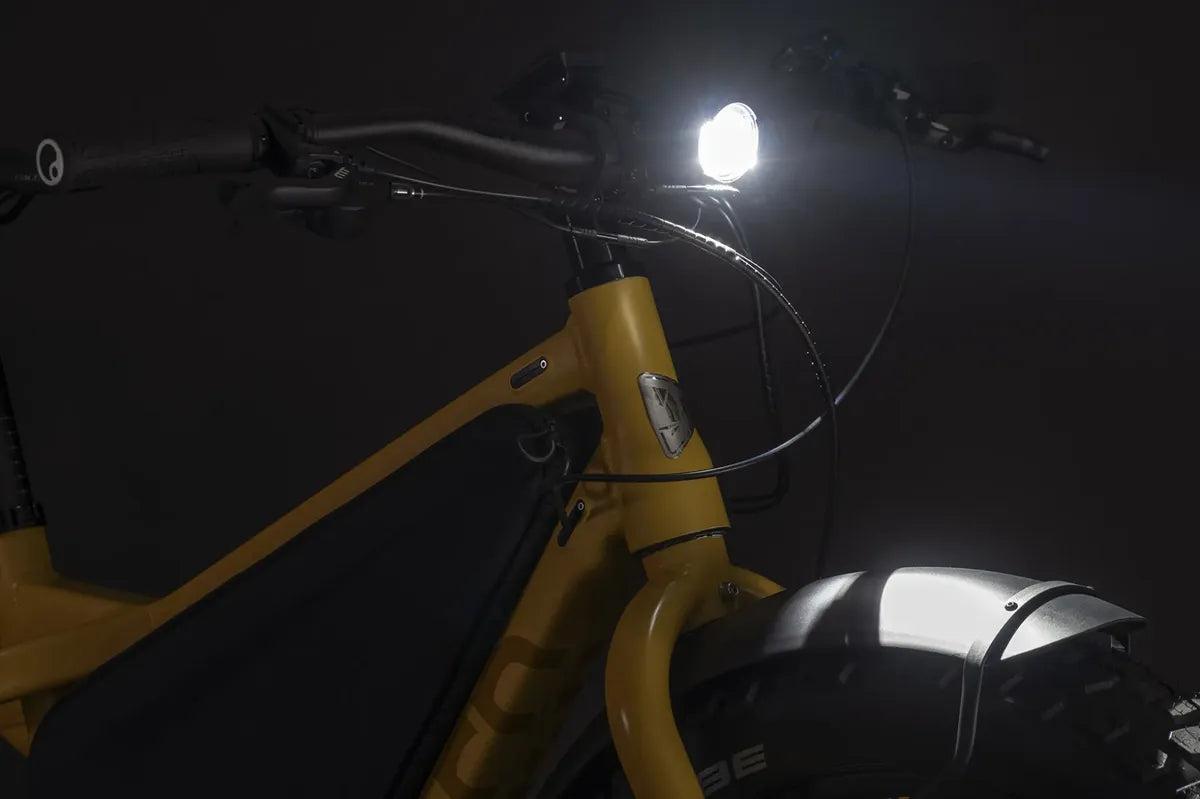

FRONT LIGHT Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
REAR LIGHT LED w/ G-Sensed Brake Light
FENDERS Aluminum, heavy duty construction, oversize stays, 27.5"

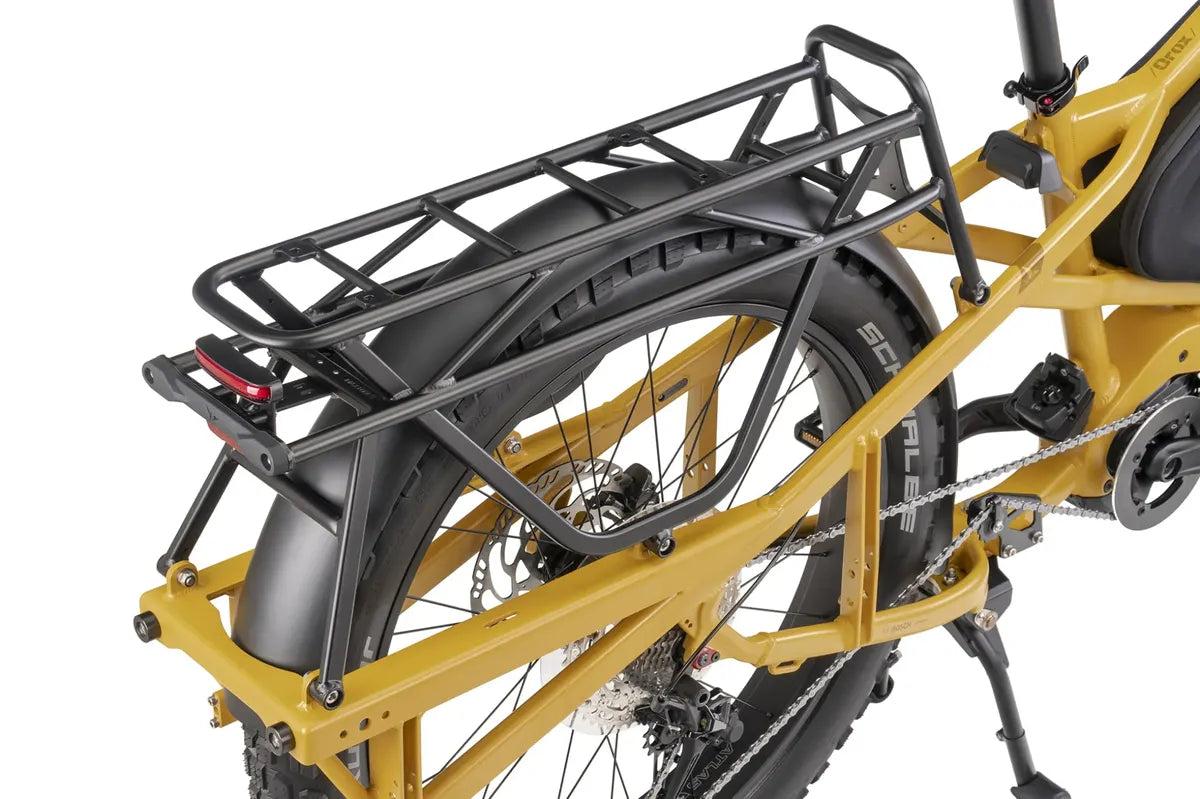

RACK(S) Atlas X, 100 kg (220 lb) capacity
